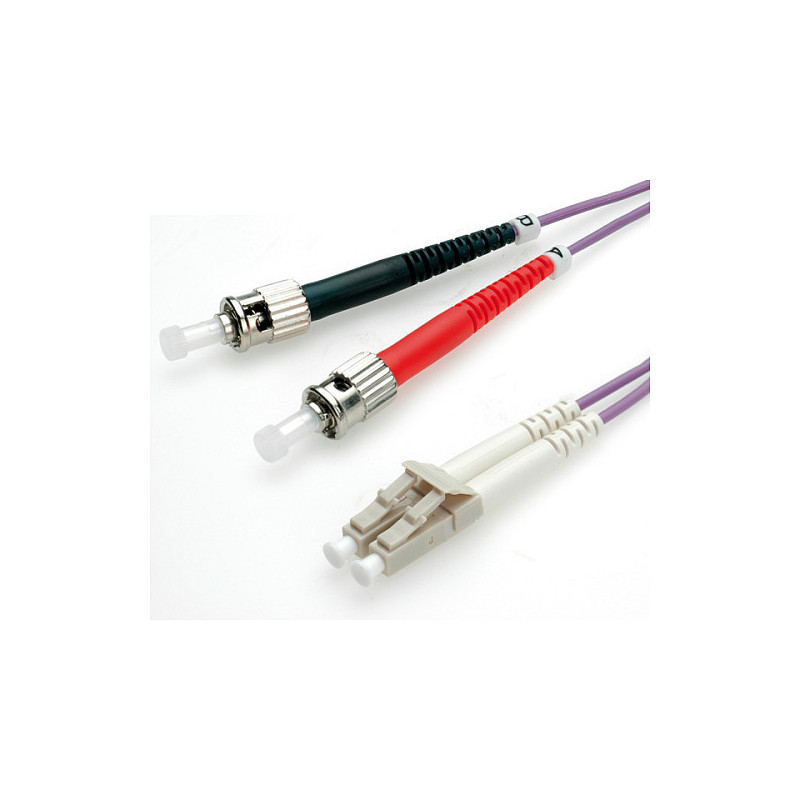

VALUE 21998771 InfiniBand / fiber optic cable

VALUE Fibre Optic Jumper Cable, 50/125µm, LC/ST, OM4, purple 1.0 m. Cable length: 1 m, Fibre optic type: OM4, Connector 1: LC, Connector 2: ST, Core diameter: 50 µm, Full duplex

OM4 fiber for existing 1 and 10 Gbit/s applications as well as future 40 and 100 Gbit/s systems. Allows extended reach upwards of 550 meters at 10 Gbit/s for ultra long building backbones and medium length campus backbones. With an laser bandwidth of 4700 MHz-km (more than double the IEEE requirement for 10 Gbit/s 300 meter support), the OM4 fiber is also especially well suited for shorter reach in data centers and high performance computing applications.

Features

Cable length: 1 m
Fibre optic type: OM4
Connector 1: LC
Connector 2: ST
Connector 1 gender: Male
Connector 2 gender: Male
Connector polish type: PC
Product colour: Purple
Feature: Full duplex
Core diameter: 50 µm
Cladding diameter: 125 µm
Insertion loss: 0.3 dB
Jacket material: Low smoke zero halogen (LSZH)

Operational conditions

Operating temperature (T-T): -20 - 70 °C
Storage temperature (T-T): -40 - 80 °C
