VALUE 14.99.3044 KVM extender

VALUE 14.99.3044. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 120 m. Transmitter video port type: HDMI, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. AC adapter output voltage: 5 V, AC adapter output current: 2 A. Transmitter width: 10.3 cm, Transmitter depth: 10.6 cm, Transmitter height: 2.1 cm

Description

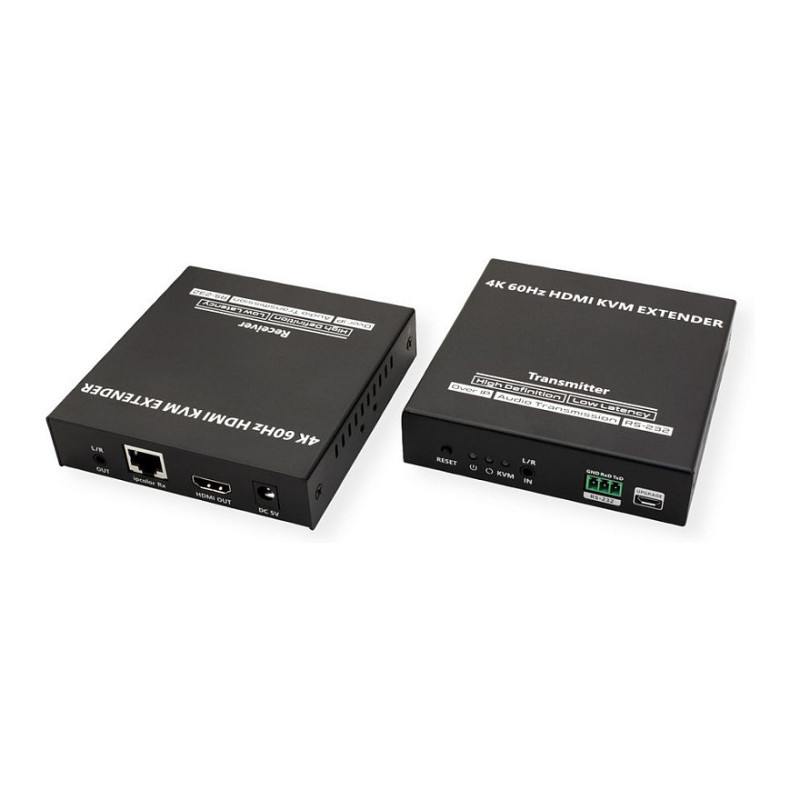

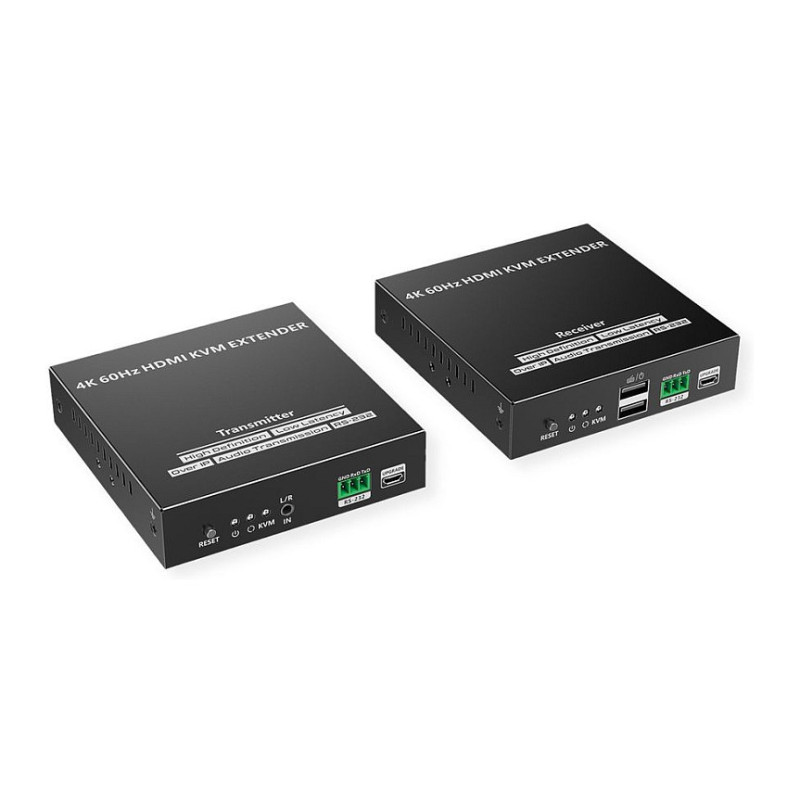

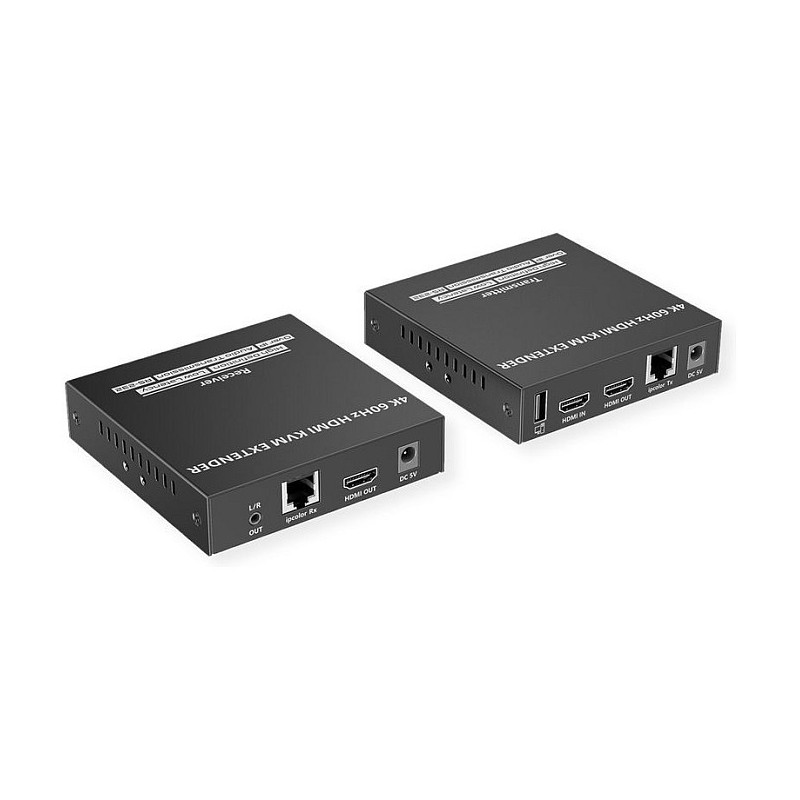

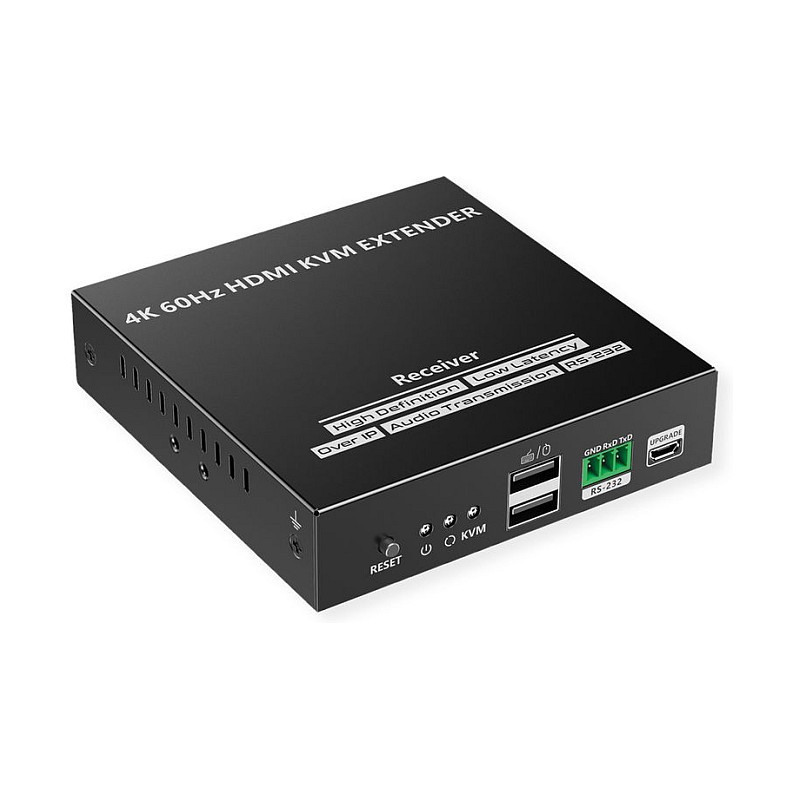

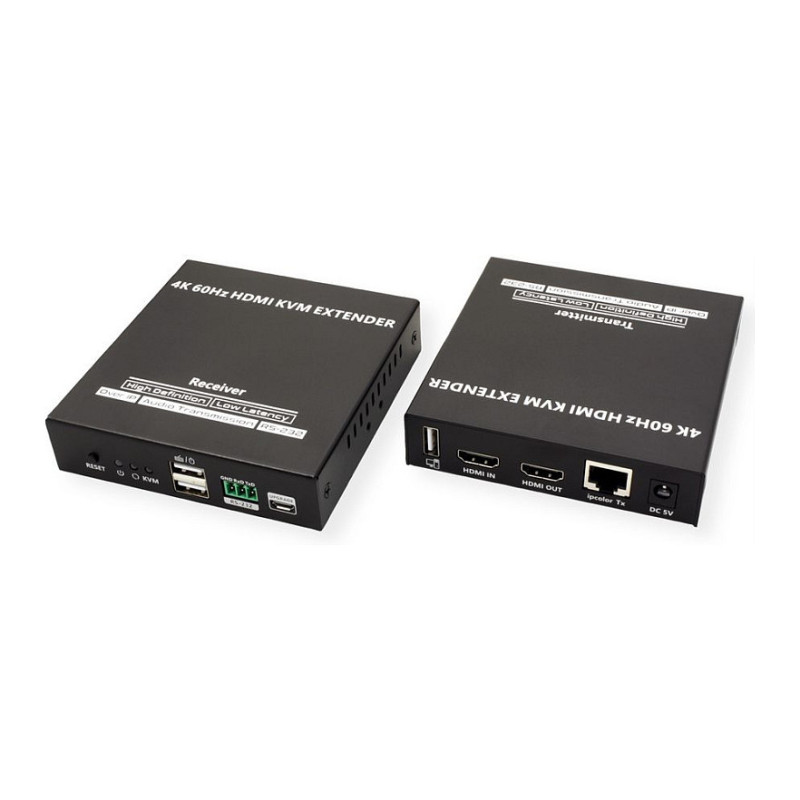

This is a 4K@60Hz HDMI KVM Extender Kit consisting of a transmitter and a receiver using ipcolor STREAM technology for high definition transmission with low latency. The 4K@60Hz HDMI signal can be extended up to 120m via Category 6 and higher network cables, supporting one-to-one connection, one-to-many connection via a gigabit switch and even switch cascading. It also supports HDMI Loop-Out and RS-232 Passthrough and can be used in meetings, home entertainment, educational presentations and other areas.

Features

Type: Transmitter & receiver
Connectivity technology: Wired
Maximum transfer distance: 120 m
Cable types supported: Cat6
Maximum digital resolution: 3840 x 2160 pixels
Maximum refresh rate: 60 Hz
Material: Metal

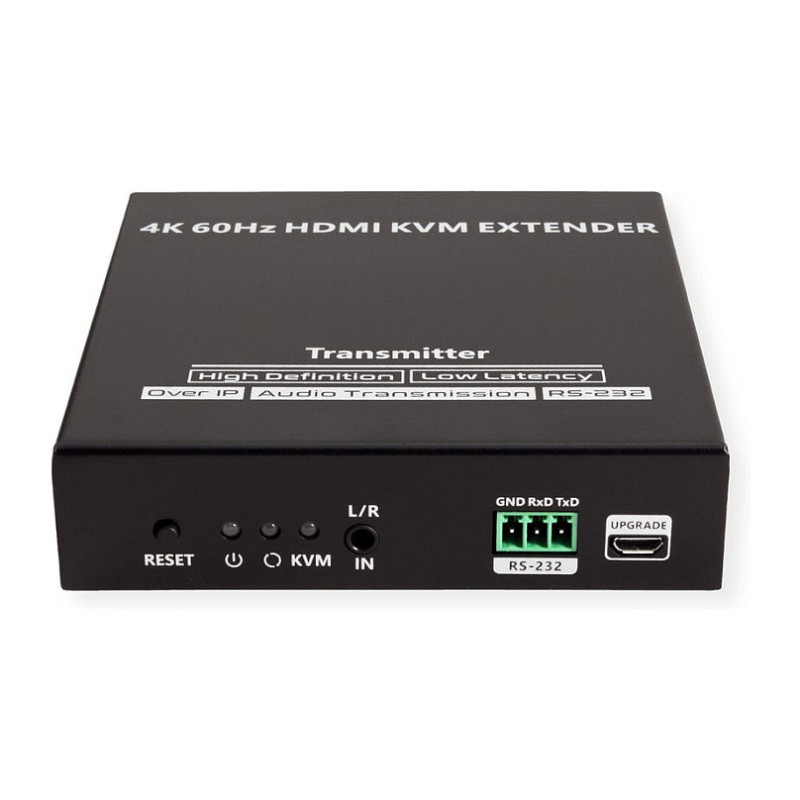

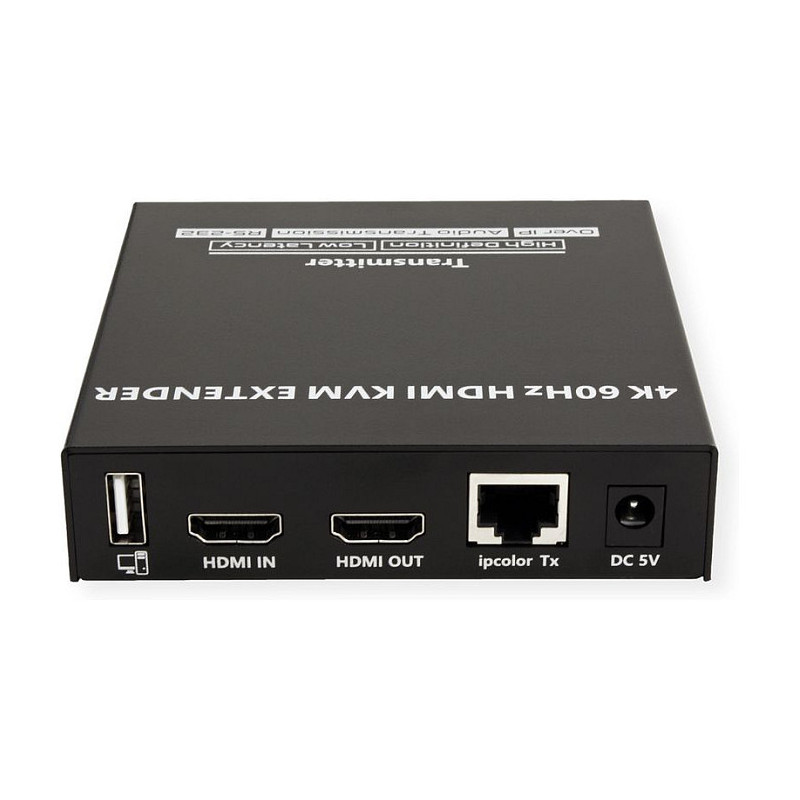

Transmitter

Transmitter video port type: HDMI
Number of displays supported: 1
Transmitter local keyboard/mouse port type: USB
RJ-45 ports quantity (transmitter): 1
Transmitter Micro-USB ports quantity: 1

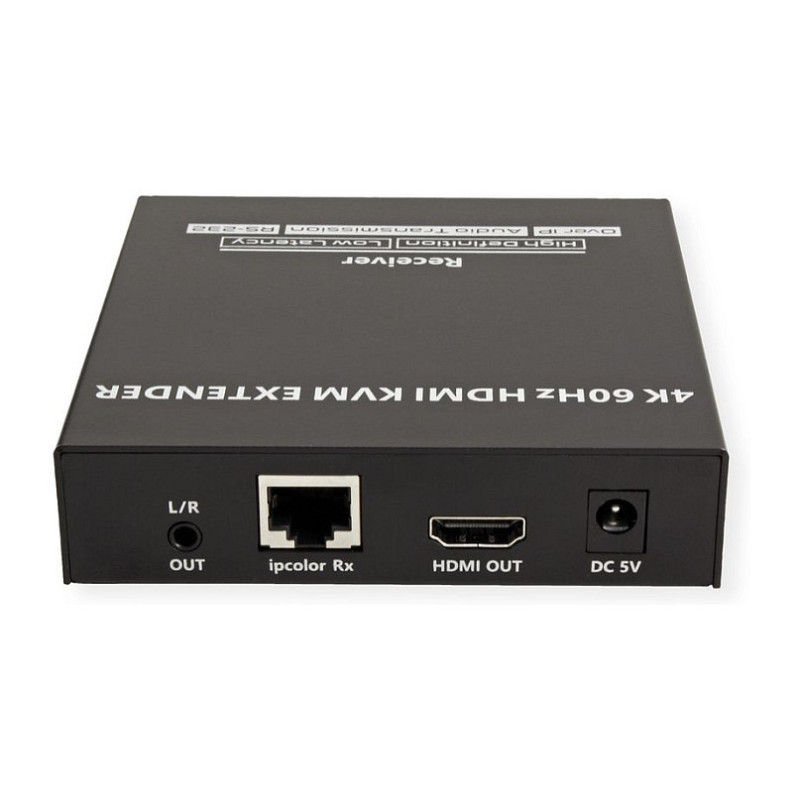

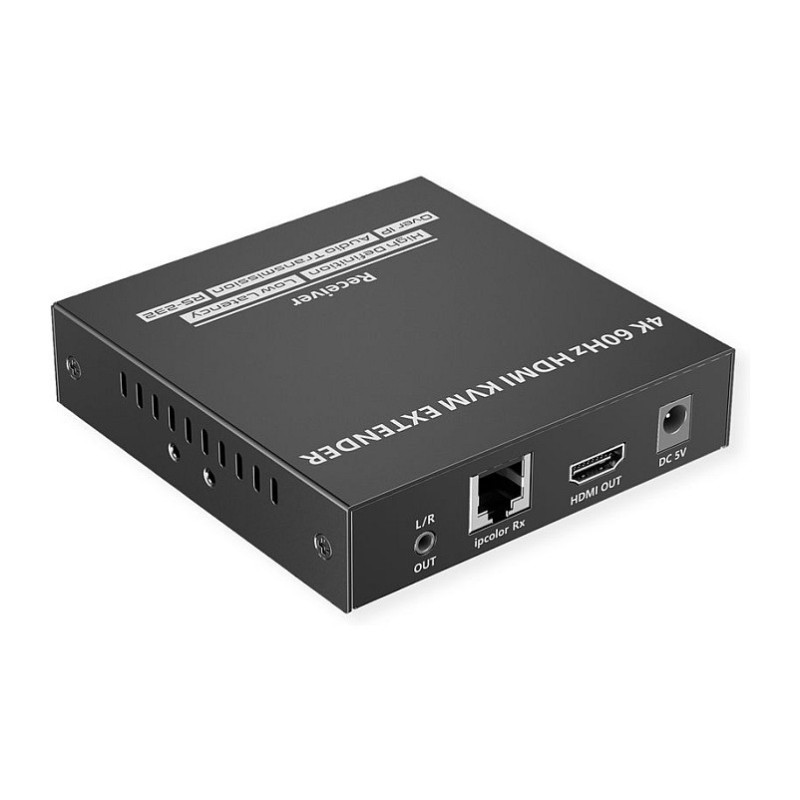

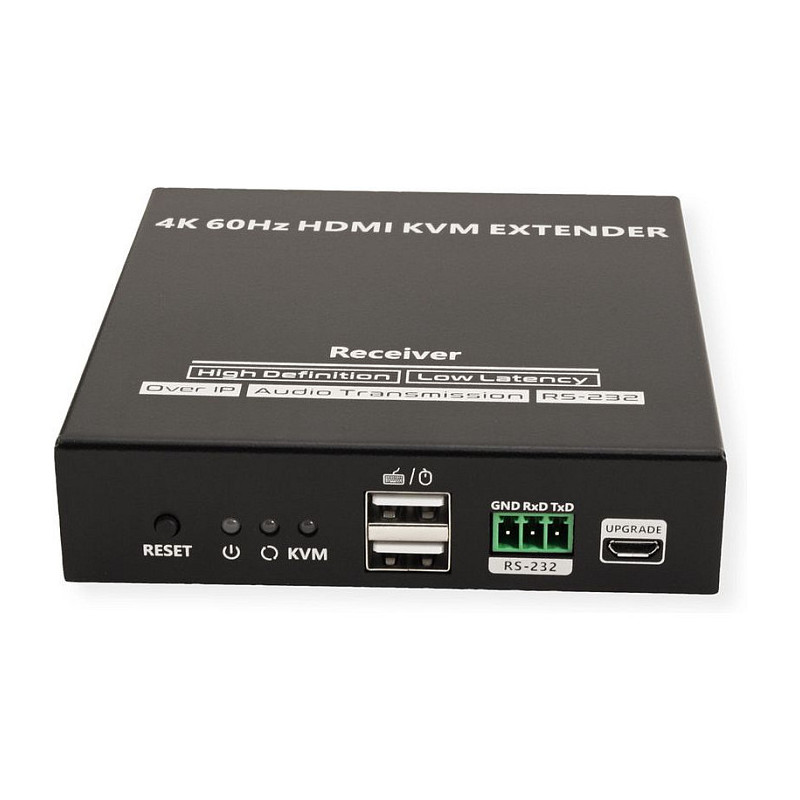

Receiver

Receiver local video port type: HDMI
Receiver local keyboard/mouse port type: USB
RJ-45 ports quantity (receiver): 1
Receiver Micro-USB ports quantity: 1
Receiver USB Type-A ports quantity: 2

Ports & interfaces

RS-232 ports: 1

Power

AC adapter output voltage: 5 V
AC adapter output current: 2 A

Weight & dimensions

Transmitter width: 10.3 cm
Transmitter depth: 10.6 cm
Transmitter height: 2.1 cm
Transmitter weight: 315 g
Receiver width: 10.3 cm
Receiver depth: 10.6 cm
Receiver height: 2.1 cm
Receiver weight: 307 g

Packaging data

Package width: 180 mm
Package depth: 250 mm
Package height: 90 mm
Package weight: 1 kg

Packaging content

Feature: AC adapter included
Cables included: USB
Feature: Manual
Feature: Mounting bracket(s) included

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -30 - 70 °C
