StarTech.com SV565UTPUEU KVM extender

StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft) - TAA. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 150 m. Transmitter video port type: VGA, Transmitter local video port type: VGA. USB port type: USB Type-A. Power plug type: Type M, AC input voltage: 100 - 240 V, Input current: 0.2 A. Transmitter width: 15.5 cm, Transmitter depth: 7.5 cm, Transmitter height: 2 cm

Operate a USB & VGA KVM or PC over 500ft as if it were right in front of you

The SV565UTPUEU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

Features

Type: Transmitter & receiver
Connectivity technology: Wired
Maximum transfer distance: 150 m
Product colour: Black
Feature: Plug and Play
Certification: CE, FCC, RoSH

Transmitter

Transmitter video port type: VGA
Feature: Transmitter local video port
Transmitter local video port type: VGA

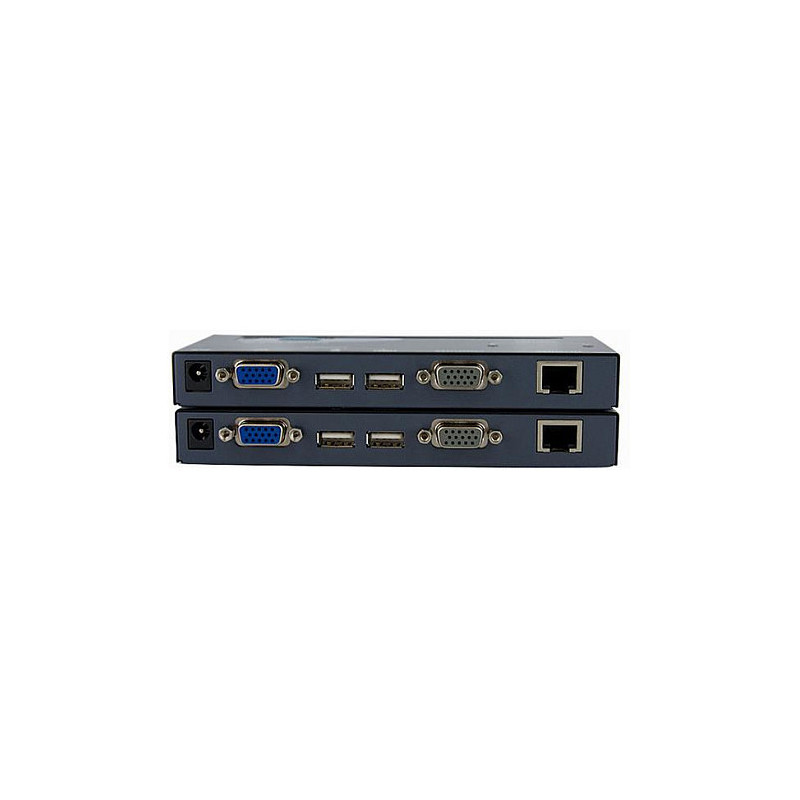

Ports & interfaces

USB port type: USB Type-A
USB 2.0 ports quantity: 4
RJ-45 ports quantity: 2

Power

Power plug type: Type M
AC input voltage: 100 - 240 V
Input current: 0.2 A
AC adapter output voltage: 9 V
AC adapter output current: 0.6 A
Power consumption (transmitter) (max): 5.4 W
Power consumption (receiver) (max): 5.4 W

Weight & dimensions

Transmitter width: 15.5 cm
Transmitter depth: 7.5 cm
Transmitter height: 2 cm
Transmitter weight: 299 g
Receiver width: 15.5 cm
Receiver depth: 7.5 cm
Receiver height: 2 cm
Receiver weight: 299 g

Packaging data

Package width: 253 mm
Package depth: 299 mm
Package height: 86 mm
Package weight: 1.7 kg

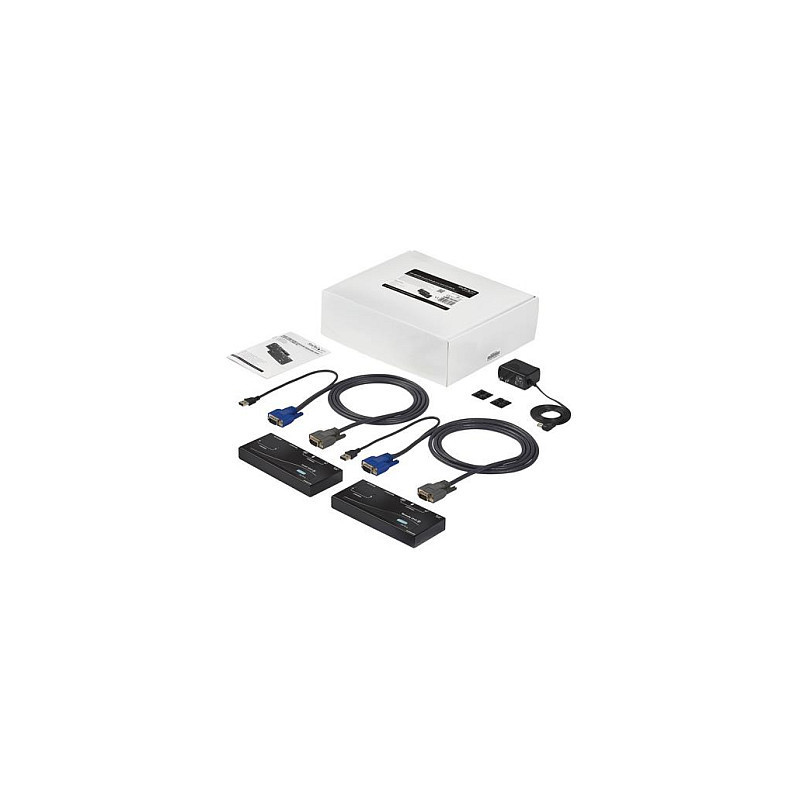

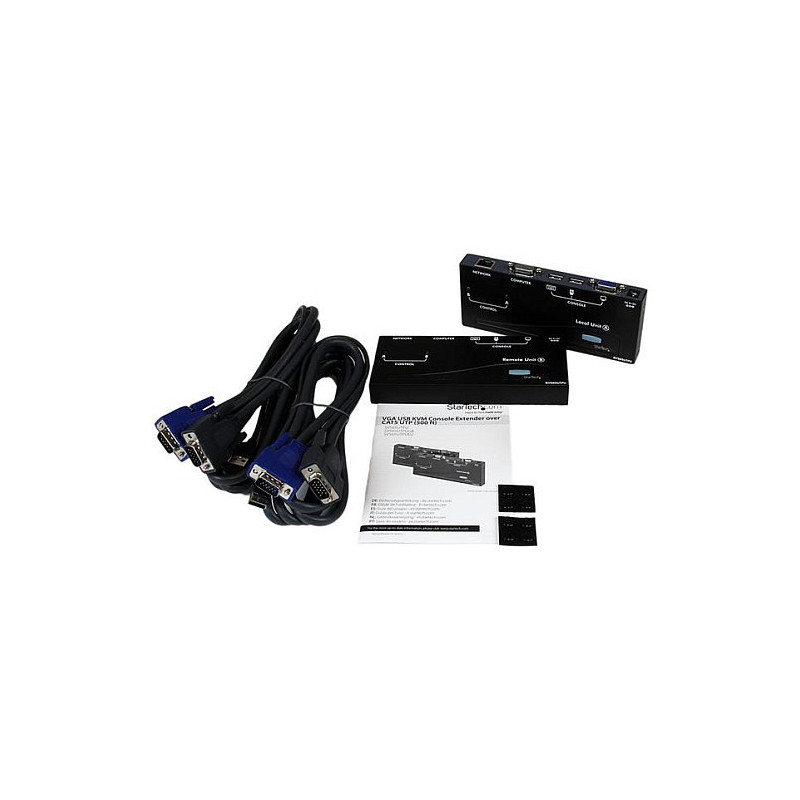

Packaging content

Feature: AC adapter included
Cables included: KVM
Feature: Manual

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Technical details

Maximum resolution: 1280 x 1024 pixels
Power requirements: 230 AC
Weight: 299 g

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 510 mm
Master (outer) case length: 320 mm
Master (outer) case height: 295 mm
Products per master (outer) case: 6 pc(s)
