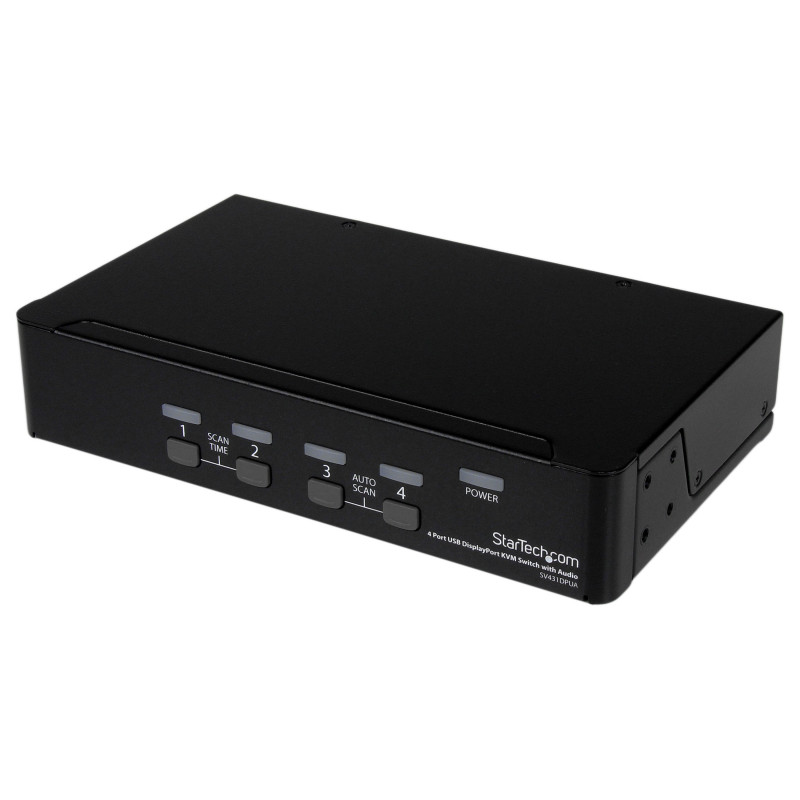

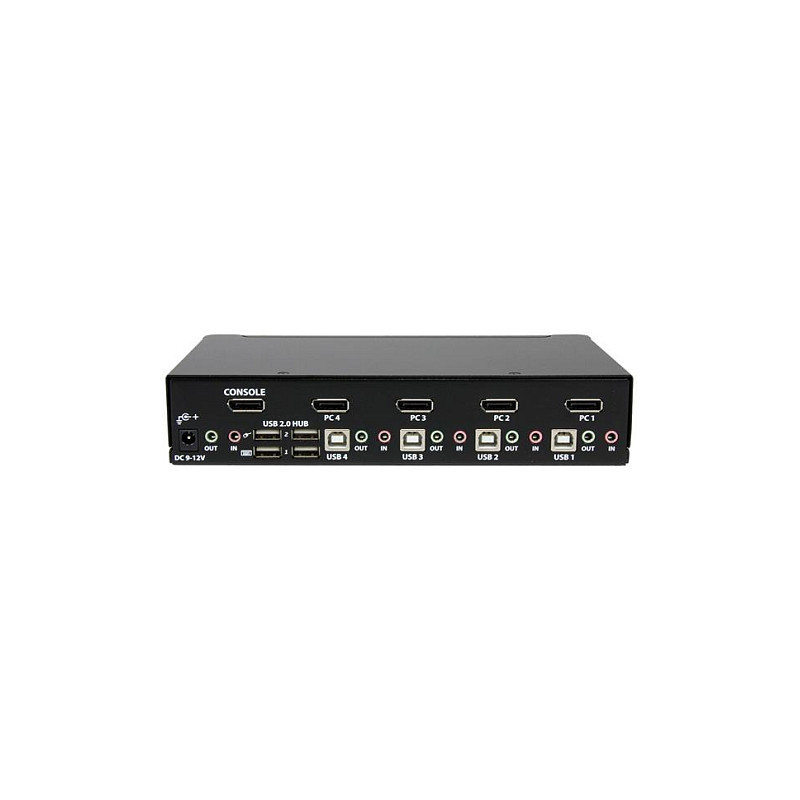

StarTech.com SV431DPUA KVM switch

StarTech.com 4 Port USB DisplayPort KVM Switch with Audio - TAA. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. Maximum resolution: 3840 x 2400 pixels, Maximum digital resolution: 2560 x 1600 pixels, Number of users: 1 user(s). Product colour: Black, Housing material: Steel, Mean time between failures (MTBF): 136000 h. Input voltage: 100 - 240 V, Input current: 0.8 A, Output voltage: 12 V. Compliance certificates: RoHS

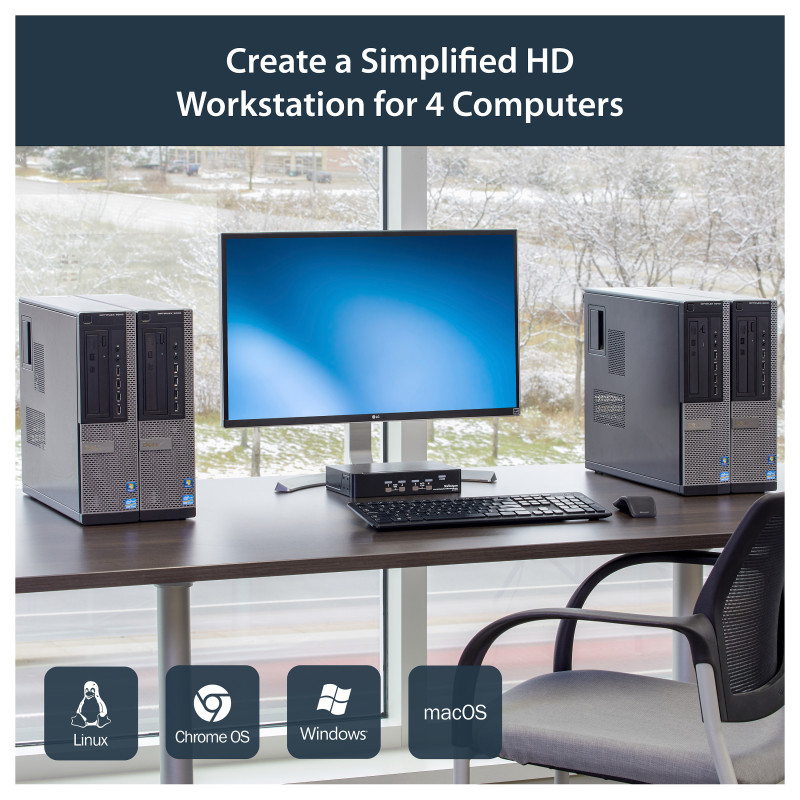

Share keyboard, mouse, and DisplayPort display between four HD multimedia systems

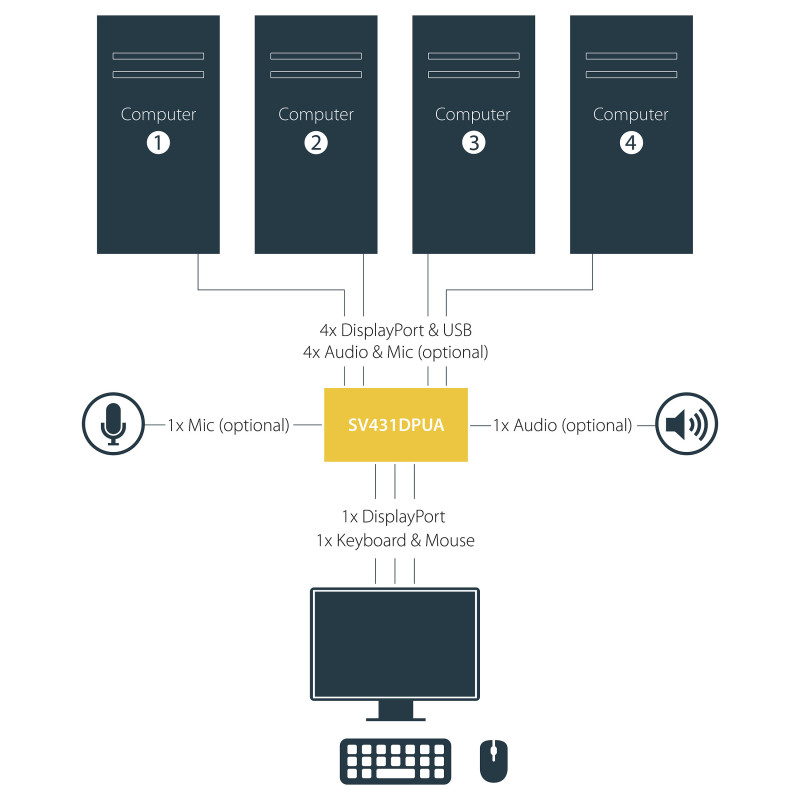

The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.

Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.

Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

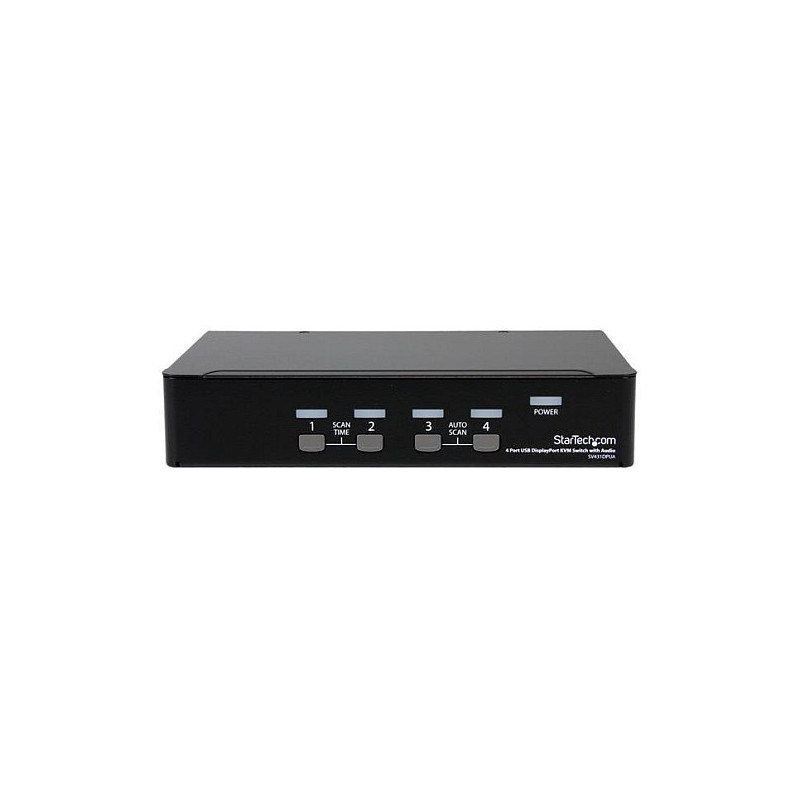

A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Rackmount your KVM switch

If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

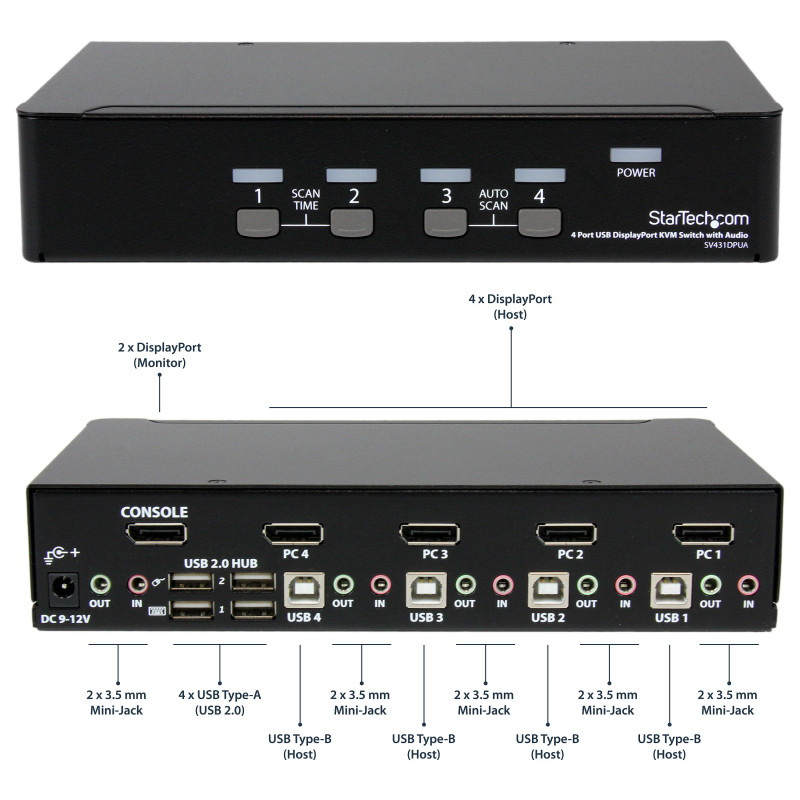

Ports & interfaces

Number of computers controlled: 4
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
Console ports: DisplayPort, 3.5mm headphone, 3.5mm mic, USB A
Console USB ports quantity: 4
Feature: USB hub
Feature: Audio connections
Headphone outputs: 5
Number of microphone inputs: 5
Feature: DC-in jack

Performance

Maximum resolution: 3840 x 2400 pixels
Maximum digital resolution: 2560 x 1600 pixels
Feature: DDC2B support
Feature: Hot-Plug support
Feature: Plug and Play
Number of users: 1 user(s)
Audio channels: 7.1

Design

Product colour: Black
Housing material: Steel
LED indicators: Yes
Feature: Push button
Feature: Hot keys
Mean time between failures (MTBF): 136000 h
Certification: CE, FCC, UL, TAA, REACH

Power

Input voltage: 100 - 240 V
Input current: 0.8 A
Output voltage: 12 V
Output current: 1.5 A
Feature: External power adapter
Power plug type: Type M
Compatible power plug types: AU, EU, UK, US

Sustainability

Compliance certificates: RoHS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

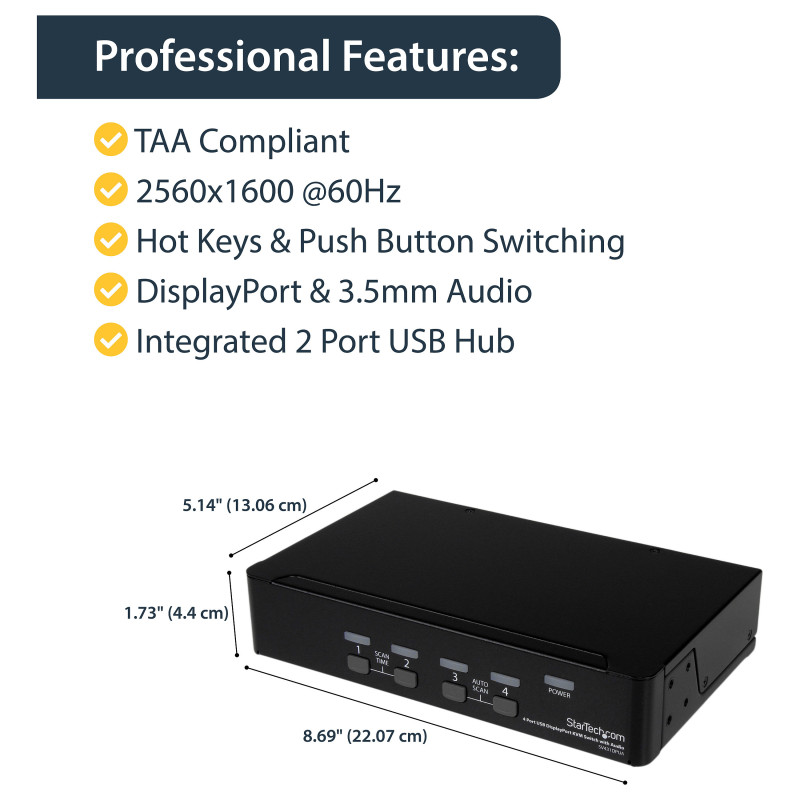

Weight & dimensions

Width: 221 mm
Depth: 130.6 mm
Height: 44 mm
Weight: 1 kg

Packaging data

Package width: 412 mm
Package depth: 214 mm
Package height: 92 mm
Package weight: 1.6 kg

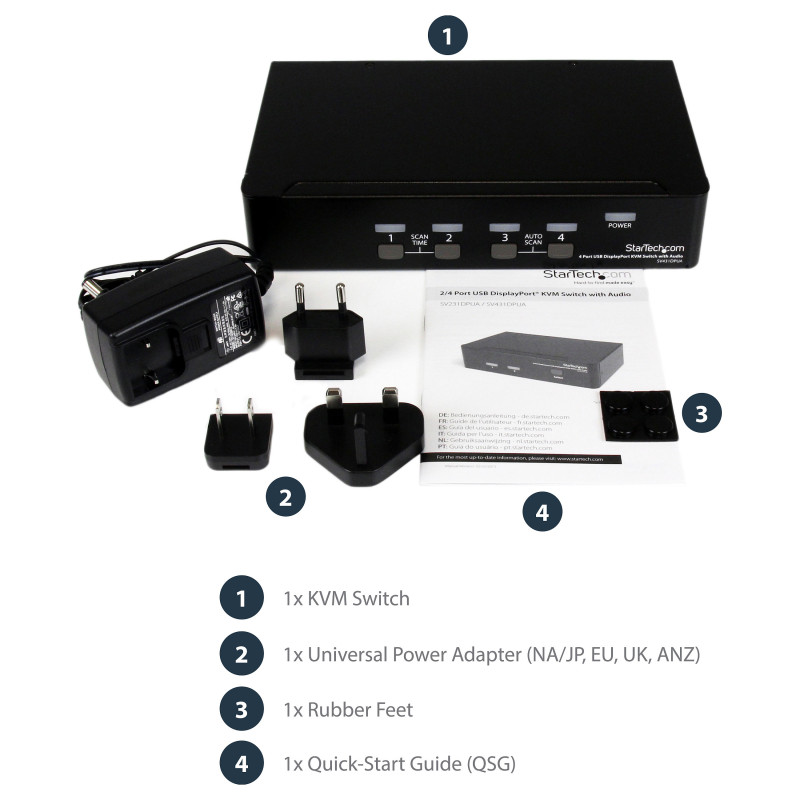

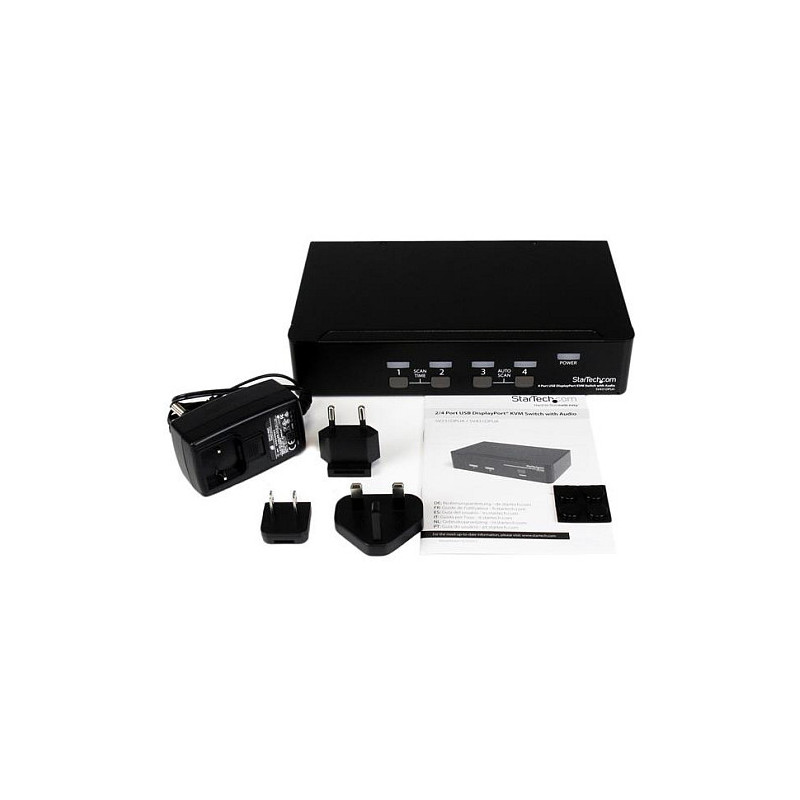

Packaging content

Feature: Manual
Feature: AC adapter included
Feature: Rubber feet

Other features

Feature: Audio support

Logistics data

Harmonized System (HS) code: 85176200
Master (outer) case width: 553 mm
Master (outer) case length: 438 mm
Master (outer) case height: 257 mm
Products per master (outer) case: 6 pc(s)
