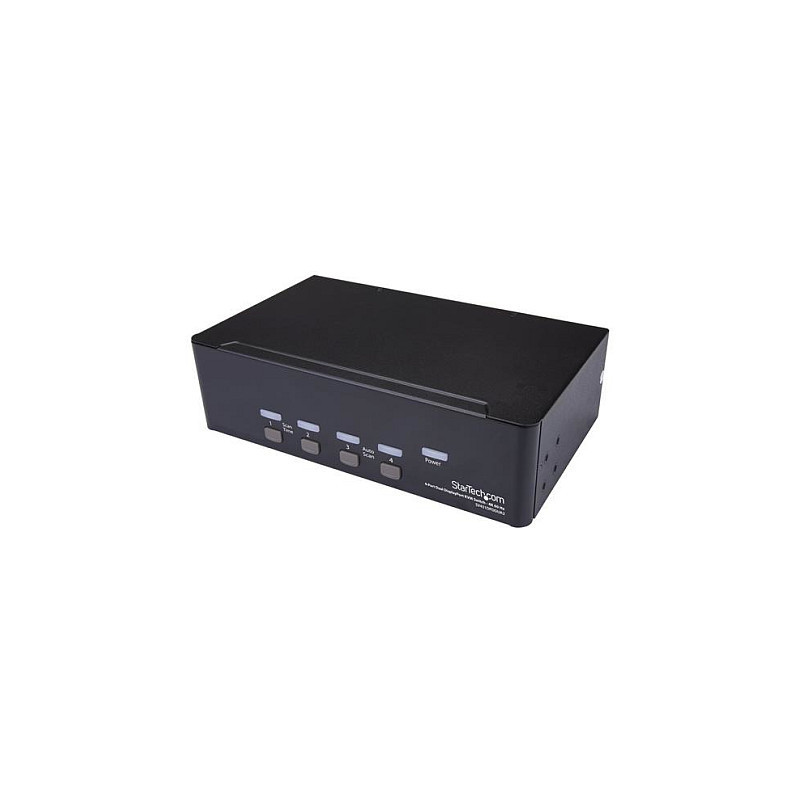

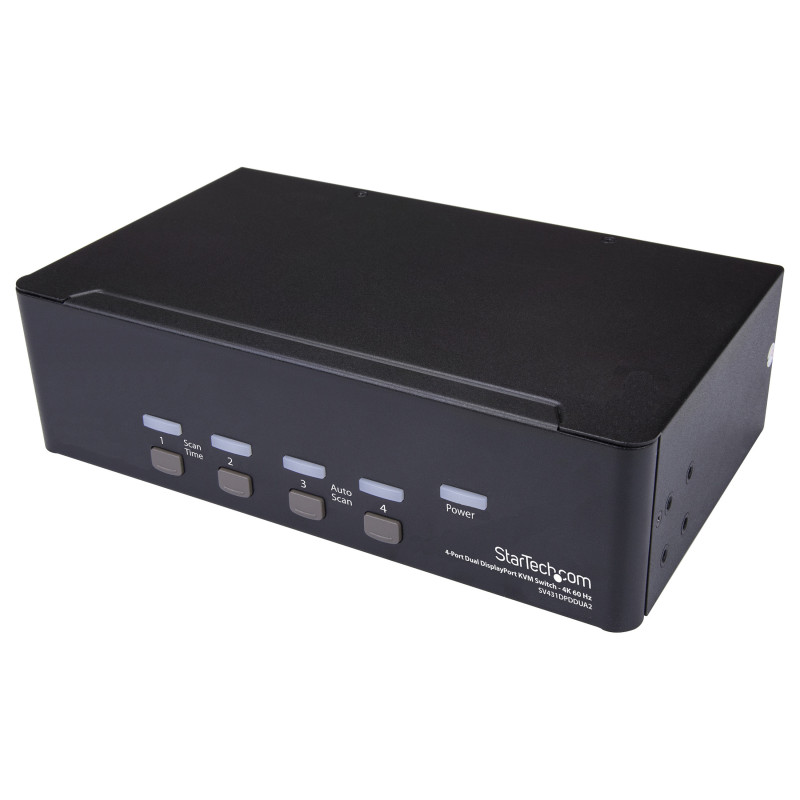

StarTech.com SV431DPDDUA2 KVM switch

StarTech.com 4-Port Dual DisplayPort KVM Switch - 4K 60Hz - TAA. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Data transfer rate (max): 0.5 Gbit/s. Product colour: Black, Rack capacity: 2U, Housing material: Steel. Power source: AC, Input voltage: 100 - 240 V, Input current: 0.6 A. Compliance certificates: RoHS

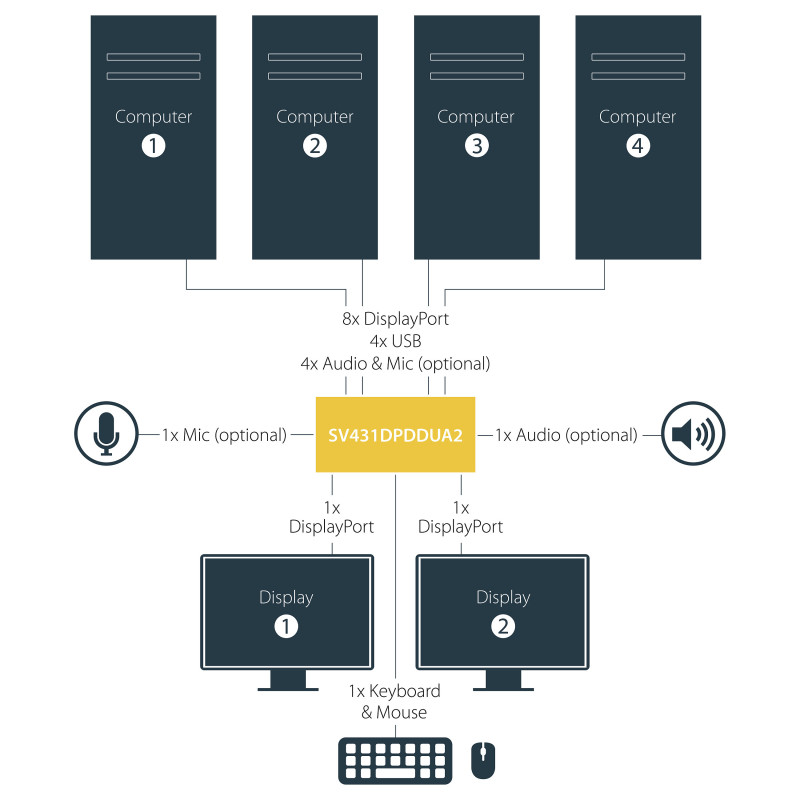

This 4-port Dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and MAC computers
This 4-port dual DP KVM switch combines dual 4K 60Hz displays with KVM switch control of four connected PC and Mac computers. It features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head DP systems.
Maximize productivity with dual video

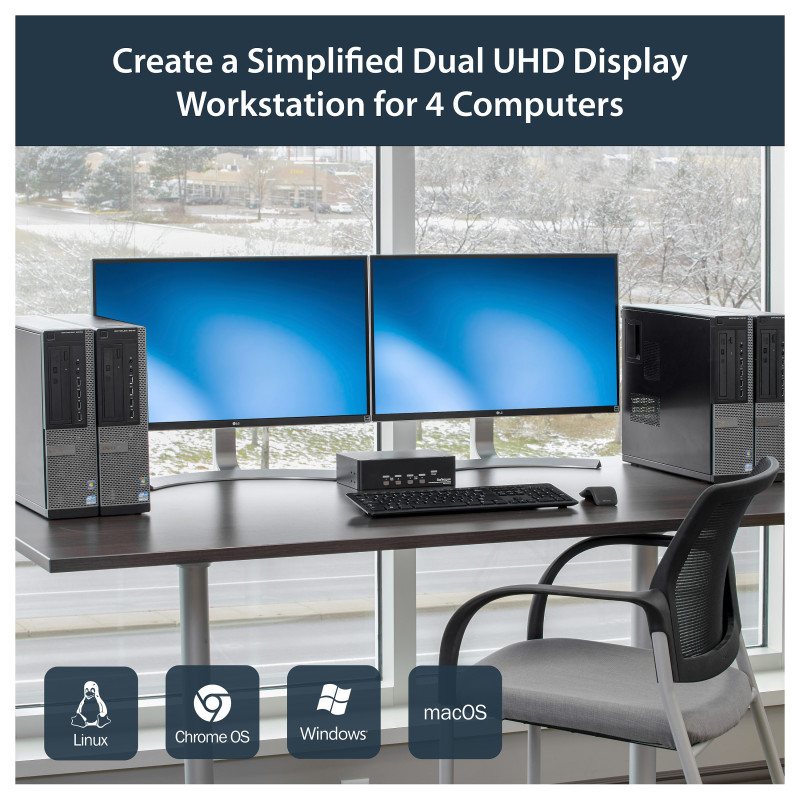

With two DP video inputs and control of four different computers, this Ultra HD KVM switch helps maximize productivity by giving you the freedom to multitask. Each of the DP ports supports resolutions up to 4K 60Hz, for maximum screen viewing space.
Astonishing picture quality
The dual DisplayPort KVM switch supports resolutions up to 4K at 60Hz, and can drive two large DP displays with ease. An ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.
Convenient multimedia and peripheral sharing
The KVM switch features full multimedia control with separate 3.5 mm microphone and speaker ports and two USB ports separate from the HID keyboard and mouse. The independent audio support lets you share independent analog audio from each of your connected computers, while the 2-port USB hub enables you to share USB peripherals between each connected computer.
The SV431DPDDUA2 is TAA compliant and backed by a 2-year StarTech.com warranty.

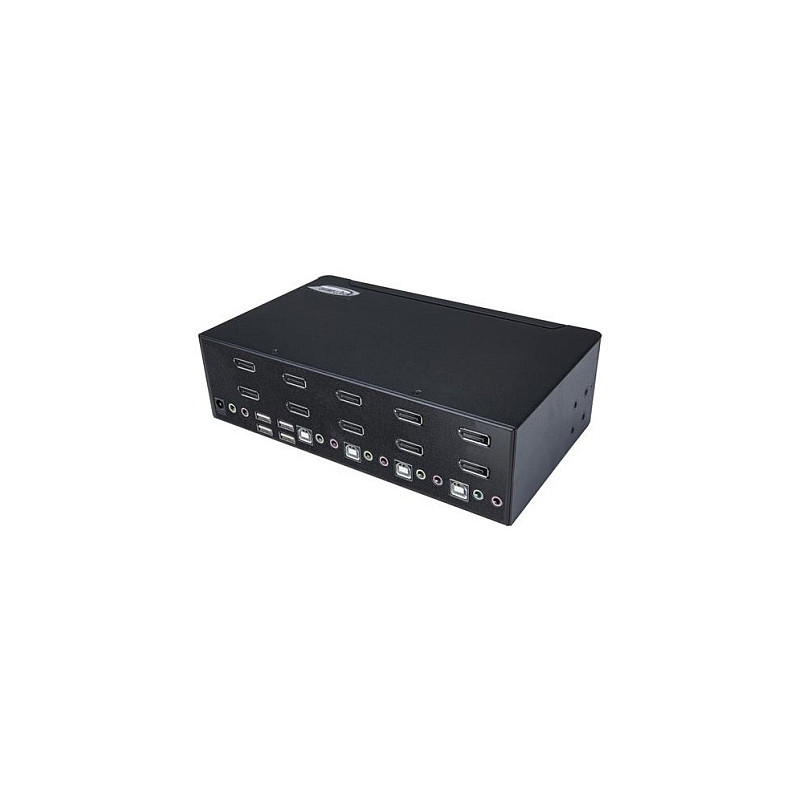

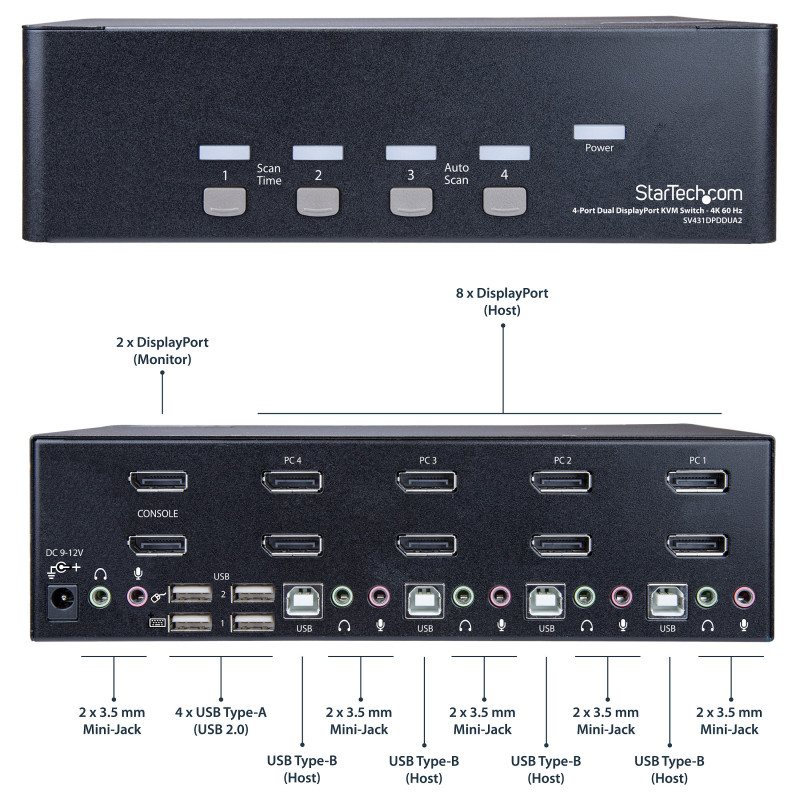

Ports interfaces

Number of computers controlled: 4
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPorts quantity: 10
Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity: 4
USB hub: Yes
USB connector type: USB Type-A
Audio connections: Yes
DC-in jack: Yes

Performance

HD type: 4K Ultra HD
Maximum resolution: 3840 x 2160 pixels
Data transfer rate (max): 0.5 Gbit/s
Scan interval: 3,8,15,30 s
Daisy chain: No

Design

Rack mounting: Yes
Rack capacity: 2U
Product colour: Black
Housing material: Steel

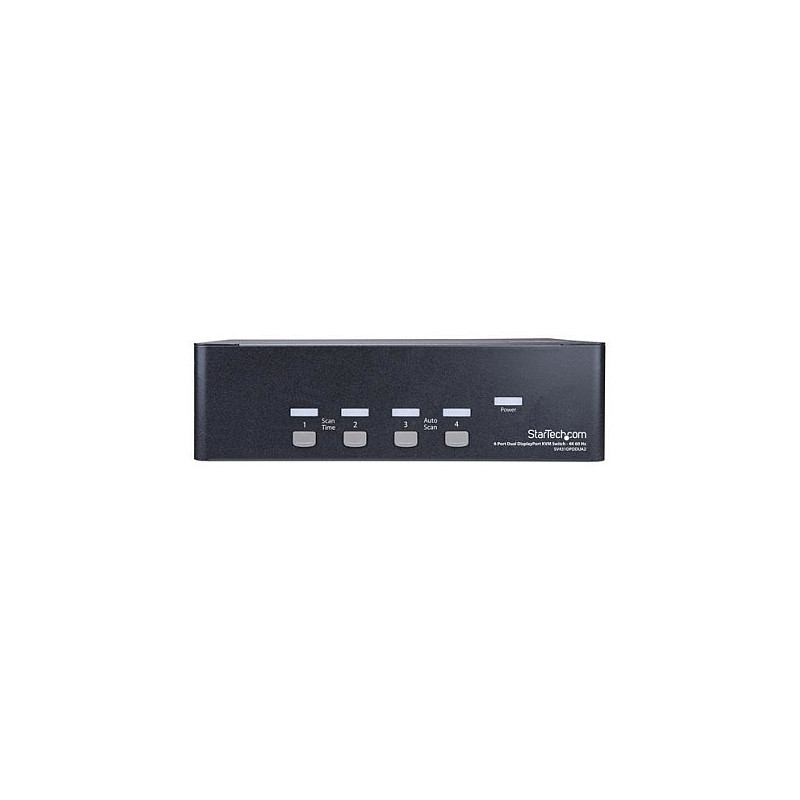

LED indicators: Power
Hot keys: Yes
Mean time between failures (MTBF): 142000 h
Certification: CE, FCC, TAA, REACH

Display

Built-in display: No

Power

Power source: AC
Input voltage: 100 - 240 V
Input current: 0.6 A
Output voltage: 12 V
Output current: 1.5 A
Power consumption (typical): 18 W
External power adapter: Yes
Power plug type: Type M
Compatible power plug types: AU, EU, JP, UK, US

Sustainability

Compliance certificates: RoHS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 0 - 80%

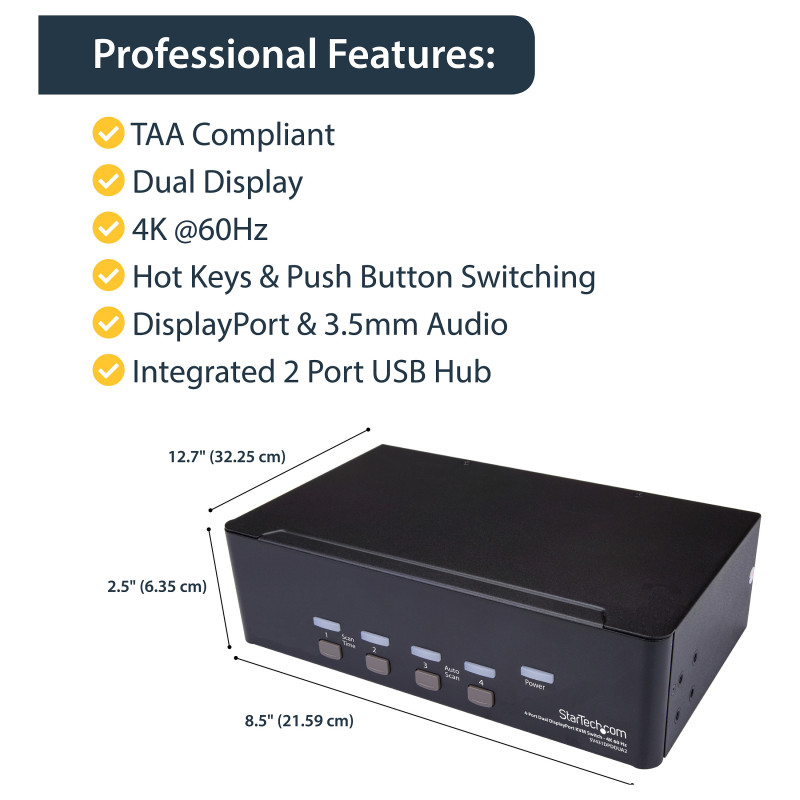

Weight dimensions

Width: 216 mm
Depth: 127 mm
Height: 63 mm
Weight: 1.2 kg

Packaging data

Package width: 244 mm
Package depth: 296 mm
Package height: 86 mm
Package weight: 1.8 kg

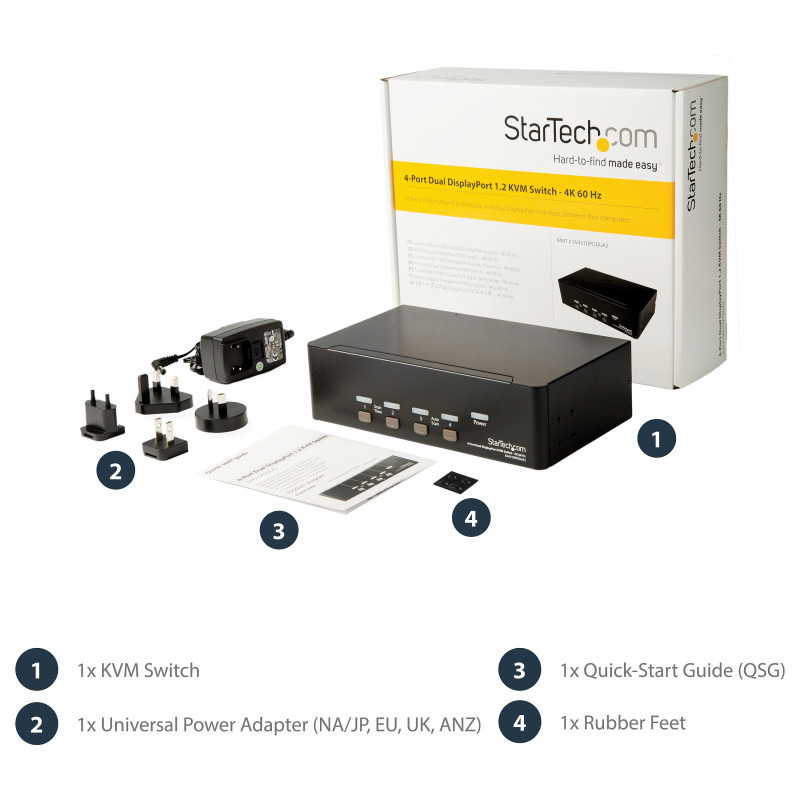

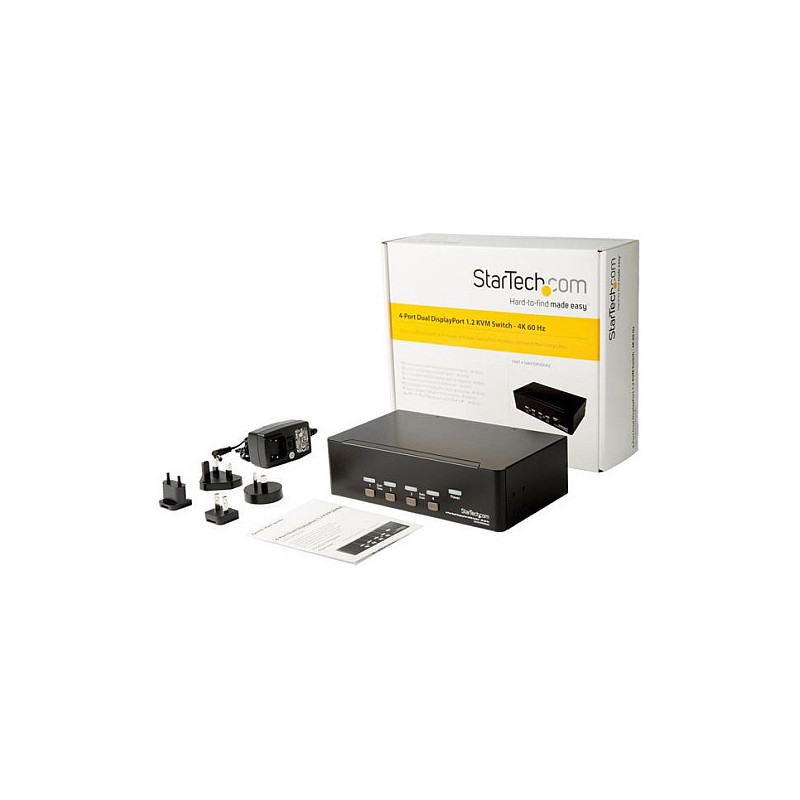

Packaging content

Quick installation guide: Yes
Rubber feet: Yes

Other features

Audio support: Yes
IP control: No

Logistics data

Harmonized System (HS) code: 85176200
Master (outer) case width: 514 mm
Master (outer) case length: 321 mm
Master (outer) case height: 299 mm
Products per master (outer) case: 6 pc(s)
