StarTech.com SV231TDPU34K KVM switch

StarTech.com 2 Port Triple Monitor DisplayPort KVM Switch - 4K 60Hz UHD HDR - Desktop DP 1.2 KVM with 2 Port USB 3.0 Hub (5Gbps) & 4x USB 2.0 HID Ports, Audio - Hotkey Switching - TAA. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Steel, Mean time between failures (MTBF): 156000 h. Input voltage: 100 - 240 V, Input current: 1 A, Output voltage: 12 V. Width: 160 mm, Depth: 100 mm, Height: 98 mm

KVM with USB | Triple Monitor | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.

4K 60Hz Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives three large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.

Windows, Mac & Linux Compatible

While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.

Easy to Operate

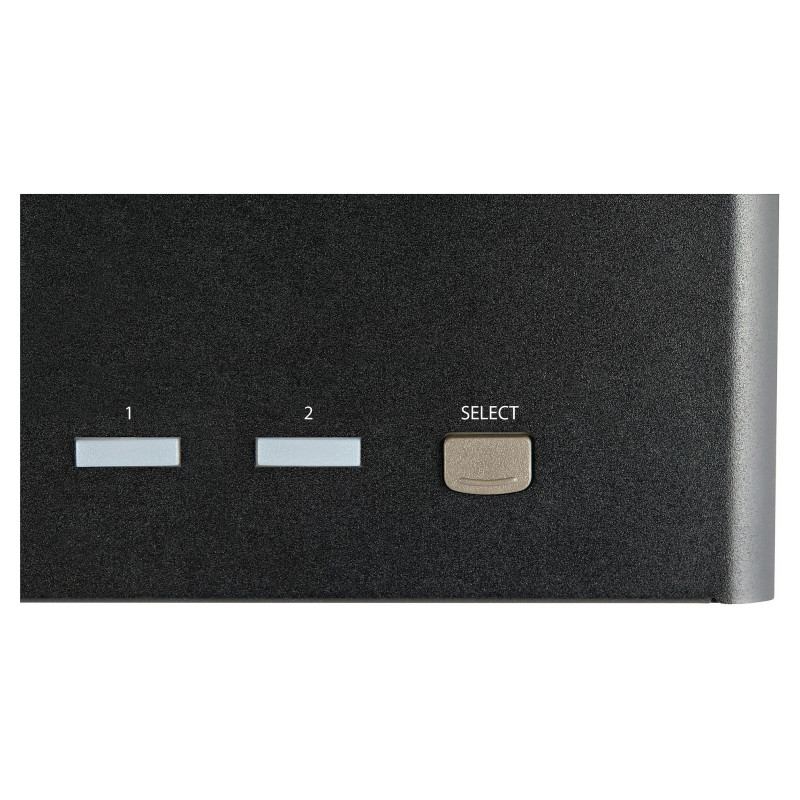

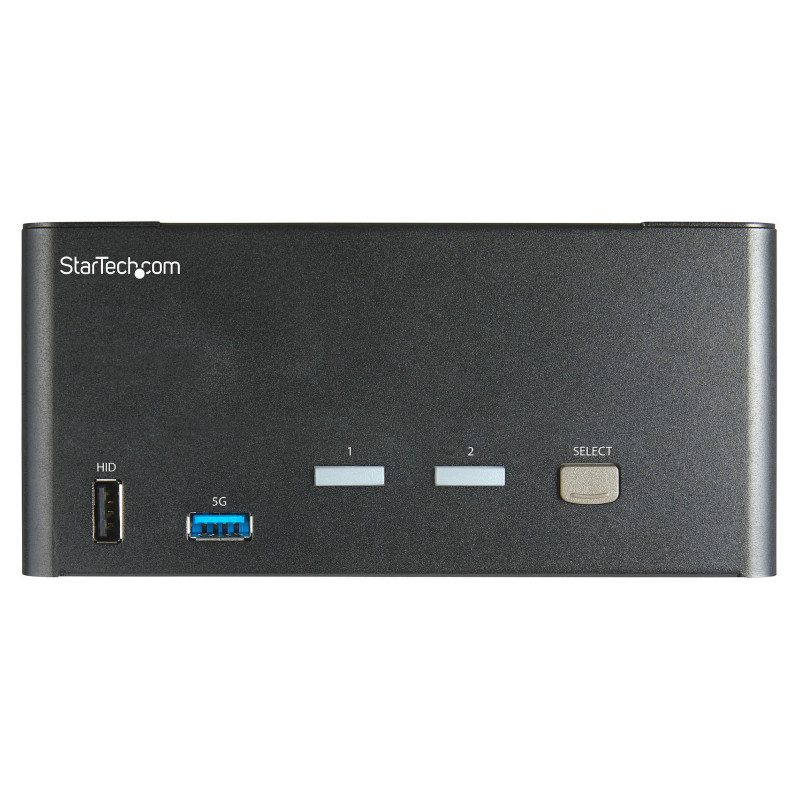

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPorts quantity: 9
DisplayPort version: 1.2
Console ports: 3.5mm headphone, DisplayPort, USB A
Console USB ports quantity: 4
Feature: USB hub
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
Feature: Audio connections
Headphone outputs: 3
Feature: DC-in jack

Performance

HD type: 4K Ultra HD
Maximum resolution: 3840 x 2160 pixels
Video bandwidth: 60 Hz
Scan interval: 3,8,15,30 s
Feature: HDCP
Audio channels: 5.1
Number of displays supported: 3

Design

Product colour: Black
Housing material: Steel
LED indicators: Yes
Feature: Push button
Feature: Hot keys
Mean time between failures (MTBF): 156000 h
Certification: CE, RoHS, FCC

Power

Input voltage: 100 - 240 V
Input current: 1 A
Output voltage: 12 V
Output current: 3 A
Power consumption (typical): 36 W
Power plug type: Type M
Compatible power plug types: AU, EU, JP, UK, US

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 160 mm
Depth: 100 mm
Height: 98 mm
Weight: 850 g

Packaging data

Package width: 187 mm
Package depth: 239 mm
Package height: 96 mm

Packaging content

Feature: Quick installation guide
Feature: Rubber feet

Logistics data

Harmonized System (HS) code: 85176200
Master (outer) case width: 404 mm
Master (outer) case length: 322 mm
Master (outer) case height: 284 mm
Products per master (outer) case: 6 pc(s)
