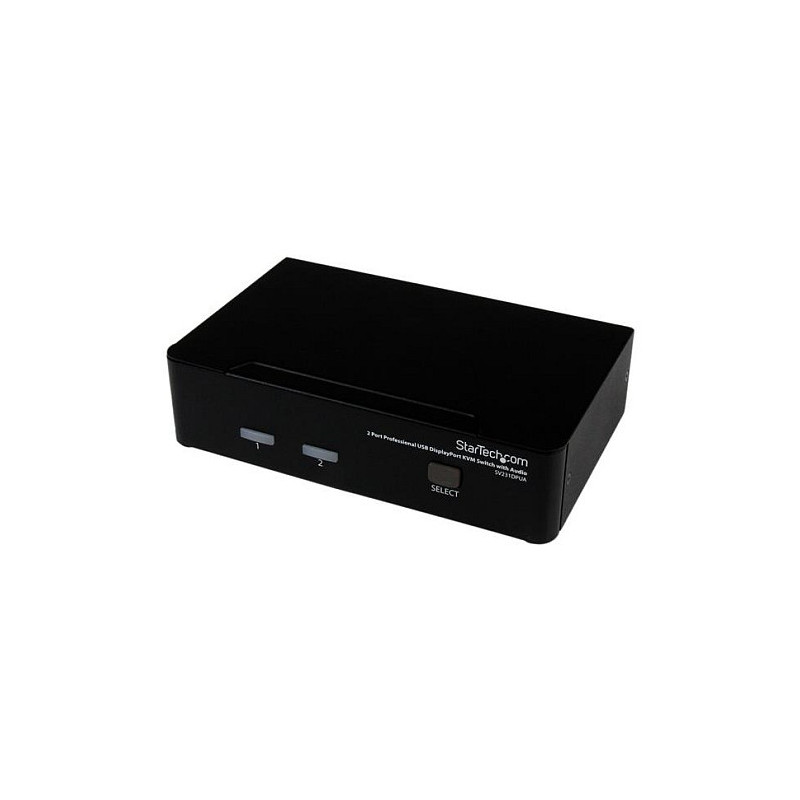

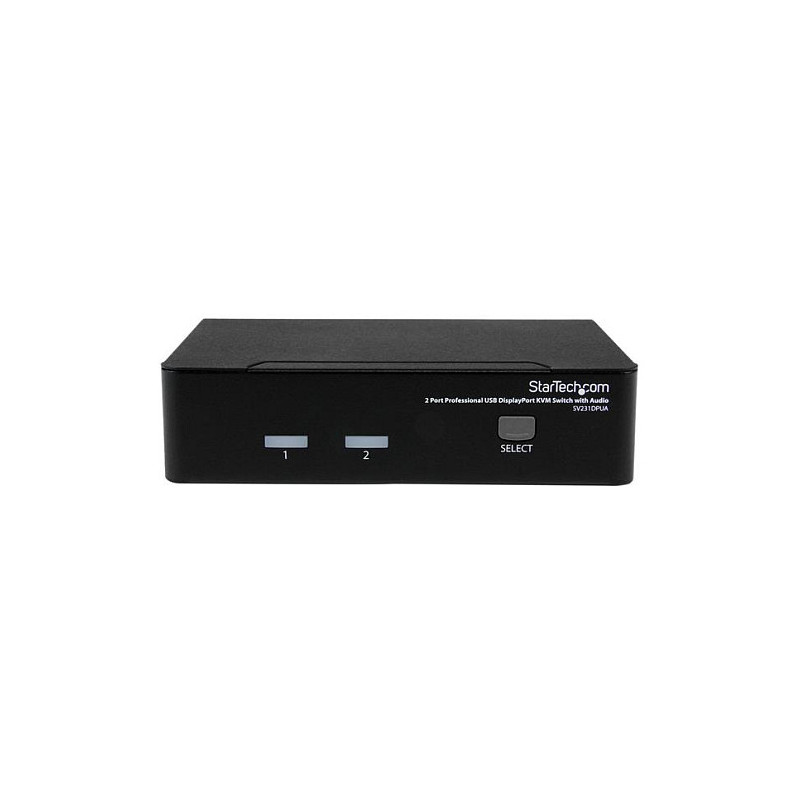

StarTech.com SV231DPUA KVM switch

StarTech.com 2 Port Professional USB DisplayPort KVM Switch with Audio - TAA. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2400 pixels. Product colour: Black, Housing material: Steel, Certification: CE, UL, FCC, REACH. Input voltage: 110 - 240 V, Input current: 0.8 A, Output voltage: 12 V. Compliance certificates: RoHS
Control two computers from a single console, with high-resolution DisplayPort® video, USB keyboard, mouse, and audio
The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.
A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Ports interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPorts quantity: 2

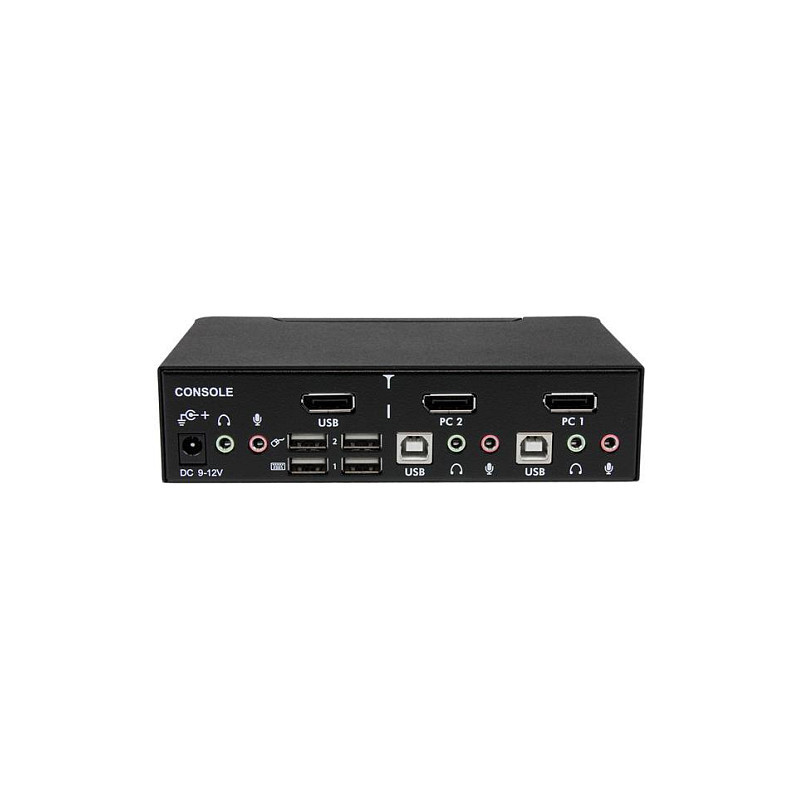

Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity: 4
Feature: USB hub
USB connector type: USB Type-A
Feature: Audio connections
Headphone outputs: 3
Number of microphone inputs: 3
Feature: DC-in jack

Performance

HD type: 4K Ultra HD
Maximum resolution: 3840 x 2400 pixels
Feature: DDC2B support
Feature: Hot-Plug support
Feature: Plug and Play
Audio channels: 7.1

Design

Product colour: Black
Housing material: Steel
LED indicators: Yes
Feature: Push button
Feature: Hot keys
Certification: CE, UL, FCC, REACH

Power

Input voltage: 110 - 240 V
Input current: 0.8 A
Output voltage: 12 V
Output current: 2 A
Power consumption (typical): 24 W
Feature: External power adapter
Power plug type: Type M
Compatible power plug types: AU, EU, UK, US

Sustainability

Compliance certificates: RoHS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight dimensions

Width: 220 mm
Depth: 130 mm
Height: 44 mm
Weight: 1.1 kg

Packaging data

Package width: 256 mm
Package depth: 187 mm
Package height: 99 mm
Package weight: 1.3 kg

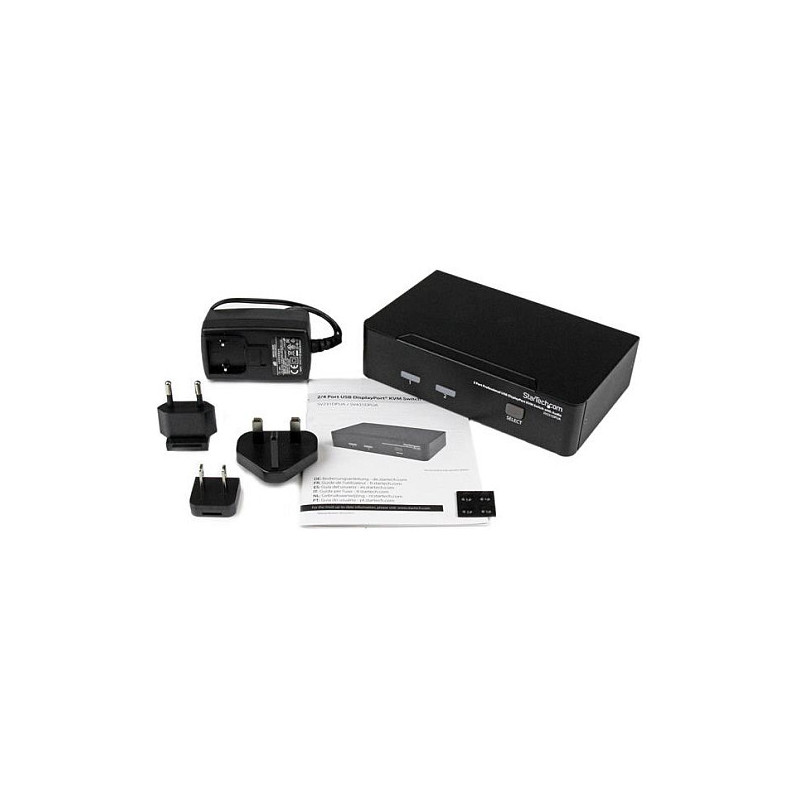

Packaging content

Feature: Manual
Feature: AC adapter included
Feature: Rubber feet

Logistics data

Harmonized System (HS) code: 85176200
Master (outer) case width: 410 mm
Master (outer) case length: 283 mm
Master (outer) case height: 339 mm
Products per master (outer) case: 6 pc(s)
