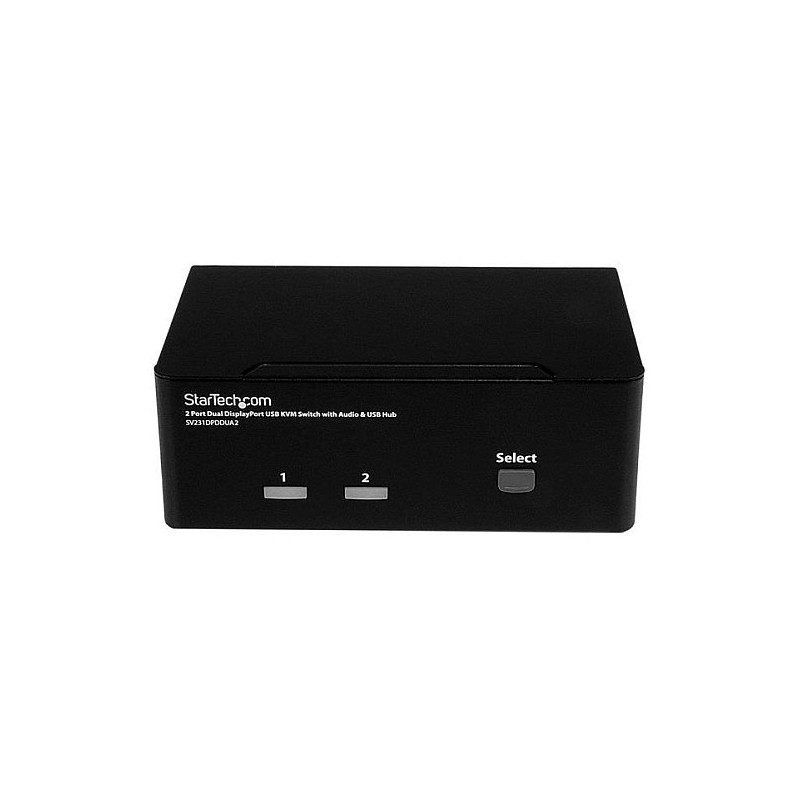

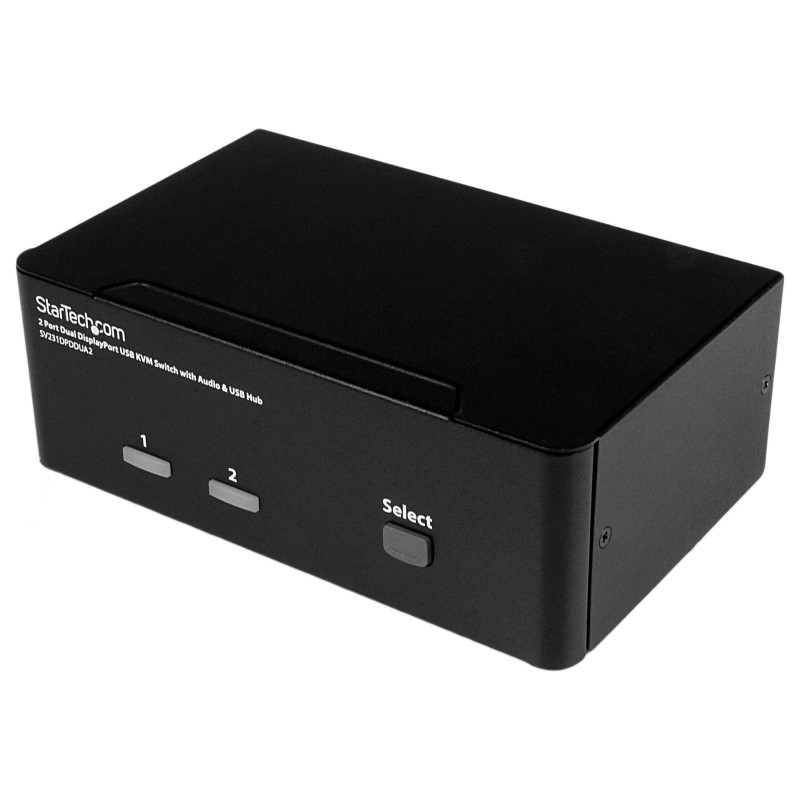

StarTech.com SV231DPDDUA2 KVM switch

StarTech.com 2-Port DisplayPort Dual-Monitor KVM Switch - 4K 60Hz - TAA. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product colour: Black, Certification: CE, FCC, REACH, TAA. Input voltage: 100 - 240 V, Input current: 1.5 A, Output voltage: 12 V. Compliance certificates: RoHS

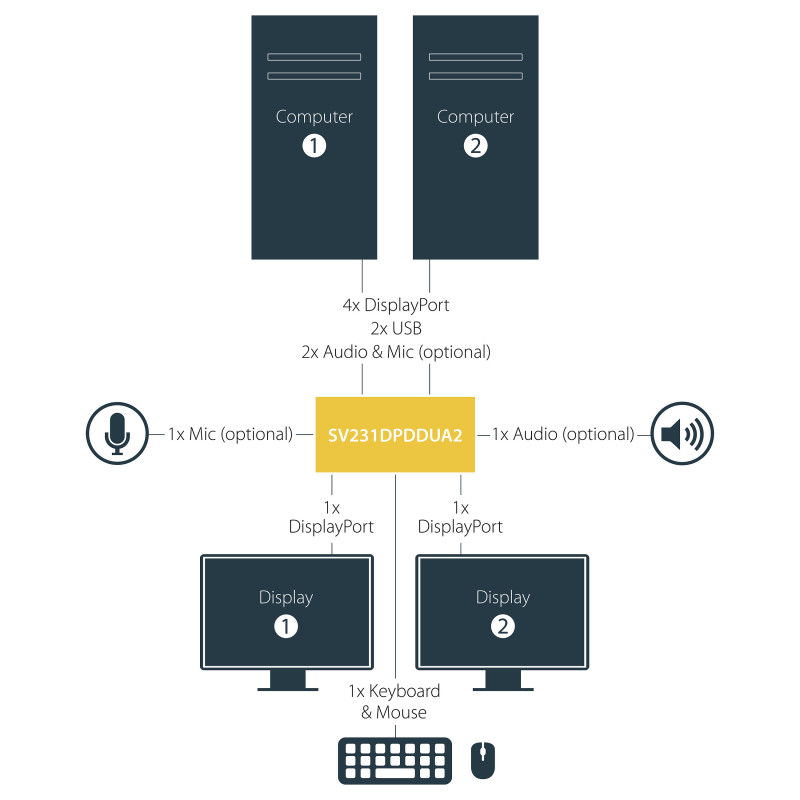

Access two dual-monitor computers and two shared USB peripherals from a single workstation

This dual DisplayPort KVM switch combines next-generation digital display standards with seamless KVM control. The 2-port KVM switch features audio and USB peripheral support along with dual-display capability, which makes it easy to create a multimedia workstation that can switch between two dual-head or twin DisplayPort systems.

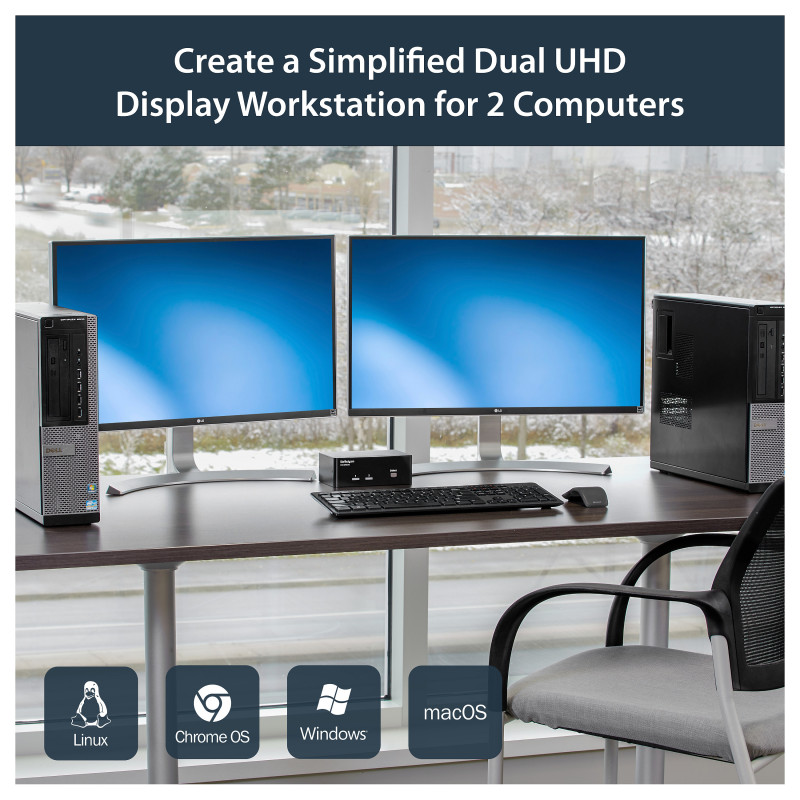

Maximize productivity with dual video

With support for two DisplayPort video inputs and two different computers, this KVM switch helps maximize productivity.You can access multiple computers, giving you the freedom to multitask and increase your productivity. Each of the DP ports supports resolutions up to 4K for maximum screen viewing space.

You can also use low-cost adapters to achieve a dual-monitor setup using your computer's secondary HDMI or DVI port.

Astonishing picture quality

The dual DisplayPort KVM switch supports resolutions up to Ultra HD 4K at 60Hz, and can drive two large DP displays with ease. This makes it the ideal solution for creating workstations where high-quality imaging is critical, such as for graphic design.

Complete multimedia control

The KVM switch features auxiliary 3.5 mm audio ports that let you share independent analog audio, from each of your connected computers, with your desktop speaker set. With independent audio support, along with dual 4K DP video, you get full multimedia control between different computers which makes this the perfect KVM switch for creative professional applications such as video and sound design or editing.

Convenient peripheral sharing

This KVM switch offers a built-in 2-port USB hub that's separate from your HID keyboard and mouse. This enables you to share USB peripherals between each connected computer and avoid the expense of separate equipment. The USB hub automatically switches your connected USB devices to the selected computer, saving you the hassle and cost of outfitting each of your computers with their own peripherals.

The SV231DPDDUA2 is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.

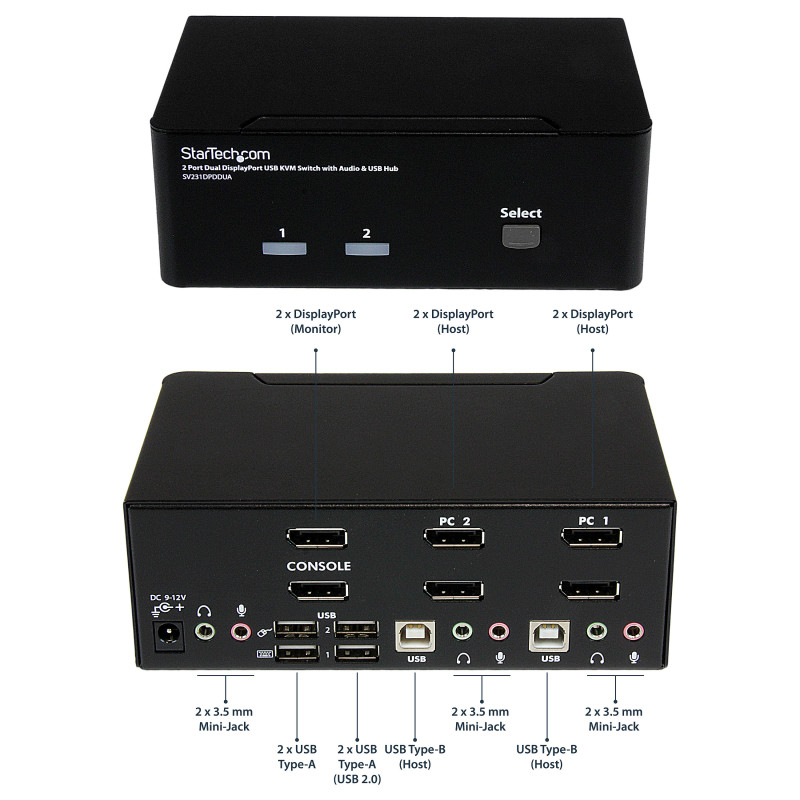

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort

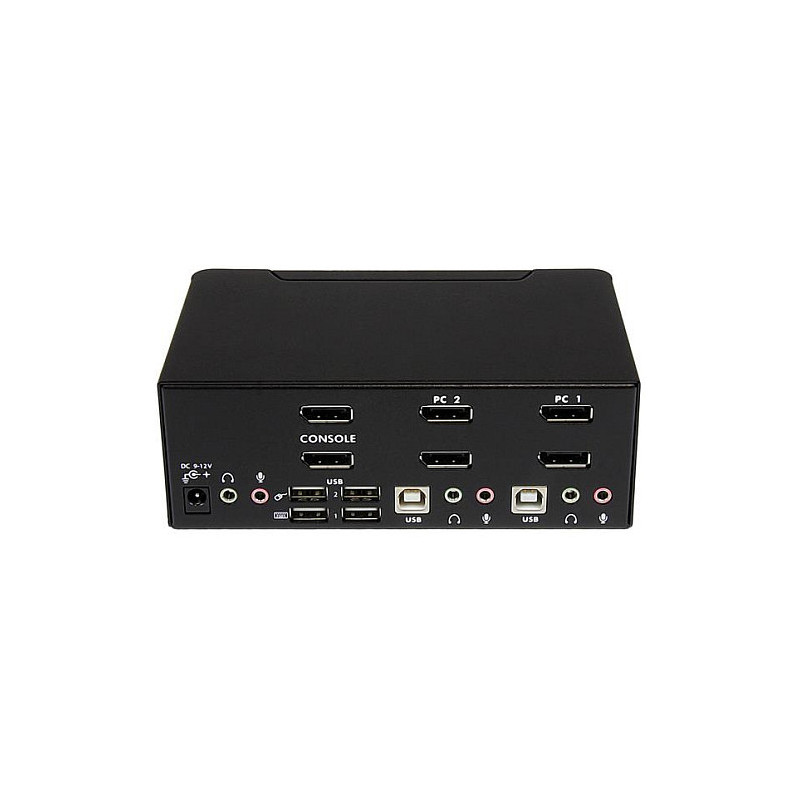

Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity: 4
USB connector type: USB Type-A
Feature: Audio connections
Headphone outputs: 3
Number of microphone inputs: 3
Feature: DC-in jack

Performance

HD type: 4K Ultra HD
Maximum resolution: 3840 x 2160 pixels

Design

Product colour: Black
LED indicators: Yes
Feature: Push button
Feature: Hot keys
Certification: CE, FCC, REACH, TAA

Power

Input voltage: 100 - 240 V
Input current: 1.5 A
Output voltage: 12 V
Output current: 0.6 A
Feature: External power adapter
Compatible power plug types: AU, EU, UK, US

Sustainability

Compliance certificates: RoHS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): 20 - 60 °C
Operating relative humidity (H-H): 0 - 80%

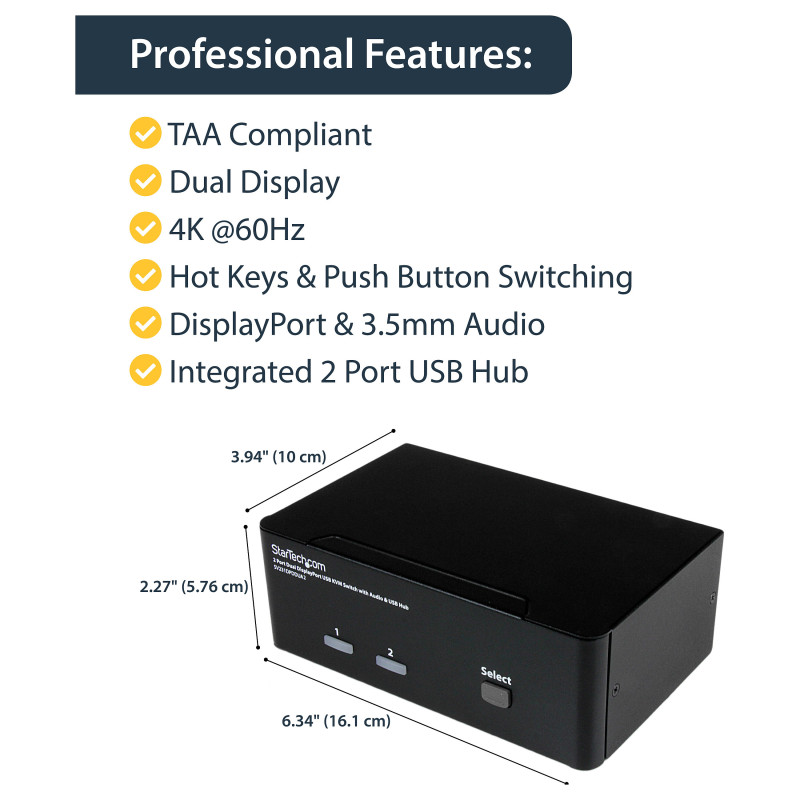

Weight & dimensions

Width: 161 mm
Depth: 58 mm
Height: 100 mm
Weight: 734 g

Packaging data

Package width: 250 mm
Package depth: 188 mm
Package height: 100 mm
Package weight: 1.2 kg

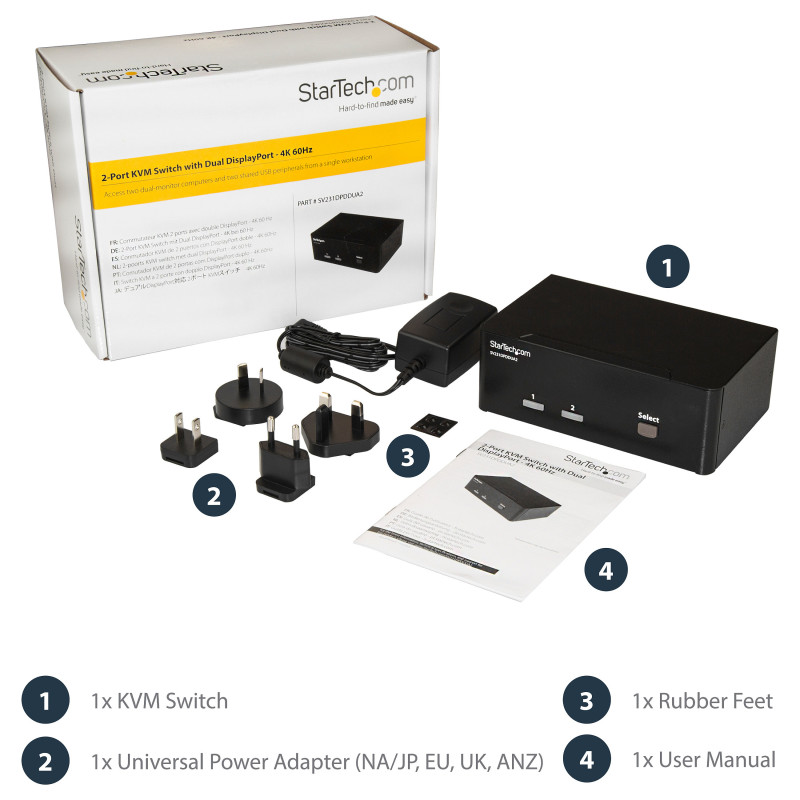

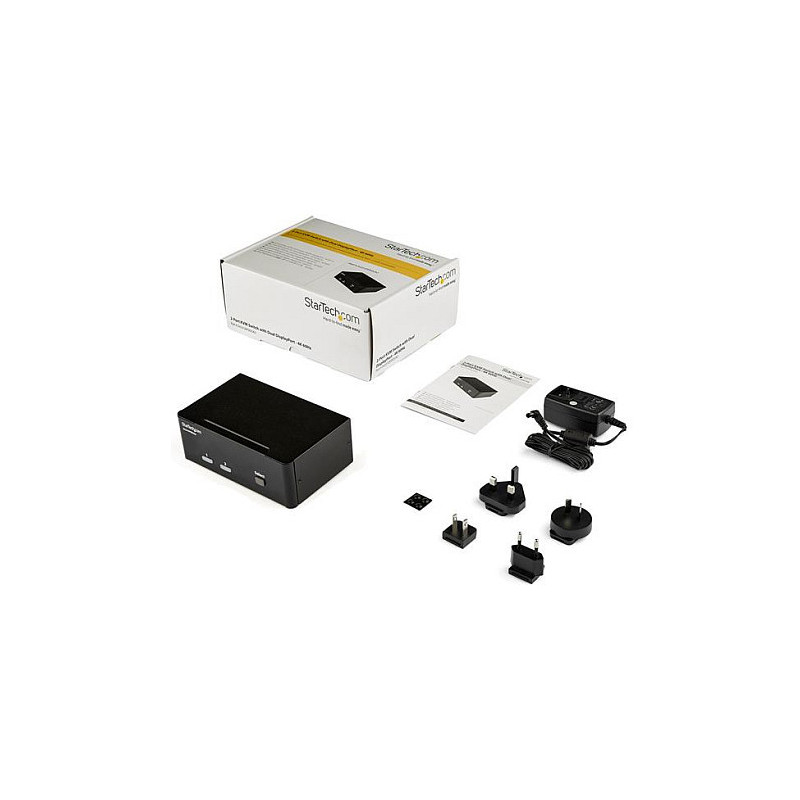

Packaging content

Feature: Manual
Feature: Rubber feet

Other features

Feature: Audio support

Logistics data

Harmonized System (HS) code: 85176200
Master (outer) case width: 403 mm
Master (outer) case length: 319 mm
Master (outer) case height: 287 mm
Products per master (outer) case: 6 pc(s)
