StarTech.com ST128HD20 video splitter

StarTech.com 8-Port 4K 60Hz HDMI Splitter. Video port type: HDMI, Video out: 8x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, HD type: 4K Ultra HD. AC input voltage: 100 - 240 V, Input current: 0.6 A, Output voltage: 5 V. Width: 110 mm, Depth: 258 mm, Height: 26 mm. Package width: 330 mm, Package depth: 267 mm, Package height: 71 mm

Easily distribute an HDMI 4K60 signal to up to eight monitors with this HDMI 2.0 splitter

This 4K HDMI splitter lets you connect your HDMI video source to eight HDMI displays, with support for Ultra HD resolutions and HDR (High Dynamic Range) as well as 7.1 surround sound audio.

Supports true 4K at 60Hz

This 8-port 4K 60Hz HDMI splitter offers full support for your HDMI 2.0 equipment, including true 4K resolution at 60Hz. For smoother video and color transitions, the splitter offers 4:4:4 chroma subsampling, meaning every pixel gets its own unique color. Support for HDMI 2.0 devices means this splitter can transmit bandwidth up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail.

Note: In order to support 4K 60Hz coming through the splitter, each device in the chain must support HDCP 2.2.

Widely compatible

The splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with lower resolution displays such as TVs or projectors around your site or in your digital signage application.

Easy installation and setup

The 4K HDMI splitter offers easy plug-and-play installation with no additional software or drivers required. The splitter passes EDID between your video source and the display attached to port 1, ensuring native settings such as resolution and refresh rate are configured automatically.

The ST128HD20 is backed by a 2-year StarTech.com warranty.

Ports & interfaces

Video port type: HDMI
Video out: 8x HDMI
HDMI version: 2.0
Video ports quantity: 8

Features

Product colour: Black
Maximum resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Maximum refresh rate: 60 Hz
Feature: HDCP
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Feature: Power LED
Supported video modes: 720p, 1080p
LED indicators: Yes
Certification: CE, FCC, REACH

Power

AC input voltage: 100 - 240 V
Input current: 0.6 A
Output voltage: 5 V
Output current: 3 A
Power consumption (typical): 15 W

Weight & dimensions

Width: 110 mm
Depth: 258 mm
Height: 26 mm
Weight: 762 g

Packaging data

Package width: 330 mm
Package depth: 267 mm
Package height: 71 mm
Package weight: 1.2 kg

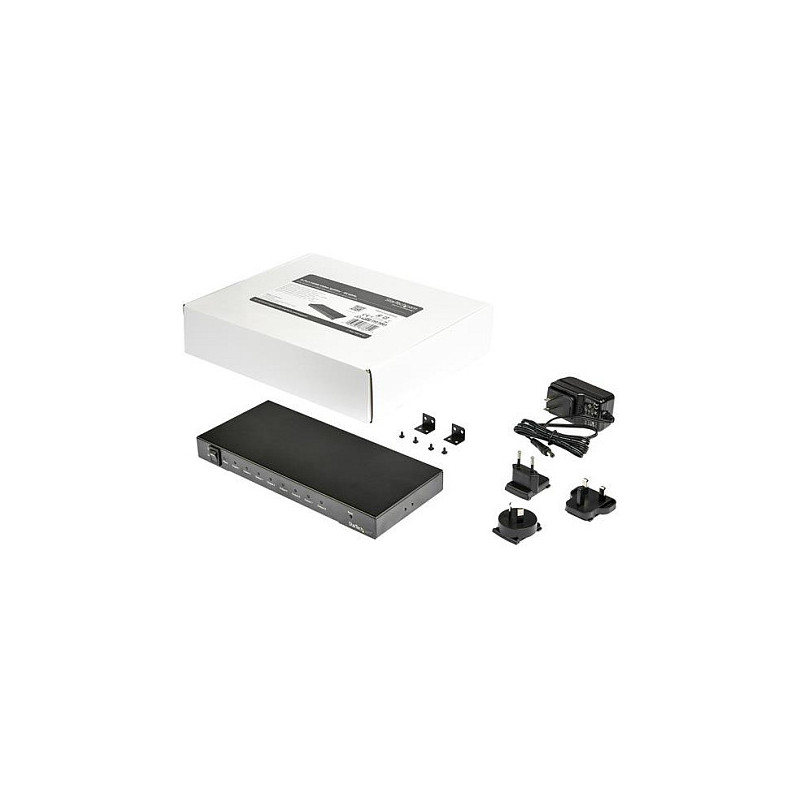

Packaging content

Included power plug types: AU, EU, NA, UK

Operational conditions

Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 10 - 85%

Technical details

Feature: Audio support
Supported audio channels: 7.1
Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85176990
Master (outer) case width: 445 mm
Master (outer) case length: 361 mm
Master (outer) case height: 297 mm
Products per master (outer) case: 6 pc(s)
