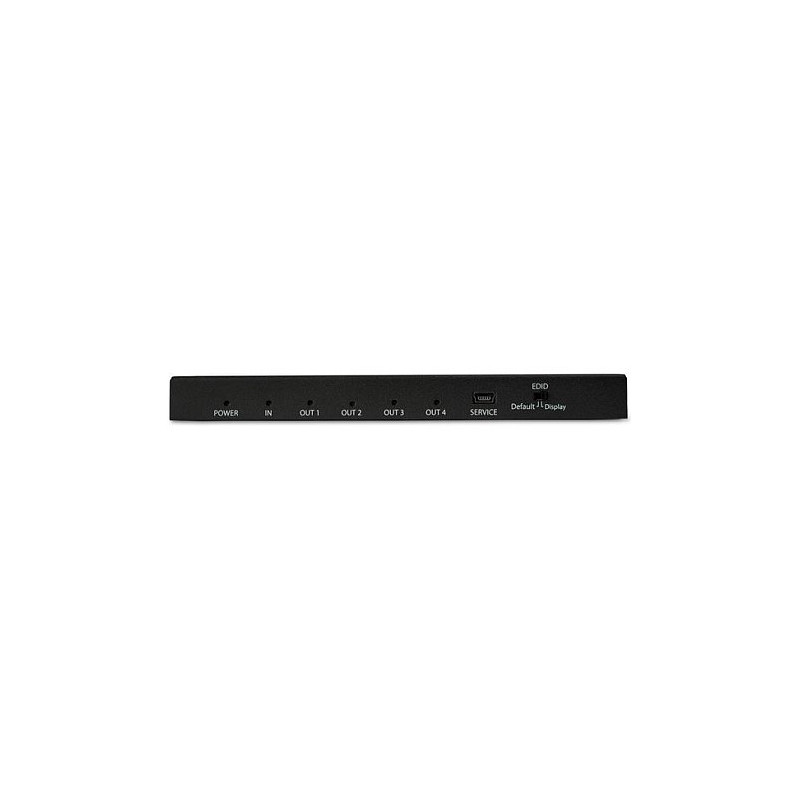

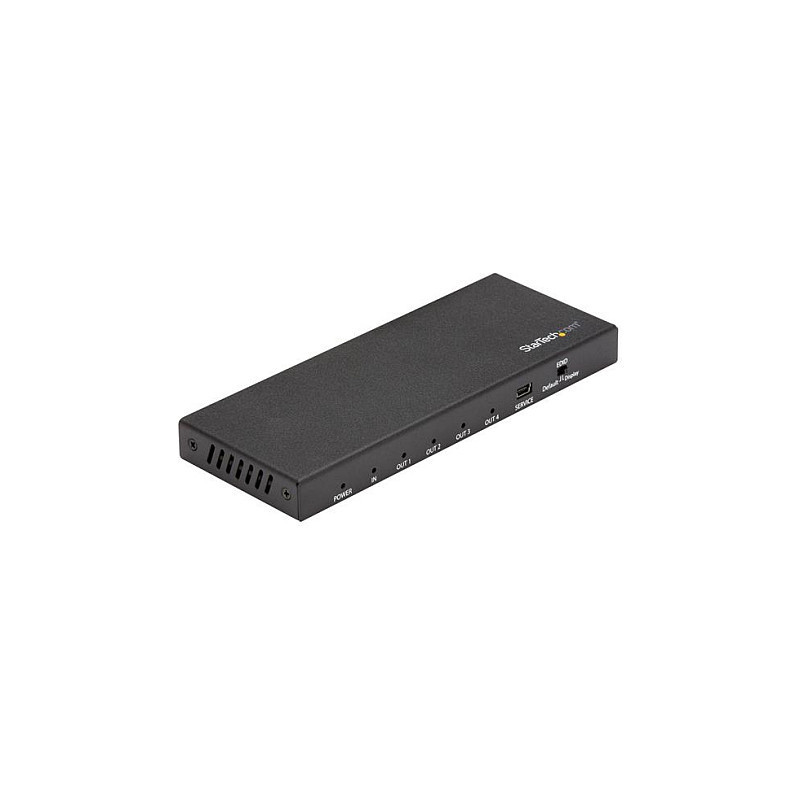

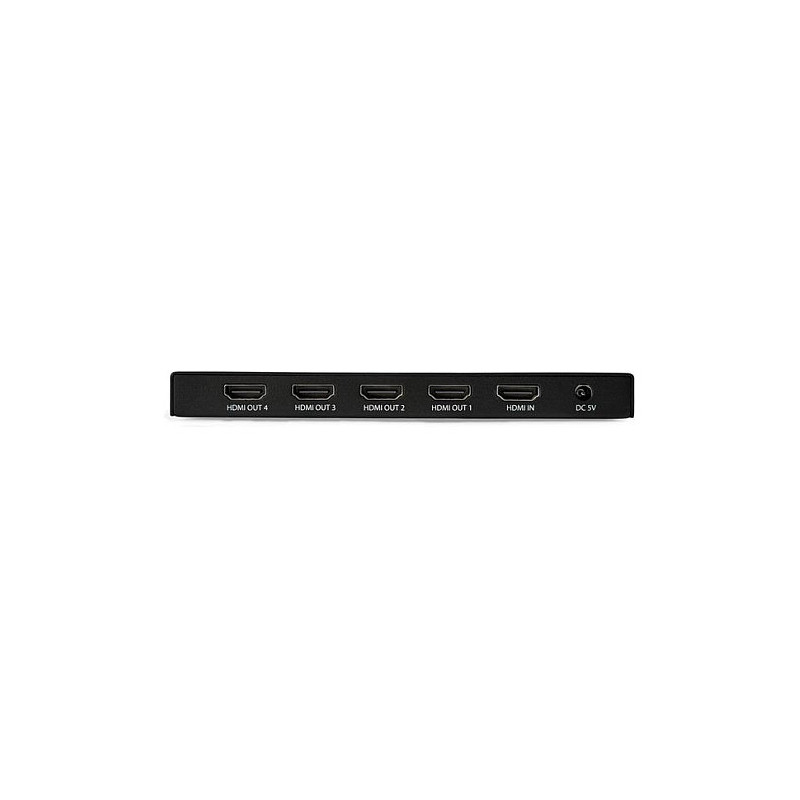

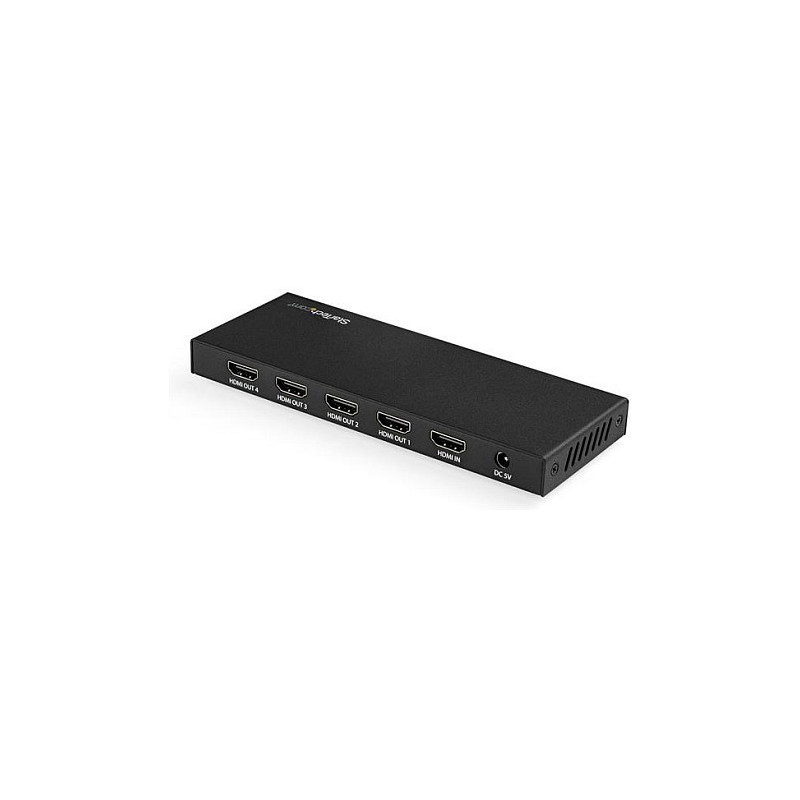

StarTech.com ST124HD202 video splitter

StarTech.com 4-Port HDMI Splitter - 4K 60Hz. Video port type: HDMI, Video out: 4x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, HD type: 4K Ultra HD. AC input voltage: 100 - 240 V, Input current: 1 A, Output voltage: 5 V. Width: 64 mm, Depth: 165 mm, Height: 65 mm. Package width: 151 mm, Package depth: 216 mm, Package height: 68 mm

1 In 4 Out Video Splitter | HDMI 2.0 | HDR | 2-Year Warranty

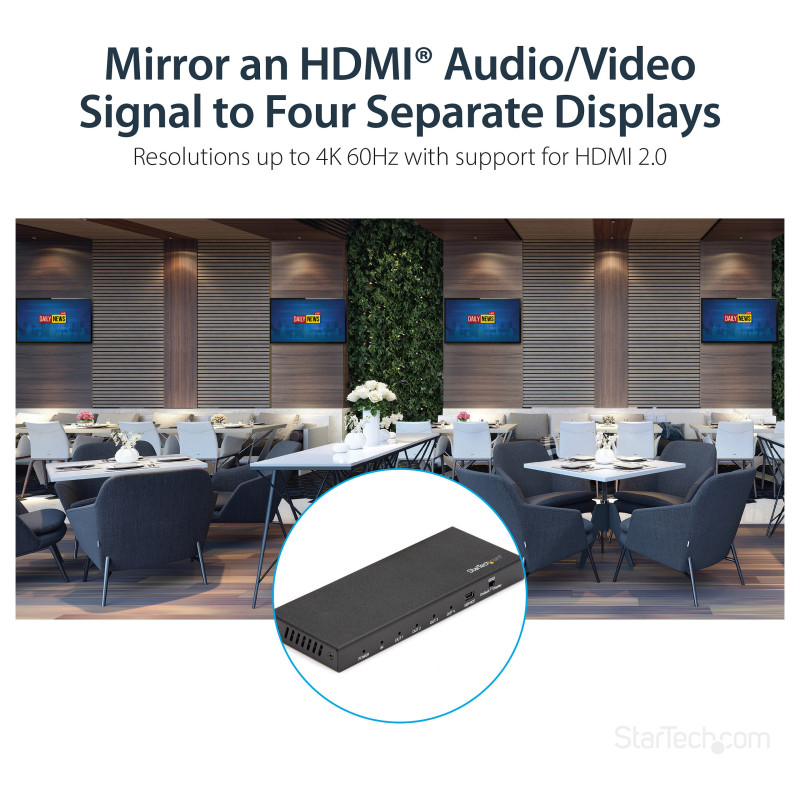

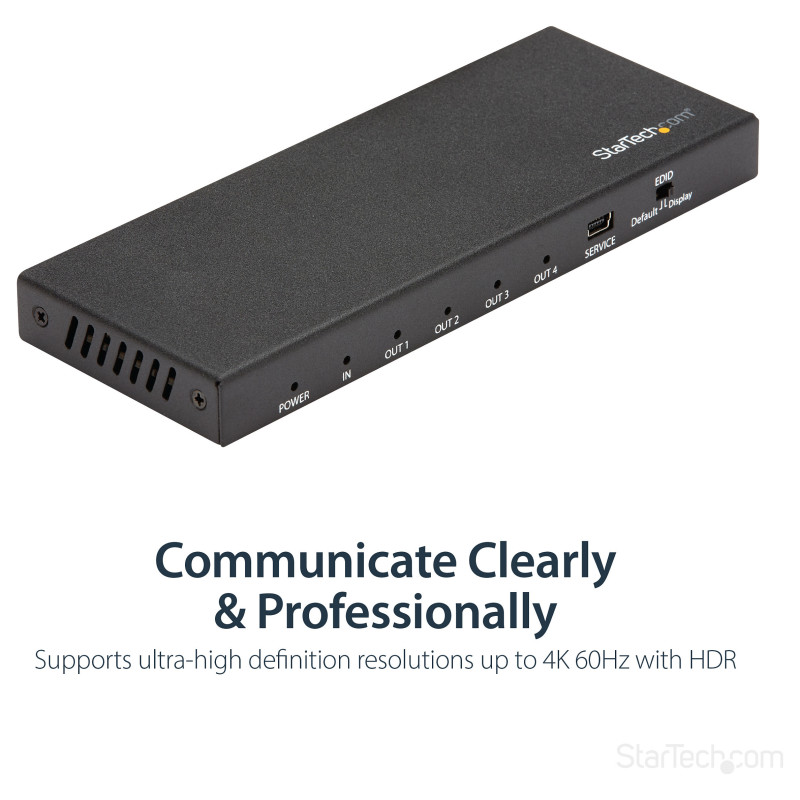

This 4-Port 4K HDMI splitter connects your HDMI video source to four HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.

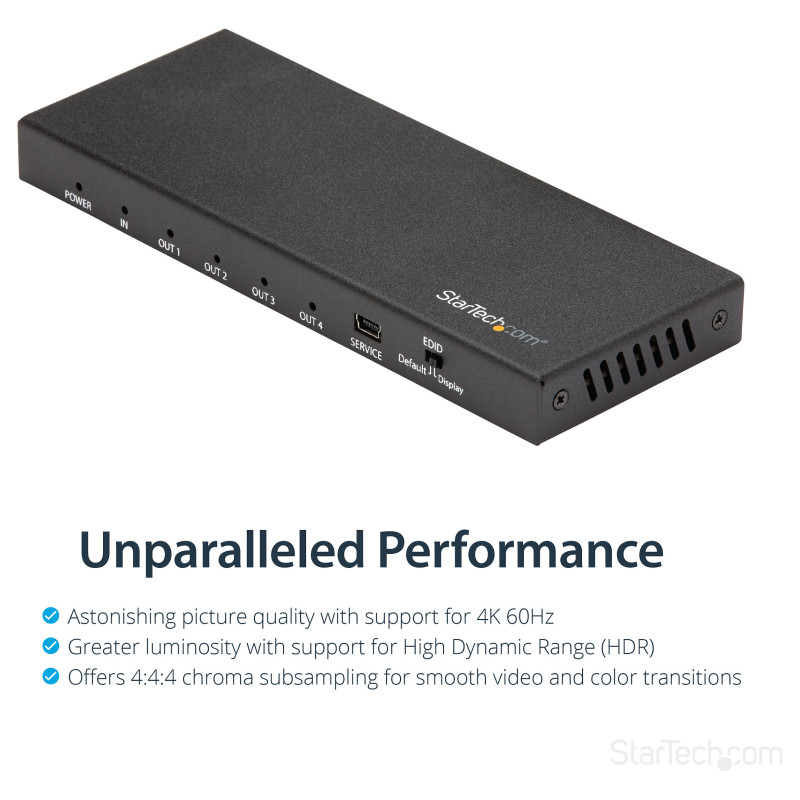

True 4K at 60Hz and HDR

With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.

The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.

Widely Compatible

The 4-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.

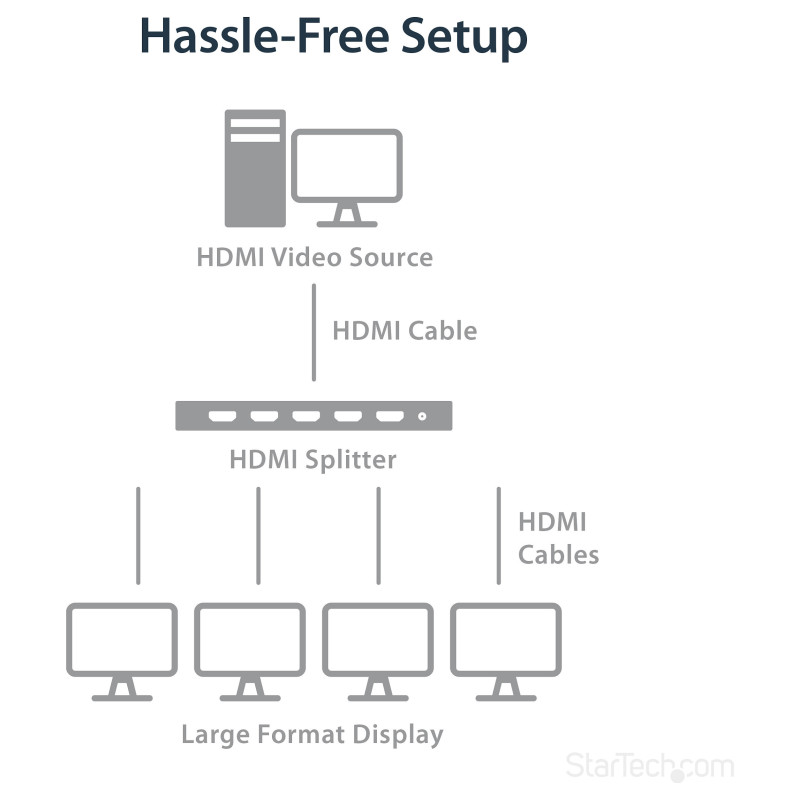

Easy Installation

For hassle-free setup, the 1x4 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.

ST124HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Ports & interfaces

Video port type: HDMI
Video out: 4x HDMI
HDMI version: 2.0
Video ports quantity: 4

Features

Product colour: Black
Maximum resolution: 3840 x 2160 pixels
Feature: Full HD
HD type: 4K Ultra HD
Maximum refresh rate: 60 Hz
Feature: HDCP
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160
Feature: Power LED
Feature: Plug and Play
Supported video modes: 720p, 1080p
LED indicators: Yes
Certification: CE, FCC, REACH

Power

AC input voltage: 100 - 240 V
Input current: 1 A
Output voltage: 5 V
Output current: 0.2 A
Power consumption (typical): 5 W

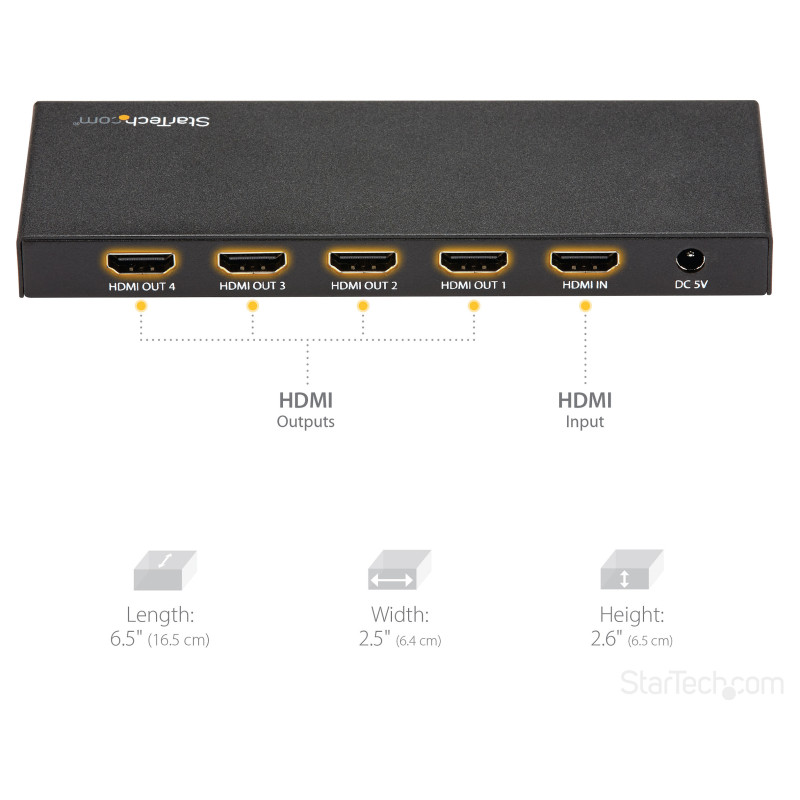

Weight & dimensions

Width: 64 mm
Depth: 165 mm
Height: 65 mm
Weight: 506 g

Packaging data

Package width: 151 mm
Package depth: 216 mm
Package height: 68 mm

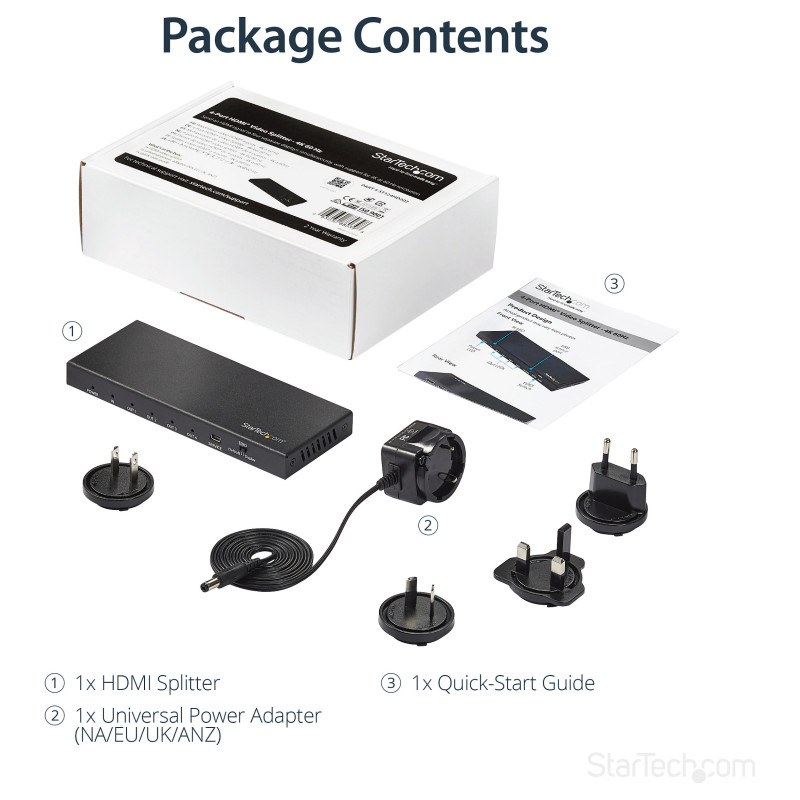

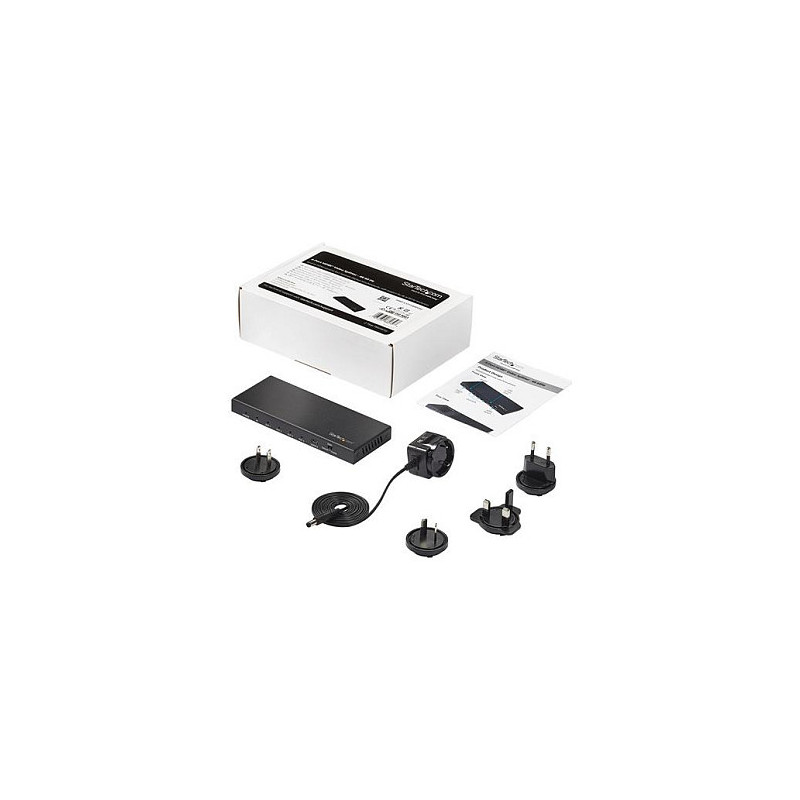

Packaging content

Feature: User guide
Included power plug types: AU, EU, NA, UK

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%

Technical details

Maximum cable length: 5 m
Supported audio channels: 7.1
Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85176990
Master (outer) case width: 453 mm
Master (outer) case length: 360 mm
Master (outer) case height: 329 mm
Products per master (outer) case: 20 pc(s)
