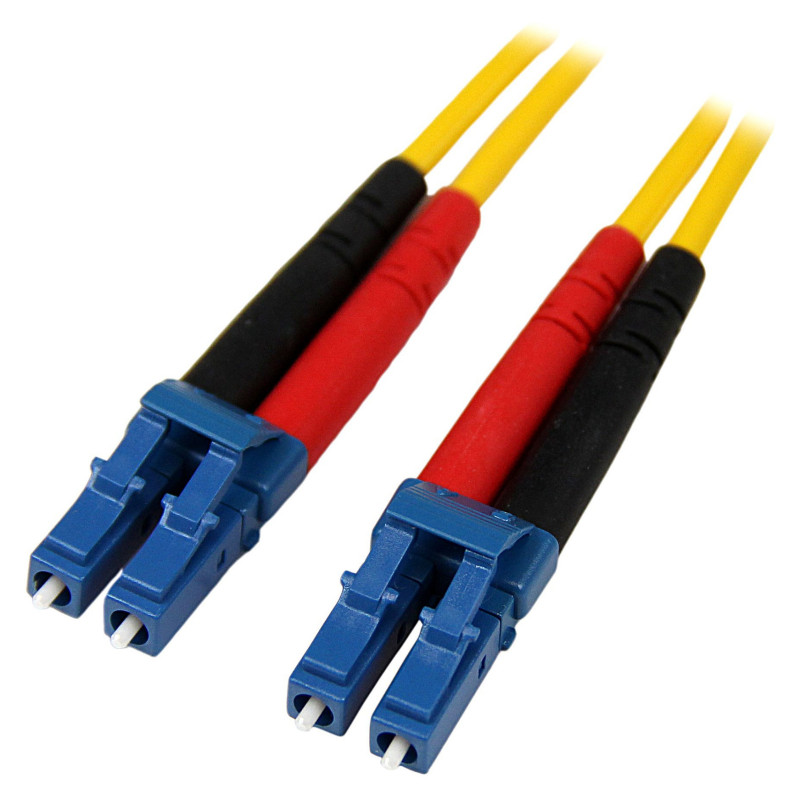

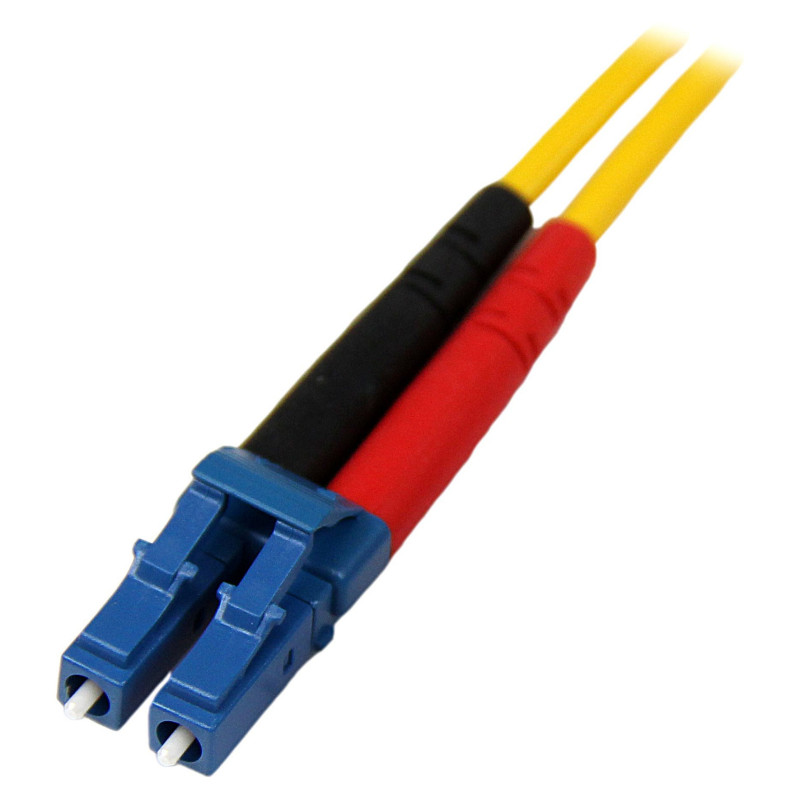

StarTech.com SMFIBLCLC4 InfiniBand / fiber optic cable

StarTech.com 4m Fiber Optic Cable - Single-Mode Duplex 9/125 LSZH Fiber Jumper Cord - LC/LC. Cable length: 4 m, Fibre optic type: OS1, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm, Full duplex

Connect fiber network devices for high-speed transfers with LSZH rated cable

The SMFIBLCLC4 4m LC to LC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.

This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire - an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.

Features

Cable length: 4 m
Fibre optic type: OS1
Connector 1: LC
Connector 2: LC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Yellow
Feature: Full duplex
Core diameter: 9 µm
Cladding diameter: 125 µm
Fiber mode structure: Single-mode
Data transfer rate: 100 Gbit/s
Jacket material: Low smoke zero halogen (LSZH)

Certificates

Compliance certificates: RoHS, CE

Weight & dimensions

Weight: 56 g

Packaging data

Package width: 197 mm
Package depth: 177 mm
Package height: 21 mm
Package weight: 66 g

Logistics data

Master (outer) case width: 415 mm
Harmonized System (HS) code: 85447000
Master (outer) case length: 407 mm
Master (outer) case height: 403 mm
Products per master (outer) case: 176 pc(s)
