StarTech.com RKCONS1908K rack console

StarTech.com 8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 19" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, Display: TFT LCD. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. Power consumption (typical): 21 W, AC adapter input voltage: 100 - 240 V, Input current: 1.5 A. Width: 483 mm, Height: 43 mm, Depth: 643 mm. Package width: 775 mm, Package depth: 624 mm, Package height: 189 mm

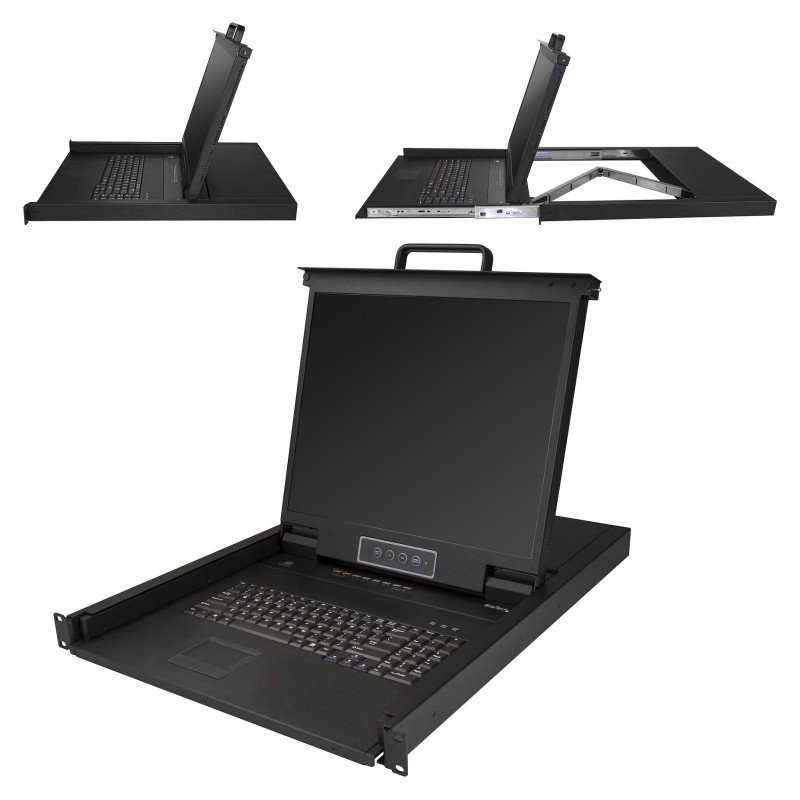

Control your server or KVM switch from a centralized LCD KVM drawer

This rack-mount KVM console provides complete keyboard, monitor and mouse control for eight computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.

Maximize your IT budget, minimize your hassle

This 8-port KVM switch provides all the essential controls you'll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard (QWERTY) for intuitive control and an LCD display that supports resolutions up to 1280x1024.

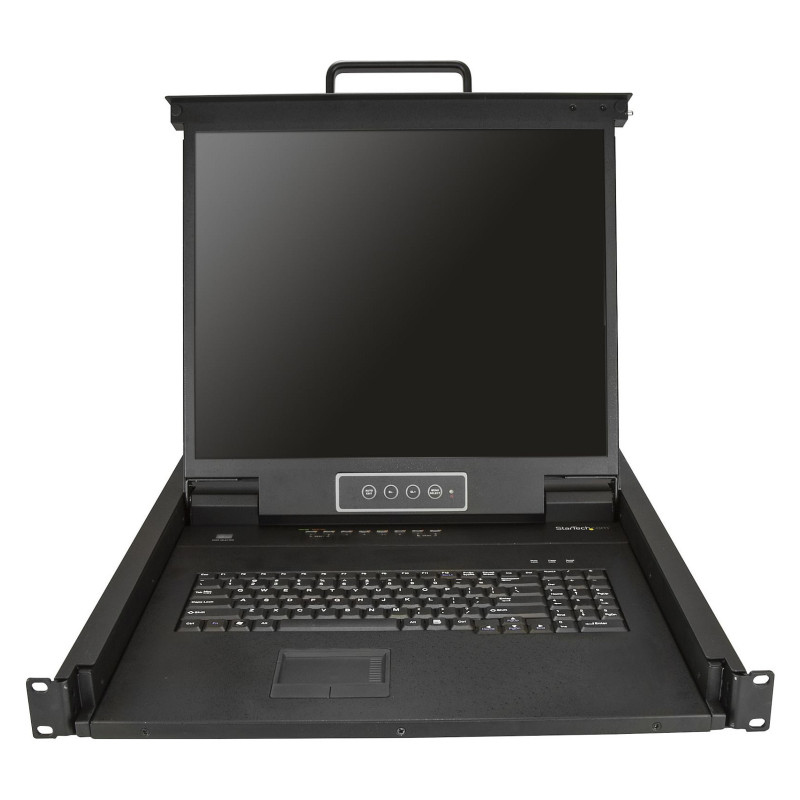

Maximize your screen space

This versatile rack-mount LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.

Clutter-free monitoring

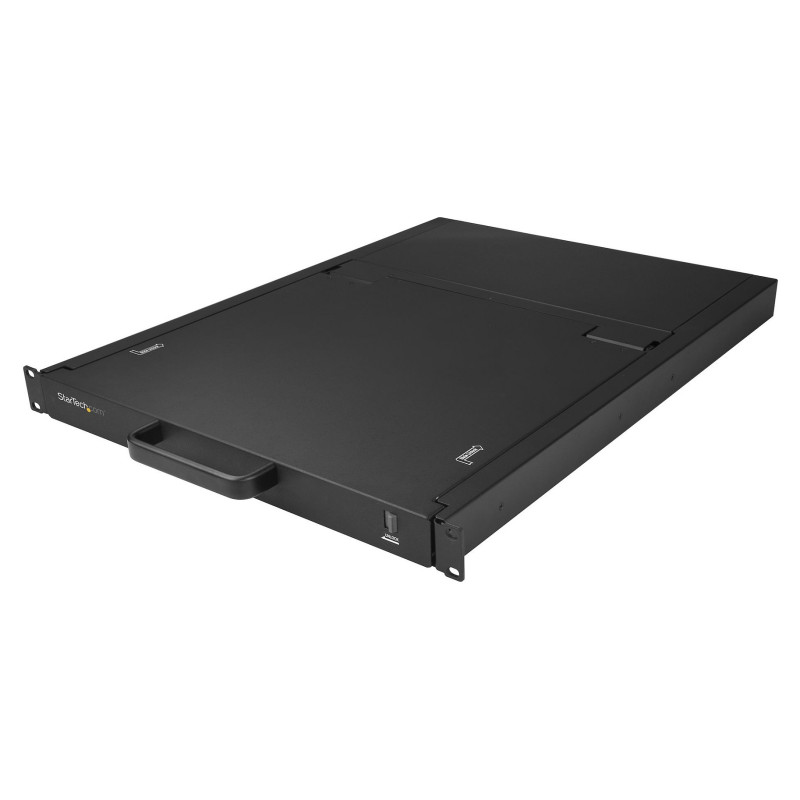

The console slides out from 1U of rack space, enabling you to easily monitor and control eight servers and even more if connecting through a KVM switch. The rackmount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.

Hassle-free system integration

The rackmount LCD features an 8-port KVM module, which enables you to connect it directly to eight servers. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

The RKCONS1908K is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Display

Display diagonal: 48.3 cm (19")
Display resolution: 1280 x 1024 pixels
Display: TFT LCD
Display brightness: 250 cd/m²
Contrast ratio (typical): 1000:1
Pixel pitch: 0.264 x 0.264 mm
Display type: LCD
Display number of colours: 16.78 million colours
Colour depth: 8 bit

Technical details

Material: Steel
Mean time between failures (MTBF): 50000 h
Product colour: Black
Operating relative humidity (H-H): 10 - 80%
Number of computers controlled: 8
Sustainability certificates: UL ECOLOGO
Compliance certificates: CE, RoHS
Rack capacity: 1U

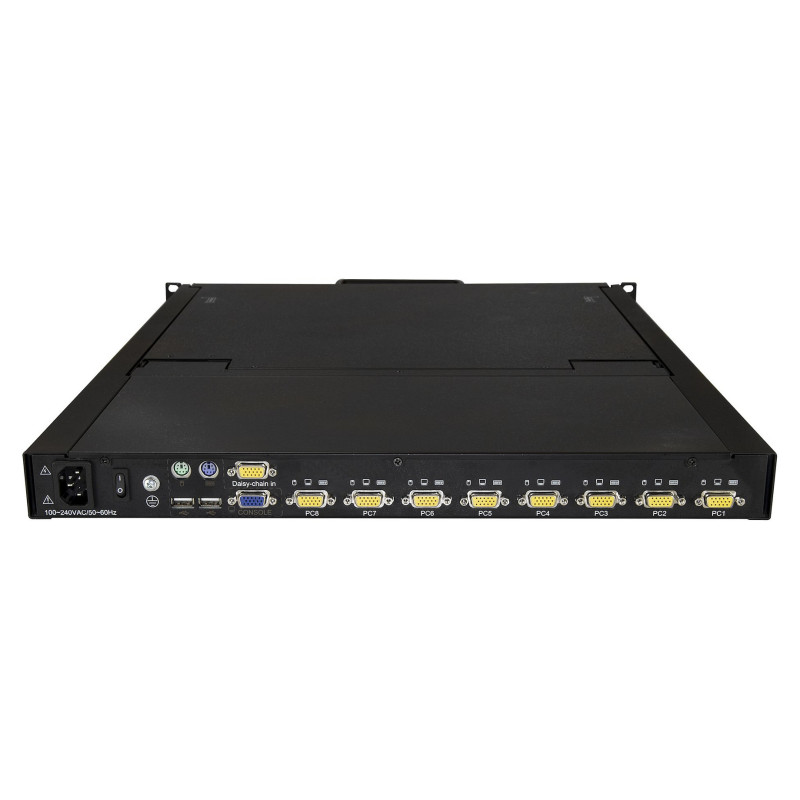

Ports & interfaces

VGA (D-Sub) ports quantity: 9
Keyboard port type: USB
Mouse port type: USB
Video port type: VGA
USB 2.0 Type-A ports quantity: 2

Keyboard

Feature: Built-in touchpad

Power

Power consumption (typical): 21 W
AC adapter input voltage: 100 - 240 V
Input current: 1.5 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

Width: 483 mm
Height: 43 mm
Depth: 643 mm
Weight: 13.4 kg
Mounting depth (min): 60.5 cm
Mounting depth (max): 89 cm

Packaging data

Package width: 775 mm
Package depth: 624 mm
Package height: 189 mm
Package volume: 19000 cm³

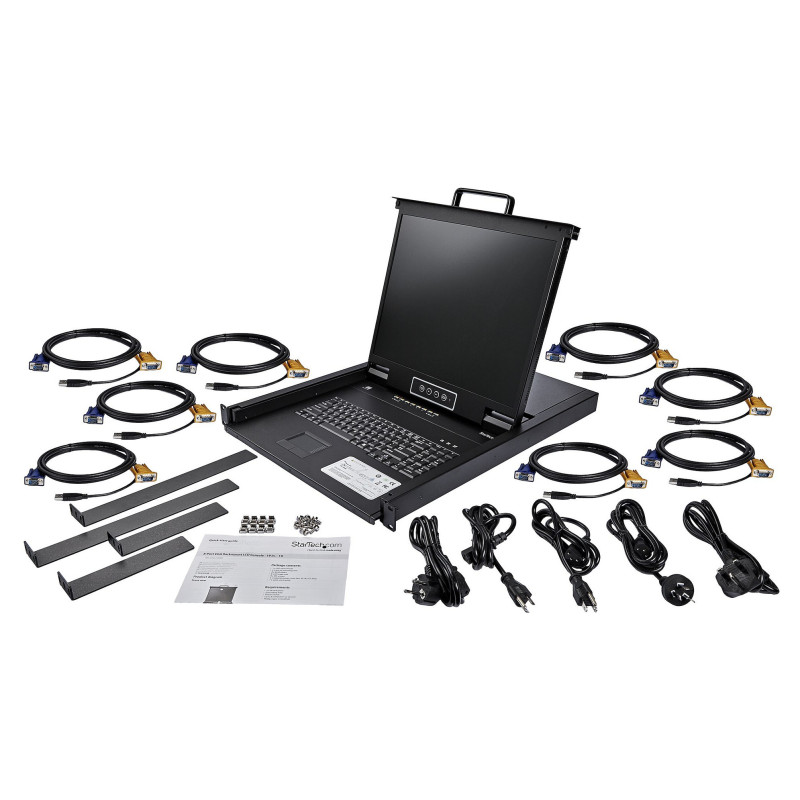

Packaging content

Cables included: KVM
Feature: Screws included
Number of screws: 8
Feature: Mounting brackets included
Feature: Cage nuts included
Number of cage nuts: 8
Included power plug types: ANZ, EU, JP, NA, UK
Feature: Quick installation guide

Logistics data

Master (outer) case width: 780 mm
Master (outer) case length: 629 mm
Master (outer) case height: 189 mm
Products per master (outer) case: 1 pc(s)
