StarTech.com RKCONS1901 console rack

StarTech.com Rackmount KVM Console - Single Port VGA KVM with 19" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables Hardware - USB Support - 50,000 MTBF. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, Display brightness: 250 cd/m². Video port type: VGA. Certification: CE, FCC. Power consumption (typical): 17 W. Width: 483 mm, Height: 430 mm, Depth: 533 mm
Control your server or KVM switch from a centralized rack console
This rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 19 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle

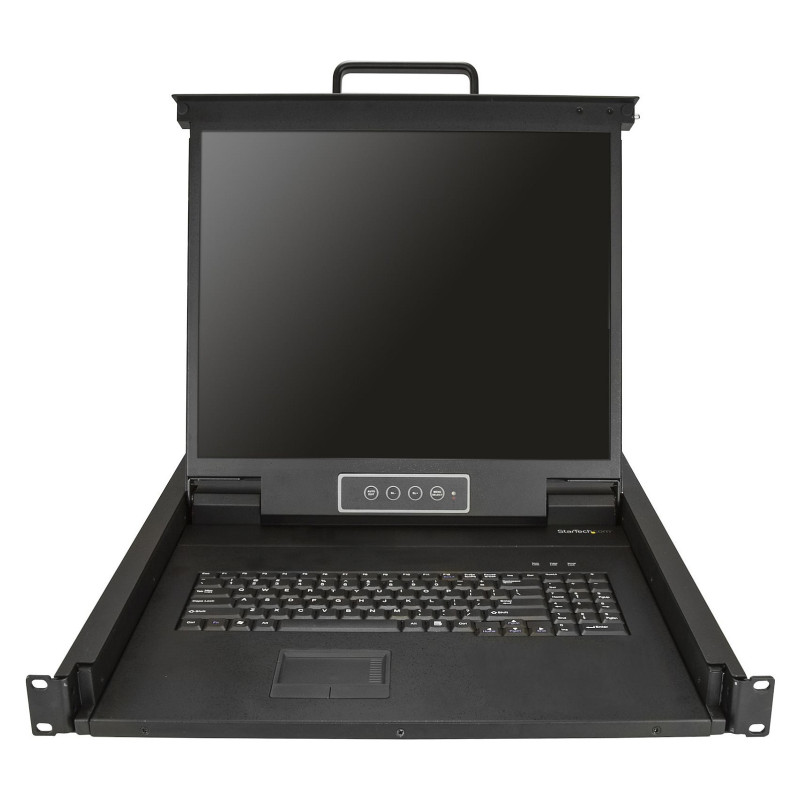

This KVM console provides all the essential controls you'll need to manage your server room at a low cost. The console features a built-in keyboard (QWERTY) and a touchpad for intuitive control, as well as an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.
Clutter-free monitoring

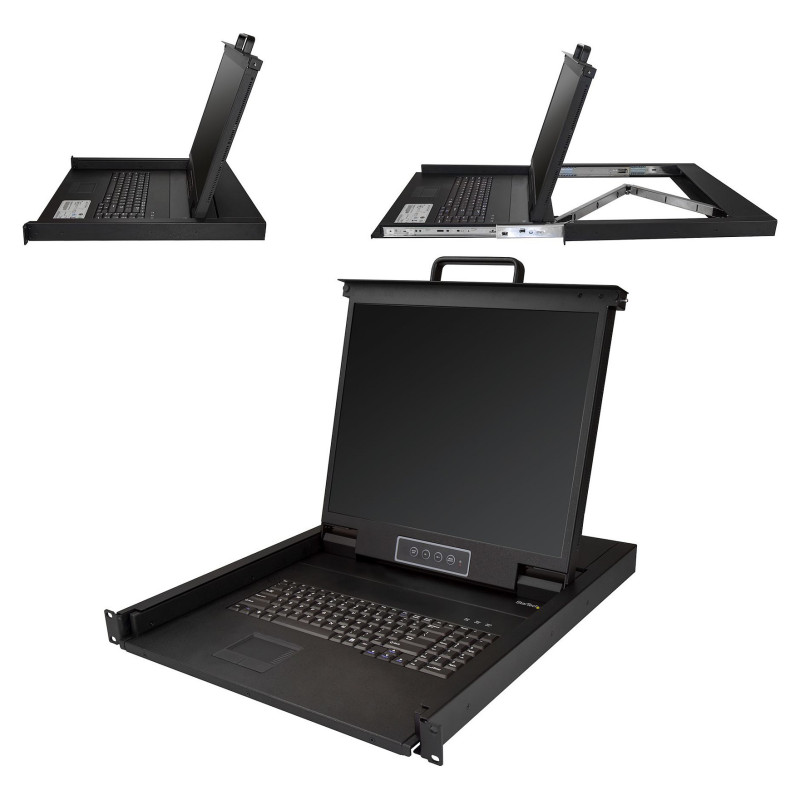

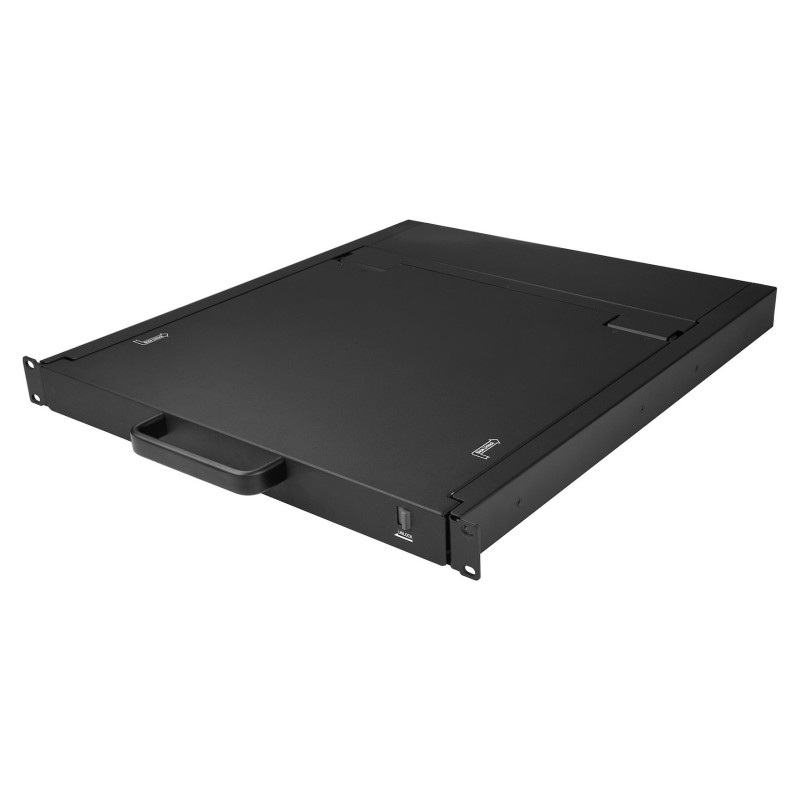

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.
The RKCONS1901 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Display

Display diagonal: 48.3 cm (19")
Display resolution: 1280 x 1024 pixels
Display brightness: 250 cd/m²
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 176°
Viewing angle, vertical: 170°
Feature: On Screen Display (OSD)
Pixel pitch: 0.264 x 0.264 mm
Aspect ratio: 4:3
Display type: LCD
Display number of colours: 16.78 million colours

Technical details

Material: Steel
Mean time between failures (MTBF): 50000 h
Product colour: Black
Operating relative humidity (H-H): 10 - 80%
Feature: Daisy chain
LED indicators: Yes
Compliance certificates: RoHS
Rack capacity: 1U

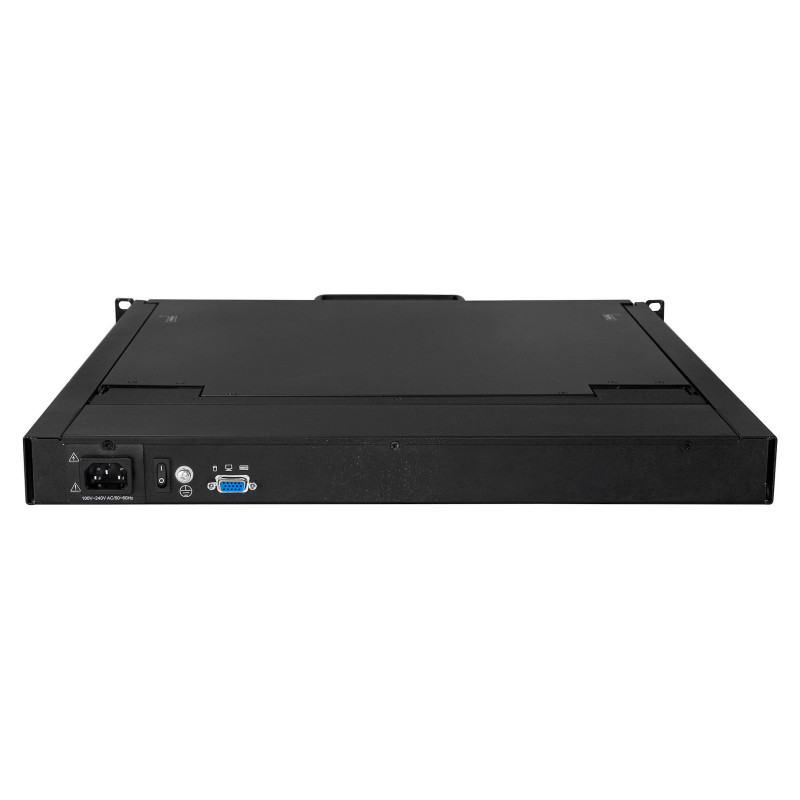

Ports interfaces

Video port type: VGA

Keyboard

Feature: Built-in touchpad
Feature: Hot keys

Certificates

Certification: CE, FCC

Power

Power consumption (typical): 17 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Weight dimensions

Width: 483 mm
Height: 430 mm
Depth: 533 mm
Weight: 12.2 kg
Mounting depth (min): 50 cm
Mounting depth (max): 78 cm

Packaging data

Package weight: 16 kg
Package width: 781 mm
Package depth: 619 mm
Package height: 190 mm

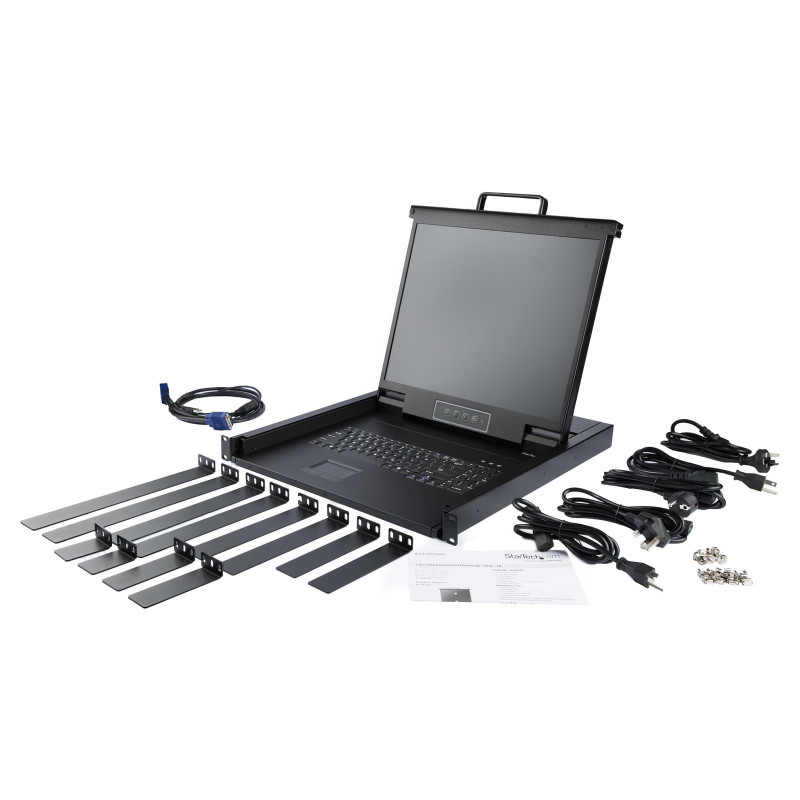

Packaging content

Cables included: AC, KVM
Feature: Screws included
Feature: Mounting brackets included
Included power plug types: ANZ, EU, JP, NA, UK
Feature: Quick installation guide

Logistics data

Master (outer) case width: 781 mm
Master (outer) case length: 619 mm
Master (outer) case height: 190 mm
Products per master (outer) case: 1 pc(s)
