StarTech.com RKCONS1708K rack console

StarTech.com 8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, Display: TFT LCD. Keyboard port type: PS/2, Mouse port type: PS/2, Video port type: VGA. Power consumption (typical): 13 W, AC adapter input voltage: 100 - 240 V, Input current: 1.5 A. Width: 448 mm, Height: 619 mm, Depth: 43 mm. Package weight: 19.7 kg, Package width: 767 mm, Package depth: 615 mm

KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included

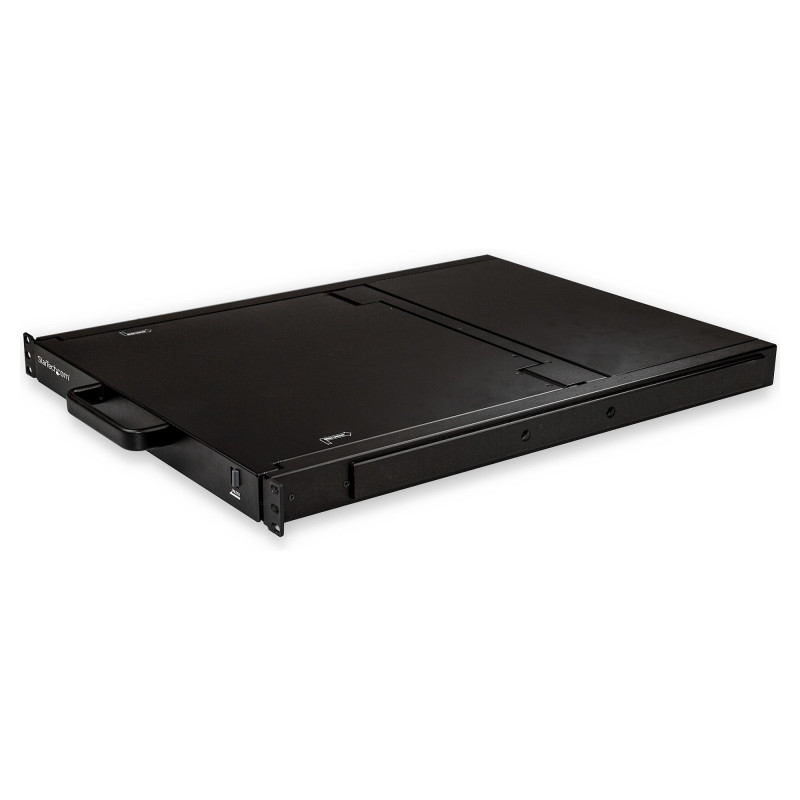

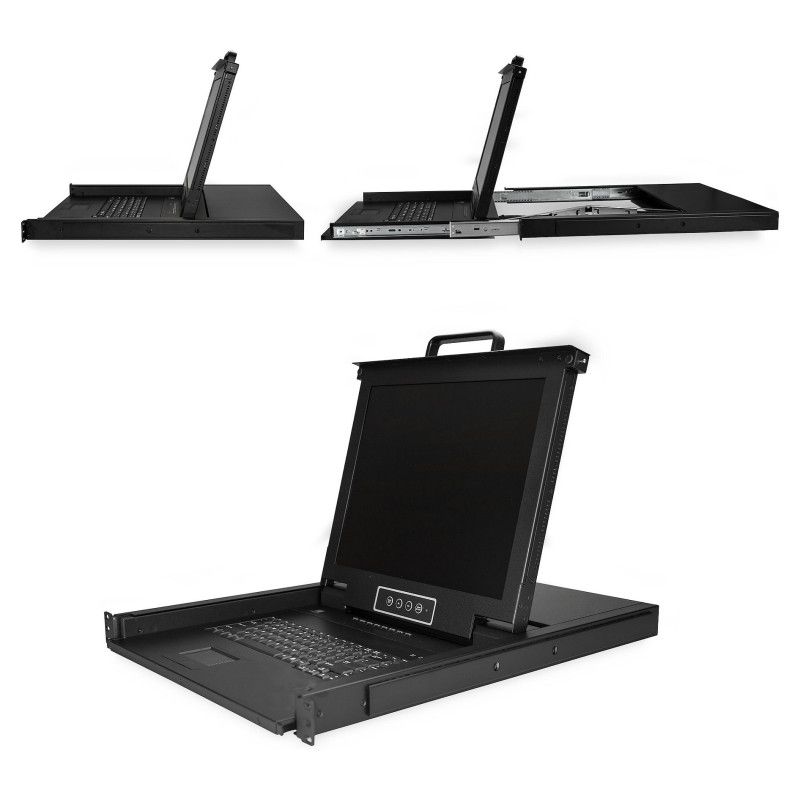

Providing centralized control of up to eight servers, this 8-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution

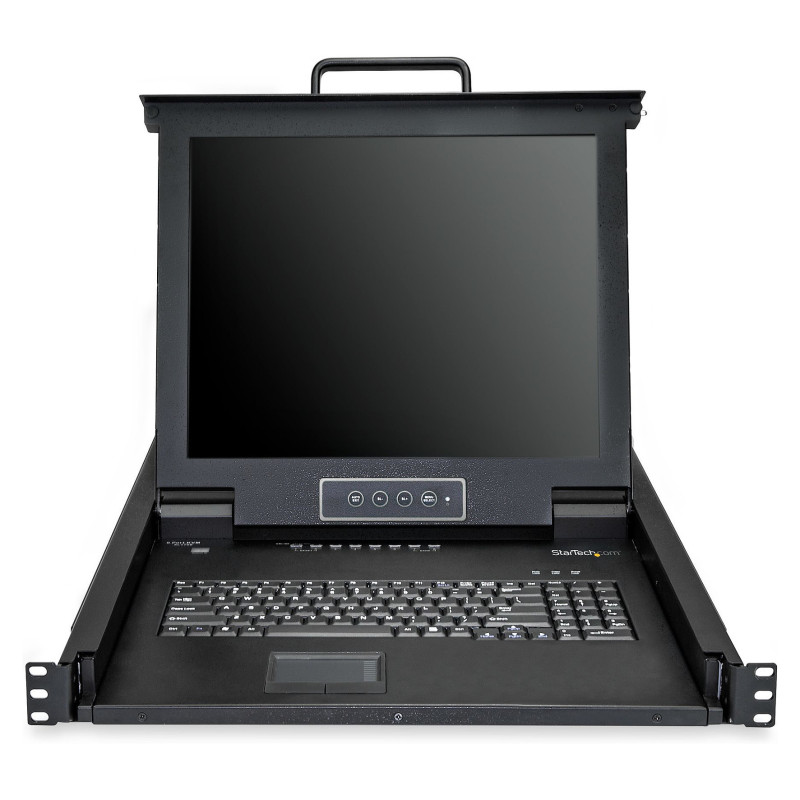

The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

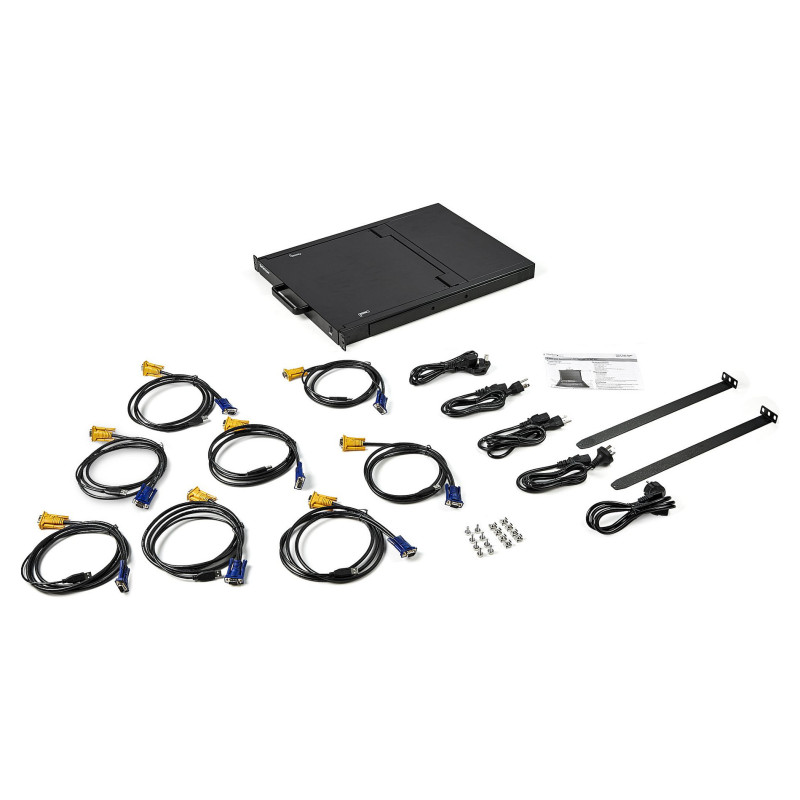

This 8-port KVM console comes with everything you need to set up right out of the box:

• 8 VGA KVM Cables
• Mounting Rails
• M5 Cage Nuts and Screws

Simple System Integration

With direct access to eight systems or servers, the 8-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1708K is backed by a StarTech.com 2-year warranty and free lifetime technical support

Display

Display diagonal: 43.2 cm (17")
Display resolution: 1280 x 1024 pixels
Display: TFT LCD
Display brightness: 250 cd/m²
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 170°
Viewing angle, vertical: 160°
Feature: On Screen Display (OSD)
Pixel pitch: 0.264 x 0.264 mm
Aspect ratio: 5:4
Display type: LCD
Response time: 5 ms
Display number of colours: 16.78 million colours

Technical details

Material: Steel
Mean time between failures (MTBF): 50000 h
Product colour: Black
Operating relative humidity (H-H): 10 - 80%
Feature: Rack mounting
LED indicators: Yes
Sustainability certificates: UL ECOLOGO
Compliance certificates: CE, RoHS
Rack capacity: 1U

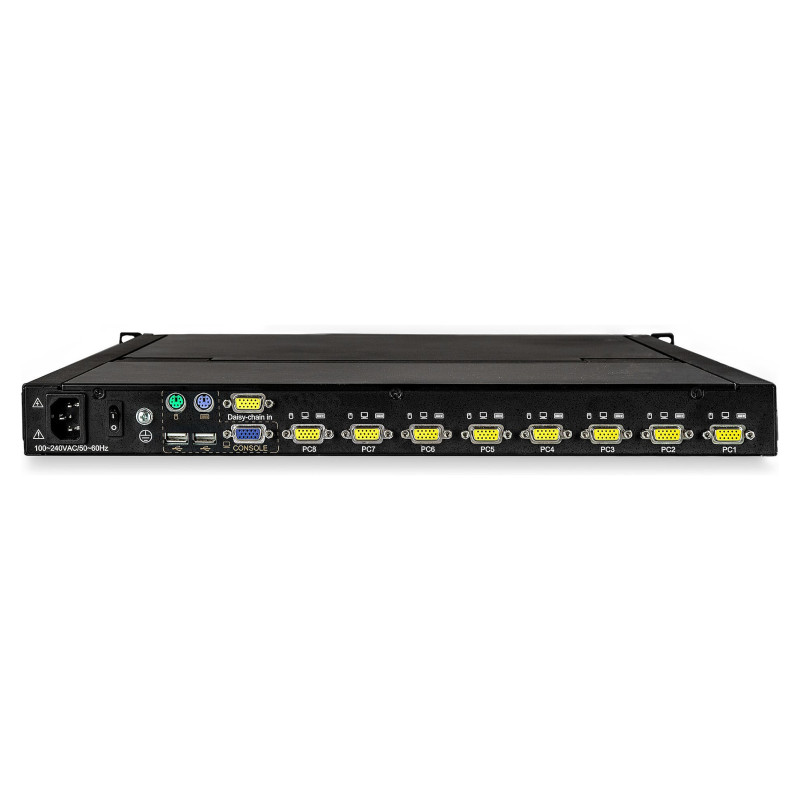

Ports & interfaces

VGA (D-Sub) ports quantity: 8
Keyboard port type: PS/2
Mouse port type: PS/2
Video port type: VGA
USB 2.0 Type-A ports quantity: 2

Keyboard

Feature: Hot keys

Power

Power consumption (typical): 13 W
AC adapter input voltage: 100 - 240 V
Input current: 1.5 A

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

Width: 448 mm
Height: 619 mm
Depth: 43 mm
Weight: 17 kg
Mounting depth (min): 56 cm
Mounting depth (max): 90 cm

Packaging data

Package weight: 19.7 kg
Package width: 767 mm
Package depth: 615 mm
Package height: 182 mm

Packaging content

Cables included: KVM
Feature: Screws included
Number of screws: 8
Feature: Cage nuts included
Number of cage nuts: 8
Included power plug types: ANZ, EU, JP, NA, UK
Feature: Manual

Logistics data

Master (outer) case width: 767 mm
Master (outer) case length: 617 mm
Master (outer) case height: 182 mm
Products per master (outer) case: 1 pc(s)
