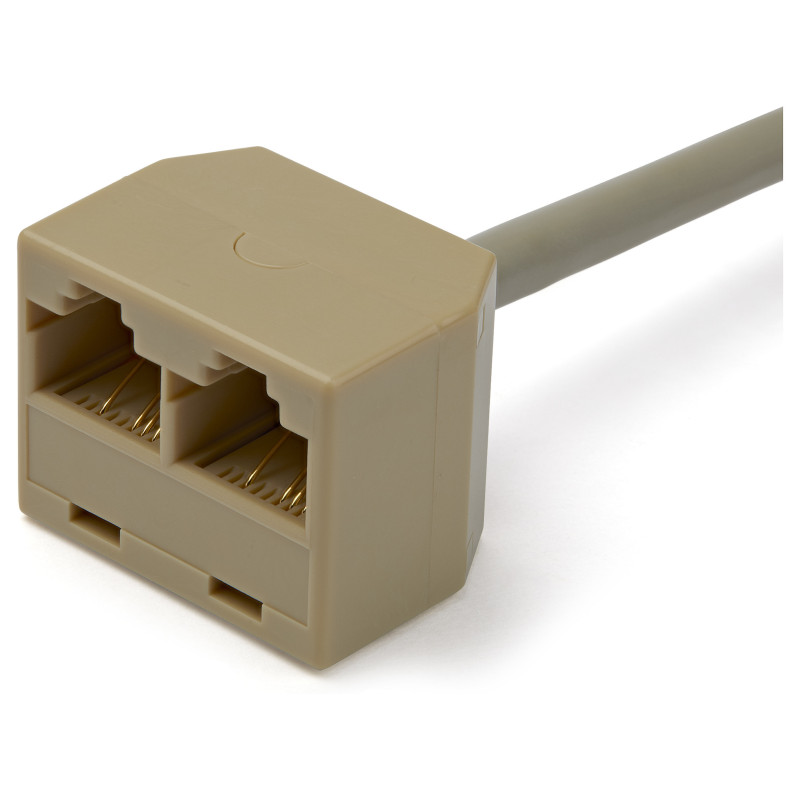

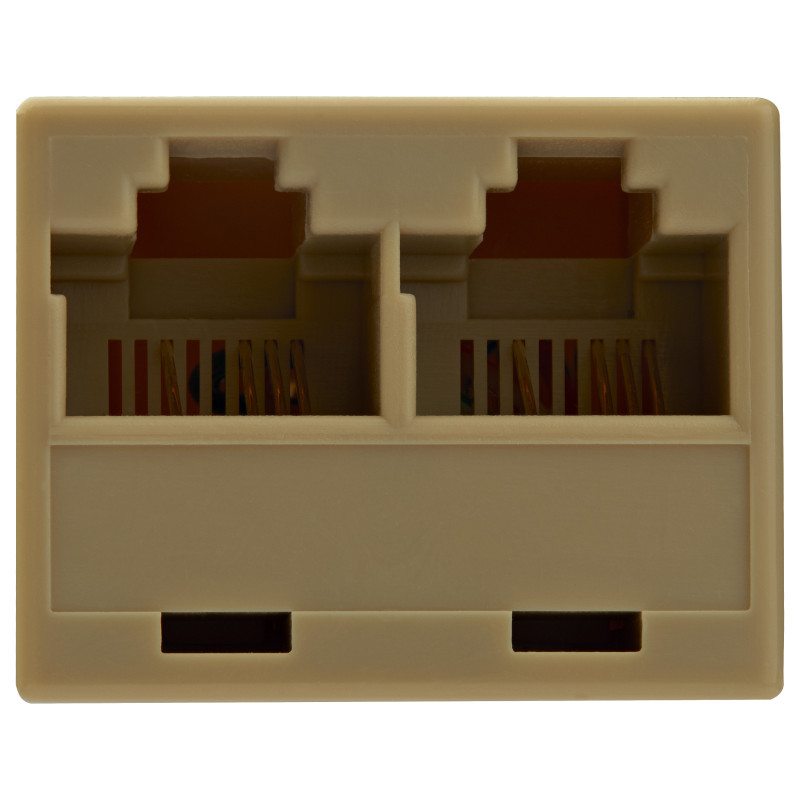

StarTech.com RJ45SPLITTER network splitter

StarTech.com 2-to-1 RJ45 Splitter Cable Adapter - F/M. Cabling technology: 10/100Base-T(X), Cable standard: Cat5e, Product colour: Grey. Connector gender: Male/Female. Certification: RoHS. Weight: 45 g. Package width: 199 mm, Package depth: 158 mm, Package height: 32 mm

Connect two 10/100 Ethernet devices to a single Cat5/Cat5e cable drop

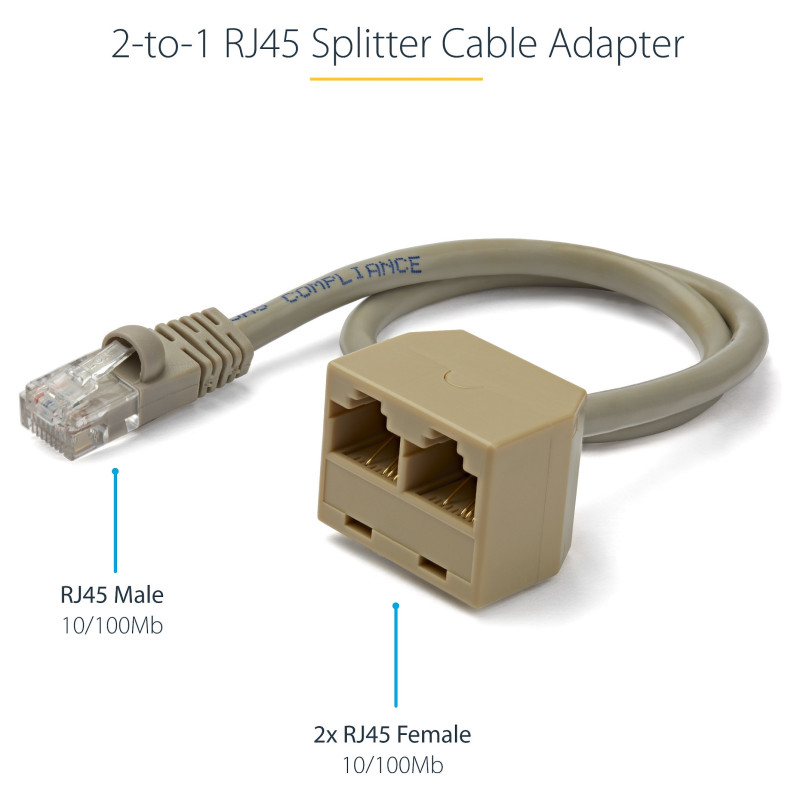

The RJ45SPLITTER 2-to-1 RJ45 Splitter Cable Adapter increases the number of RJ45 network connections on an RJ45 outlet, allowing two 10/100 Ethernet signals through a single Cat5/Cat5e wire.

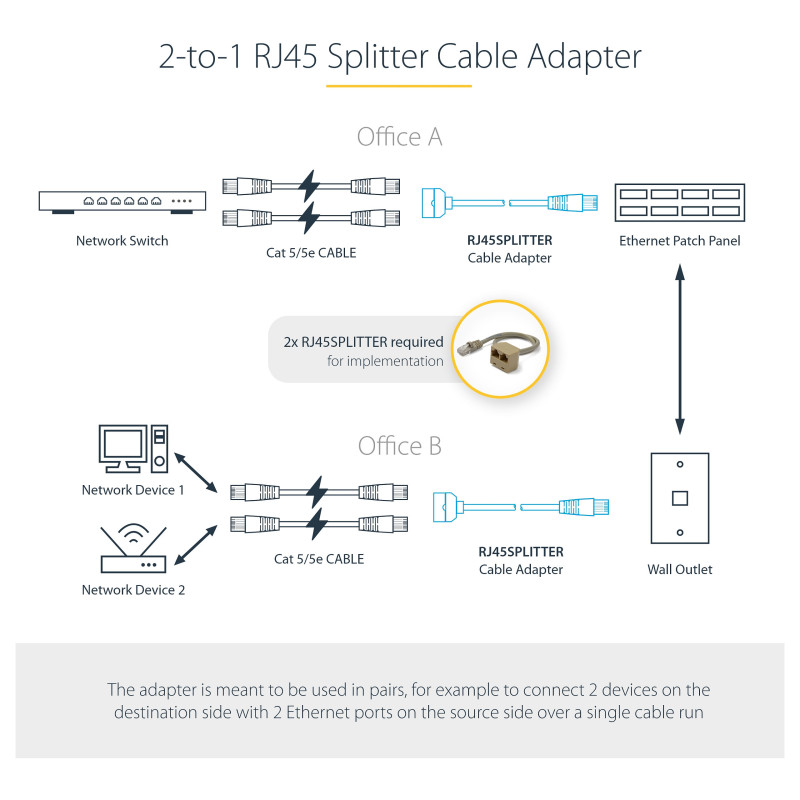

On one end of the installation the splitter enables you to connect two patch cables from a hub or switch to a single port on a patch panel; while on the other end of the installation the splitter connects to a single Cat5/Cat5e network drop through a wall outlet which can then be split and connected to two separate devices. The patch panel and wall outlet are connected through a single Cat5/Cat5e cable.

Designed and constructed for maximum durability, this Ethernet Splitter Cable is backed by StarTech.com's Lifetime Warranty.

Features

Cabling technology: 10/100Base-T(X)
Cable standard: Cat5e
Product colour: Grey
Cable jacket material: Polyvinyl chloride (PVC)

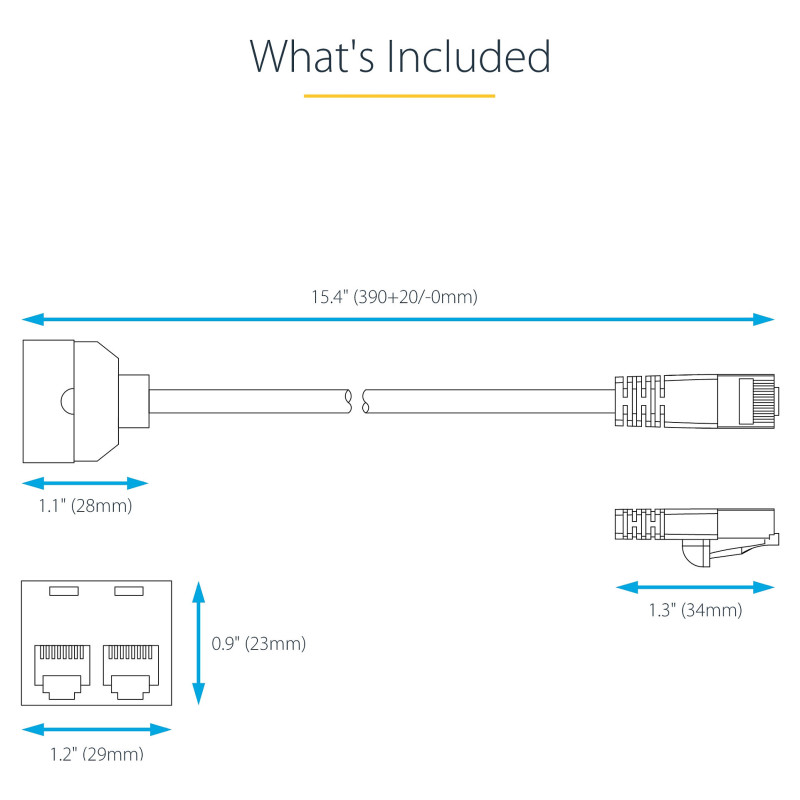

Cable length: 0.33 m
Feature: Plug and Play

Ports & interfaces

RJ-45 input ports: 1
RJ-45 output ports: 2
Connector gender: Male/Female

Certificates

Certification: RoHS

Weight & dimensions

Weight: 45 g

Packaging data

Package width: 199 mm
Package depth: 158 mm
Package height: 32 mm
Package weight: 30 g

Logistics data

Master (outer) case width: 372 mm
Master (outer) case length: 426 mm
Master (outer) case height: 278 mm
Products per master (outer) case: 200 pc(s)
