StarTech.com PEX4M2E1 interface cards / adapter

StarTech.com x4 PCI Express 3.0 to M.2 PCIe NVMe SSD Adapter - TAA. Host interface: PCIe, Output interface: M.2, Expansion card form factor: Full-height / Low-profile. Product colour: Red. Data transfer rate (max): 8 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High.... Width: 121 mm, Depth: 179 mm, Height: 184 mm

Connect a PCIe M.2 SSD (NVMe or AHCI) to your computer through PCI Express for ultra-fast data access

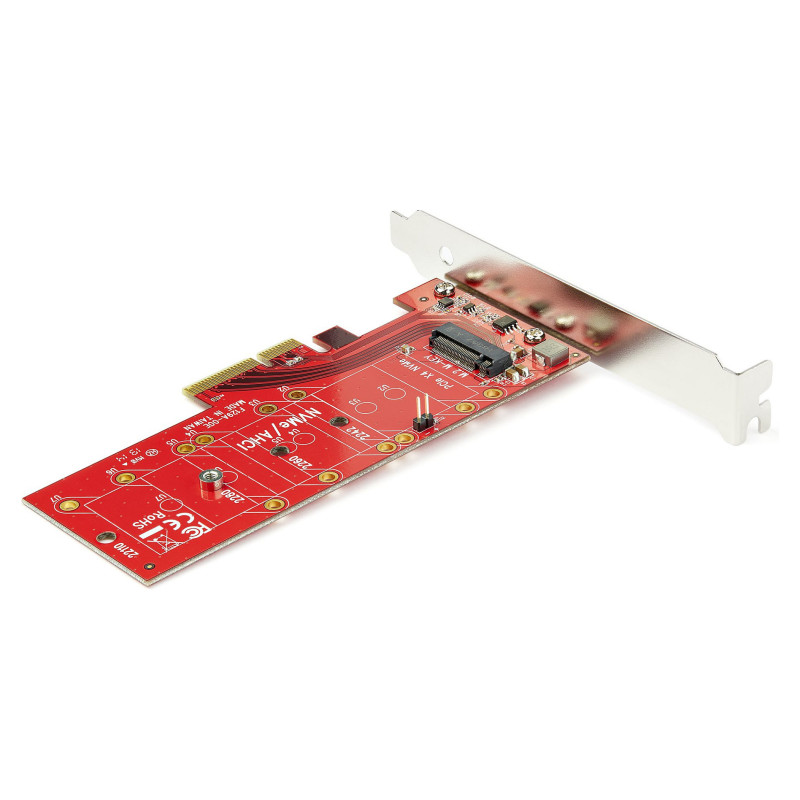

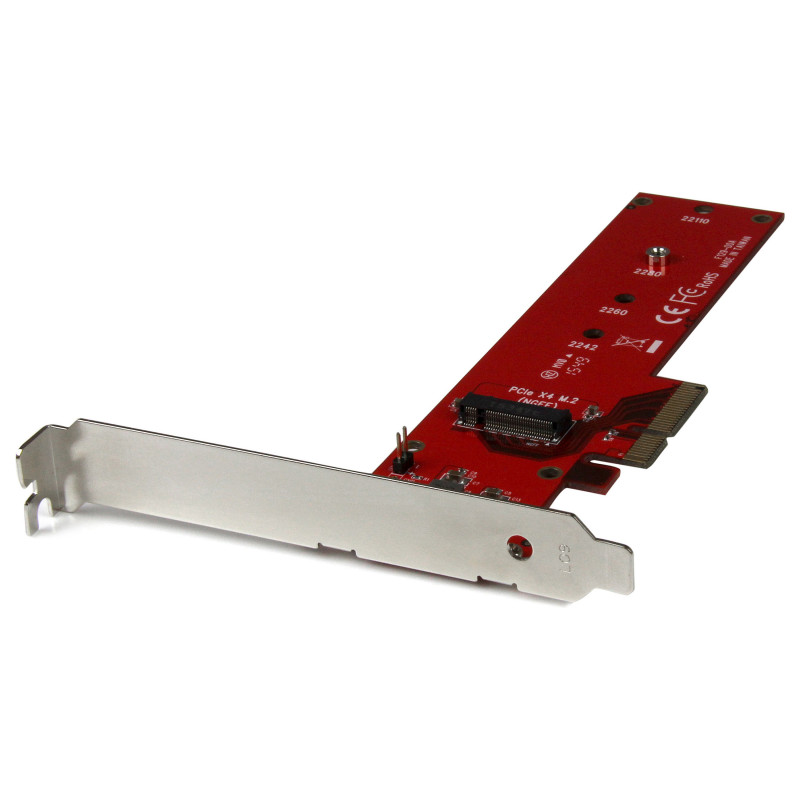

Get ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.

Boost your system speed and performance

The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.

Supports PCIe M.2 SSDs

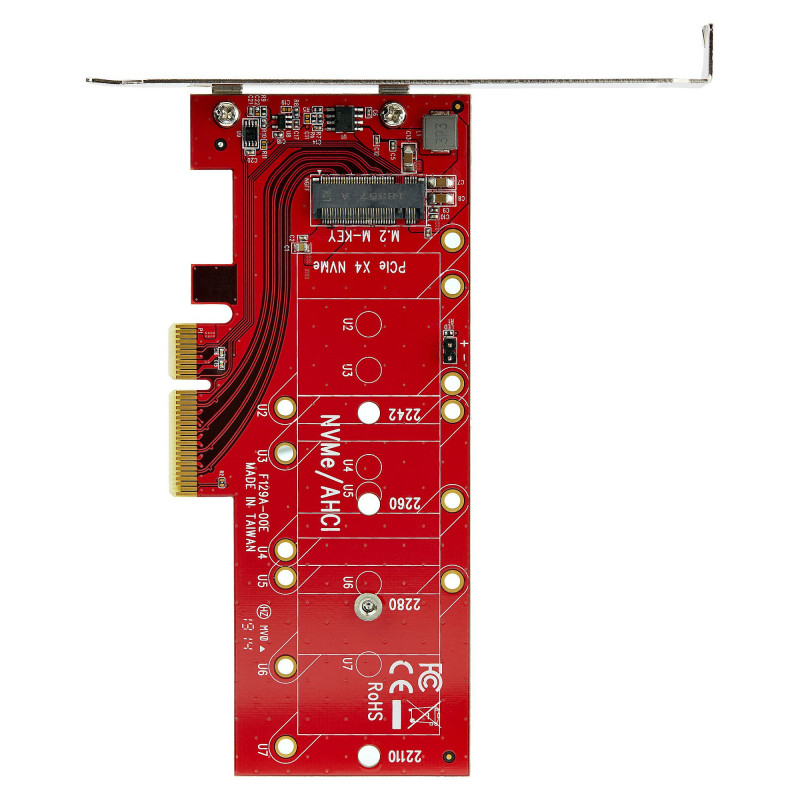

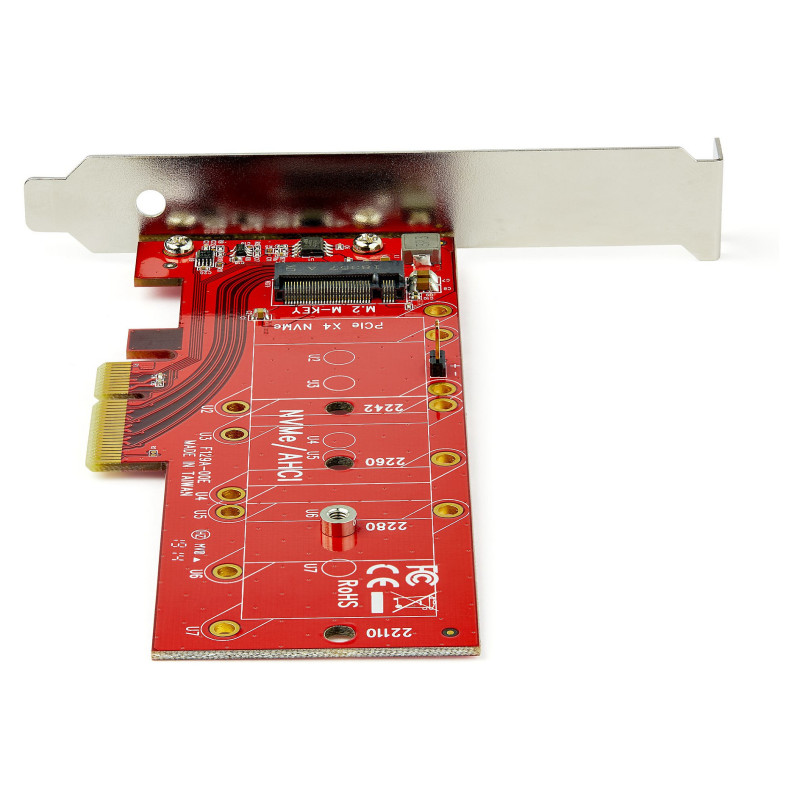

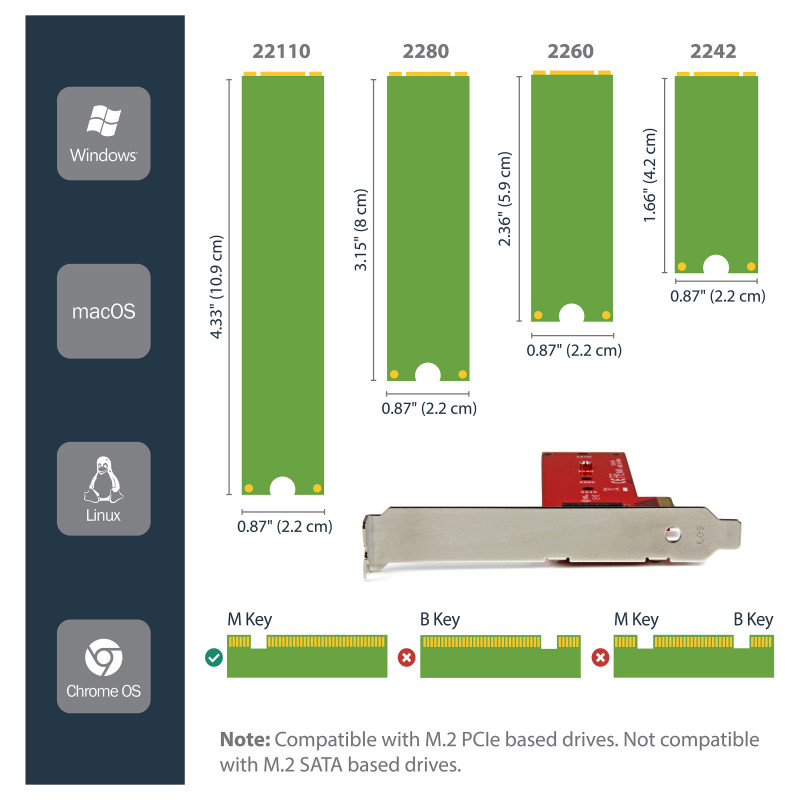

The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.

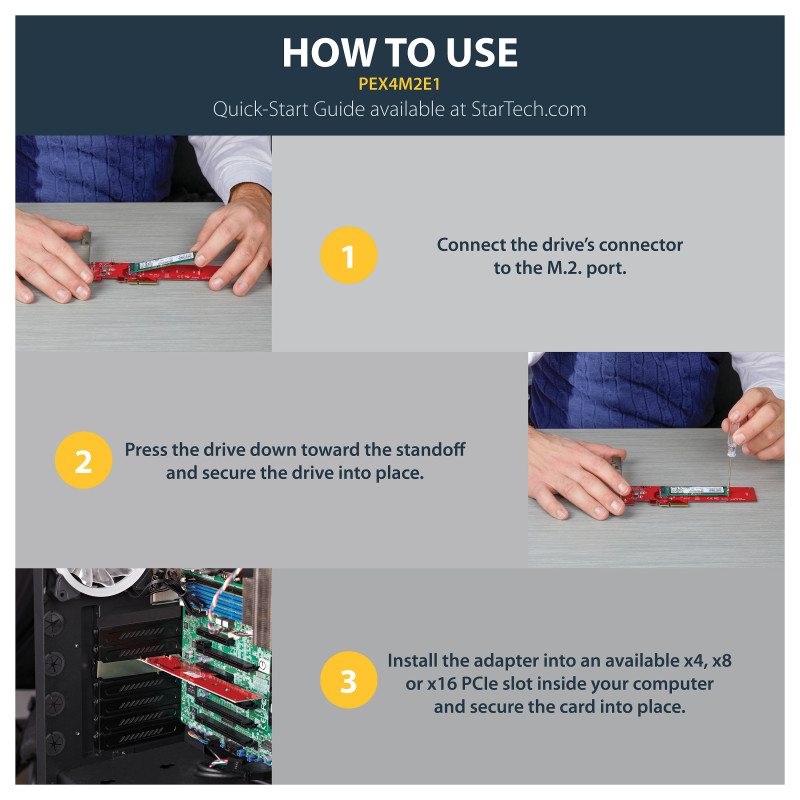

Easy to install

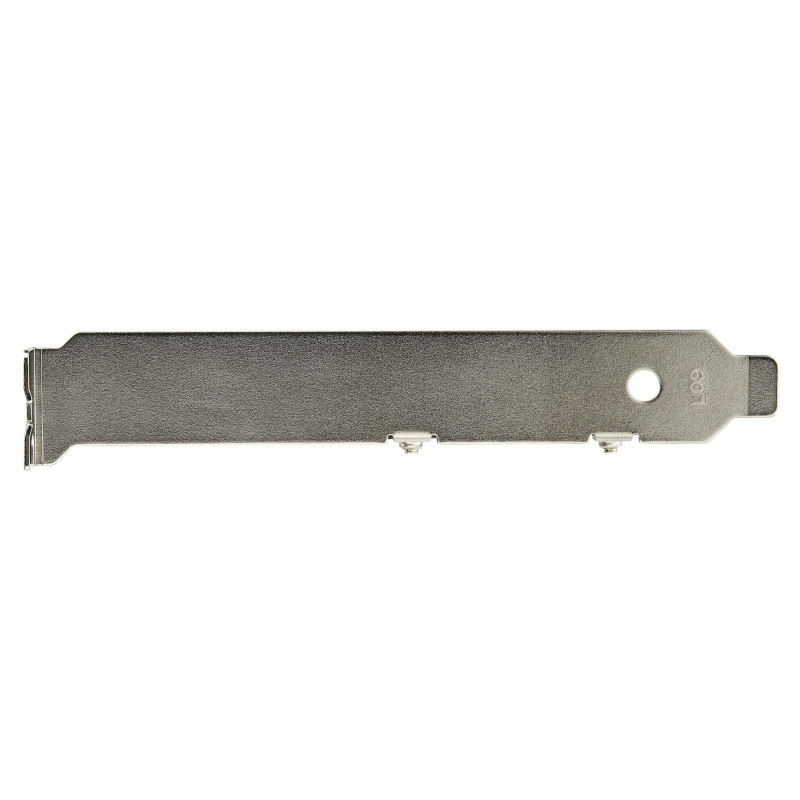

The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.

The PEX4M2E1 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports & interfaces

Host interface: PCIe
Output interface: M.2
Expansion card form factor: Full-height / Low-profile
Expansion card standard: PCI 3.0

Design

Feature: Internal
Product colour: Red
LED indicators: Yes

Features

Data transfer rate (max): 8 Gbit/s
Feature: Plug and Play

Operational conditions

Operating temperature (T-T): 5 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 15 - 90%

System requirements

Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina

Technical details

Compliance certificates: CE, RoHS

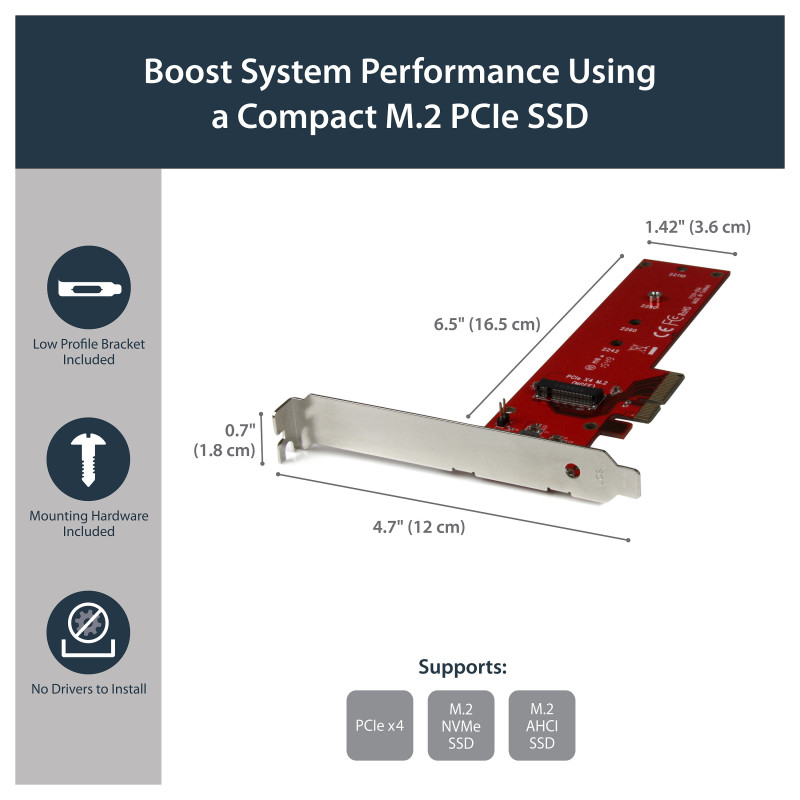

Weight & dimensions

Width: 121 mm
Depth: 179 mm
Height: 184 mm
Weight: 47 g

Packaging data

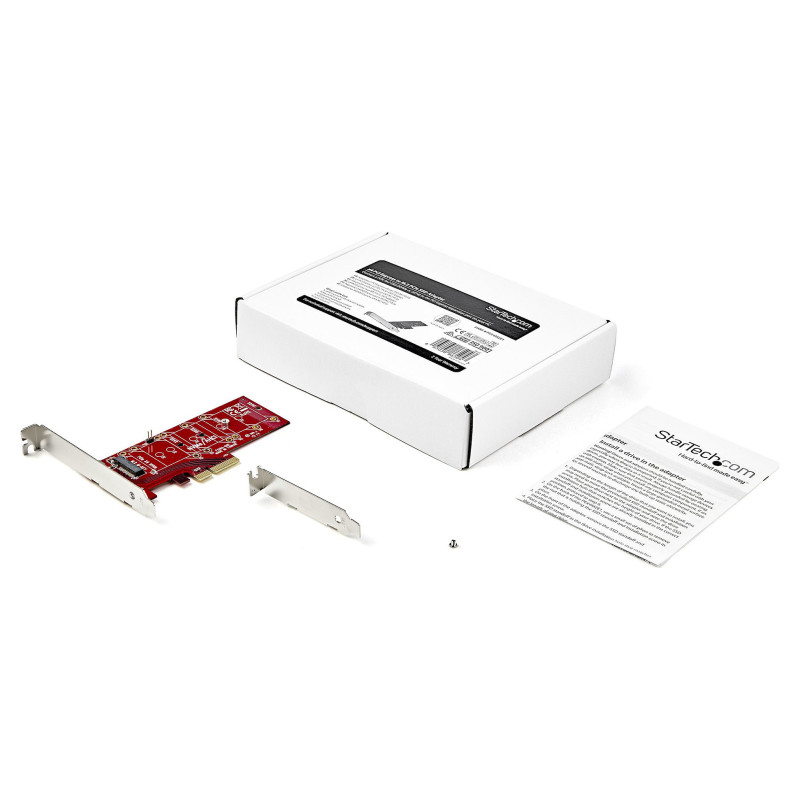

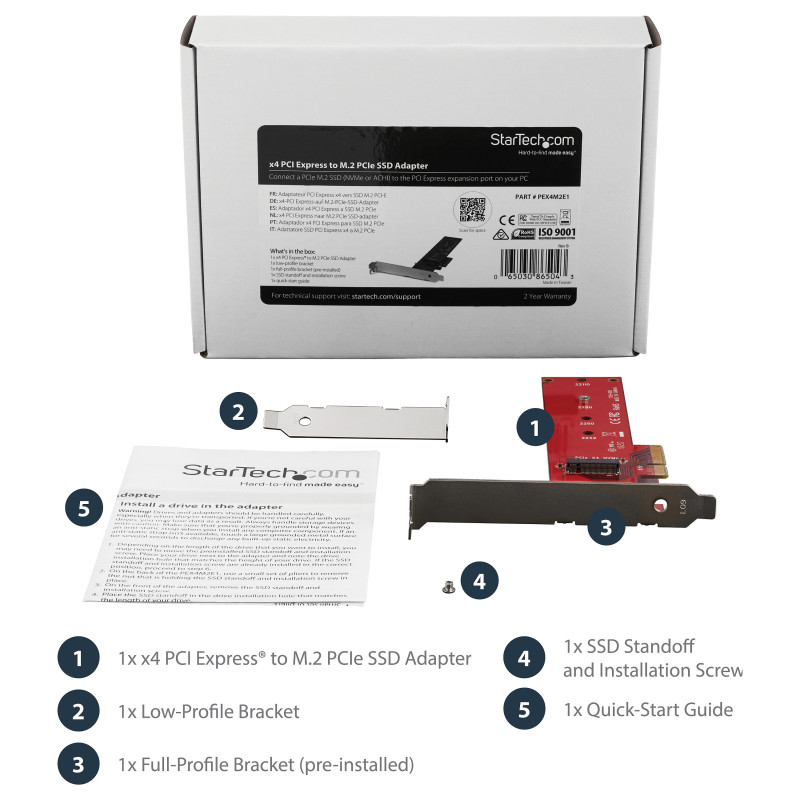

Feature: Mounting brackets included
Feature: Quick installation guide
Package width: 176 mm
Package depth: 143 mm
Package height: 33 mm
Package weight: 151 g

Logistics data

Harmonized System (HS) code: 84733020
Products per master (outer) case: 60 pc(s)
Master (outer) case width: 500 mm
Master (outer) case length: 394 mm
Master (outer) case height: 327 mm
