StarTech.com PEX16S550LP interface cards / adapter

StarTech.com 16-Port Low-Profile Serial Card - RS232 - PCI Express - TAA. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Low-profile. Product colour: Yellow. Chipset: ASMedia - ASM1083, SystemBase - SB4002A, SB16C1058, Baud rate: 921.6 Kbit/s, Data bits: 5, 6, 7, 8. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 68 mm, Depth: 168 mm, Height: 22 mm

Add 16 RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot

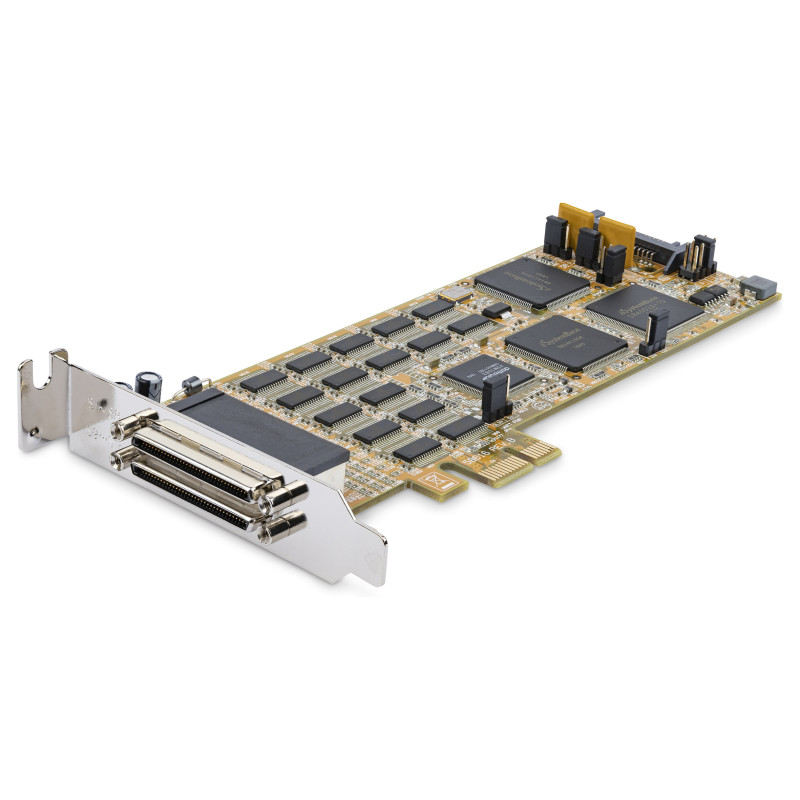

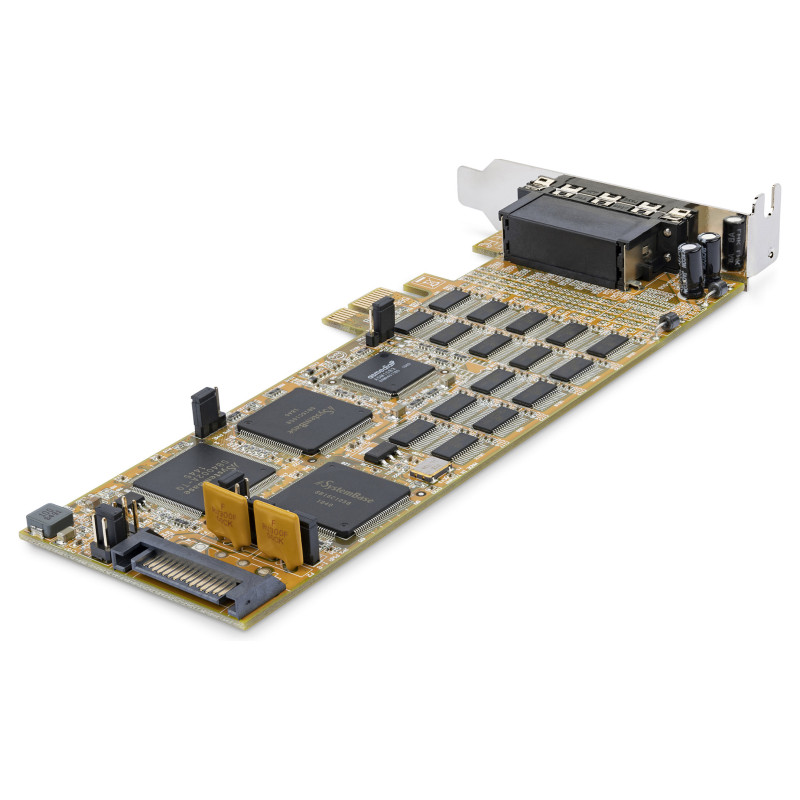

This PCI Express serial card adds 16 high-speed RS232 ports to your standard or low-profile desktop or server PC. This lets you maximize the number of available DB9 RS232 ports that are available for connecting your serial-based devices and equipment, while using only a single PCI Express (PCIe) slot. It's the perfect solution for adding the serial ports you need, even if your desktop PC or server only has a limited number of PCIe expansion slots.

Add 16 RS232 ports through one PCIe slot

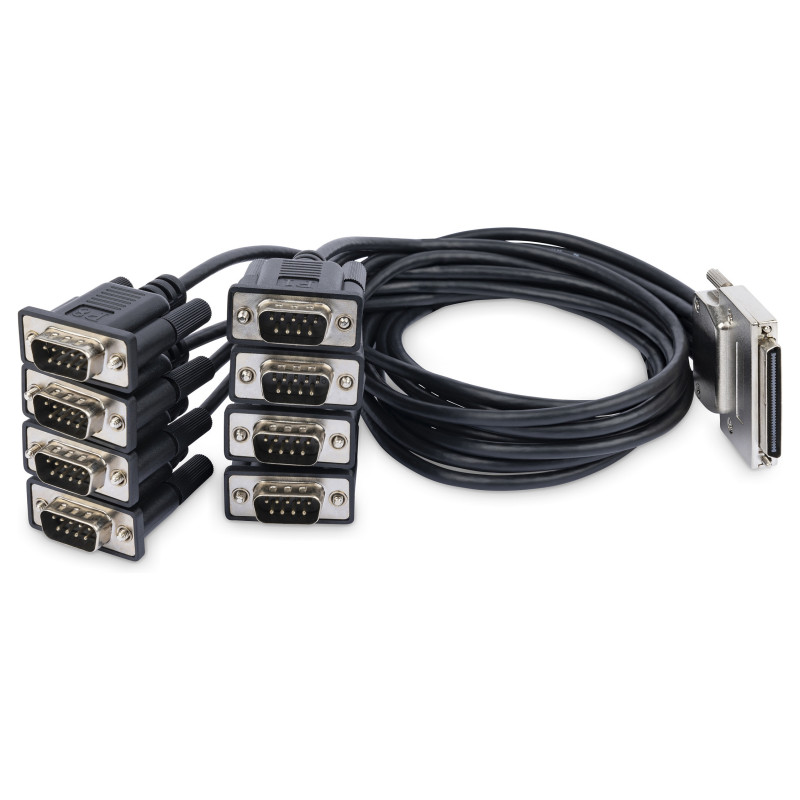

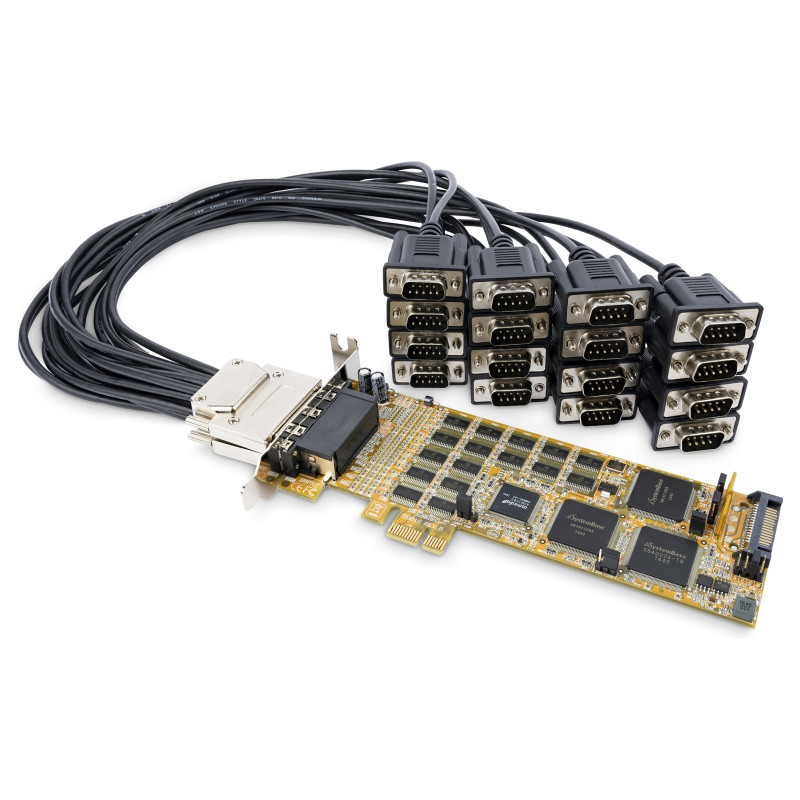

You can install the serial card to add 16 high-performance DB9 RS232 serial ports from a single PCIe slot. With two breakout cables of 8 ports each, the PCIe serial card maximizes the density of DB9 RS232 ports on a server or desktop computer. It's ideal for system upgrades in a wide range of applications, including manufacturing equipment, POS equipment, security devices such as surveillance cameras, and environment or building control systems.

The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.

High-speed serial communication

The PCIe serial card delivers high-performance, high-speed serial communication, with support for data transfer rates of up to 921.6 Kbps.

Easy installation

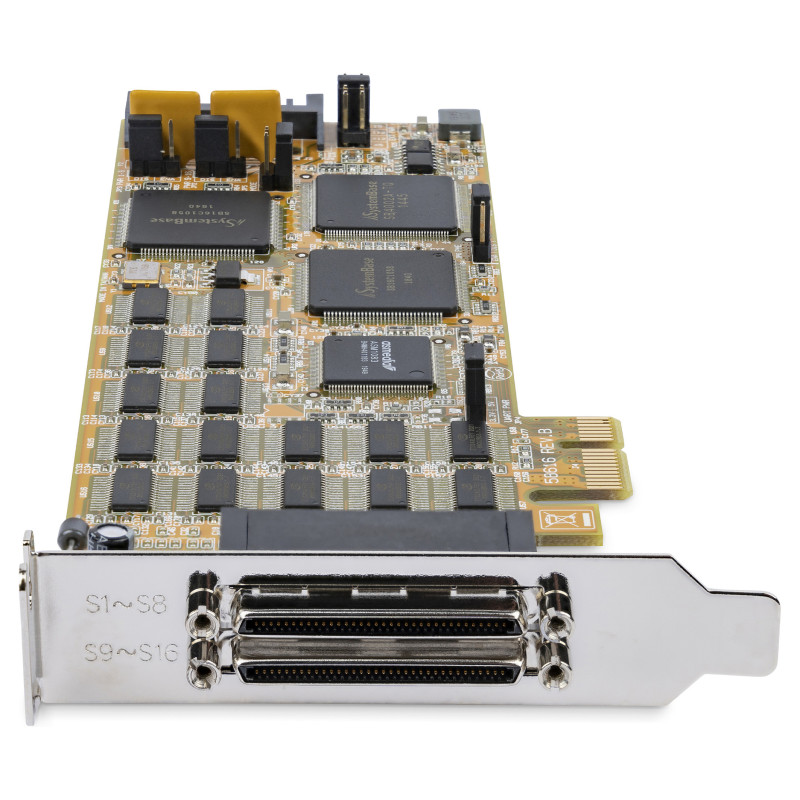

The serial card is easy to install and configure, and compatible with Windows® only. The card features IRQ sharing and supports plug-and-play serial device connections, which makes it convenient and easy to connect serial devices. It includes a low-profile bracket (installed), and a full-profile bracket (included in the package), making it compatible with both low profile and full profile PC chassis slots.

Ports & interfaces

Host interface: PCIe
Output interface: Serial
Expansion card form factor: Low-profile
Expansion card standard: PCIe 1.1
Serial ports quantity: 16
Serial interface type: RS-232
Internal SATA ports quantity: 1

Design

Feature: Internal
Product colour: Yellow

Features

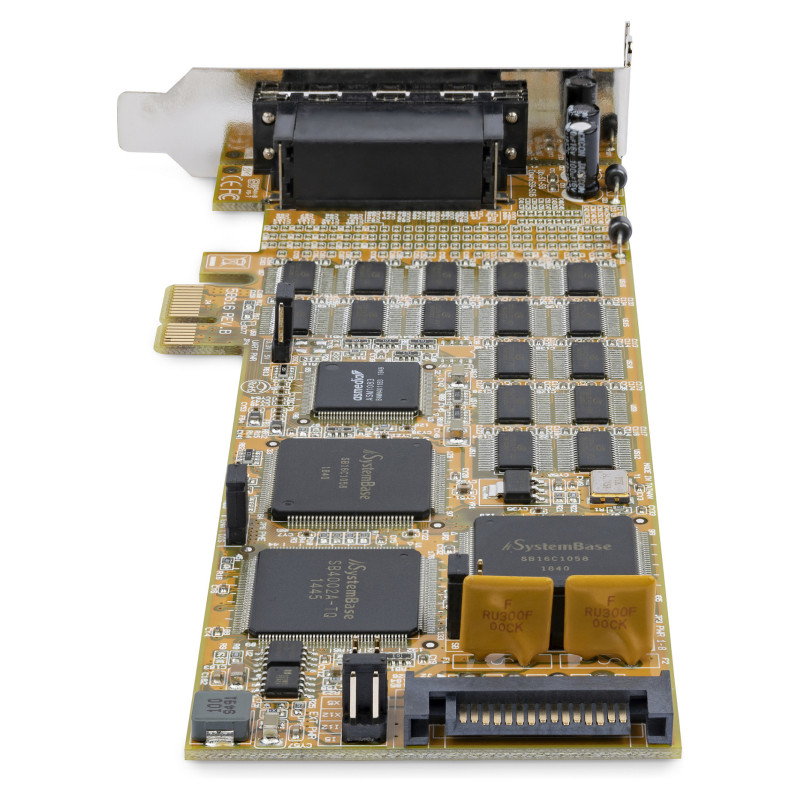

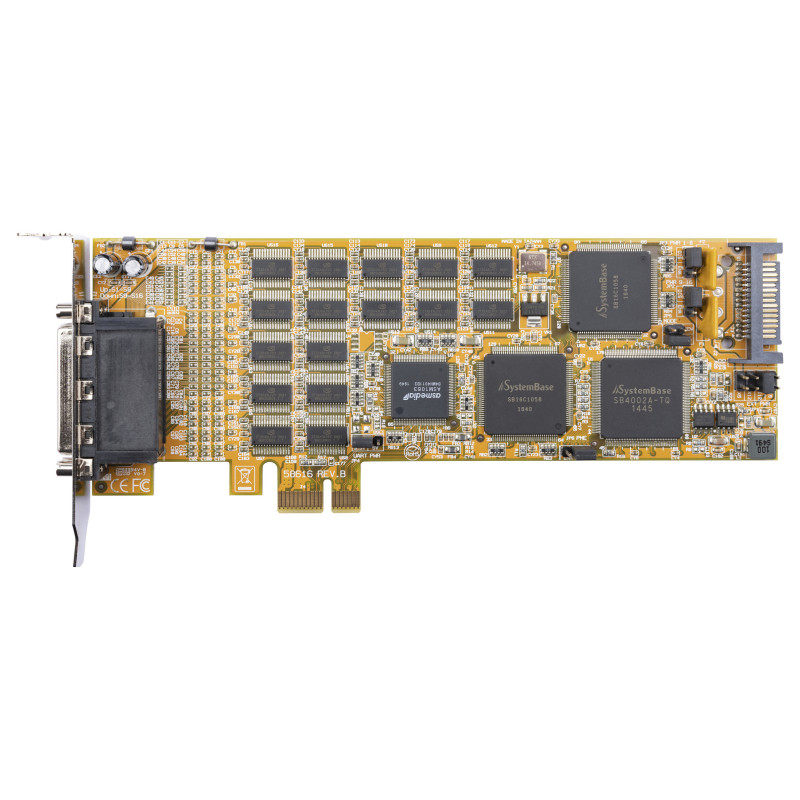

Chipset: ASMedia - ASM1083, SystemBase - SB4002A, SB16C1058
Baud rate: 921.6 Kbit/s
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 75 °C
Operating relative humidity (H-H): 10 - 90%

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Technical details

Compliance certificates: CE, RoHS

Weight & dimensions

Width: 68 mm
Depth: 168 mm
Height: 22 mm
Weight: 70 g

Packaging data

Cables included: RS-232
Feature: Mounting brackets included
Feature: Drivers included
Feature: Quick installation guide
Package width: 194 mm
Package depth: 294 mm
Package height: 70 mm
Package weight: 1.2 kg

Logistics data

Harmonized System (HS) code: 84733020
Products per master (outer) case: 14 pc(s)
Master (outer) case width: 396 mm
Master (outer) case length: 520 mm
Master (outer) case height: 324 mm

Other features

Electrostatic Discharge (ESD) protection: 15 kV
