StarTech.com P4DD46A2-KVM-SWITCH KVM switch

StarTech.com 4-Port Dual-Monitor DisplayPort KVM Switch, 4K 60Hz, 2x USB 5Gbps Hub Ports, 2x USB 2.0 HID Ports, Hotkey and Push-Button Switching, TAA Compliant - 3.5mm Audio, HDCP. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Mean time between failures (MTBF): 103062 h. Power source: DC, Input voltage: 100 - 240 V, Input current: 1 A. Compliance certificates: RoHS, Trade Agreements Act (TAA)

Share a mouse, keyboard, USB 5Gbps hub, and dual 4K 60Hz DisplayPort displays between four DisplayPort-enabled computers

This Dual-Monitor KVM Switch enables users to switch between four desktops that are USB-A and DisplayPort enabled. It allows for sharing of dual-4K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 5Gbps devices.

Fast Switching with USB Emulation

USB Emulation technology enables faster switching of a keyboard, video, and mouse compared to traditional KVMs. USB Emulation also ensures compatibility with combination keyboards/mice as well as keyboards featuring additional function keys.

Dual-4K 60Hz Displays & USB 5Gbps Hub Ports

This TAA-Compliant KVM Switch supports dual-4K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. Additionally, it offers two USB 3.2 Gen 1 (5Gbps) Hub Ports for fast data transfer, and two USB 2.0 HID Ports for the keyboard and mouse. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection.

Customizable Switching

This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of USB/Video and Audio, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• MAC Address Pass-Through Utility: Improve network security.
• USB Event Monitoring Utility: Track and log connected USB devices.
• Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

Ports & interfaces

Number of computers controlled: 4
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPorts quantity: 8
DisplayPort version: 1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 4
Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort
Console DisplayPorts ports quantity: 2
Feature: USB hub
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
Feature: Audio connections
Headphone outputs: 5
Number of microphone inputs: 5
Feature: DC-in jack

Performance

HD type: 4K Ultra HD
Maximum resolution: 3840 x 2160 pixels
Video bandwidth: 60 Hz
Data transfer rate (max): 5 Gbit/s
Scan interval: 10,20,30,40,50,60 s
Feature: HDCP
Feature: Plug and Play

Design

Product colour: Black

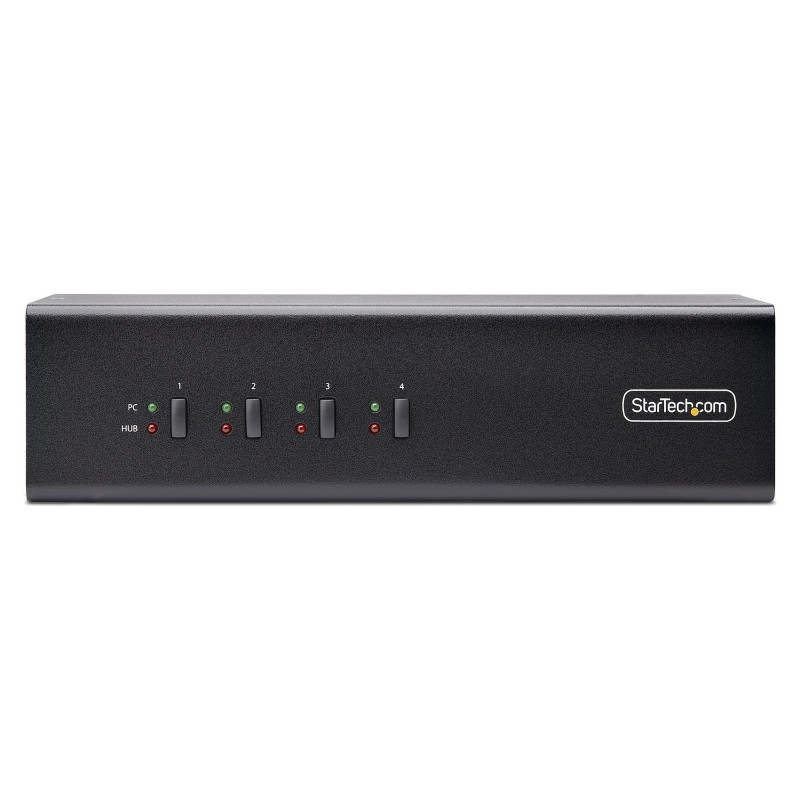

LED indicators: Yes
Feature: Push button
Feature: Hot keys
Mean time between failures (MTBF): 103062 h

Display

Feature: On Screen Display (OSD)

Power

Power source: DC
Input voltage: 100 - 240 V
Input current: 1 A
Output voltage: 12 V
Output current: 3 A
Feature: External power adapter
Compatible power plug types: EU, JP, UK, US

Sustainability

Feature: Sustainability compliance
Compliance certificates: RoHS, Trade Agreements Act (TAA)

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 100 mm
Depth: 253 mm
Height: 66 mm
Weight: 1.2 kg

Packaging data

Package width: 162 mm
Package depth: 332 mm
Package height: 129 mm
Package weight: 1.4 kg

Packaging content

Feature: Quick installation guide

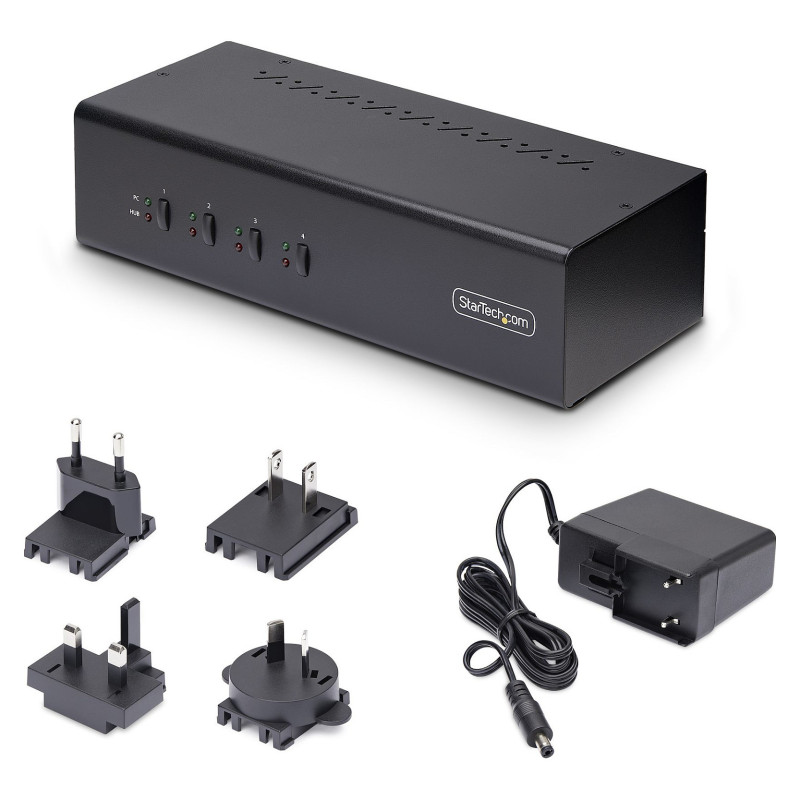

Feature: AC adapter included

Logistics data

Master (outer) case width: 352 mm
Master (outer) case length: 513 mm
Master (outer) case height: 301 mm
Products per master (outer) case: 6 pc(s)
