StarTech.com P4A20132-KM-SWITCH KVM switch

StarTech.com 4-Port KM Switch with Mouse Switching, USB Switch for Keyboard/Mouse, 3.5mm/USB Audio, Peripheral Sharing for 4 Computers, TAA Compliant. Keyboard port type: USB, Mouse port type: USB, Console ports: 3.5mm headphone, 3.5mm mic, USB A. Data transfer rate (max): 5 Gbit/s, Chipset: GL3523. Product colour: Black, Mean time between failures (MTBF): 156000 h. Input voltage: 100 - 240 V, Input current: 0.6 A, Output voltage: 12 V. Compliance certificates: RoHS, Trade Agreements Act (TAA)
Control up to four computers with a single keyboard and mouse
This Keyboard and Mouse (KM) Switch enables switching a single keyboard and mouse between multiple computers using mouse roaming, allowing users to seamlessly move the cursor across multiple screens (i.e., one monitor per computer).

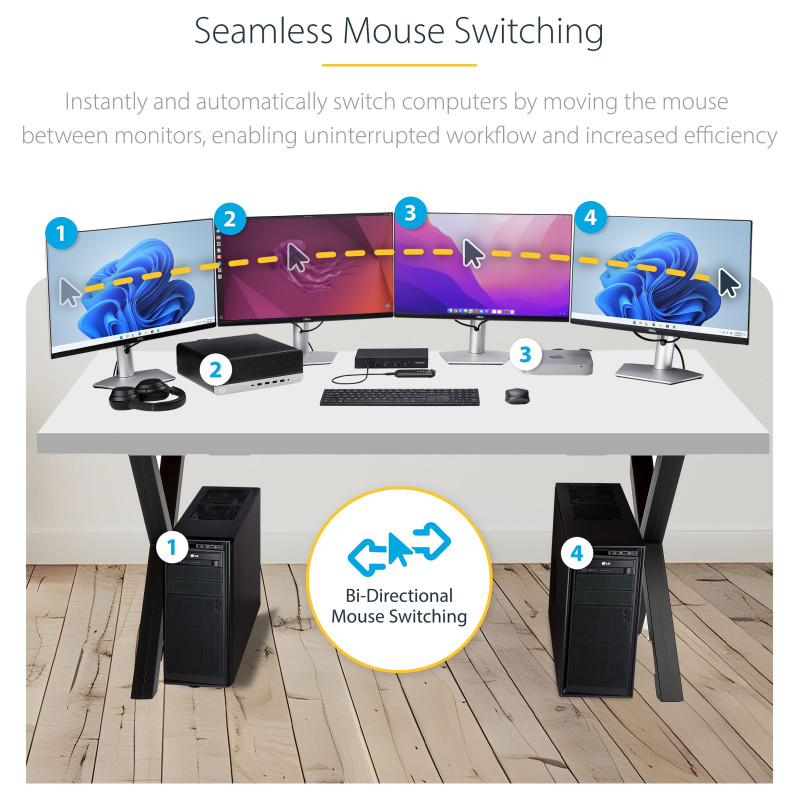

Mouse Switching
Switch between computers by moving the mouse between monitors, enabling uninterrupted workflow and increased efficiency. Hotkey and push-button switching are universally compatible. Mouse Switching is supported by most major desktop operating systems, including Windows, macOS, and Linux.

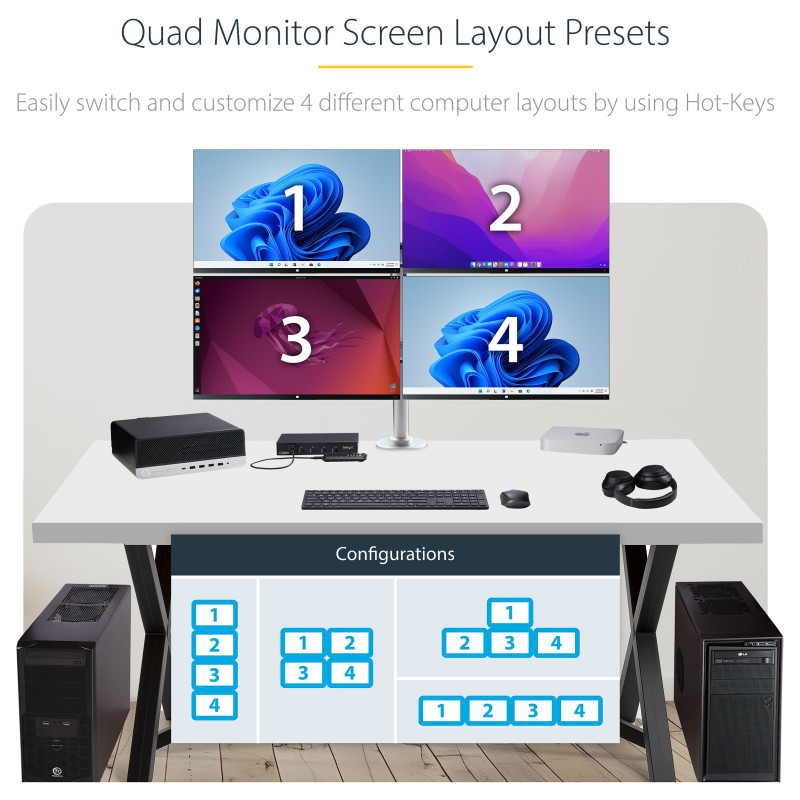

Preset Monitor Layouts
To accommodate various physical monitor setups, there are four preset display configurations available. This allows for smooth mouse movement across host monitors.
Thoughtful Design
Hotkeys enable listening to audio from one computer while controlling another. USB audio and 3.5mm pass-through are available, and LEDs provide visual port selection status, while an audible buzzer confirms hotkey selection.
Note: On computers with multiple monitors connected with Mouse Switching/Roaming enabled, mouse/keyboard operation is limited to the primary display

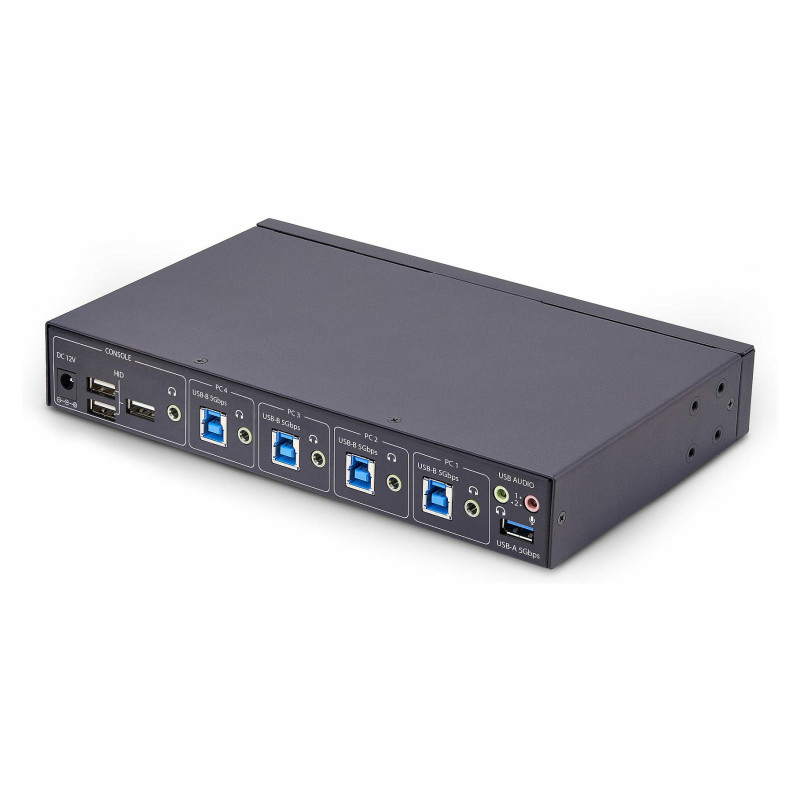

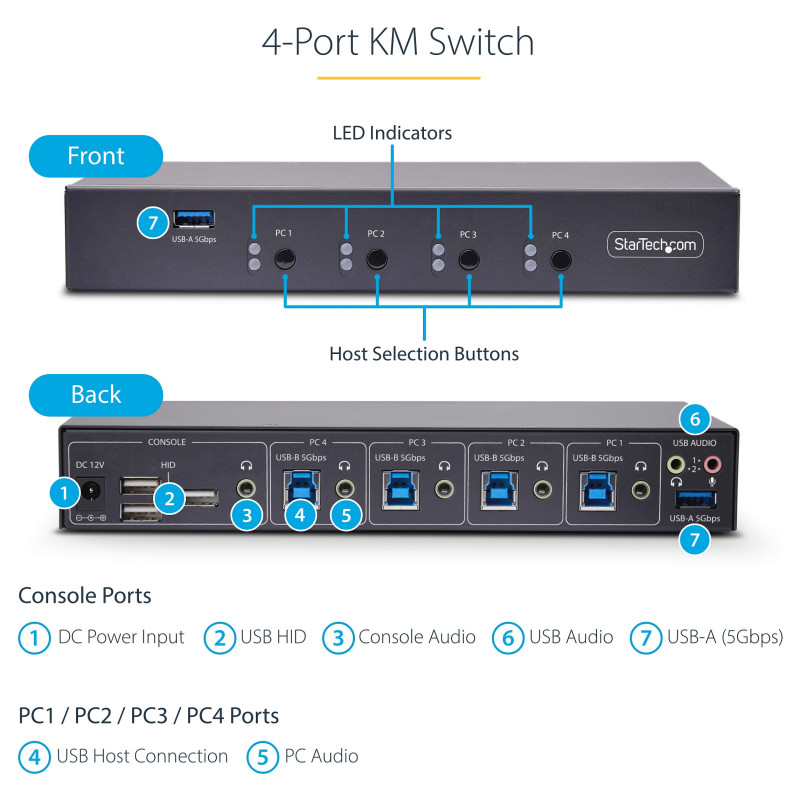

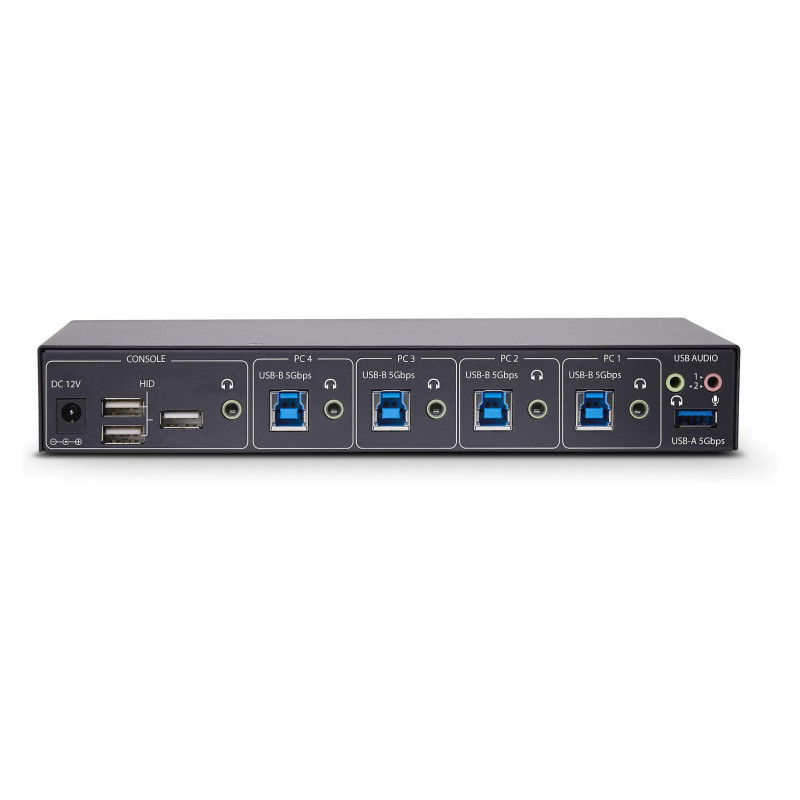

Ports interfaces

Number of computers controlled: 4
Keyboard port type: USB
Mouse port type: USB
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: 4
Console ports: 3.5mm headphone, 3.5mm mic, USB A
USB 2.0 Type-A hub ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2
Audio connections: Yes
Headphone outputs: 6
Number of microphone inputs: 1
DC-in jack: Yes

Performance

HD type: Not supported
Data transfer rate (max): 5 Gbit/s
Chipset: GL3523

Design

Product colour: Black

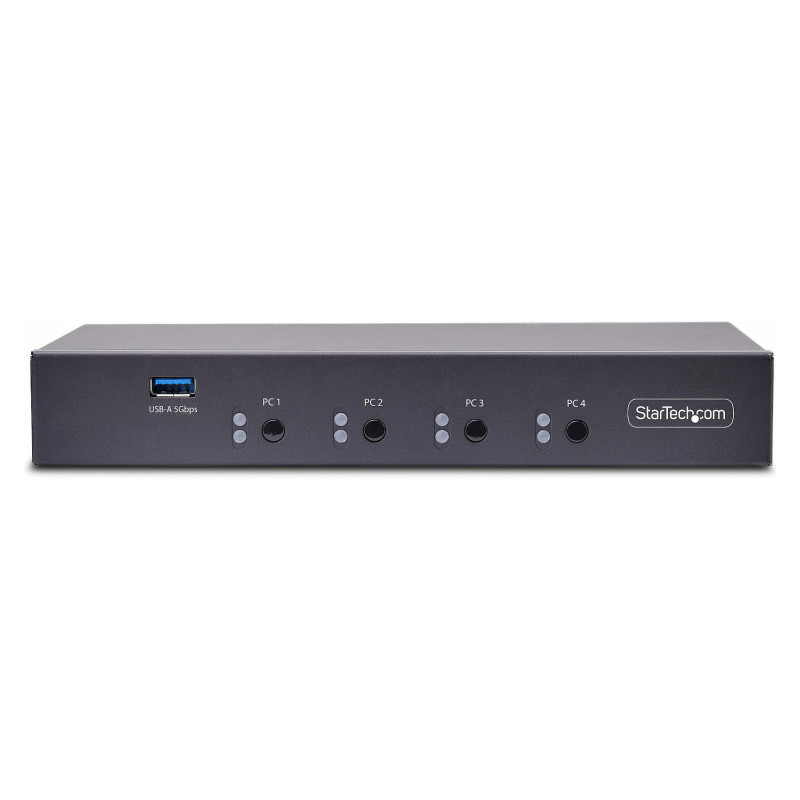

LED indicators: Yes
Push button: Yes
Hot keys: Yes
Mean time between failures (MTBF): 156000 h

Display

Built-in display: No
On Screen Display (OSD): No

Power

Input voltage: 100 - 240 V
Input current: 0.6 A
Output voltage: 12 V
Output current: 5 A
External power adapter: Yes
Power plug type: Type M
Compatible power plug types: AU, EU, UK, US

Sustainability

Sustainability compliance: Yes
Compliance certificates: RoHS, Trade Agreements Act (TAA)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 0 - 80%

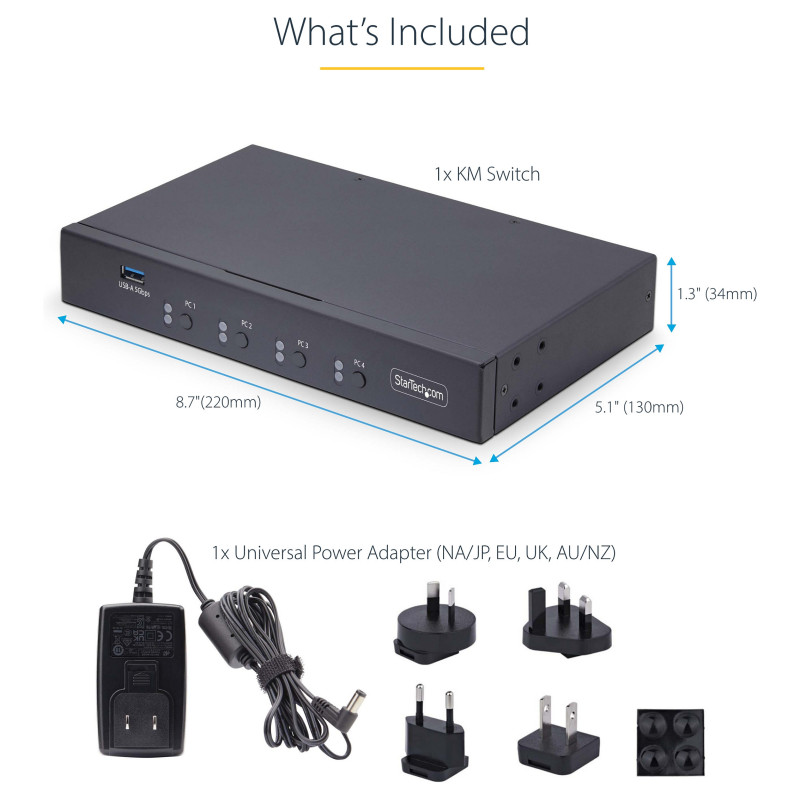

Weight dimensions

Width: 130 mm
Depth: 220 mm
Height: 34 mm
Weight: 800 g

Packaging data

Package width: 295 mm
Package depth: 245 mm
Package height: 63 mm
Package weight: 180 g

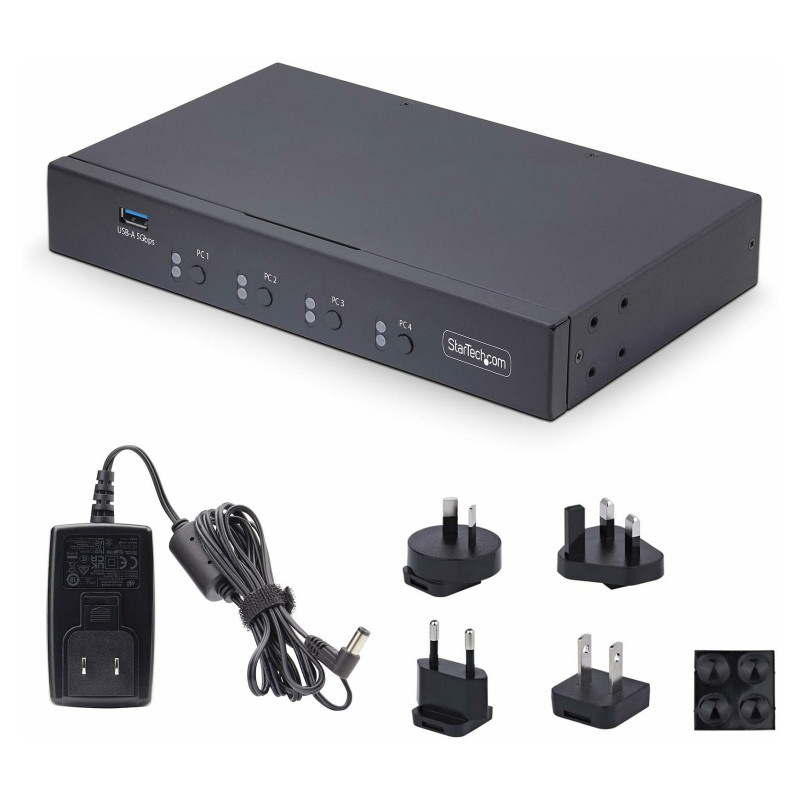

Packaging content

Quick installation guide: Yes

Other features

IP control: No

Logistics data

Master (outer) case width: 320 mm
Master (outer) case length: 505 mm
Master (outer) case height: 290 mm
Products per master (outer) case: 8 pc(s)
