StarTech.com P2CDD143-KVM-SWITCH KVM switch

StarTech.com 2-Port Dual-Monitor DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, DP 1.4, 2x USB 10Gbps Ports, 4x USB HID Ports, Hotkey Switching, TAA Compliant. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 8K Ultra HD, Maximum resolution: 7680 x 4320 pixels, Data transfer rate (max): 10 Gbit/s. Product colour: Black, Housing material: Metal, Mean time between failures (MTBF): 168000 h. Input voltage: 100 - 240 V, Input current: 1 A, Output voltage: 12 V. Compliance certificates: RoHS, Trade Agreements Act (TAA)

Share a mouse, keyboard, USB (10Gbps) Hub, and dual 8K 60Hz DisplayPort monitors between two DisplayPort-enabled computers

This dual-monitor KVM switch allows users to switch between two USB and DisplayPort-enabled desktops. It allows for sharing of dual-8K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 10Gbps devices.

Dual-8K 60Hz Displays & USB 10Gbps Hub Ports

This TAA-compliant KVM Switch supports dual 8K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. It also features two USB 3.2 Gen 2 (10Gbps) hub ports for fast data transfer, and four USB HID ports for the keyboard, mouse, and two additional USB peripherals.

Fast Switching with USB Emulation

USB emulation technology enables faster keyboard, video, and mouse switching compared to traditional KVMs. USB Emulation also ensures compatibility with combo keyboards/mice and keyboards featuring extra function keys.

Switching Options

This Universal KVM Switch offers hotkey or push-button switching options. Hotkeys allow for independent switching of audio, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.

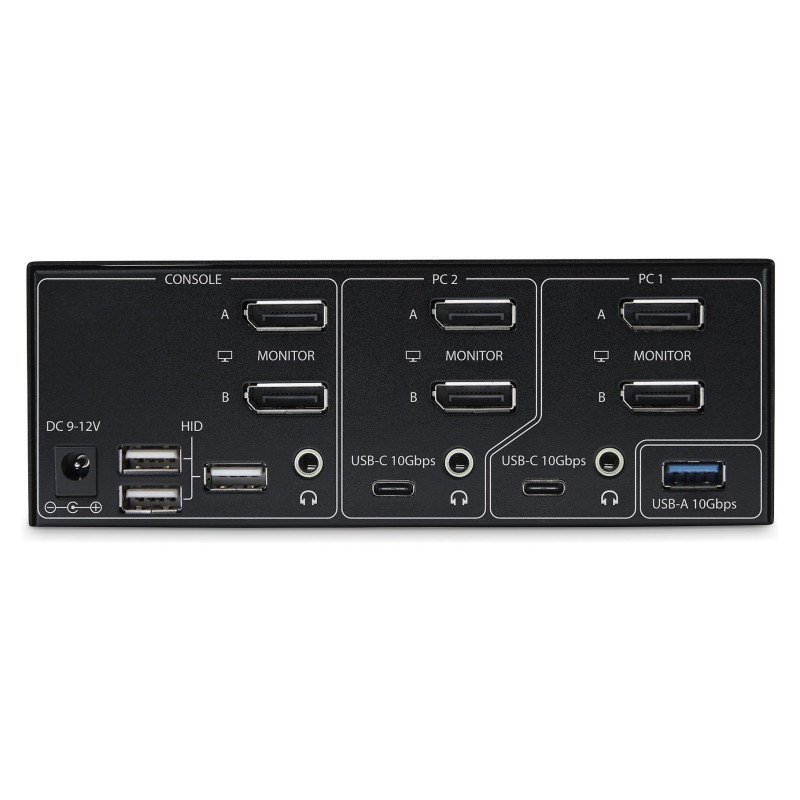

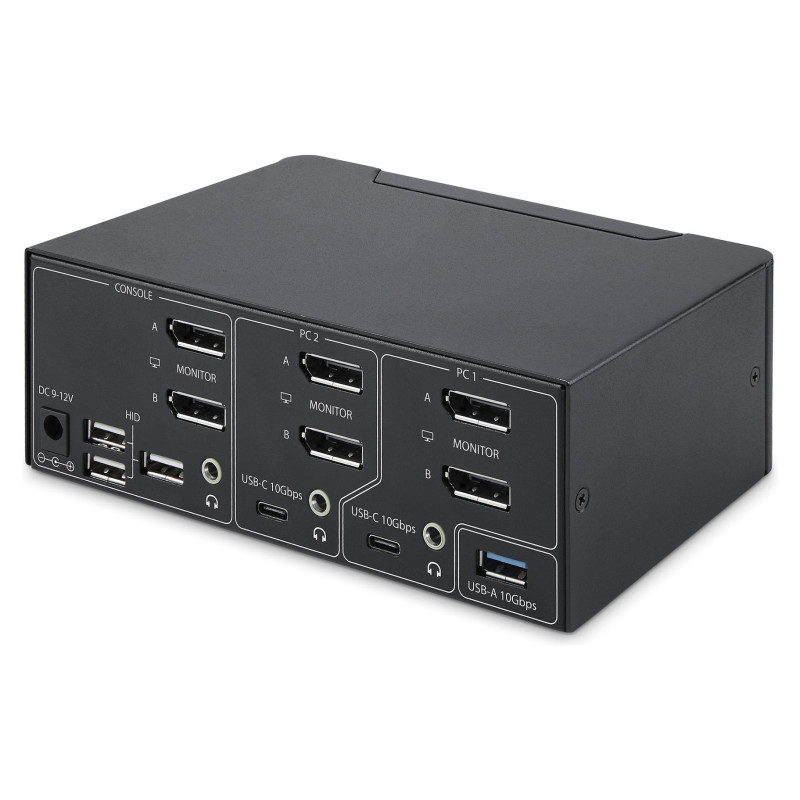

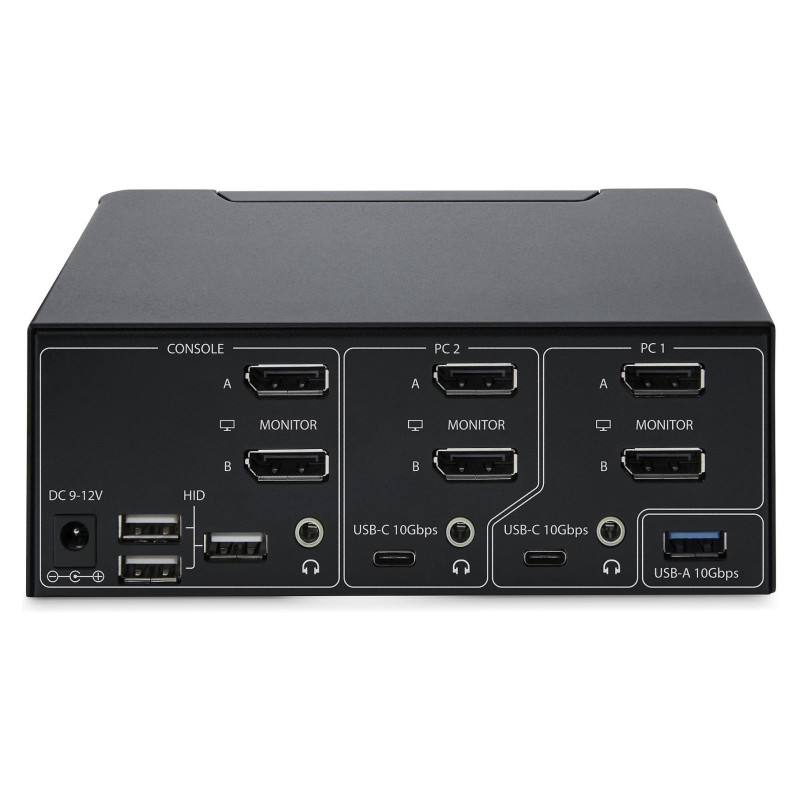

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
DisplayPorts quantity: 4
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Console ports: 3.5mm headphone, DisplayPort, USB A
Console USB ports quantity: 3
Console DisplayPorts ports quantity: 2
Feature: USB hub
USB 2.0 ports quantity: 1
Feature: Audio connections
Headphone outputs: 3
Feature: DC-in jack

Performance

HD type: 8K Ultra HD
Maximum resolution: 7680 x 4320 pixels
Data transfer rate (max): 10 Gbit/s
Scan interval: 3,8,15,30 s
Feature: High Dynamic Range (HDR) supported
Number of users: 1 user(s)
Maximum refresh rate: 144 Hz
Chipset: Genesys Logic - GL3590
Number of displays supported: 2

Design

Product colour: Black
Housing material: Metal
LED indicators: Yes
Feature: Push button
Feature: Hot keys
Mean time between failures (MTBF): 168000 h

Power

Input voltage: 100 - 240 V
Input current: 1 A
Output voltage: 12 V
Output current: 3 A
Power consumption (typical): 36 W
Power plug type: Type M
Compatible power plug types: AU, EU, UK, US

Sustainability

Compliance certificates: RoHS, Trade Agreements Act (TAA)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

Width: 100 mm
Depth: 160 mm
Height: 60 mm
Weight: 800 g

Packaging data

Package width: 238 mm
Package depth: 184 mm
Package height: 89 mm
Package weight: 1.4 kg

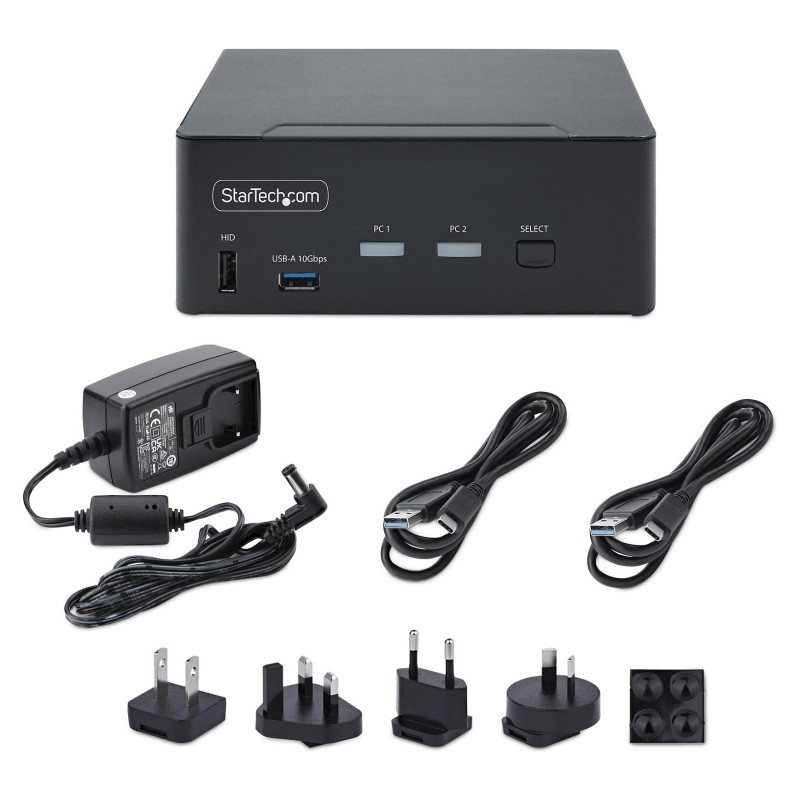

Packaging content

Cables included: USB Type-A to USB Type-C
Feature: Quick installation guide
Feature: Rubber feet

Logistics data

Master (outer) case width: 260 mm
Master (outer) case length: 395 mm
Master (outer) case height: 300 mm
Products per master (outer) case: 6 pc(s)
