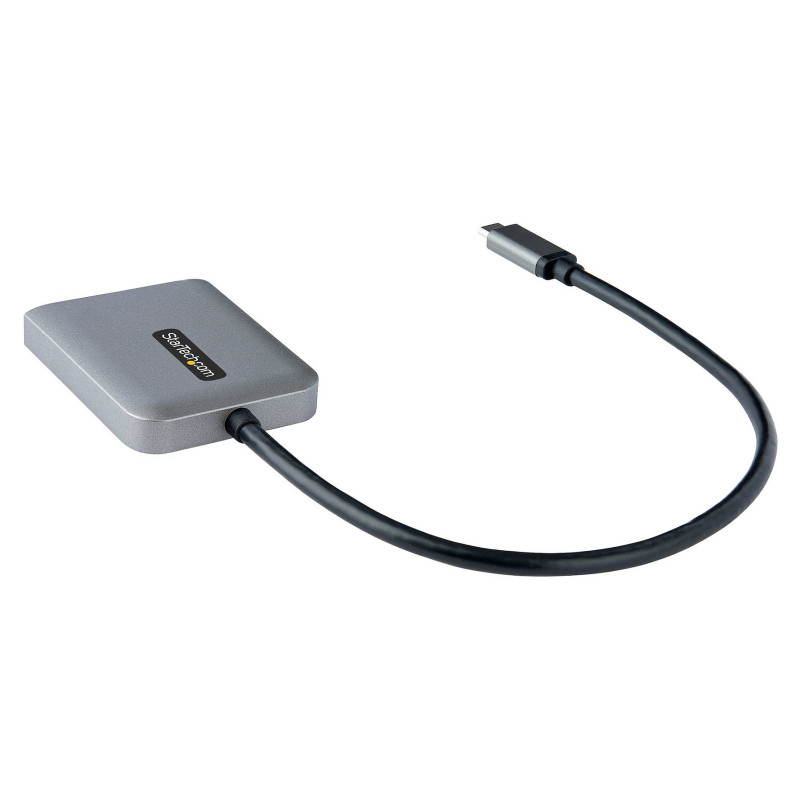

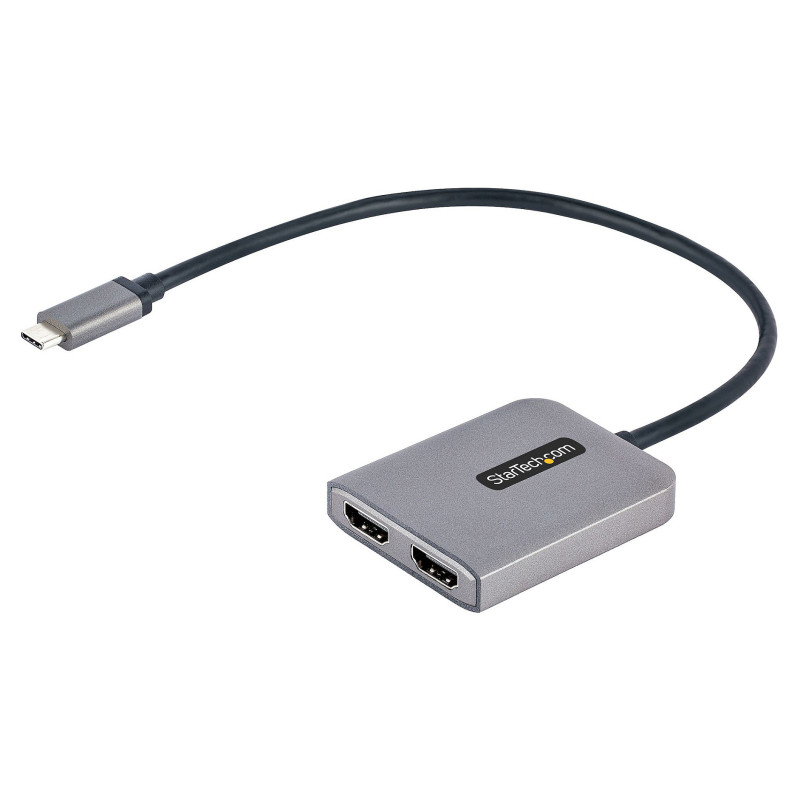

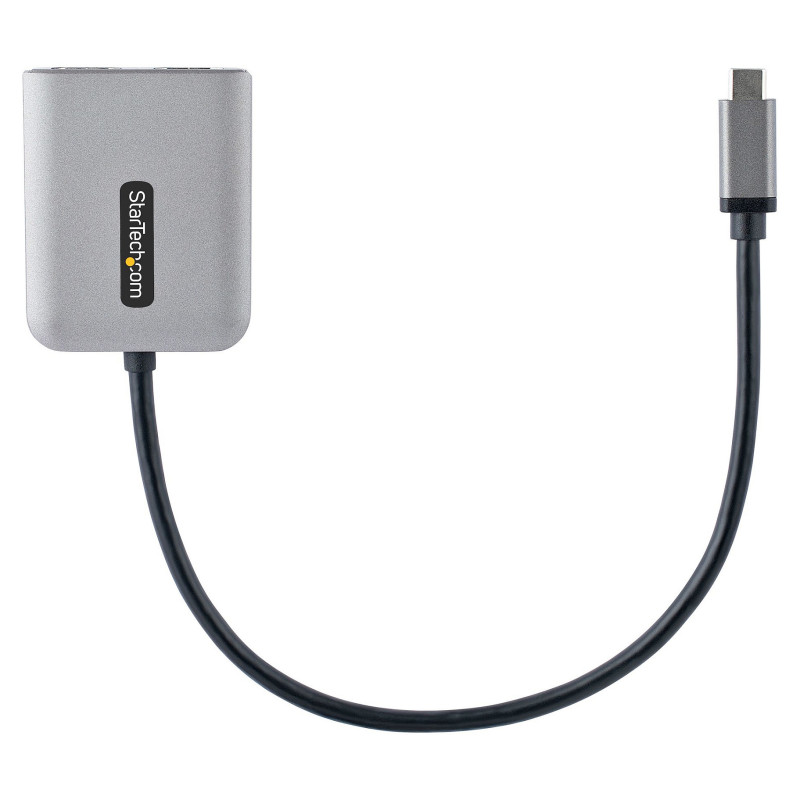

StarTech.com MST14CD122HD USB graphics adapter

StarTech.com USB-C to Dual HDMI Adapter, USB Type-C Multi-Monitor MST Hub, Dual 4K 60Hz HDMI Laptop Display Extender / Splitter, HDR, Extra-Long Built-In Cable - Windows Only. USB connector type: USB Type-C, USB connector gender: Male, USB connector form factor: Straight. Product colour: Black, Grey, Housing material: Plastic. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10.... Width: 105 mm, Depth: 43 mm, Height: 14 mm. Package width: 142 mm, Package depth: 170 mm, Package height: 30 mm

Create a high-performance dual-display workstation by connecting a USB Type-C™ device to two independent HDMI® monitors

This USB-C to HDMI MST Hub allows you to connect two HDMI monitors, using a USB-C enabled host device.

Multi-tasking Made Easy

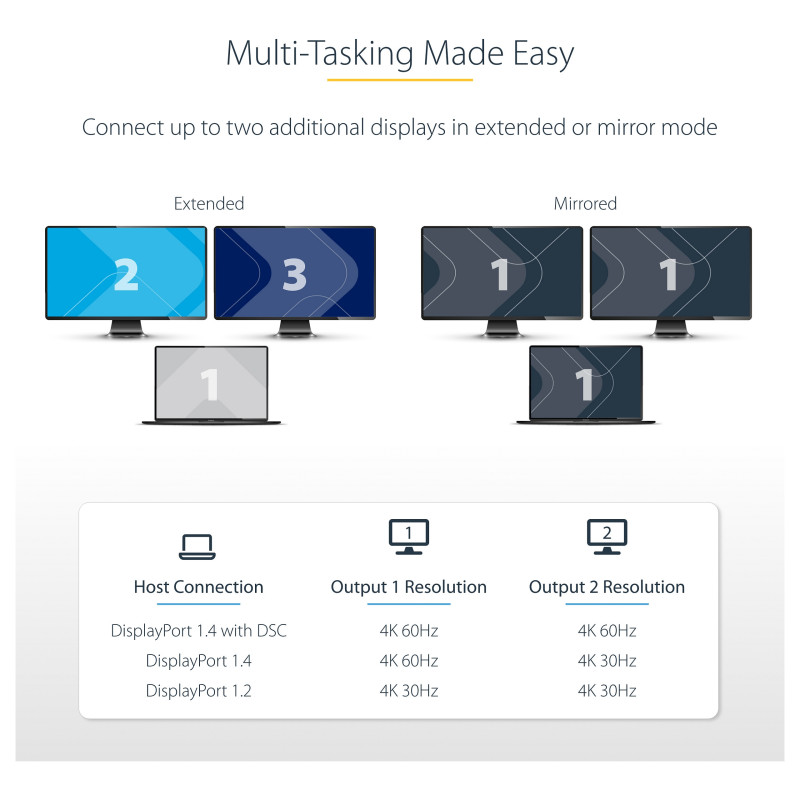

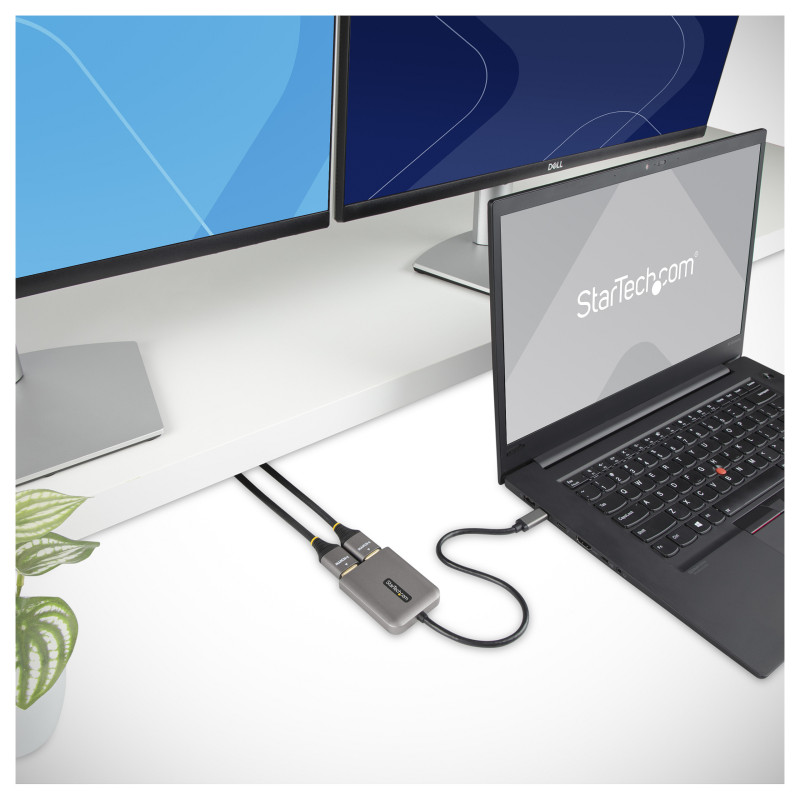

This USB-C to HDMI video splitter connects up to two additional displays in extended or mirror mode. Connecting two independent 4K 60Hz displays creates high-performance workstations, for users in your organization enabling easier multi-tasking resulting in increased productivity.

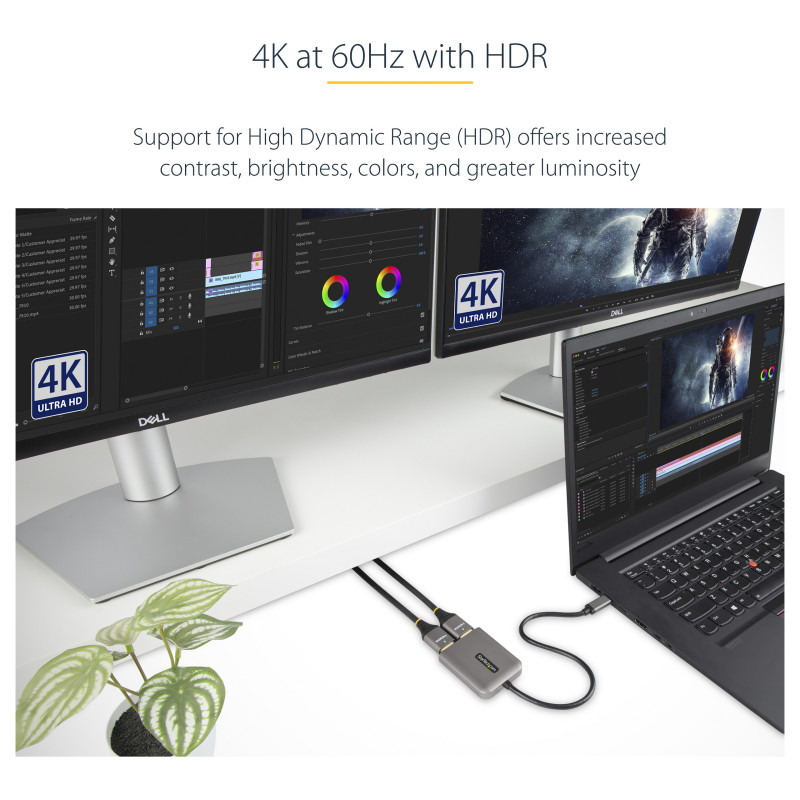

Multi-Stream Transport (MST) technology combines multiple video signals into a single signal/stream. This MST Hub separates the single stream into two independent signals, one for each HDMI enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.

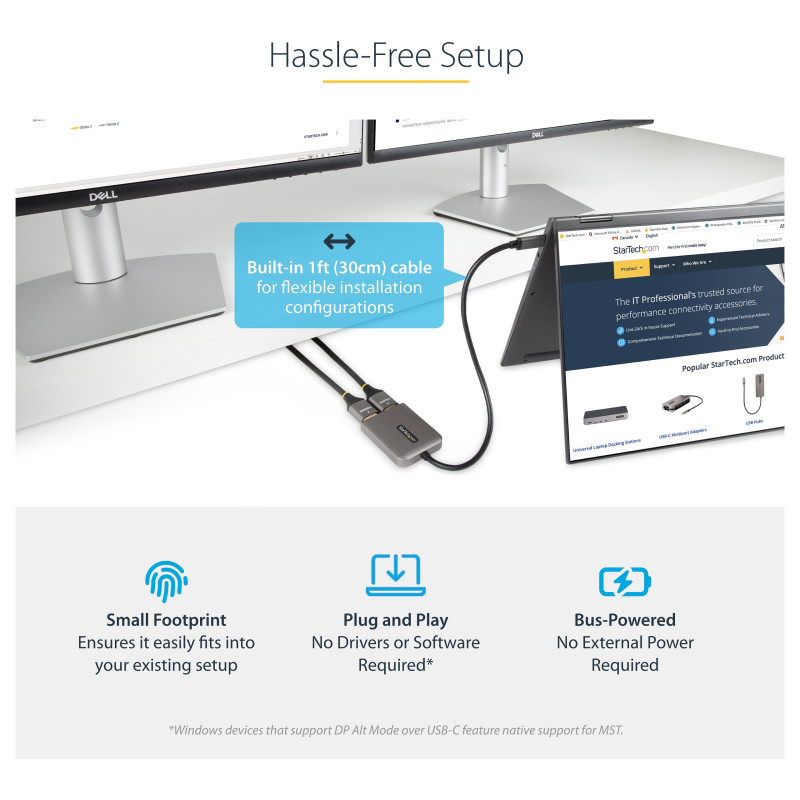

Hassle-Free Setup

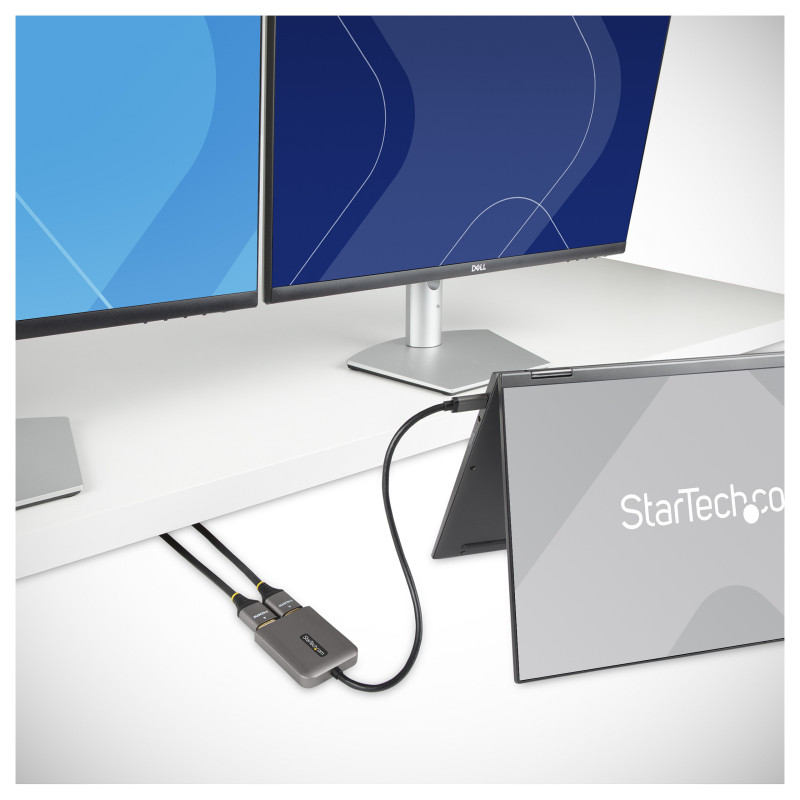

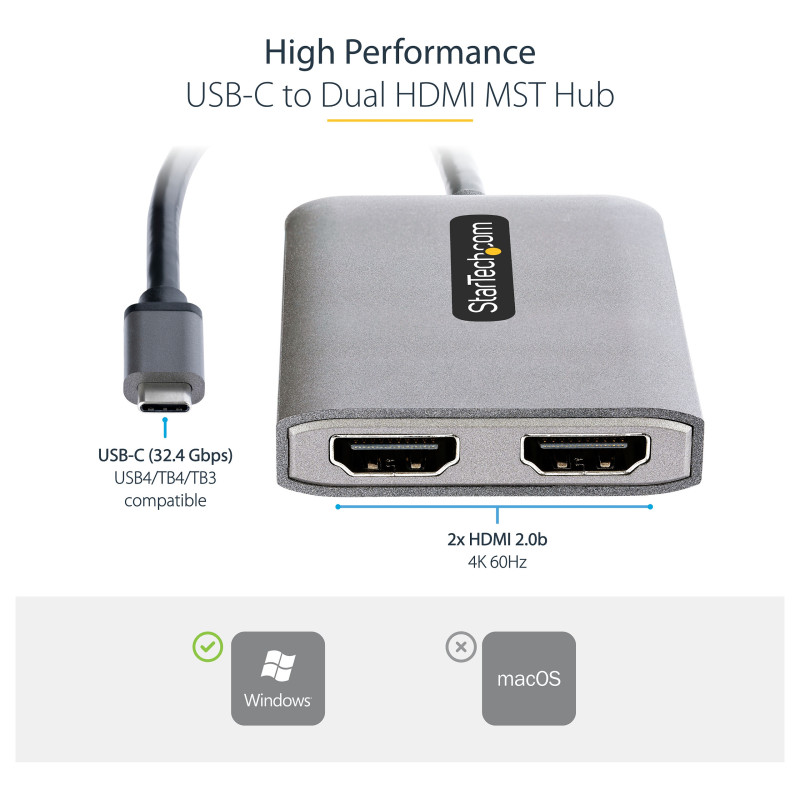

Windows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to HDMI hub is compatible with Thunderbolt 4, Thunderbolt 3, and USB4 enabled Windows devices. Plug-and-play installation with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, meaning no external power is required.

MST14CD122HD is backed by a StarTech.com 3-year warranty, and free lifetime multilingual, North American based technical support.

Performance

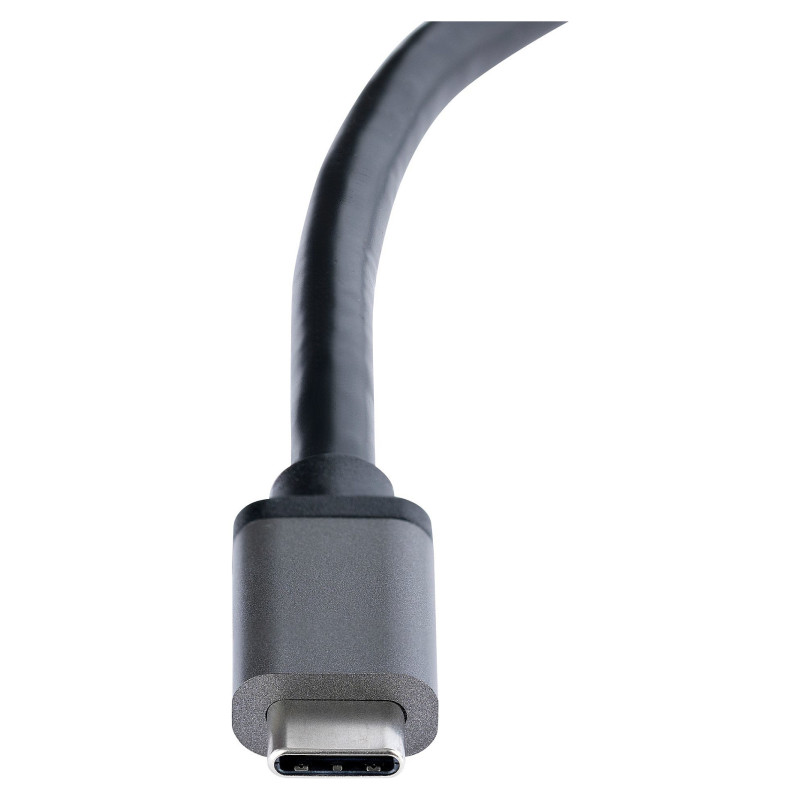

USB connector type: USB Type-C
USB connector gender: Male
USB connector form factor: Straight
Feature: High Dynamic Range (HDR) supported
Feature: HDMI output
Feature: DisplayPort output
Number of displays supported: 2

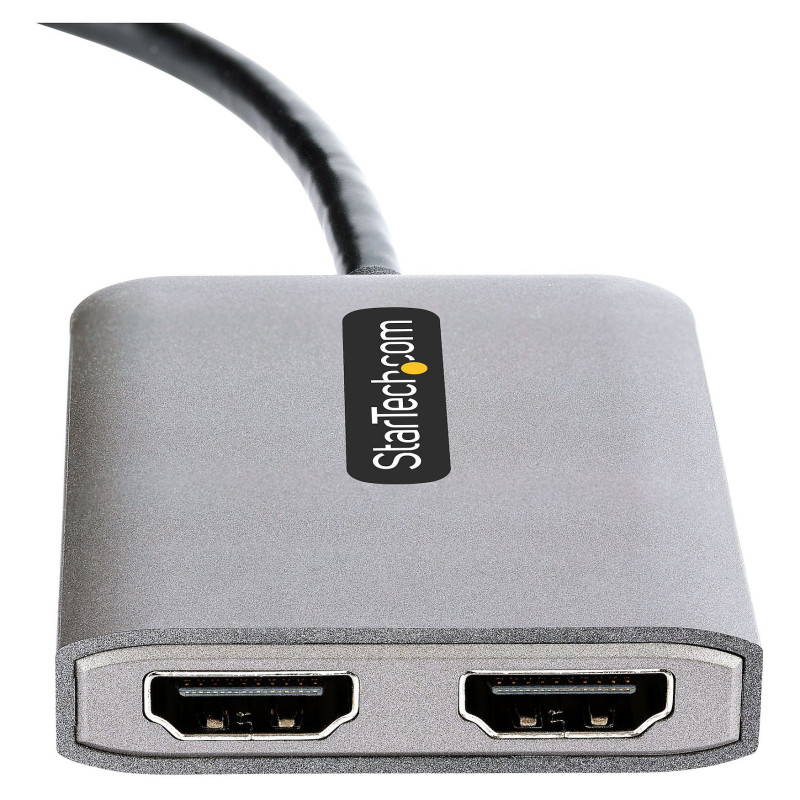

HDMI ports quantity: 2
Maximum resolution: 3840 x 2160 pixels
Refresh rate at maximum resolution: 60 Hz
Audio output channels: 7.1 channels
Chipset: Synaptics VMM5200
Data transfer rate (max): 32.4 Gbit/s

Design

Product colour: Black, Grey
Housing material: Plastic
Feature: Integrated USB cable

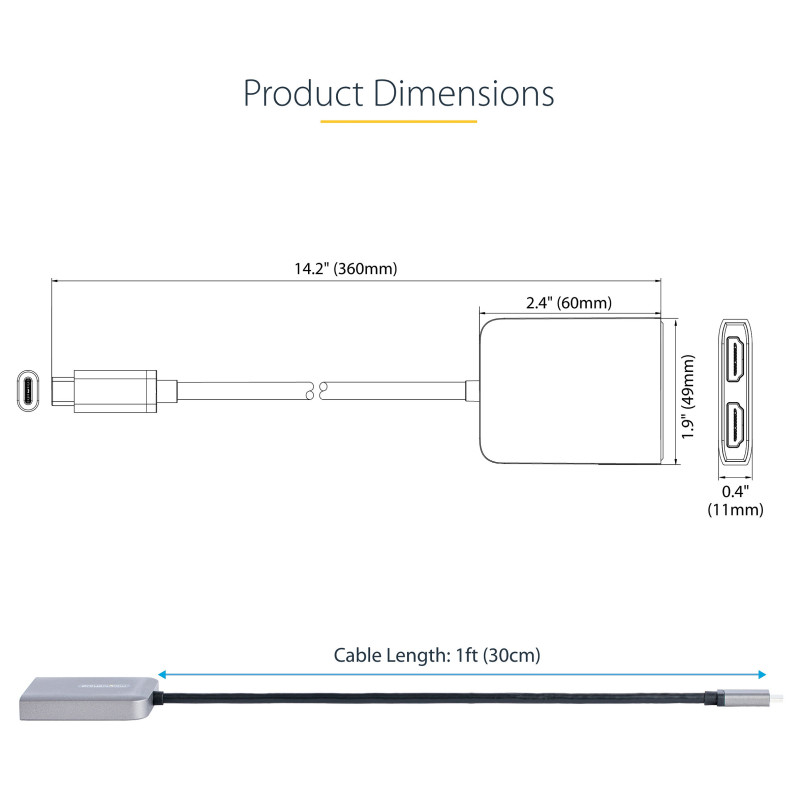

Weight & dimensions

Width: 105 mm
Depth: 43 mm
Height: 14 mm
Weight: 55 g
USB cable length: 0.3 m

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -10 - 55 °C
Operating relative humidity (H-H): 5 - 90%

Packaging data

Package width: 142 mm
Package depth: 170 mm
Package height: 30 mm
Package weight: 108.8 g

Technical details

Compliance certificates: CE, RoHS

Logistics data

Products per master (outer) case: 70 pc(s)
Master (outer) case width: 460 mm
Master (outer) case length: 331 mm
Master (outer) case height: 440 mm
Harmonized System (HS) code: 84733020
