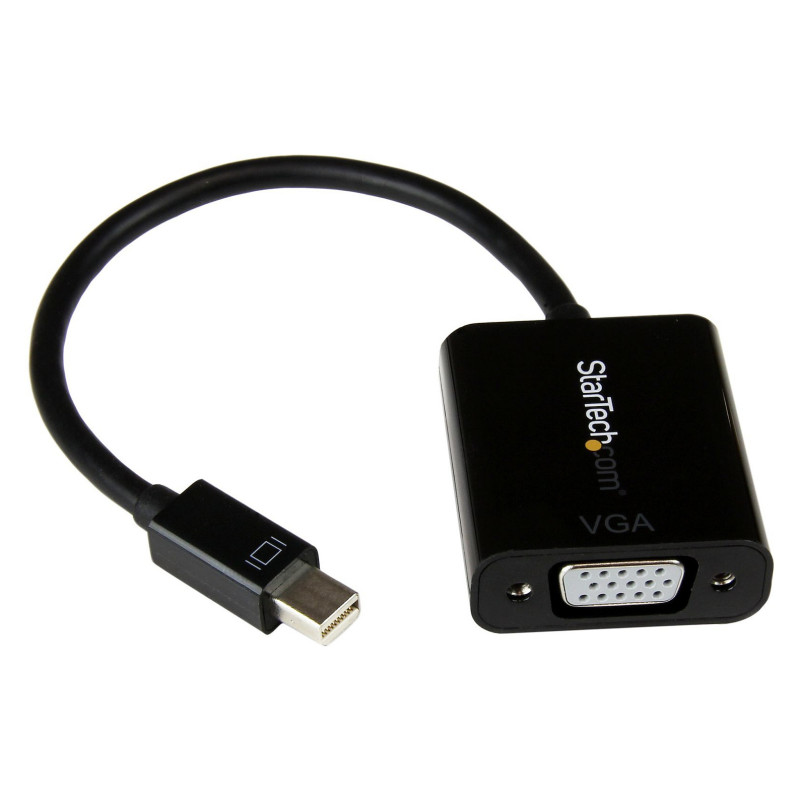

StarTech.com MDP2VGA2 video cable adapter

StarTech.com Mini DisplayPort to VGA Adapter - Active Mini DP to VGA Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to VGA Monitor/Projector/Display - mDP 1.2 to VGA Dongle - Black. Cable length: 0.18 m, Connector 1: Mini DisplayPort, Connector 2: VGA (D-Sub). Compliance certificates: CE, RoHS, Certification: RoHS, CE, FCC. Weight: 27 g, Width: 35 mm, Depth: 220 mm. Package width: 200 mm, Package depth: 220 mm, Package height: 18 mm. Master (outer) case width: 328 mm, Master (outer) case length: 508 mm, Master (outer) case height: 214 mm

Connect a Mini DisplayPort 1.2-equipped PC or Mac® to a VGA Monitor or Projector

The MDP2VGA2 Mini DisplayPort to VGA converter enables you to connect your Mini DisplayPort video source (Macbook® or any mDP-equipped Microsoft® Surface™ Pro devices) to a VGA monitor or projector, saving the expense of upgrading to a Mini DisplayPort compatible display.

With a small foot print and no external power adapter this mDP to VGA adapter ensures maximum portability making it an ideal laptop accessory.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).

The MDP2VGA2 is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Features

Connector 1 form factor: Straight
Connector 2 form factor: Straight
Cable length: 0.18 m
Connector 1: Mini DisplayPort
Connector 2: VGA (D-Sub)
Connector 1 gender: Male
Connector 2 gender: Female
DisplayPort version: 1.2
Maximum resolution: 1920 x 1200 pixels
Supported video modes: 720p, 1080p
Maximum refresh rate: 60 Hz
Feature: HBR2 support
Product colour: Black
Chipset: Analogix - ANX9833
Feature: Plug and Play
Converter type: Active video converter

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -10 - 80 °C
Operating relative humidity (H-H): 10 - 85%

Certificates

Compliance certificates: CE, RoHS
Certification: RoHS, CE, FCC

Weight & dimensions

Weight: 27 g
Width: 35 mm
Depth: 220 mm
Height: 8 mm

Packaging data

Package width: 200 mm
Package depth: 220 mm
Package height: 18 mm
Package weight: 36 g

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 328 mm
Master (outer) case length: 508 mm
Master (outer) case height: 214 mm
Products per master (outer) case: 150 pc(s)
