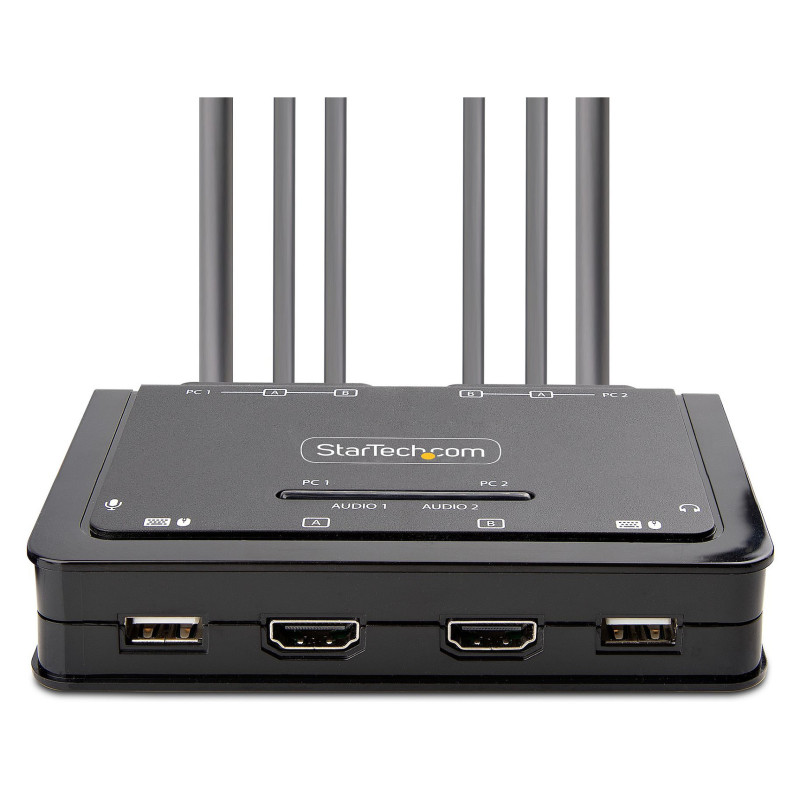

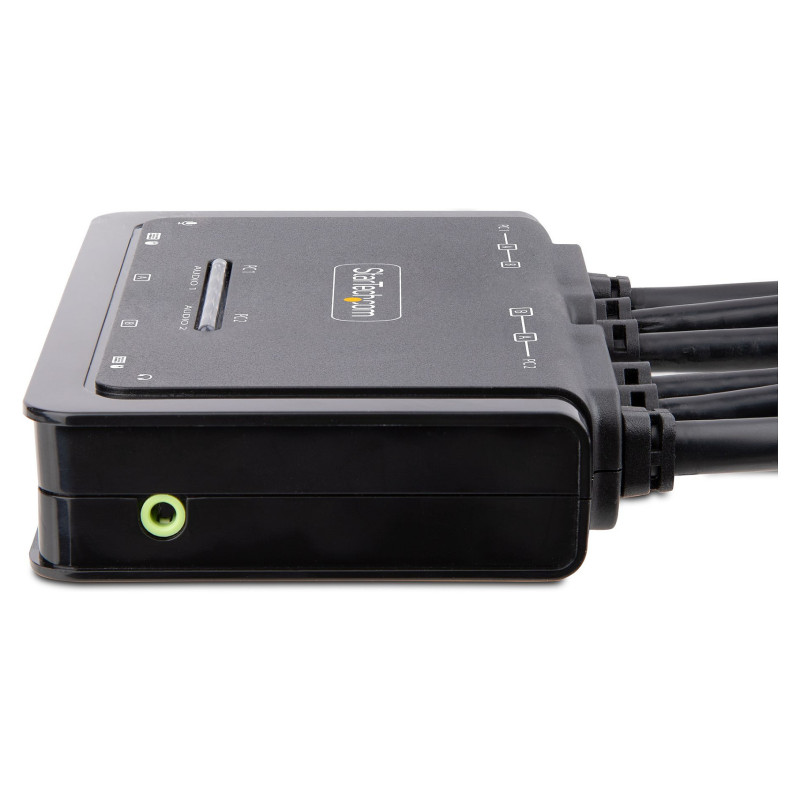

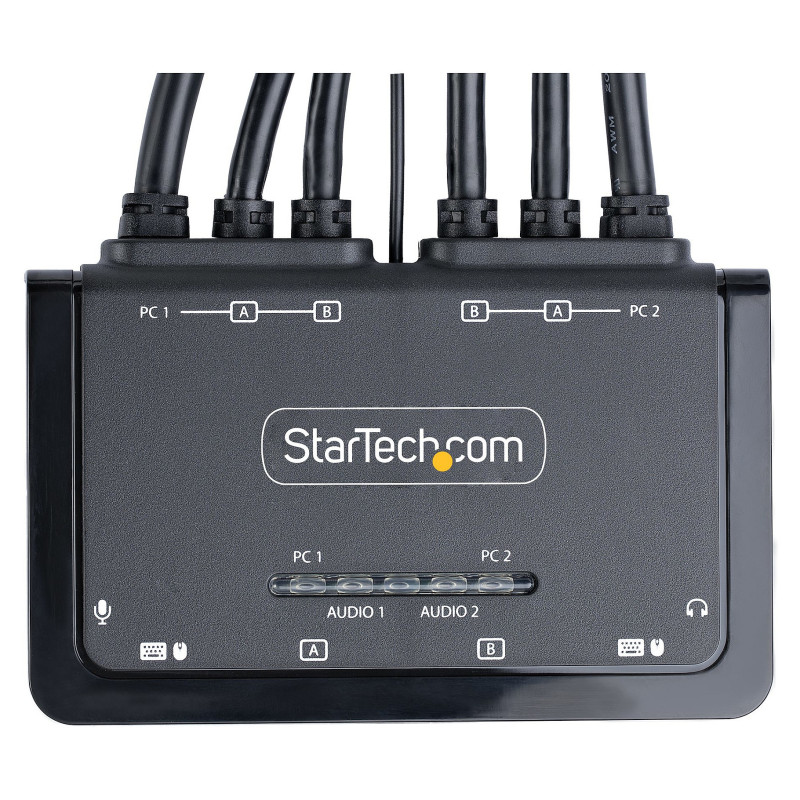

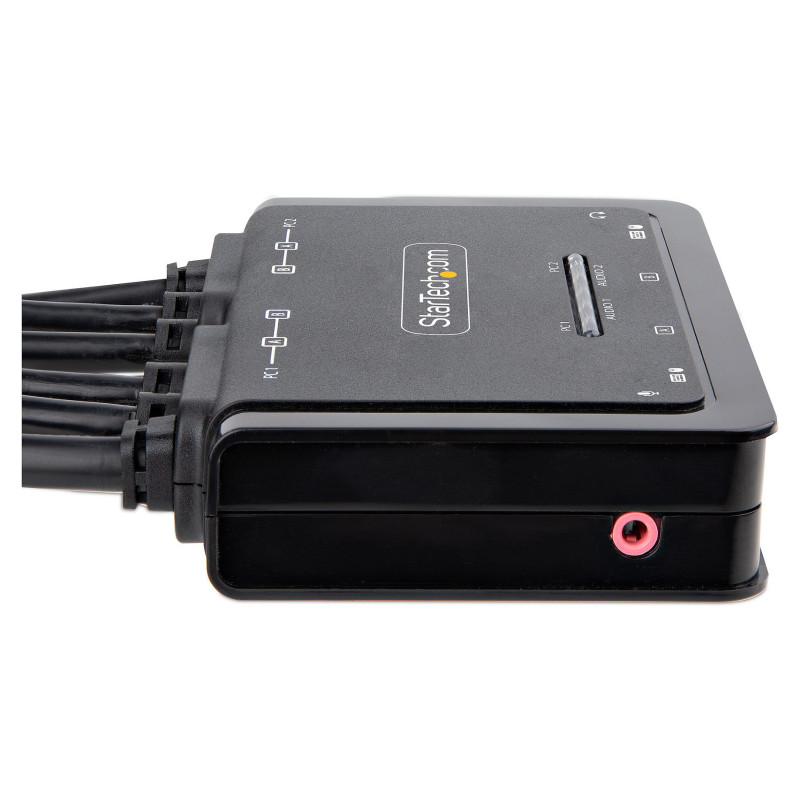

StarTech.com C2-DH46-UA2-CBL-KVM KVM switch

StarTech.com 2-Port Dual-Monitor HDMI Cable KVM Switch, 4K 60Hz, Compact KVM with 5ft/1.5m USB-A/HDMI/Audio Integrated Cables, Bus Powered - Remote Push Button/Hotkey Switching. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), Cable length: 1.5 m. Power source: USB. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina,..., Other operating systems supported: ChromeOS

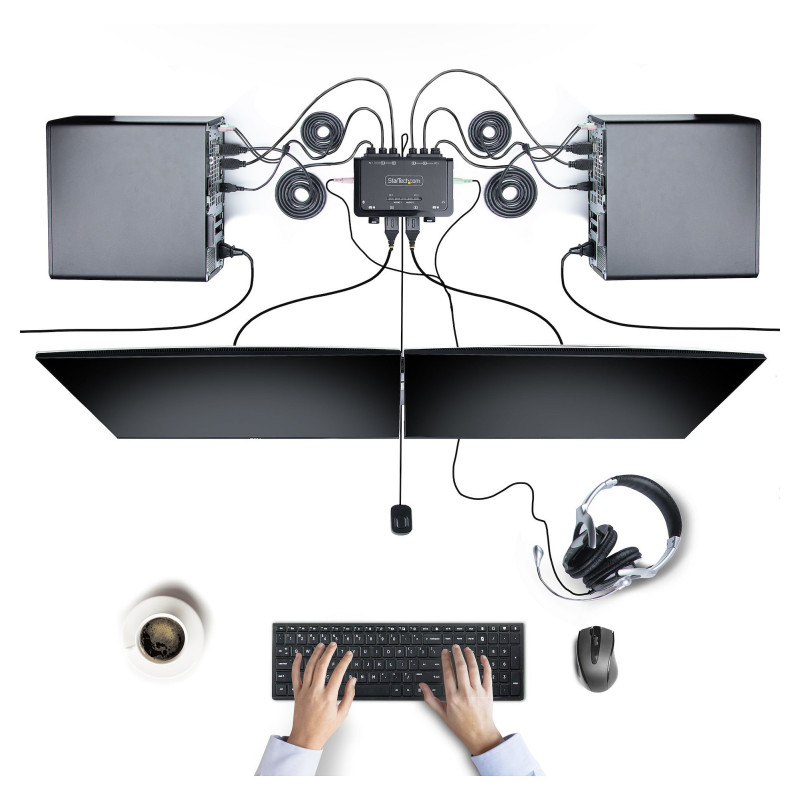

Share a mouse, keyboard, and dual-4K 60Hz HDMI displays between two HDMI-enabled computers, using this KVM Switch with built-in cables

This Dual-Monitor KVM Switch enables users to switch between two USB-A and HDMI-enabled desktops, sharing dual-4K 60Hz HDMI monitors, a keyboard and mouse, and audio input/output devices.

Hassle-Free Setup

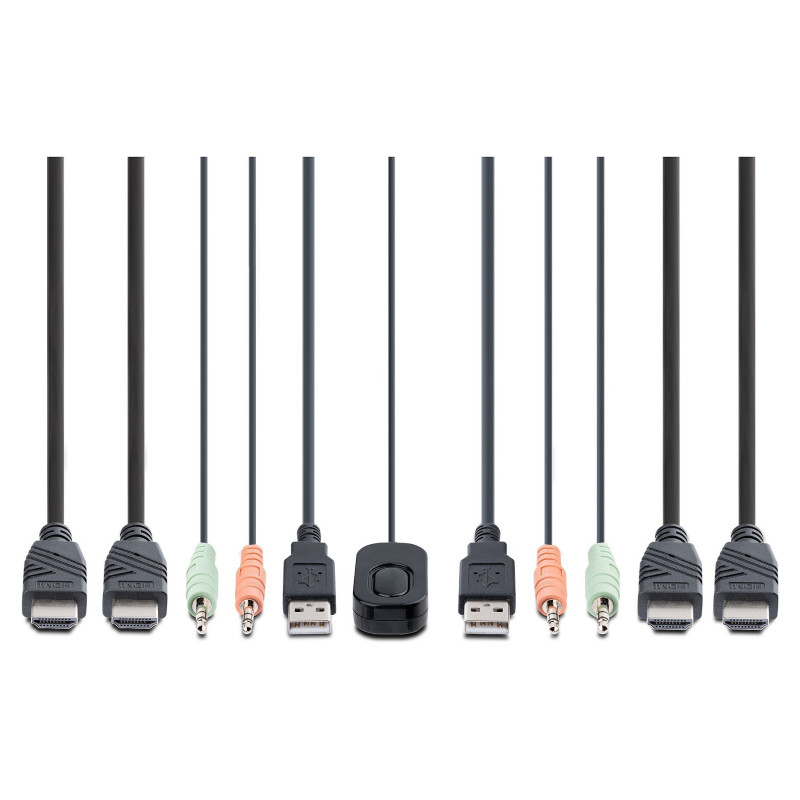

The KVM switch is bus powered and features built-in dual-HDMI, USB-A, and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals - without the need to select and purchase the cables required for those connections.

Compatibility

The 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2.

Intuitive Control

The KVM switch features two options to switch between hosts - a remote push button and hotkey commands, using the downloadable software. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, utilizing keyboard shortcuts (i.e., hotkeys), ensuring uninterrupted audio when switching between host devices.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• MAC Address Pass-Through Utility: Improve network security.
• USB Event Monitoring Utility: Track and log connected USB devices.
• Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI
HDMI ports quantity: 4
HDMI version: 2.1
Console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity: 2
Console HDMI ports quantity: 2
Feature: Audio connections
Headphone outputs: 2
Number of microphone inputs: 2

Performance

HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels
Video bandwidth: 60 Hz
Data transfer rate (max): 0.48 Gbit/s
Scan interval: 10,20,30,40,50,60 s
Chipset: SN8P2202SG
Audio channels: 2.0
Number of displays supported: 2

Design

Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS)
Cable length: 1.5 m
LED indicators: Yes
Feature: Push button
Feature: Hot keys
Mean time between failures (MTBF): 26928 h

Power

Power source: USB

System requirements

Other operating systems supported: ChromeOS

Sustainability

Feature: Sustainability compliance
Compliance certificates: RoHS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 127 mm
Depth: 83 mm
Height: 26 mm
Weight: 600 g

Packaging data

Package width: 163 mm
Package depth: 214 mm
Package height: 105 mm
Package weight: 800 g

Packaging content

Feature: Quick installation guide

Logistics data

Master (outer) case width: 449 mm
Master (outer) case length: 332 mm
Master (outer) case height: 356 mm
Products per master (outer) case: 12 pc(s)
