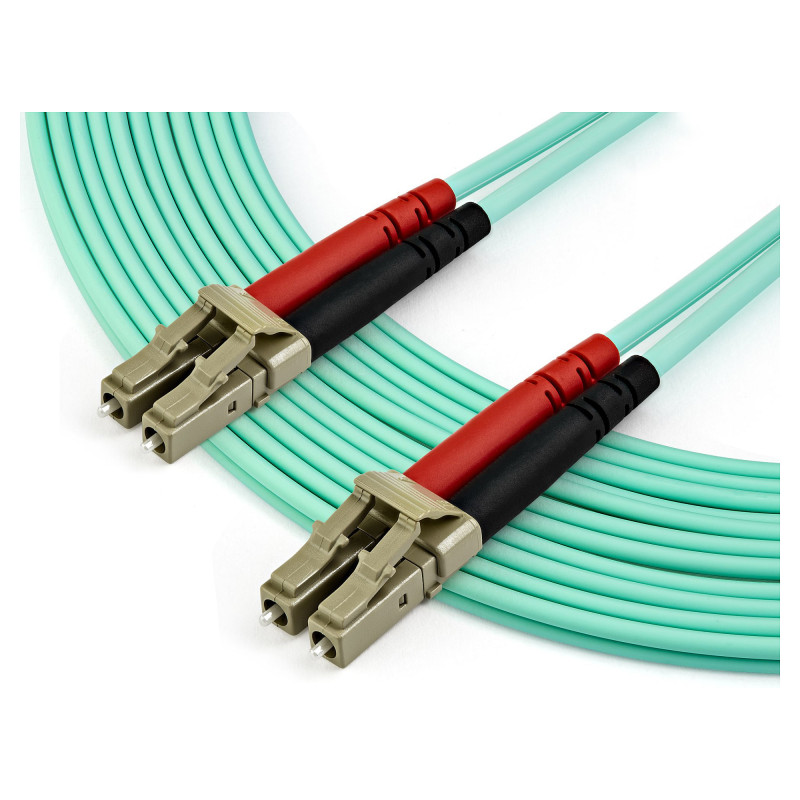

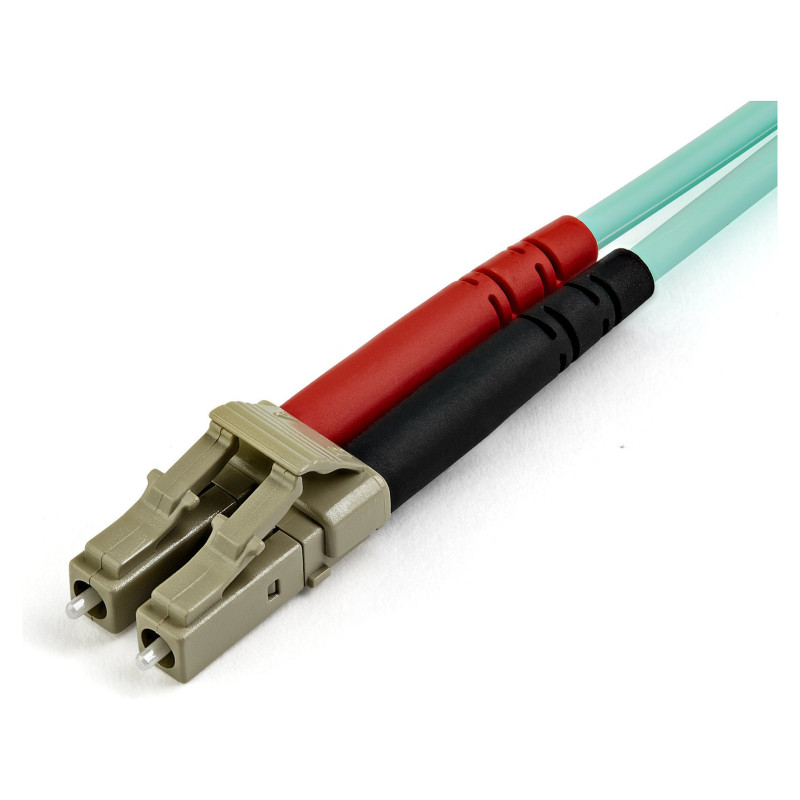

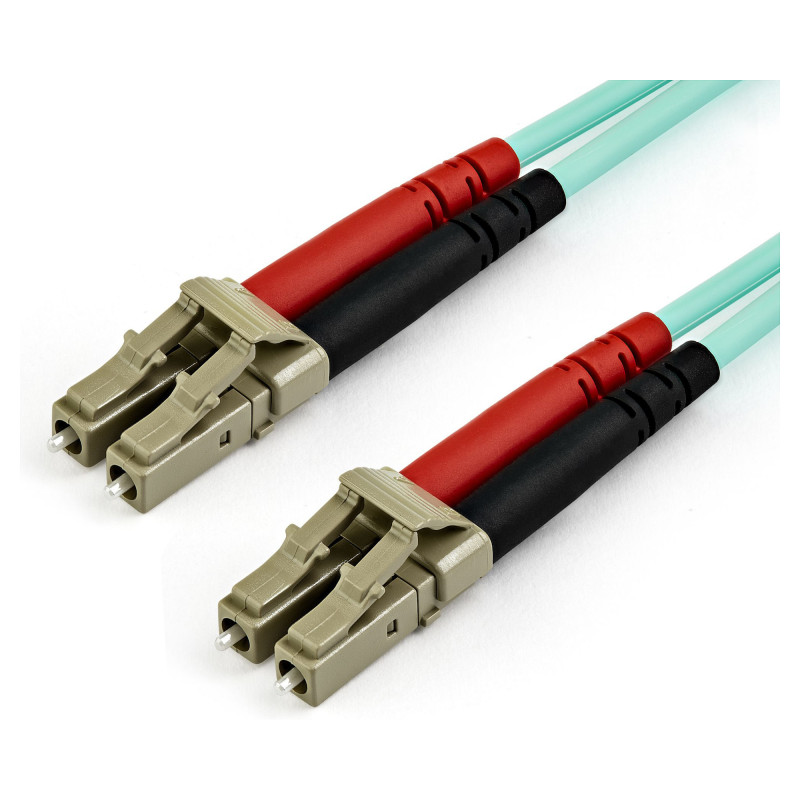

StarTech.com A50FBLCLC7 InfiniBand / fiber optic cable

StarTech.com 7m (22ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber Cable, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord. Cable length: 7 m, Fibre optic type: OM3, Connector 1: LC, Connector 2: LC, Core diameter: 50 µm, Full duplex

LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+

This OM3 LC to LC Multimode Duplex Fiber Optic Patch cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10 Gigabit Ethernet connection.

Built for Performance

With laser-optimized multimode fiber (LOMMF), the patch cable is ideal for connecting 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.

Reliable Connection

Each OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.

High-Quality Construction

Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

A50FBLCLC7 is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Features

Cable length: 7 m
Fibre optic type: OM3
Connector 1: LC
Connector 2: LC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Aqua colour
Feature: Full duplex
Core diameter: 50 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Wavelengths supported: 850 nm
Data transfer rate: 100 Gbit/s
Jacket material: Low smoke zero halogen (LSZH)

Sustainability

Doesn't contain: Halogen

Certificates

Compliance certificates: RoHS, CE

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

Weight: 96 g

Packaging data

Package width: 198 mm
Package depth: 164 mm
Package height: 28 mm
Package weight: 106 g

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Master (outer) case width: 406 mm
Harmonized System (HS) code: 85447000
Master (outer) case length: 414 mm
Master (outer) case height: 442 mm
Products per master (outer) case: 120 pc(s)
