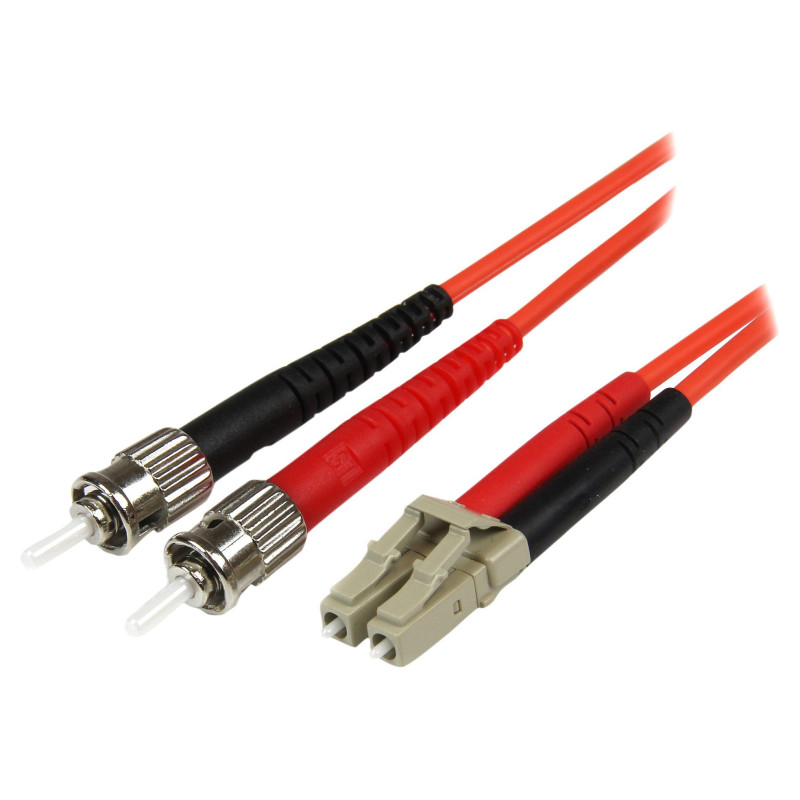

StarTech.com 50FIBLCST1 InfiniBand / fibre optic cable

StarTech.com 1m Fiber Optic Cable - Multimode Duplex 50/125 - LSZH Fiber Jumper Cord - LC/ST. Cable length: 1 m, Fibre optic type: OM2, Connector 1: LC, Connector 2: ST, Core diameter: 50 µm, Full duplex

Connect fiber network devices for high-speed transfers with LSZH rated cable

The 50FIBLCST1 1m LSZH LC to ST Fiber Cable features 50/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex multimode applications.
This LC-ST patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM2) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability and is backed by our lifetime warranty.

Features

Cable length: 1 m
Fibre optic type: OM2

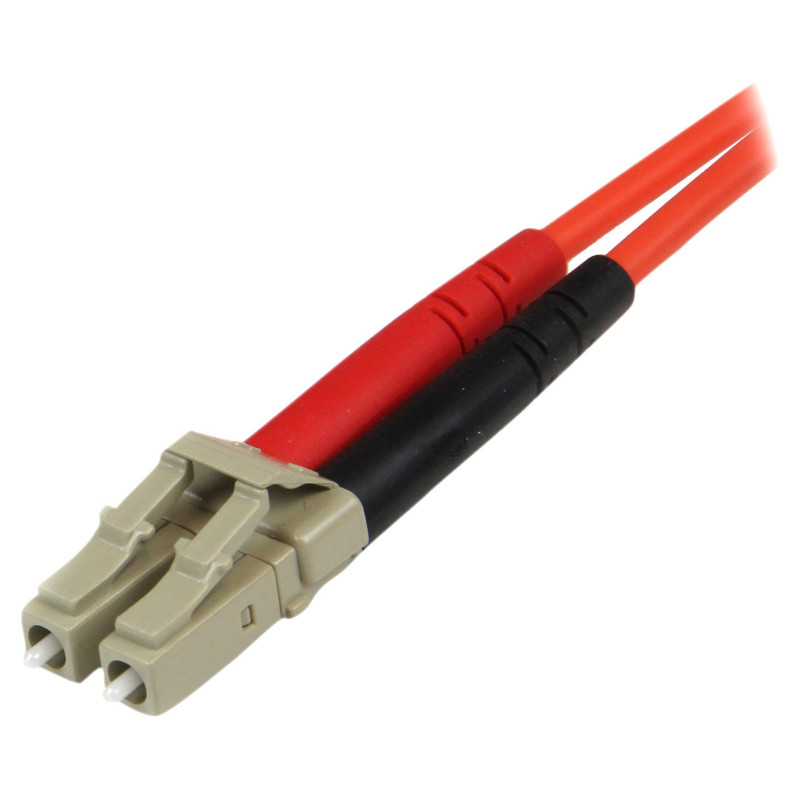

Connector 1: LC

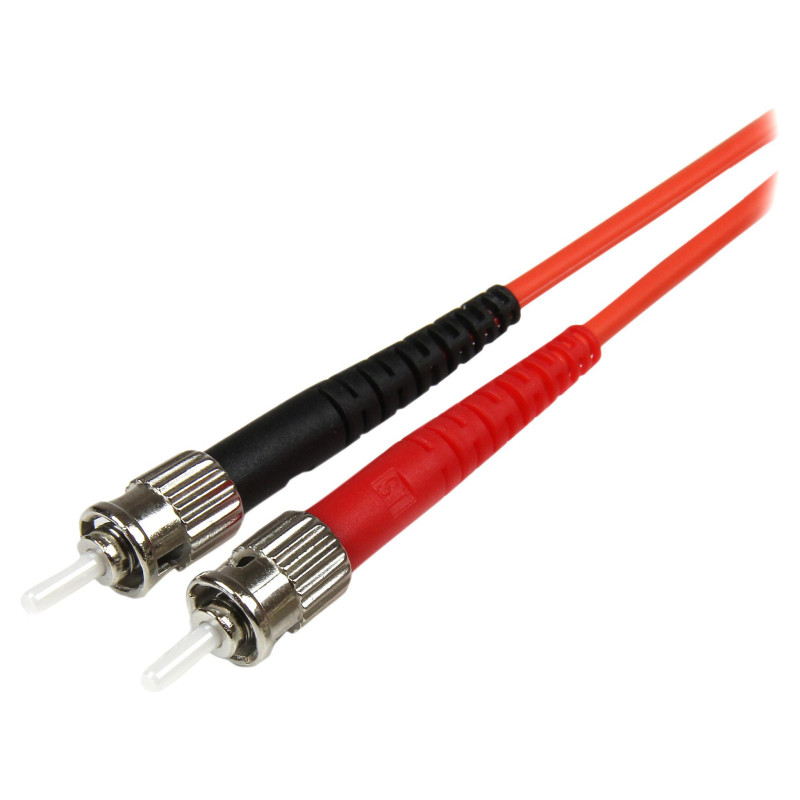

Connector 2: ST
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Orange
Feature: Full duplex
Core diameter: 50 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Data transfer rate: 10 Gbit/s
Jacket material: Low smoke zero halogen (LSZH)

Sustainability

Doesn't contain: Halogen

Certificates

Compliance certificates: REACH, RoHS
Certification: CE

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

Weight: 28 g

Packaging data

Package width: 143 mm
Package depth: 149 mm
Package height: 36 mm

Packaging content

Quantity per pack: 1 pc(s)

Logistics data

Master (outer) case width: 402 mm
Harmonized System (HS) code: 85447000
Master (outer) case length: 410 mm
Master (outer) case height: 432 mm
Products per master (outer) case: 320 pc(s)
