StarTech.com 4K7012IC-EXTEND-HDMI AV extender

StarTech.com 2-Port HDMI Extender and Splitter Over CAT6, 4K 60Hz, Up to 230ft (70m), 1x2 HDMI over Ethernet Distribution Kit with IR and Power Over Cable. Type: AV transmitter receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6, Cat6a. Connectivity technology: Wired. AC input voltage: 100 - 240 V, Operating voltage: 12 V, Input current: 0.8 A. Width: 70 mm, Depth: 154 mm, Height: 23 mm. Package width: 292 mm, Package depth: 238 mm, Package height: 55 mm
Split and extend a single 4K 60Hz HDMI signal to two HDMI displays over a distance of up to 230ft (70m) with Power over Cable
This HDMI extender and splitter delivers reliable 4K AV distribution to two displays over Ethernet cabling for professional AV installations. Enables flexible deployment using Ethernet cables for longer-range and in-wall runs. Ideal for centralized AV distribution in boardrooms, digital signage, educational facilities, and hospitality environments.
HDMI Over Ethernet Cabling
Extend HDMI signals to two remote displays over CAT6/6a cabling using a single transmitter. Transmitter features a HDMI output providing a direct connection for a local display. Supports 4K 60Hz video and 2 channel audio up to 230ft (70m). Includes IR extension support for remote control of the source device from any connected display.
Powered with a Single Power Adapter
Single power adapter connects to the transmitter; both receivers are powered directly over the CAT6/6a cables. Simplifies installation in environments with limited power access and reduces overall cable clutter.
No Drivers, Software, or IP Configuration
Plug-and-play installation with no additional drivers, software, or network setup required. Supports any operating system including Windows, macOS, and ChromeOS, and is compatible with all hardware platforms including Intel, AMD, and Apple Silicon.
Versatile Mounting Options
1x2 HDMI distribution kit includes mounting brackets for wall, ceiling, or under-table installation at both transmitter and receiver locations. Compact form factor enables discreet installation in tight spaces.

Features

Type: AV transmitter receiver
Maximum resolution: 3840 x 2160 pixels
Cable types supported: Cat6, Cat6a
Maximum transfer distance: 70 m
Chipset: GSV5100
Maximum refresh rate: 60 Hz
Audio output channels: 2.0 channels
LED indicators: Yes
Rack mounting: No
Daisy chain: No
Product colour: Black

Ports interfaces

Connectivity technology: Wired
RJ-45 input ports: 2
RJ-45 output ports: 2
HDMI in: 1
Number of HDMI outputs: 3
Remote (IR) input: 2
Remote (IR) output: 1
DC-in jack: Yes

Power

AC input voltage: 100 - 240 V
Operating voltage: 12 V
Input current: 0.8 A
Output current: 2 A
Power consumption (typical): 24 W
Power plug type: Type M

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 5 - 90%

Weight dimensions

Width: 70 mm
Depth: 154 mm
Height: 23 mm
Weight: 261 g

Packaging data

Package width: 292 mm
Package depth: 238 mm
Package height: 55 mm
Package weight: 1.1 kg

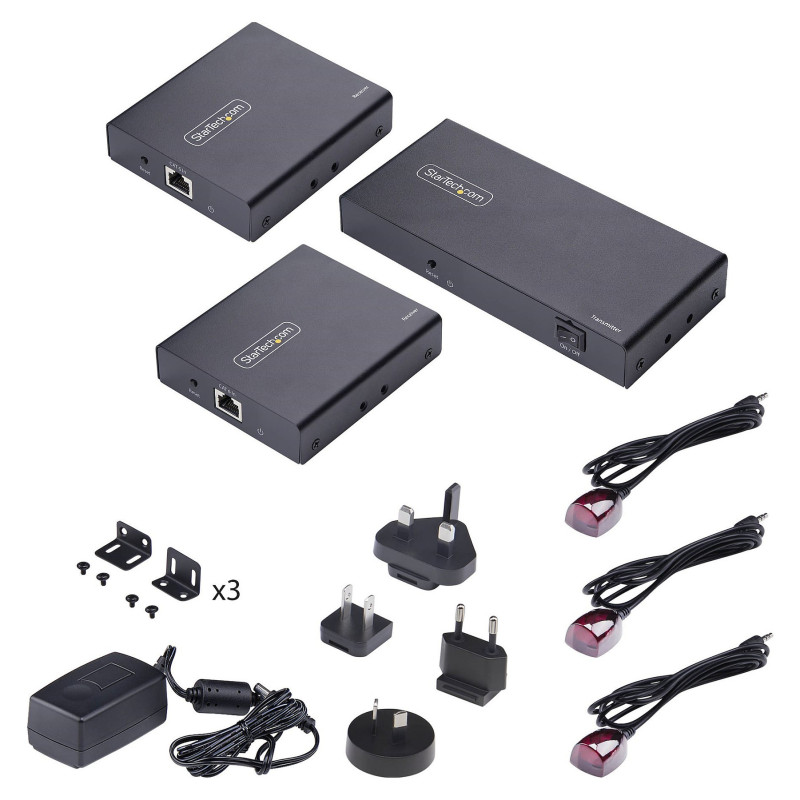

Packaging content

AC adapter included: Yes
Included power plug types: ANZ, EU, NA, UK
Quick start guide: Yes
IR blaster included: Yes
IR receiver included: Yes
Mounting kit: Yes
Packaging content: 1 - HDMI Transmitter2 - HDMI Receiver

Logistics data

Master (outer) case width: 500 mm
Master (outer) case length: 300 mm
Master (outer) case height: 330 mm
Products per master (outer) case: 10 pc(s)
