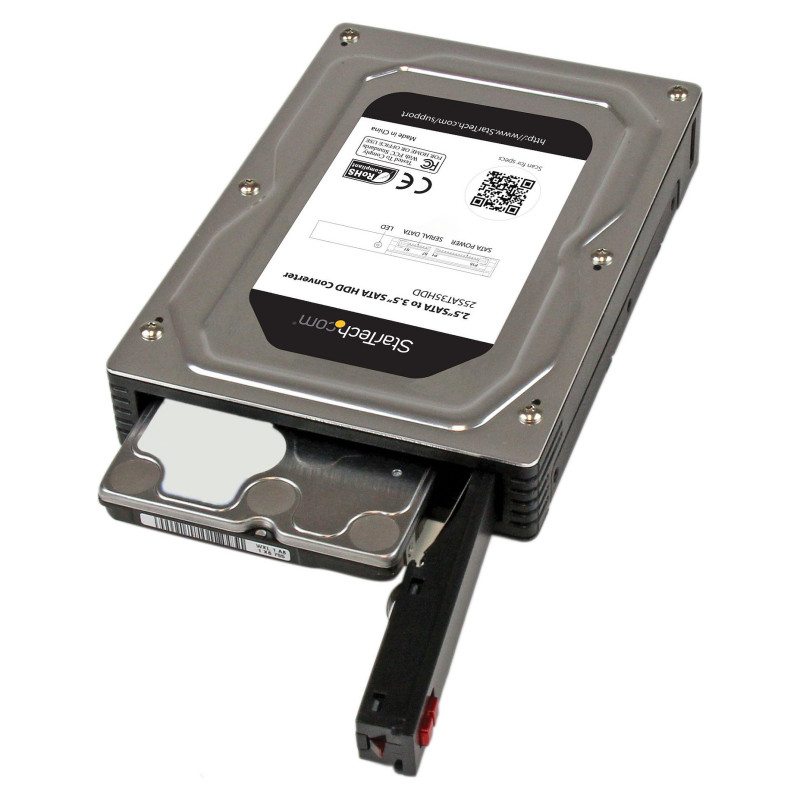

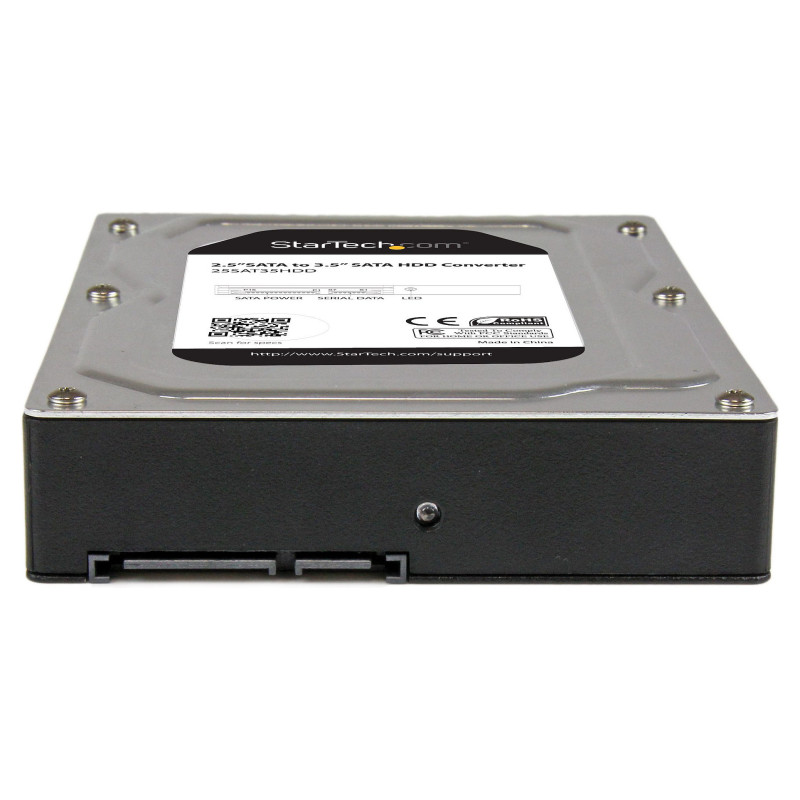

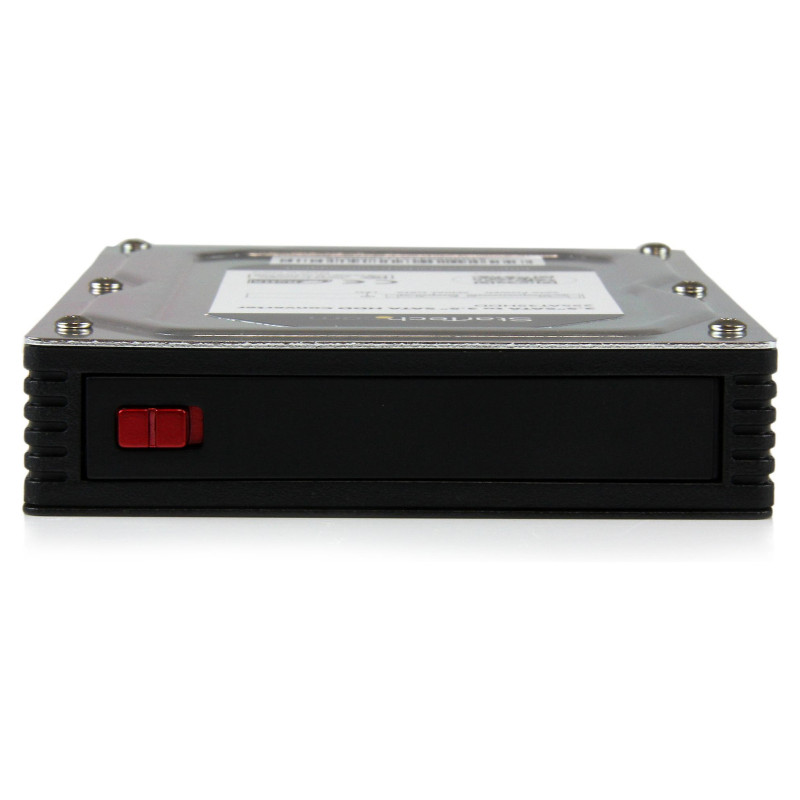

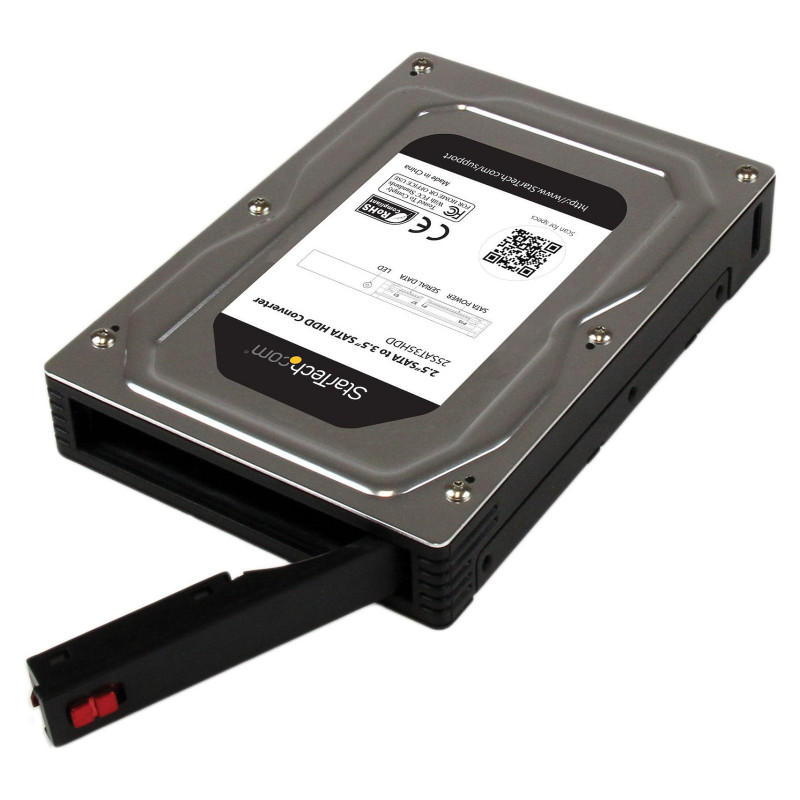

StarTech.com 25SAT35HDD drive bay panel

StarTech.com 2.5" to 3.5" SATA Aluminum Hard Drive Adapter Enclosure with SSD / HDD Height up to 12.5mm. Size (imperial): 8.89 cm (3.5"), Type: Storage drive tray, Product colour: Black, Silver. Width: 102 mm, Depth: 146 mm, Height: 36 mm. Package width: 163 mm, Package depth: 113 mm, Package height: 38 mm. Cables included: SATA. Products per master (outer) case: 32 pc(s), Master (outer) case width: 344 mm, Master (outer) case length: 320 mm

Turn a 2.5" SATA HDD/SSD into a 3.5" SATA Drive

The 25SAT35HDD 2.5" to 3.5" hard drive adapter enclosure turns a 2.5" SATA hard drive (HDD) or solid state drive (SSD) into a 3.5" drive.

The adapter enclosure lets you substitute a 3.5" hard drive for a 2.5" SSD/HDD in any application that would typically require a 3.5" drive, such as desktop chassis, backplane, or docking station. The enclosure has the same dimensions as a standard 3.5" hard drive, including mounting points, and SATA connector locations.

With support for drives up to 12.5mm in height, and high-capacity SATA I/II/III drives (tested up to 1TB) this HDD adapter ensures compatibility with virtually any 2.5" SATA hard drive or solid state drive.

The 25SAT35HDD is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features

Size (imperial): 8.89 cm (3.5")
Type: Storage drive tray
Product colour: Black, Silver
Number of HDDs supported: 1
HDD size: 2.5"
Material: Aluminium, Plastic
Supported storage drive heights: 12.5 mm
Data transfer rate: 6 Gbit/s
Certification: FCC, REACH

Weight & dimensions

Width: 102 mm
Depth: 146 mm
Height: 36 mm
Weight: 260 g

Packaging data

Package width: 163 mm
Package depth: 113 mm
Package height: 38 mm
Package weight: 260 g

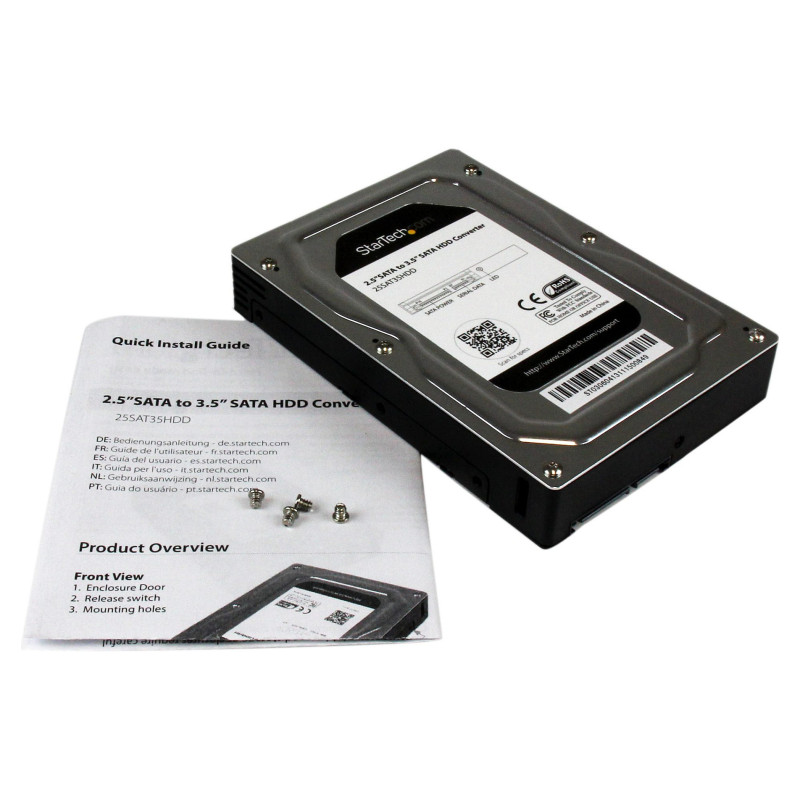

Packaging content

Cables included: SATA
Feature: Screws included
Feature: Manual

Operational conditions

Storage temperature (T-T): 5 - 55 °C
Operating temperature (T-T): 5 - 55 °C
Operating relative humidity (H-H): 5 - 85%

Technical details

Compliance certificates: RoHS

Logistics data

Products per master (outer) case: 32 pc(s)
Master (outer) case width: 344 mm
Master (outer) case length: 320 mm
Master (outer) case height: 267 mm
Harmonized System (HS) code: 84733080
