StarTech.com 9M351M-RS232-CABLE cable gender changer

StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack. Connector 1: DB-9, Connector 2: 3.5mm, Cable length: 1 m. Product colour: Black

Connect a DB9 enabled control unit to a 3.5mm enabled device for RS-232 based control

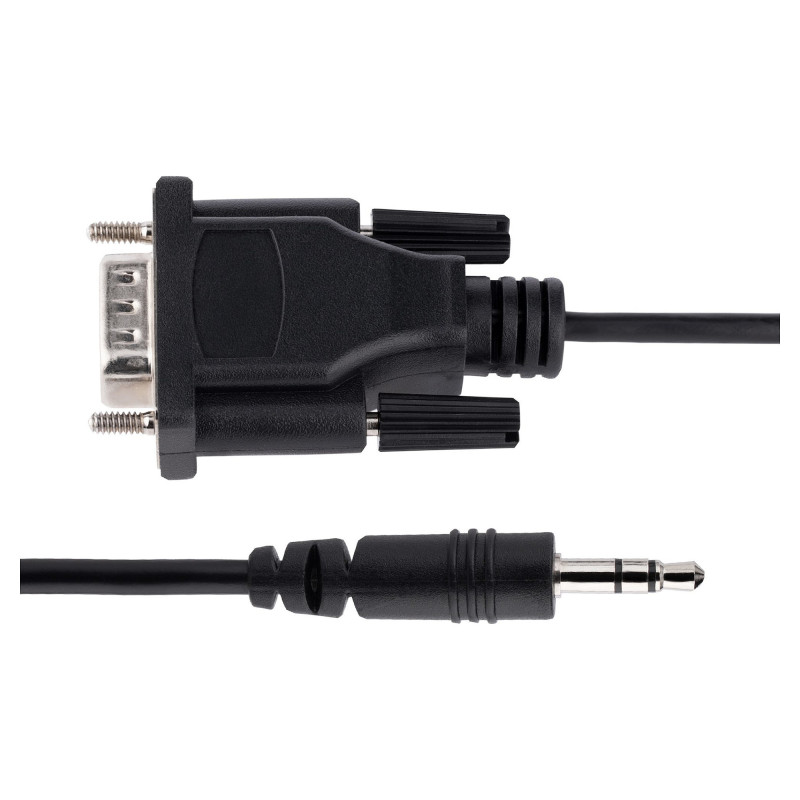

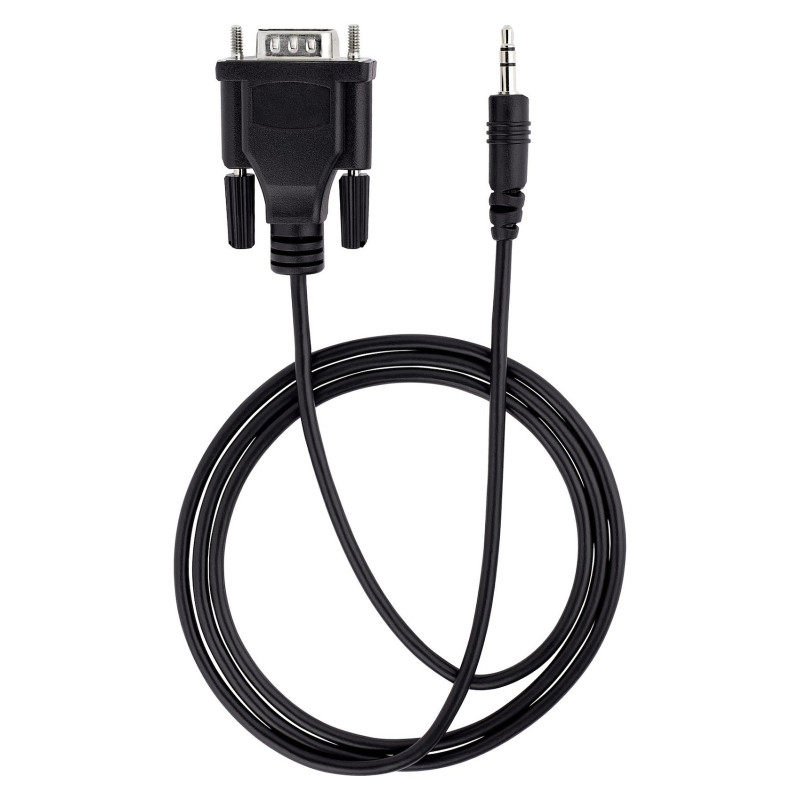

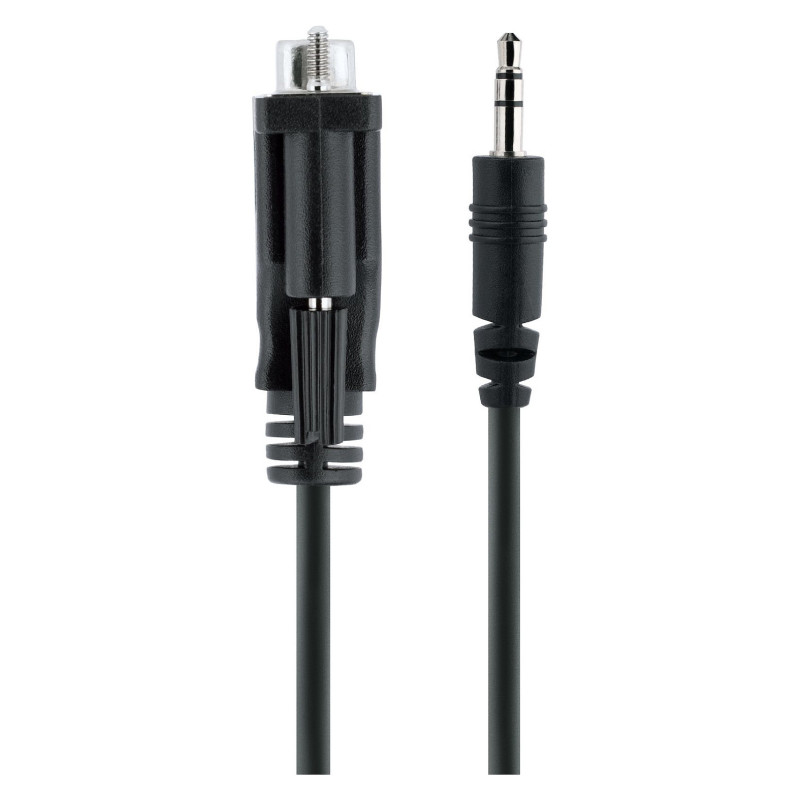

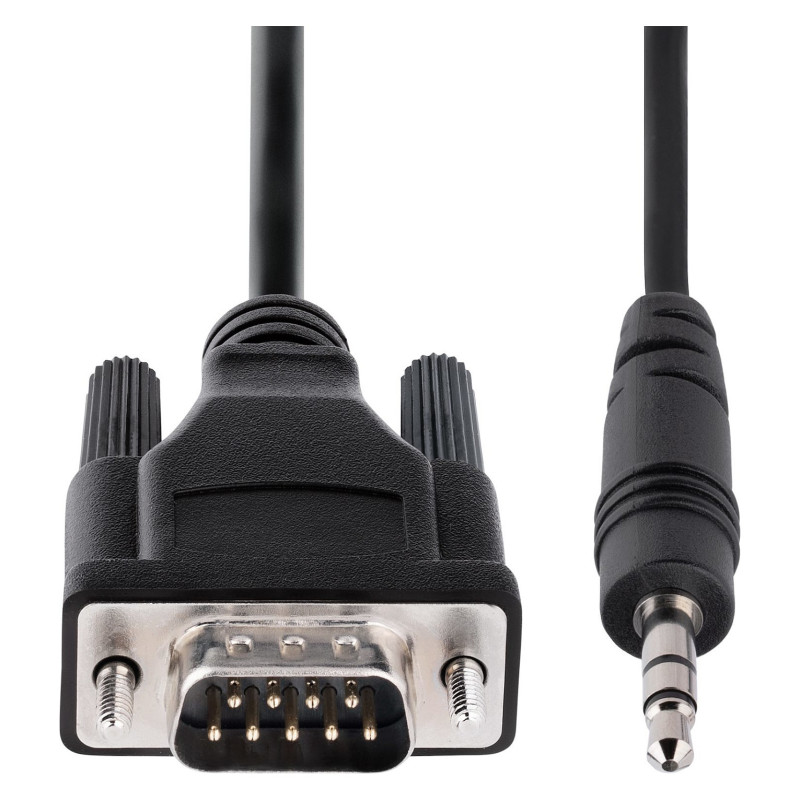

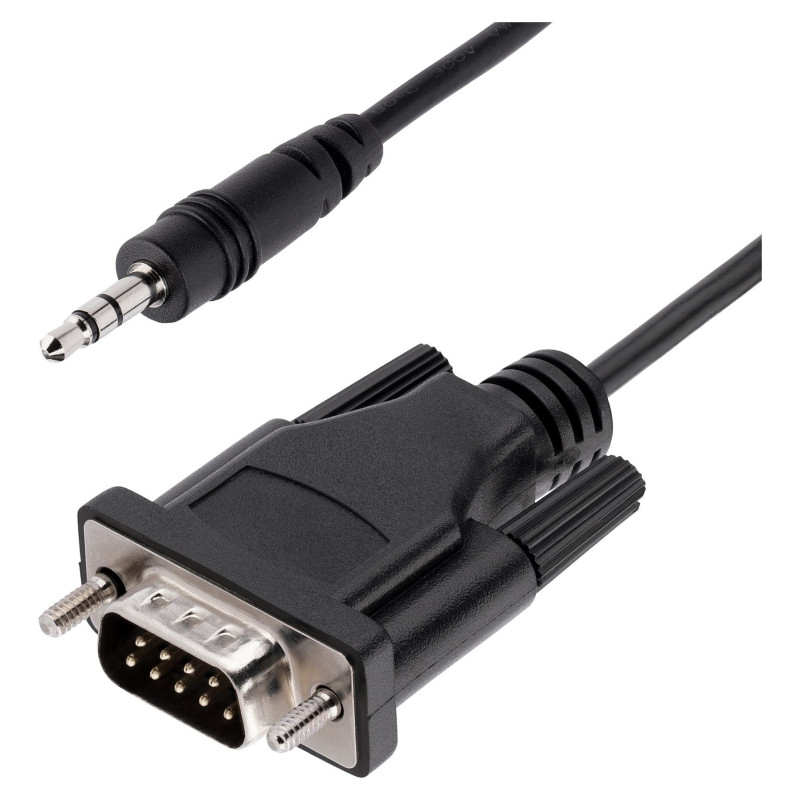

This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack.

High Quality Construction

The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion.

Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption.

DB9 Serial to 3.5mm Pinout

DB9 Pin 3 to 3.5mm Tip

DB9 Pin 2 to 3.5mm Ring

DB9 Pin 5 to 3.5mm Sleeve

This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.

Ports & interfaces

Connector 1: DB-9
Connector 2: 3.5mm
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Cable length: 1 m

Performance

Product colour: Black
Cable jacket material: Polyvinyl chloride (PVC)
AWG wire size: 28

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Storage temperature (T-T): -20 - 60 °C
Relative humidity: 30 - 75%

Certificates

Compliance certificates: RoHS

Sustainability

Feature: Sustainability compliance

Packaging data

Package width: 128 mm
Package depth: 220 mm
Package height: 10 mm
Package weight: 23 g

Technical details

Cable diameter: 3.5 mm

Logistics data

Products per master (outer) case: 120 pc(s)
Master (outer) case width: 388 mm
Master (outer) case length: 340 mm
Master (outer) case height: 310 mm
