SDVoE Controller - LINDY SDVoE Controller, API Support, 4 Channel GPIO Control Connectors, Black
Product reference:
14-4002888383646
The SDVoE controller allows you to manage and configure multiple video over IP SDVoE extenders through a single web GUI. It supports 'PoE+ 802.3at', 1 Gbps bandwidth and can operate up to 100m over Cat.6 cables.
SDVoE Controller - LINDY SDVoE Controller, API Support, 4 Channel GPIO Control Connectors, Black
Product reference:
14-4002888383646
The SDVoE controller allows you to manage and configure multiple video over IP SDVoE extenders through a single web GUI. It supports 'PoE+ 802.3at', 1 Gbps bandwidth and can operate up to 100m over Cat.6 cables.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

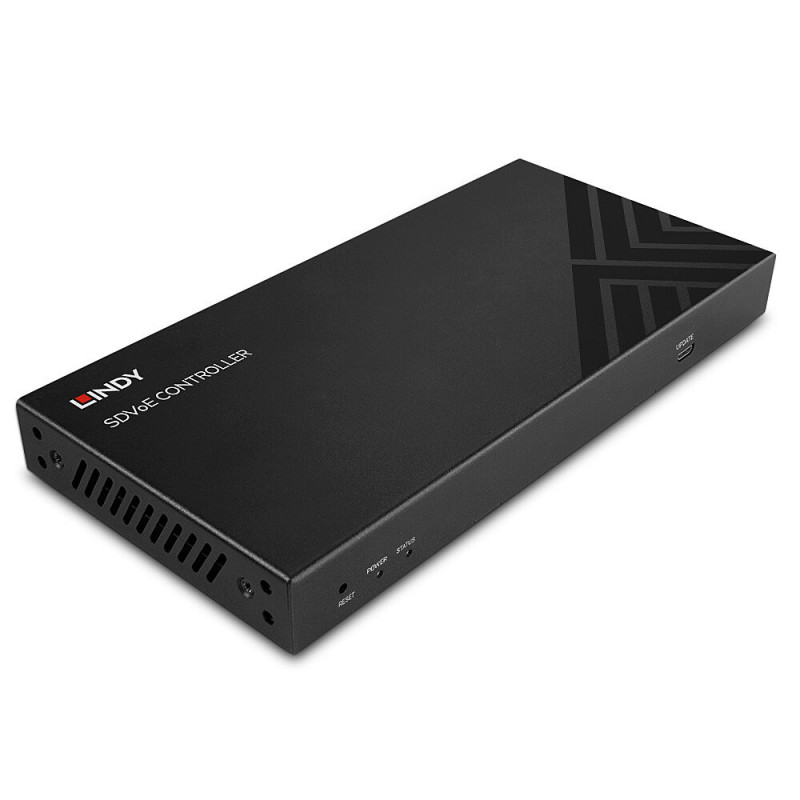

LINDY SDVoE Controller, API Support, 4 Channel GPIO Control Connectors, Black
The SDVoE controller allows you to manage and configure multiple video over IP SDVoE extensions through a single web GUI. It supports "PoE+ 802.3at", 1 Gbps bandwidth and can operate up to 100 m using Cat.6 cables.
- Supports PoE+ 802.3at for easy installation and power supply.
- Maximum transmission distance 100m (393.7ft) for flexible installation options.
- Added API support and 4-channel GPIO control connectors for improved functionality.
- The set comes in a metal housing with a lightweight design, ideal for a variety of environments.
Features | |
|---|---|
| Product Type | AV Controller |
| Model | SDVoE Controller |
Specifications | |
| AV Interface | - |
| Console Interface | - |
| Interface Standard | PoE+ 802.3at |
| Supported Bandwidth | 1Gbps |
| Maximum Distance | 100m (393.7ft) (Point to Point) |
| Transmission Protocol | IP |
| Transmission Medium | Cat.6 |
| Special Features | API support, 4 channel GPIO control connectors (5V/12V optional level) |
Connectors | |

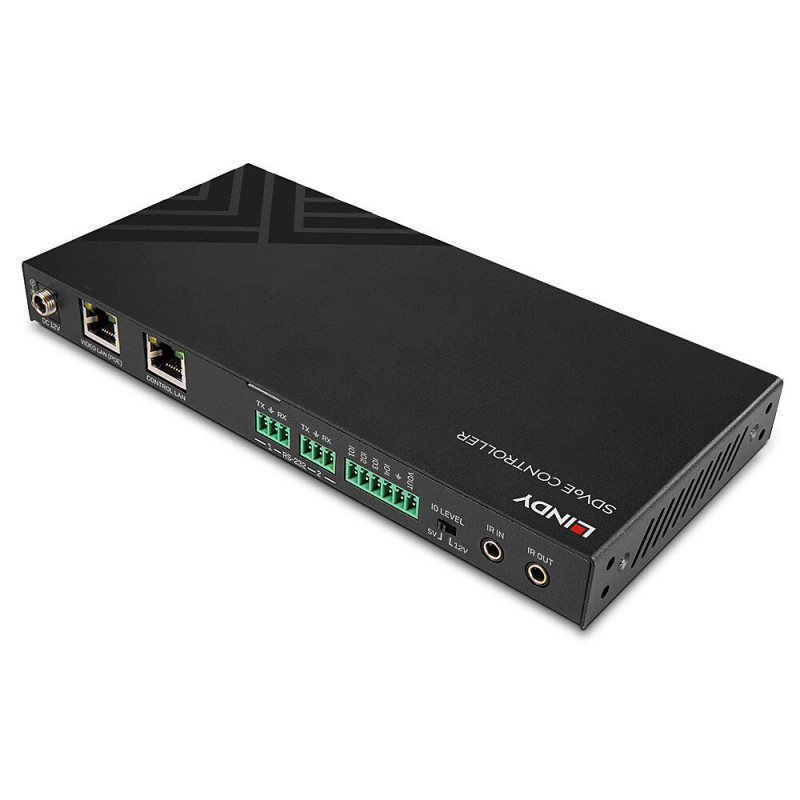

| Other Interfaces | 1 x RJ45 Gigabit POE, 1 x RJ45 Gigabit, 2 x RS232 (3 pin terminal block), Trigger Contacts (6 pin terminal block), 2 x 3.5mm (Female) for bidirectional IR, 1 x Micro USB |
| Power | 5.5/2.1mm DC socket |
Physical Properties | |
| Dimensions (WxDxH) | 204 x 98.5 x 21.5 mm (8.03 x 3.88 x 0.85 in) |
| Housing Material | Metal |
| Clean Weight | 0.76 kg (1.68 lb) |
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20 - 90% RH (non-condensing) |
| Power | 12VDC 1A |
| MTBF | 50000 hours |
| Color | Black |
Miscellaneous | |
| Packaging Type | Cardboard box |
| Packaging Dimensions | 255 x 157 x 77 mm (10.04 x 6.18 x 3.03 in) |
| Gross Weight | 0.96 kg (2.12 lb) |
| Certification | CE, UKCA, FCC, RoHS, REACH California Proposition 65 |
Package Contents | |
| SDVoE Controller, Multi-Country Power Supply (JK, EU, US AUS), IR Transmitter Cable (1.5m), IR Receiver Cable (1.5m), 2 x 3-Pin Terminal Block, 6-Pin Terminal Block, 2 x Mounting Ears 4 x Screws, Quick Installation Guide | |
www.lindy.lt
| Height | 77 mm |
| Length | 255mm |
| Weight | 956 grams |
| Width | 157 mm |
