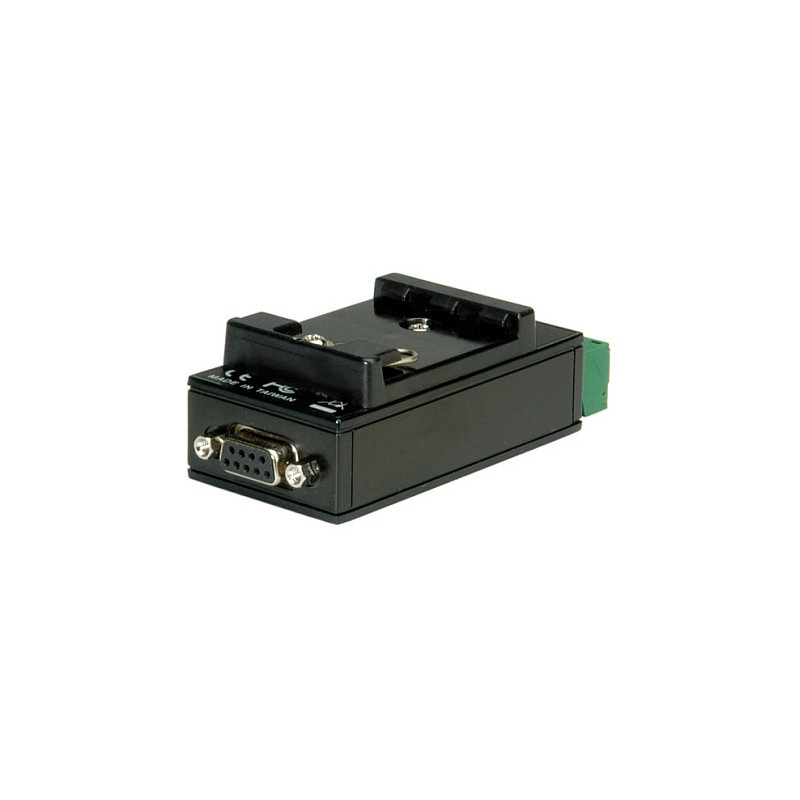

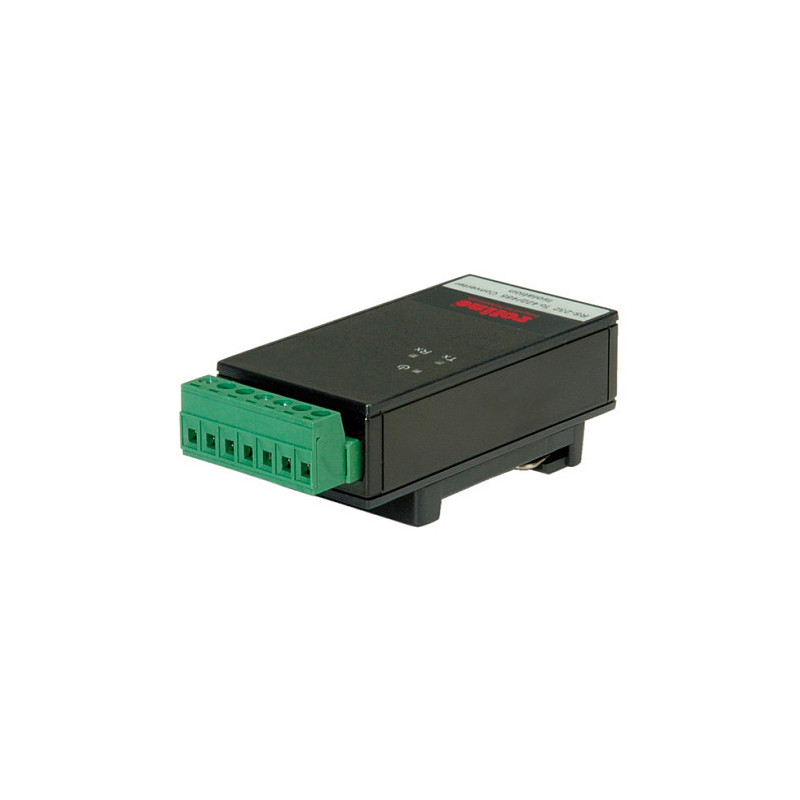

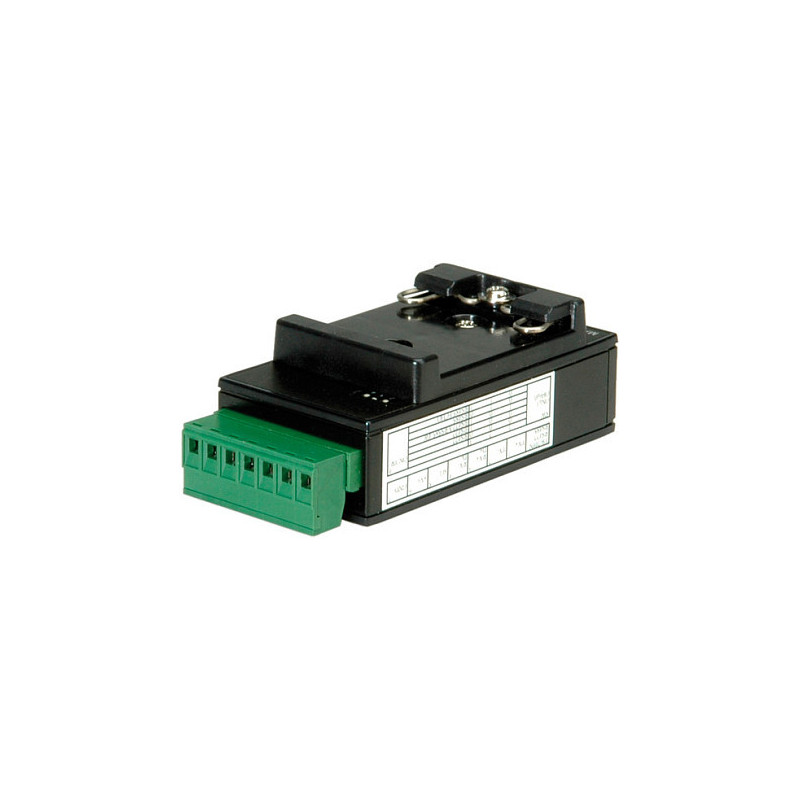

ROLINE Converter RS232 to RS422 / 485, with Isolation, for DIN Rail

ROLINE Converter RS232 to RS422/485, with Isolation, for DIN Rail. Product colour: Black

• Converts RS-232 signals to RS-422 or RS-485
• Fully compliant with PC serial COM ports
• Isolation 3000 VDC (optical)
• Connectors: RS-232: DB9 Female, RS-422/485: 7-pin terminal block
• Auto toggling by hardware
• Data transfer rate of up to 115.2 Kbit/s
• Terminal resistance and Echo mode
• DIP switches for terminal settings
• Signals: TXD, RXD, RTS, CTS, GND for RS-232
• Protection: 15 KV ESD protection for all signals, RS-422/485 signals surge protection
• Status LEDs
• For DIN rail mounting
• DC power supply 10~30 V (built-in surge protector)
• Hardware solution, no software required

Operating Temperature: -30 ~ 75°C
Storage Temperature: -40 ~ 85°C
Ambient Relative Humidity: 5 ~ 95% Non-Condensing.

Performance

Product colour: Black
