ROLINE 14.01.3427 KVM switch

ROLINE 14.01.3427. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product colour: Black, Housing material: Metal. USB Power Delivery up to: 100 W. Width: 161 mm, Depth: 100 mm, Height: 20 mm

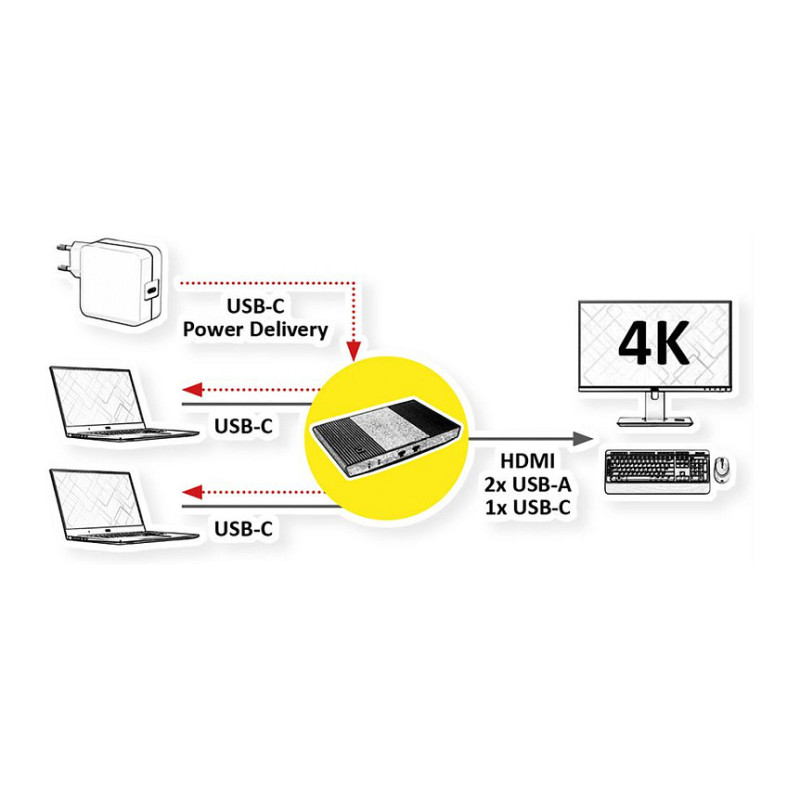

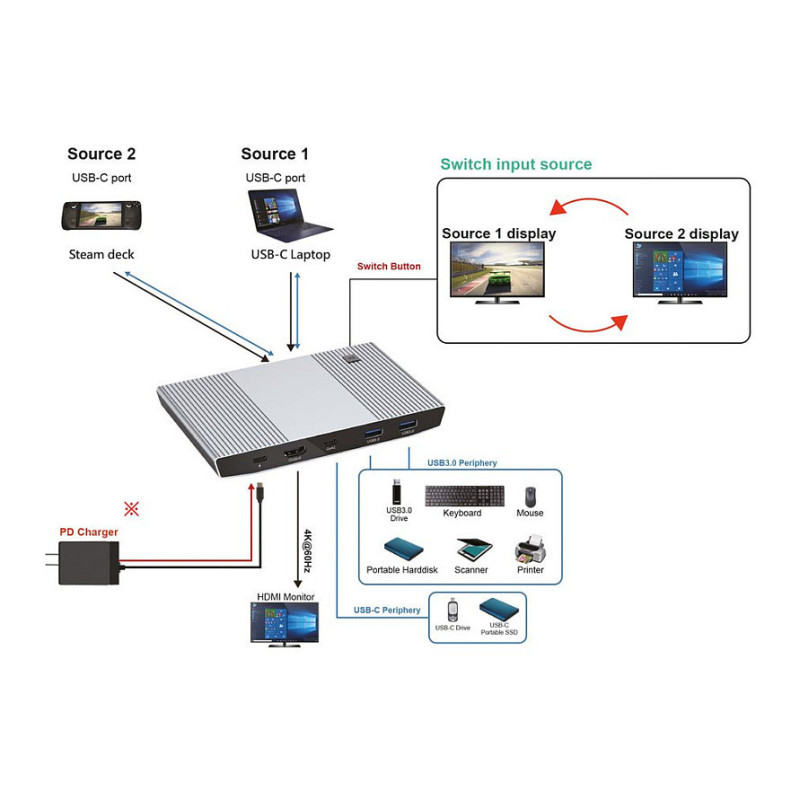

This is a KVM switch, including an USB Hub. You can operate two USB-C devices with just one USB mouse, one USB keyboard and one HDMI monitor - with a resolution of up to 3840x2160 @60Hz!
KVM switch

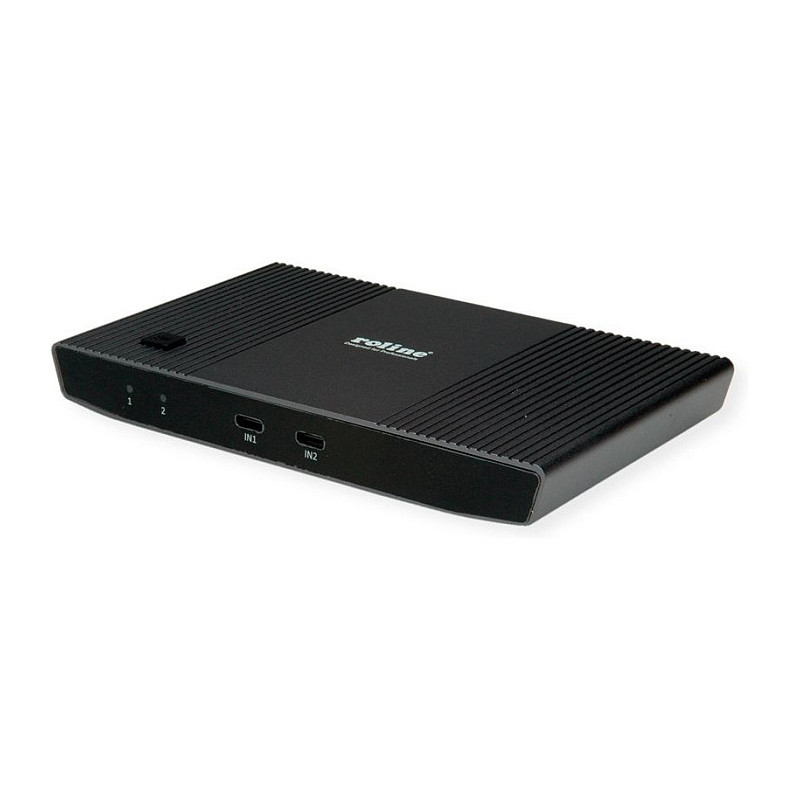

- Switching between the devices is done via a button on the switch
- LED display provides information about the active connection to the device
- Max. Video display resolution: 3840x2160 @60Hz
- Solid metal housing

USB Hub
- Three USB 3.2 Gen. 1 / USB 3.0 (2x Type A, 1x Type C) ports for connecting e.g. keyboard and mouse, external hard disk, printer, scanner or other peripheral devices
- 1 port with USB type C PD for connecting a PD charger (min. 100 W)
- If two devices are connected, they are charged via PD with 60W (port 1) and 20W (port 2);
if only one device is connected, it can be charged with up to 80W.

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI
HDMI ports quantity: 1
Feature: USB hub
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity: 2

Performance

HD type: 4K Ultra HD
Maximum resolution: 3840 x 2160 pixels

Design

Product colour: Black
Housing material: Metal

Power

Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 100 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 161 mm
Depth: 100 mm
Height: 20 mm
Weight: 261 g

Packaging data

Package width: 140 mm
Package depth: 200 mm
Package height: 80 mm
Package weight: 800 g
