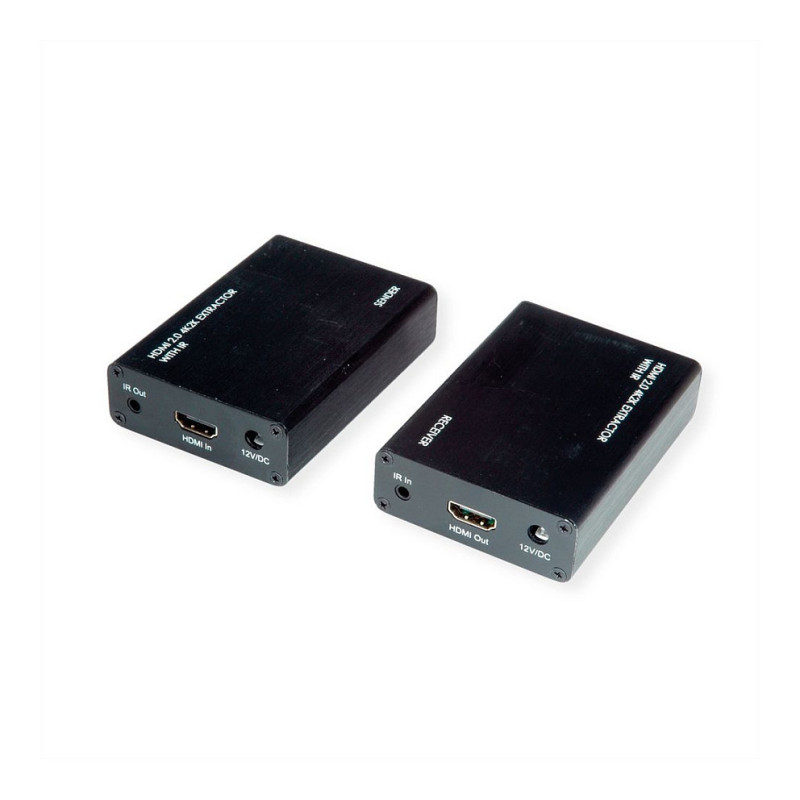

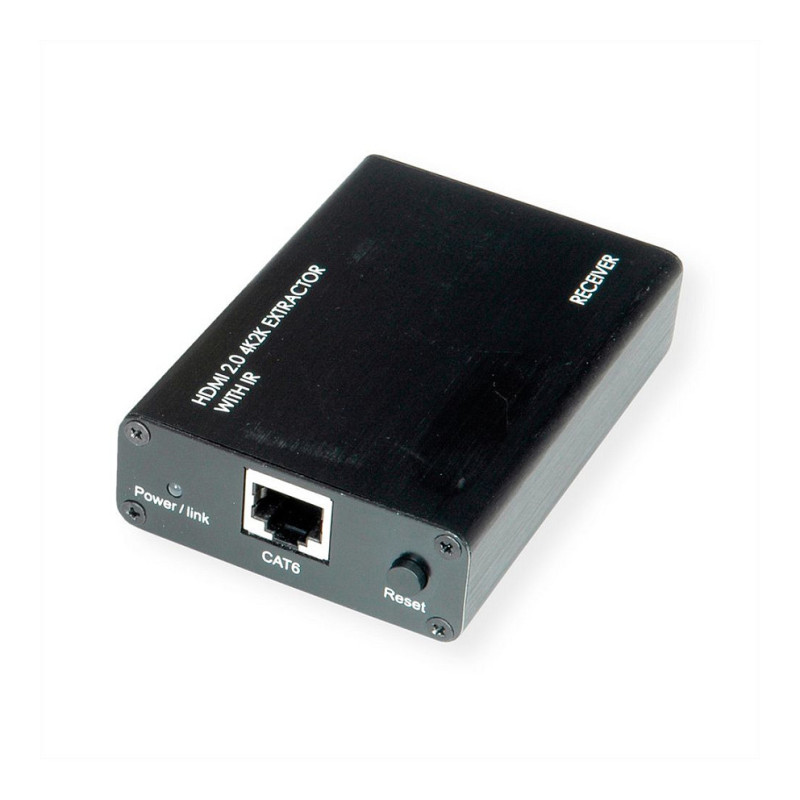

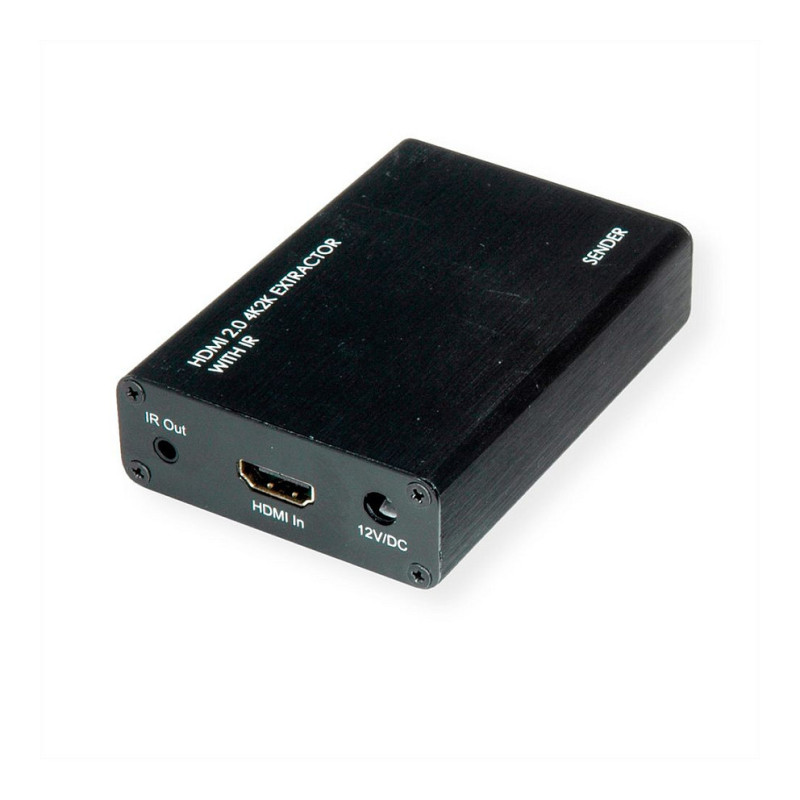

ROLINE 14.01.3417 AV extender

ROLINE 14.01.3417. Type: AV transmitter receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6a. Connectivity technology: Wired. Operating voltage: 12 V, Input current: 2 A. Width: 92 mm, Depth: 63 mm, Height: 23 mm
The ROLINE HDMI A/V system transmits an HDMI signal from a source device like a DVD player, a PC/laptop or a console via Cat.6A cable to a display device like a TV, monitor or beamer/projector - with a resolution of up to 3840x2160 @60Hz (max. 30m) or 1920x1080 @60Hz (max. 45m)!
Audio / video transmission is via HDMI and CAT. 6a cable. Up to 4k (3840x2160) @60Hz at a distance of up to 30m can be achieved. At longer distances of up to 45m the resolution is reduced to Full HD (1920x1080) @60Hz.

Features

Type: AV transmitter receiver
Maximum resolution: 3840 x 2160 pixels
Cable types supported: Cat6a
Maximum transfer distance: 45 m
Maximum refresh rate: 60 Hz
LED indicators: Yes
Supported graphics resolutions: 1920 x 1080 (HD 1080), 3840 x 2160
Feature: HDCP
Material: Metal
Feature: 3D
Feature: Wall mountable
Product colour: Black

Ports interfaces

Connectivity technology: Wired
RJ-45 input ports: 1
RJ-45 output ports: 1
HDMI in: 1
Number of HDMI outputs: 1
Remote (IR) input: 1
Remote (IR) output: 1
Feature: DC-in jack

Power

Operating voltage: 12 V
Input current: 2 A

Weight dimensions

Width: 92 mm
Depth: 63 mm
Height: 23 mm

Packaging content

Feature: Manual
