ROLINE 14.01.3363 KVM extender

ROLINE 14.01.3363. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 20000 m. Transmitter video port type: HDMI. Receiver local video port type: HDMI. AC adapter output voltage: 12 V, AC adapter output current: 2 A. Transmitter width: 10.6 cm, Transmitter depth: 10.6 cm, Transmitter height: 1.7 cm

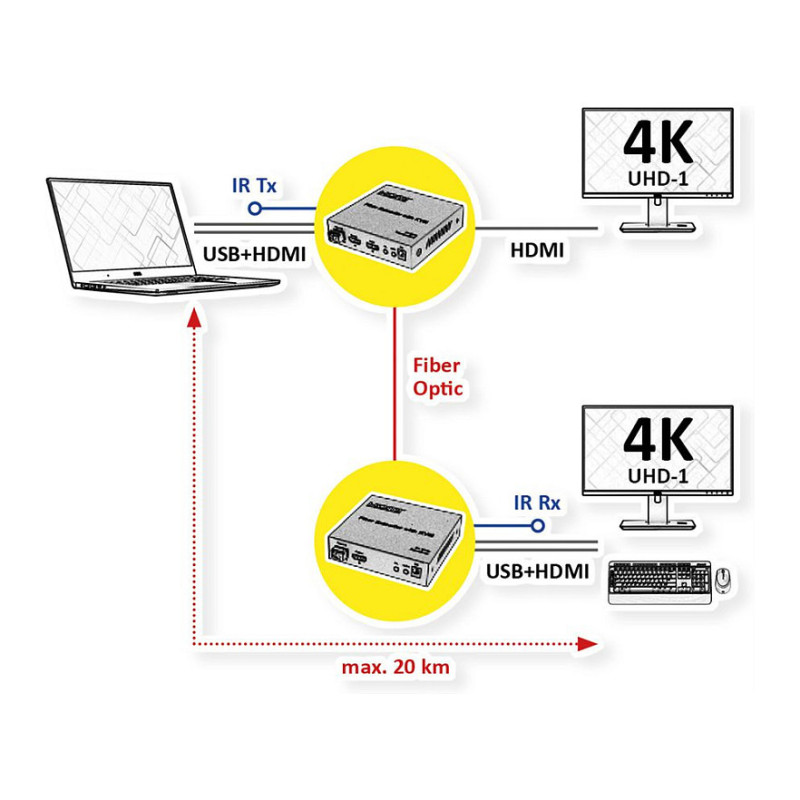

The KVM extension transmits HD audio and video signals as well as USB signals up to 20 km via a bidirectional fiber optic single-fiber cable. This allows a computer system to be controlled up to 20 km away via the remote console (HDMI 4K monitor, USB keyboard and USB mouse).

Features

Type: Transmitter & receiver
Connectivity technology: Wired
Maximum transfer distance: 20000 m
Cable types supported: Fiber
Maximum digital resolution: 3840 x 2160 pixels
Maximum refresh rate: 60 Hz
Material: Metal

Transmitter

Transmitter video port type: HDMI

Receiver

Receiver local video port type: HDMI

Power

AC adapter output voltage: 12 V
AC adapter output current: 2 A

Weight & dimensions

Transmitter width: 10.6 cm
Transmitter depth: 10.6 cm
Transmitter height: 1.7 cm
Transmitter weight: 273 g
Receiver width: 10.6 cm
Receiver depth: 10.6 cm
Receiver height: 1.7 cm
Receiver weight: 273 g

Packaging data

Package width: 140 mm
Package depth: 250 mm
Package height: 80 mm
Package weight: 1 kg

Operational conditions

Operating temperature (T-T): -10 - 55 °C
