ROLINE 14.01.3047 KVM switch

ROLINE 14.01.3047. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black. Input voltage: 5 V, Input current: 2 A. Width: 167 mm, Depth: 84 mm, Height: 32 mm

Description

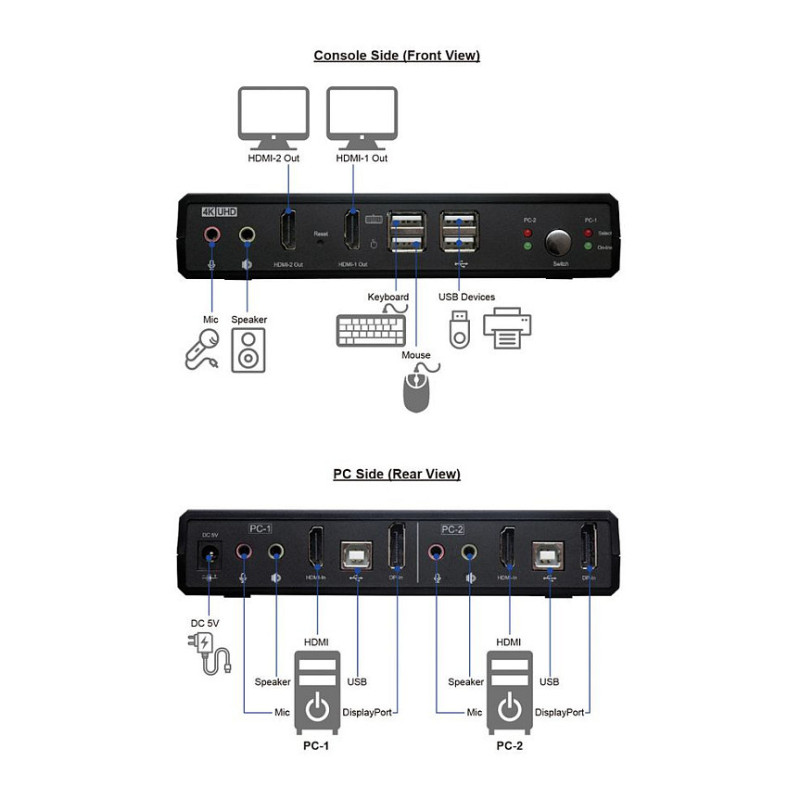

This ROLINE Dual-Head 4K@60Hz HDMI KVM Switch allows you to control two computers with DP/HDMI video output via one console with USB Keyboard, USB Mouse, 2x HDMI 4K@60Hz, 2 Port USB 2.0 Hub, Microphone and Speaker.

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI/DisplayPort
HDMI ports quantity: 4
DisplayPorts quantity: 2
DisplayPort version: 1.2
Console ports: 3.5mm headphone, 3.5mm mic, HDMI, USB A, USB B
Console USB ports quantity: 4
Feature: USB hub
USB 2.0 Type-A hub ports quantity: 2
Headphone outputs: 3
Number of microphone inputs: 3
Feature: DC-in jack

Performance

HD type: 4K Ultra HD
Maximum resolution: 3840 x 2160 pixels
Video bandwidth: 60 Hz
Feature: HDCP
HDCP version: 2.2

Design

Product colour: Black
LED indicators: Yes

Power

Input voltage: 5 V
Input current: 2 A

Operational conditions

Storage temperature (T-T): -20 - 60 °C

Weight & dimensions

Width: 167 mm
Depth: 84 mm
Height: 32 mm
Weight: 227 g

Packaging data

Package width: 210 mm
Package depth: 320 mm
Package height: 70 mm
Package weight: 1 kg
