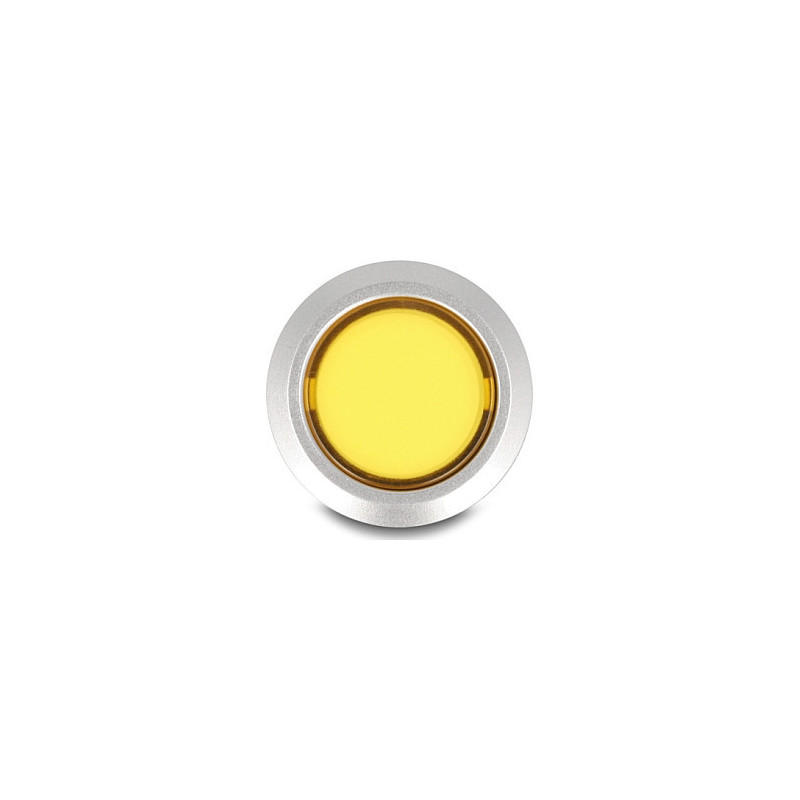

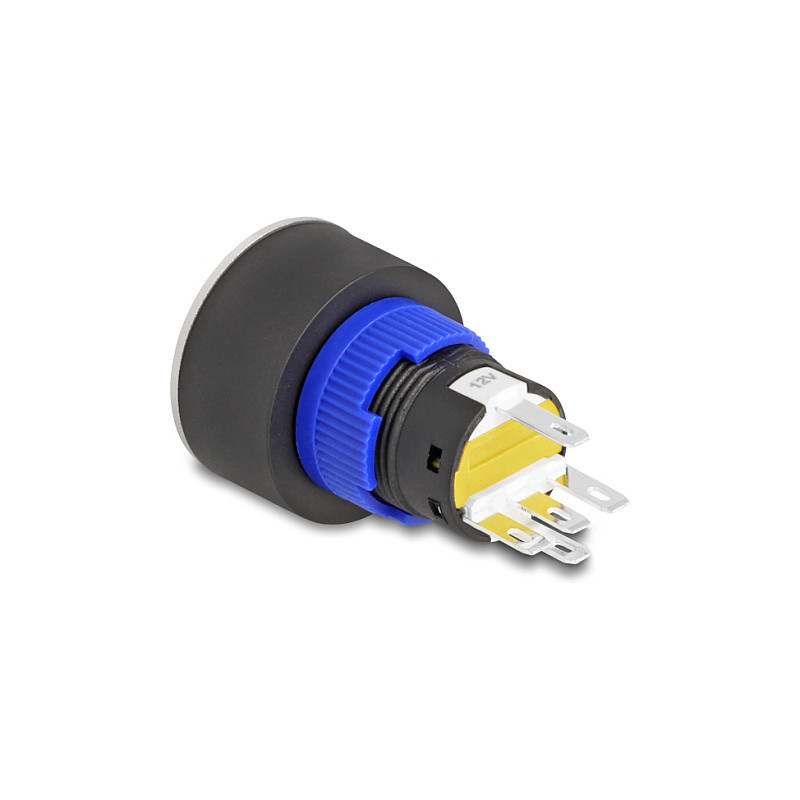

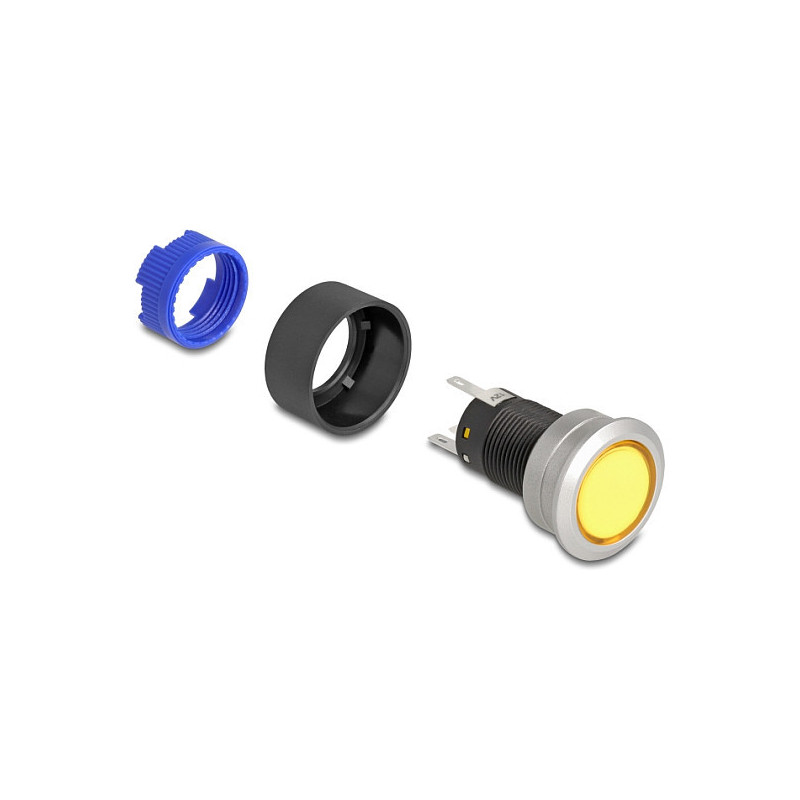

DeLOCK 22050 electrical switch

DeLOCK 22050. Type: Pushbutton switch, Housing material: Plastic, Product colour: Black, Blue, Silver, Yellow. Maximum switching voltage (AC): 230 V, Maximum switching current (AC): 3 A. Width: 22 mm, Depth: 41 mm, Height: 22 mm. Package type: Polybag, Quantity per pack: 1 pc(s)

This push button by Delock is ideal for installation in control panels, for example in industry, control or regulation technology. Push buttons can also be found in the automotive industry or the consumer sector. For example, as doorbells or triggers for lighting systems with timers such as those found in hallways. A so called button, or push button, returns to its initial position after being pressed. The NO (closer) contact establishes a connection between two contacts, while the NC (opener) contact releases them.

Features

Type: Pushbutton switch
Housing material: Plastic
Product colour: Black, Blue, Silver, Yellow
International Protection (IP) code: IP60
Mounting hole diameter: 2.2 cm
Country of origin: China

Power

Maximum switching voltage (AC): 230 V
Maximum switching current (AC): 3 A

Weight & dimensions

Width: 22 mm
Depth: 41 mm
Height: 22 mm
Mounting depth: 4 cm

Operational conditions

Operating temperature (T-T): -25 - 55 °C

Packaging data

Package type: Polybag
Quantity per pack: 1 pc(s)
