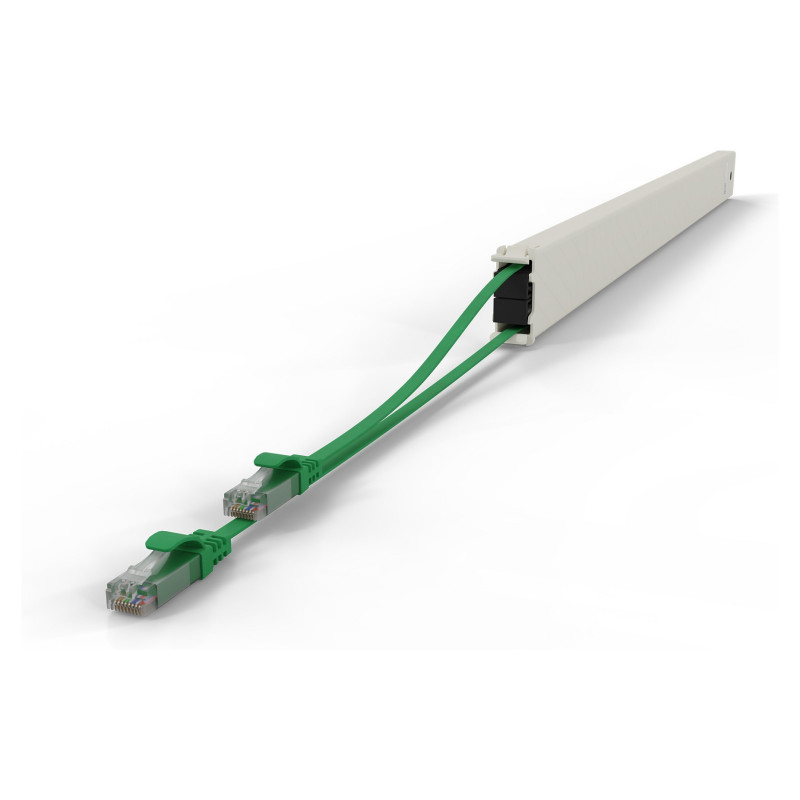

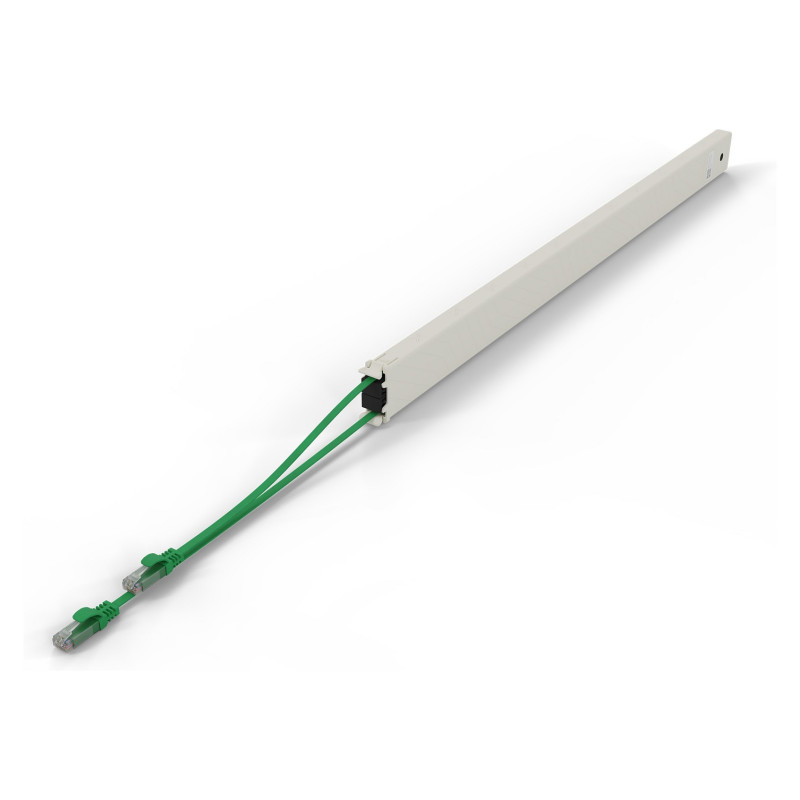

PATCHBOX CONE46UTPGR networking cable

PATCHBOX .one / Cassette / 46RU / UTP / Green. Cable length: 2.5 m, Cable standard: Cat6a, Cable shielding: U/UTP (UTP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 10000 Mbit/s, Product colour: Green

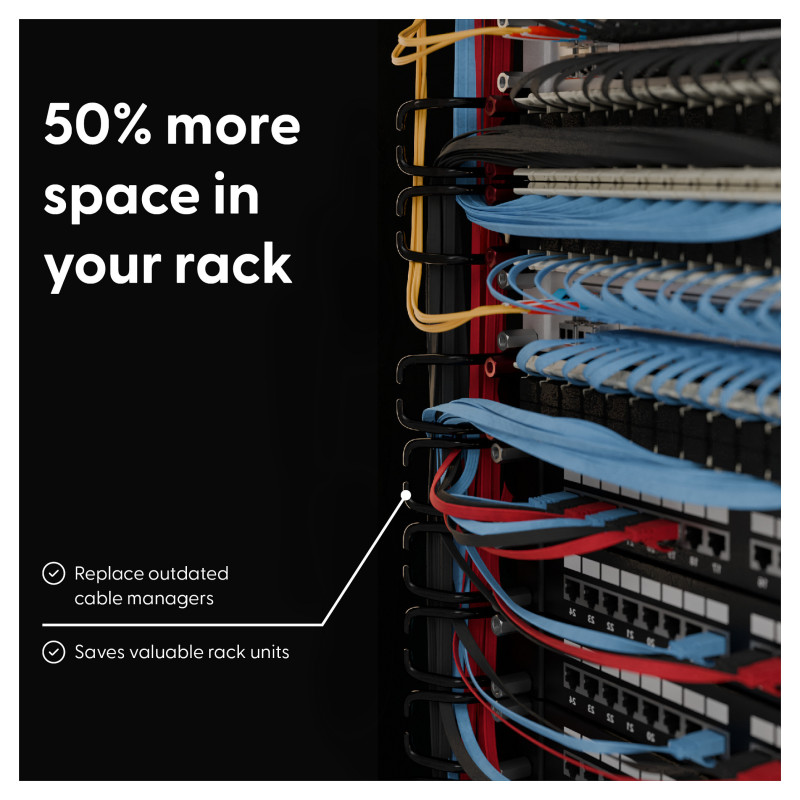

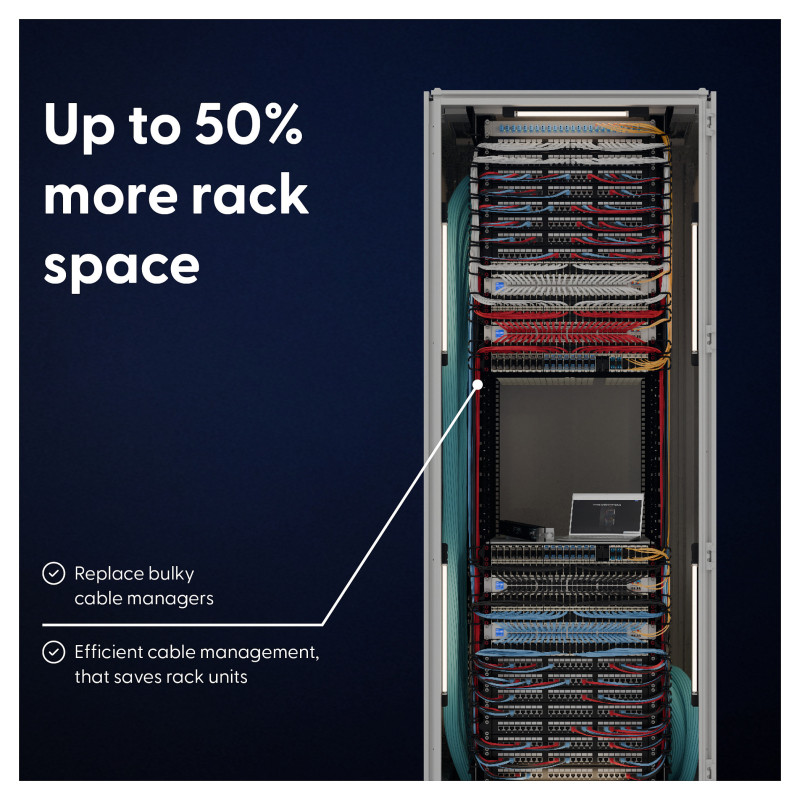

The Ultimate Cable Management Solution
The patchbox.one with Cat.6a cables keeps your rack organized, efficient, and ready for the future. Its retractable twisted pair cables are lightweight, flexible, and easy to handle—making installation and maintenance smoother than ever.

Build Your Ideal Rack Setup
Customize your own patchbox.one by filling the patchbox.one / Frame with up to 24 Cable Cassettes—tailored to your exact cable length, type, and connector needs.

Modular, Replaceable, Scalable
Need to adapt your rack? Swap any cassette in seconds—no tools required, no downtime needed.

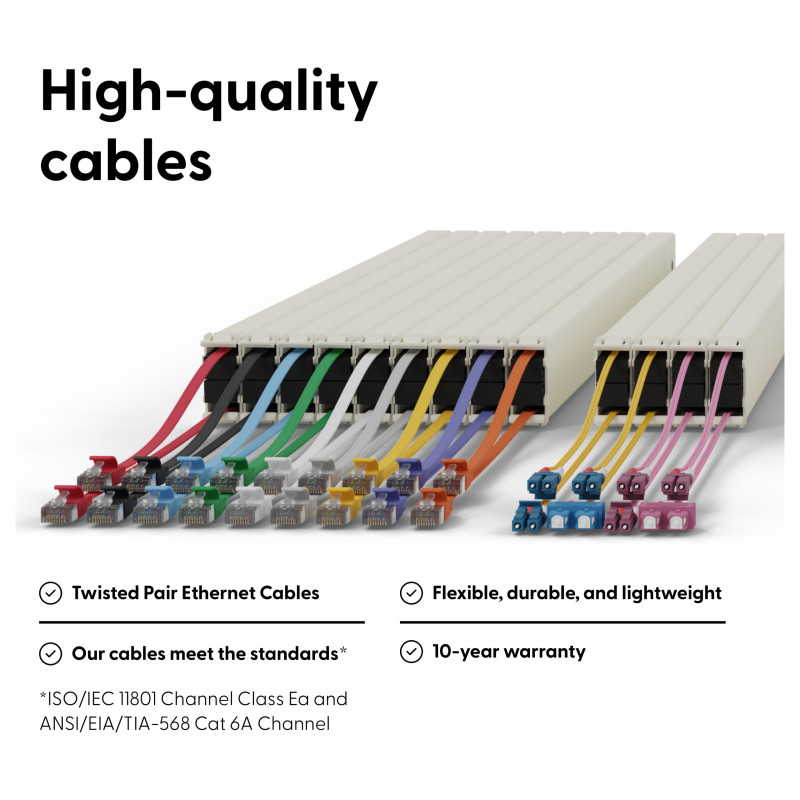

High-Performance Ethernet
Our Twisted Pair Cat.6a cables deliver up to 10 Gigabit Ethernet, meet ISO/IEC standards, and support PoE (STP) and PoE++ (UTP).

Color-Coded for Clarity
With 8 cable colors to choose from, you can implement a structured, highly organized cabling standard.

Three Length Options
Select from 0.8m, 1.8m, or 2.5m cable variants—perfectly aligned to your rack height and infrastructure needs.

Features

Product colour: Green
Cable length: 2.5 m
Cable standard: Cat6a
Cable shielding: U/UTP (UTP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector contacts plating: Gold
Jacket material: Polyvinyl chloride (PVC)
Cable shape: Flat
Conductor material: Copper
Networking standards: IEEE 802.3bt
AWG wire size: 30
Data transfer rate: 10000 Mbit/s
Bend radius (min): 1.2 cm
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE++ (4PPoE)
Country of origin: Hungary

Operational conditions

Operating temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%

Certificates

Certification: ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel

Weight & dimensions

Width: 600 mm
Depth: 40 mm
Height: 18 mm
Weight: 220 g

Packaging content

Quantity per pack: 1 pc(s)
Packaging content: 1 x patchbox.one / Cassette / 46RU / UTP / Green

Packaging data

Package width: 689 mm
Package depth: 47 mm
Package height: 50 mm
Package weight: 310 g

Other features

Cables included: LAN (RJ-45)
