METZ CONNECT 130B11D21200-E socket-outlet

METZ CONNECT 130B11D21200-E. Socket type: RJ-45, Networking cable category: 6a. Product colour: Metallic, Housing material: Steel, Zinc, International Protection (IP) code: IPX2. Rated current: 1 A. Width: 69.9 mm, Depth: 33 mm, Height: 69.9 mm

C6A modul 2 port 180°M UP0
- termination unit with C6Amodul 180°
- certified to GHMT Cat.6A re-embedded PVP
- component testing for Cat.6A to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), certified to GHMT
- compliance with class EA up to 500 MHz to ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09
- tested: components up to 600 MHz, link up to 800 MHz
- suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
- connection of data lines AWG 26/1 to 22/1 (solid wire) and AWG 26/7 to 22/7 (stranded wire) to insulation displacement connectors (IDC)
- module plug direction 45° downwards
- strain relief snapped on to stuffer cap
- compatible with "design" central units of switch lines (note: 3 port central units at present only available from JUNG)
- not suitable for mounting in standard flush-mounted or cavity wall casings!
- variants: 1 port, 2 ports, 3 ports

Features

Socket type: RJ-45
Sockets quantity: 2
Networking cable category: 6a

Design

Product colour: Metallic
Housing material: Steel, Zinc
International Protection (IP) code: IPX2
Certification: CE, GHMT

Power

Rated current: 1 A

Technical details

Compliance certificates: RoHS

Operational conditions

Operating temperature (T-T): -40 - 70 °C

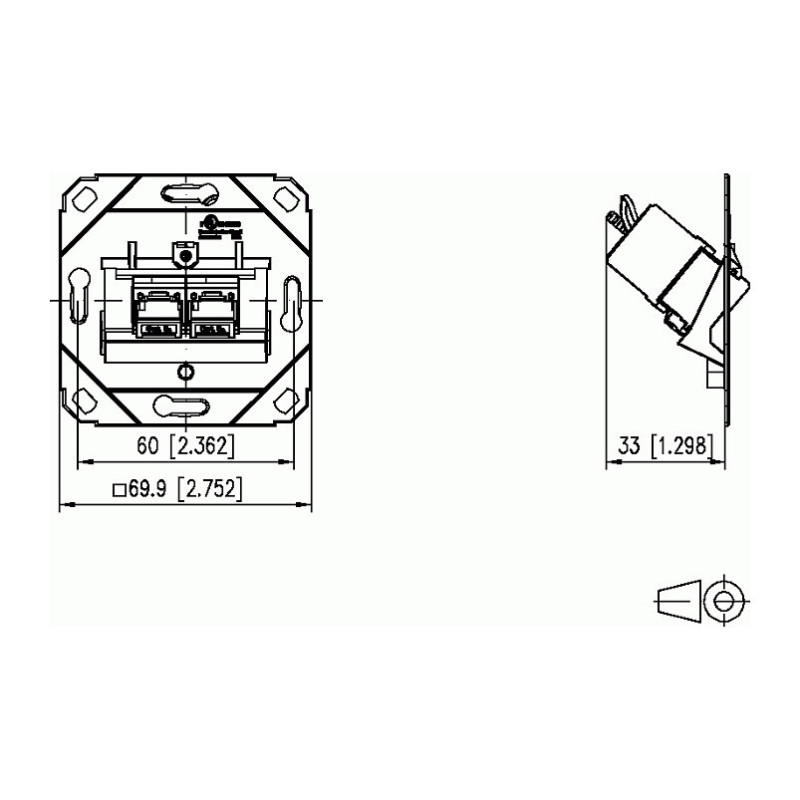

Weight & dimensions

Width: 69.9 mm
Depth: 33 mm
Height: 69.9 mm
