Lindy 38152 video switch

Lindy 4x4 HDMI 4K60 Matrix. Video port type: HDMI, Video out: 4x HDMI. Product colour: Black, Supported graphics resolutions: 4096 x 2160, Supported video modes: 1080p, 2160p. AC input voltage: 12 V. Dimensions (WxDxH): 267 x 120 x 32 mm

Matrices are multi-port solutions for distributing content from multiple sources to several displays in a variety of configurations.

The Lindy 4x4 HDMI 4K 60 Matrix is an effective solution for distributing 4K content from up to 4 HDMI source devices, including PCs and media players, to 4 displays.

Supporting 4K@60Hz resolutions, content can be viewed in excellent quality - great for use with digital signage in retail, information display setups in educational buildings or engaging conference installations.

The matrix can be easily controlled with a variety of simple, effective options including push buttons on the main unit, IR or via RS-232 for integration into professional control systems.

Ports & interfaces

Video port type: HDMI
HDMI ports quantity: 8
HDMI version: 2.0
HDMI in: 4
Number of HDMI outputs: 4
Video out: 4x HDMI
Feature: DC-in jack

Features

Product colour: Black
Supported graphics resolutions: 4096 x 2160
Supported video modes: 1080p, 2160p
Bandwidth: 18 Gbit/s
Feature: Full HD
LED indicators: Yes
Dolby technologies: DTS-HD, Dolby TrueHD
HDCP version: 2.2

Power

AC input voltage: 12 V

Weight & dimensions

Dimensions (WxDxH): 267 x 120 x 32 mm

Packaging content

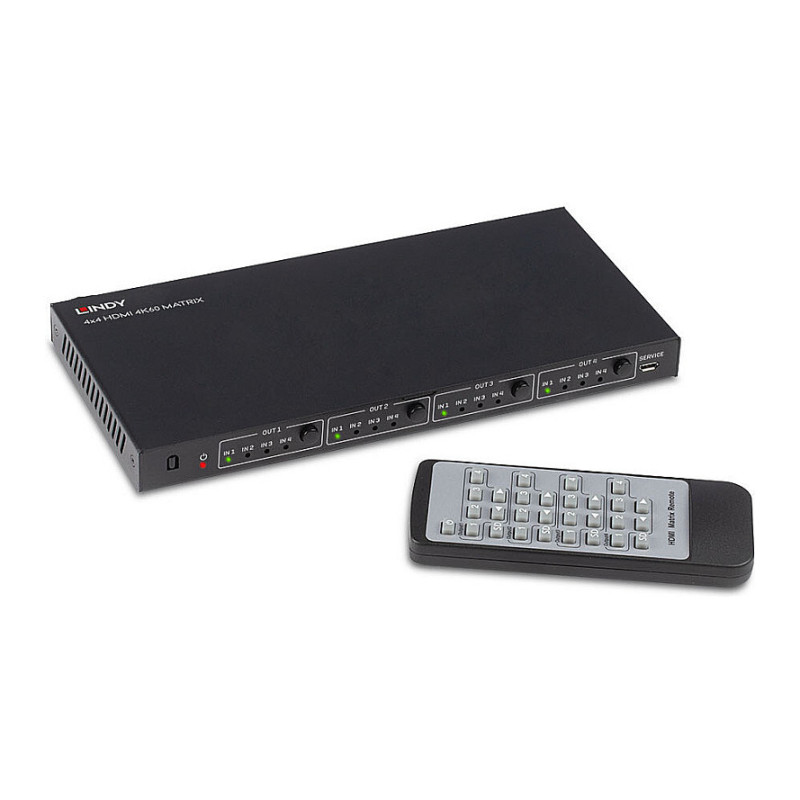

Feature: Remote control included

Logistics data

Harmonized System (HS) code: 85176990
