Lindy 42346 KVM switch

Lindy 2 Port DisplayPort 1.2, USB Type C, USB 2.0 and Audio Cable KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product colour: Black, Housing material: Plastic. Width: 97 mm, Depth: 25 mm, Height: 82.2 mm. Package width: 160 mm, Package depth: 60 mm, Package height: 250 mm

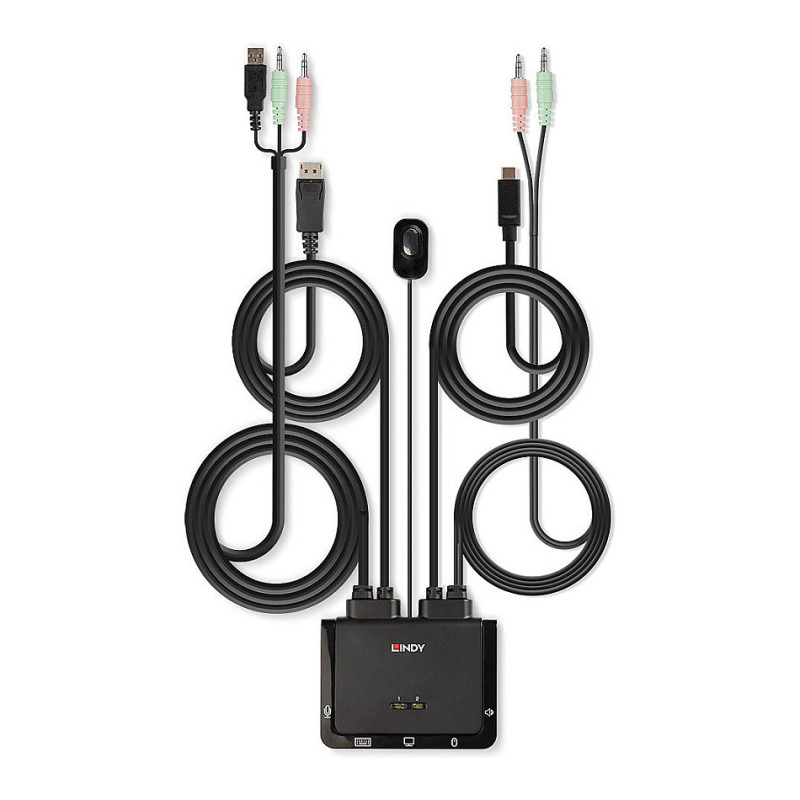

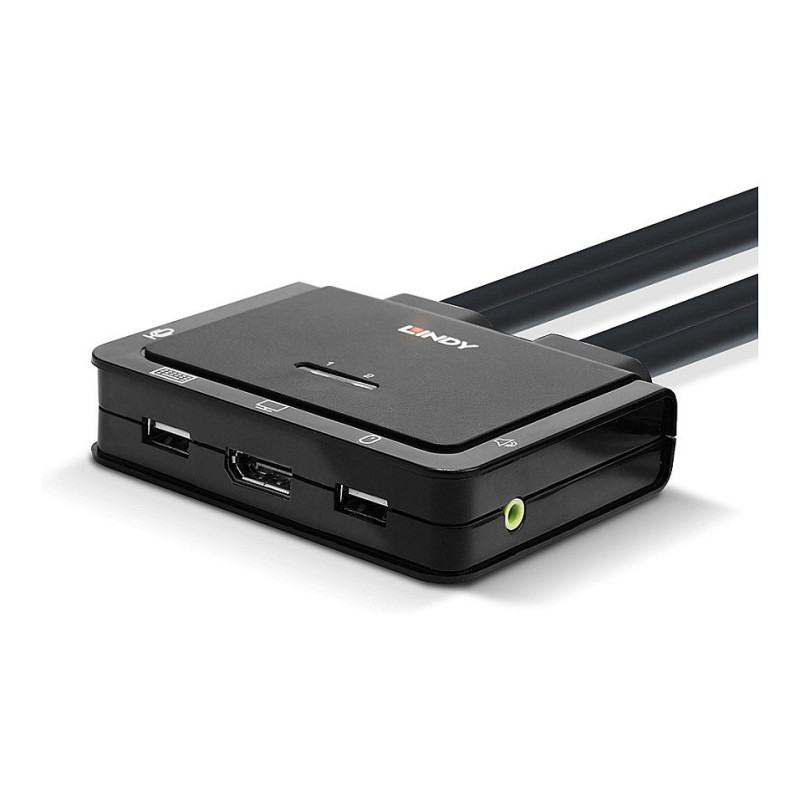

The Lindy 2 Port DisplayPort 1.2, USB Type C, USB 2.0 and Audio KVM Switch is a compact solution for providing access and control over a DP equipped PC and Type C laptop or Desktop OS tablets from a single keyboard, mouse and monitor. With integrated cables, this switch can be easily connected directly to the system, with no need to purchase additional cables and saving time during installation.

Support for resolutions up to 3840x2160@60Hz ensures the optimum image quality, perfect for demanding graphical content in gaming setups, video editing or dual system control workstations. The integrated USB Type C cable allows for control of a variety of laptops and tablets alongside a PC, great for maximising workspaces in universities or residential offices. The audio output port on the main unit also allows users to connect headphones or speakers to add immersive 2-channel audio and a microphone, while additional USB peripherals can be integrated with a USB hub.

The KVM switch features multiple switching options including a push button control (with 1.5m cable), hotkey and software switching to provide simple, reliable control for the user, great for both professional and first-time users.

Ports & interfaces

Number of computers controlled: 2
Keyboard port type: USB
Mouse port type: USB
Video port type: DisplayPort
Console ports: 3.5mm headphone, 3.5mm mic, DisplayPort, USB A

Performance

HD type: 4K Ultra HD
Maximum resolution: 3840 x 2160 pixels
Feature: HDCP

Design

Product colour: Black
Housing material: Plastic

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 97 mm
Depth: 25 mm
Height: 82.2 mm
Weight: 433 g

Packaging data

Package width: 160 mm
Package depth: 60 mm
Package height: 250 mm
Package weight: 514 g

Logistics data

Harmonized System (HS) code: 85176200
