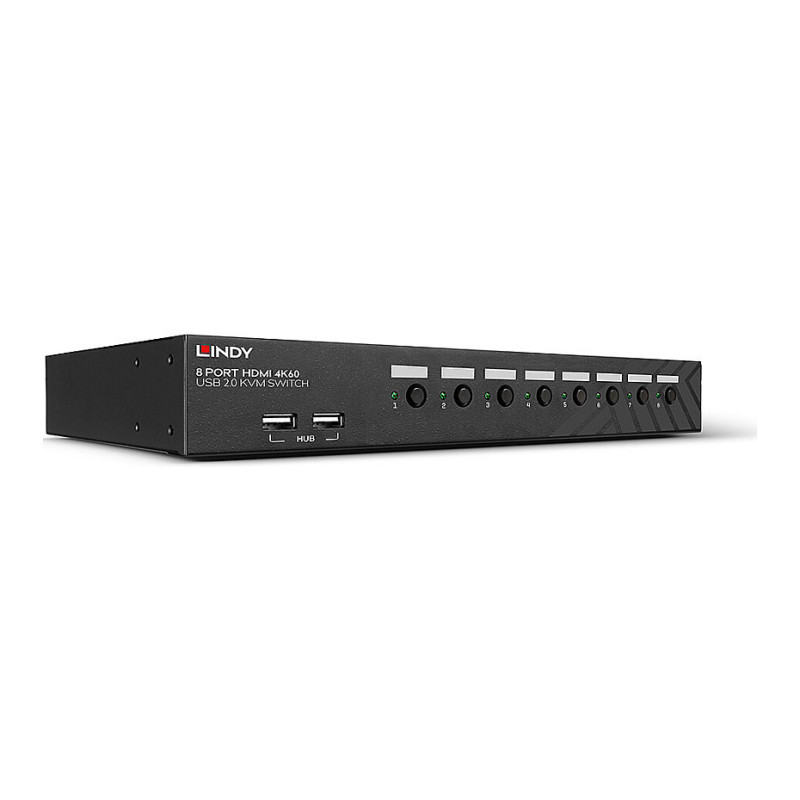

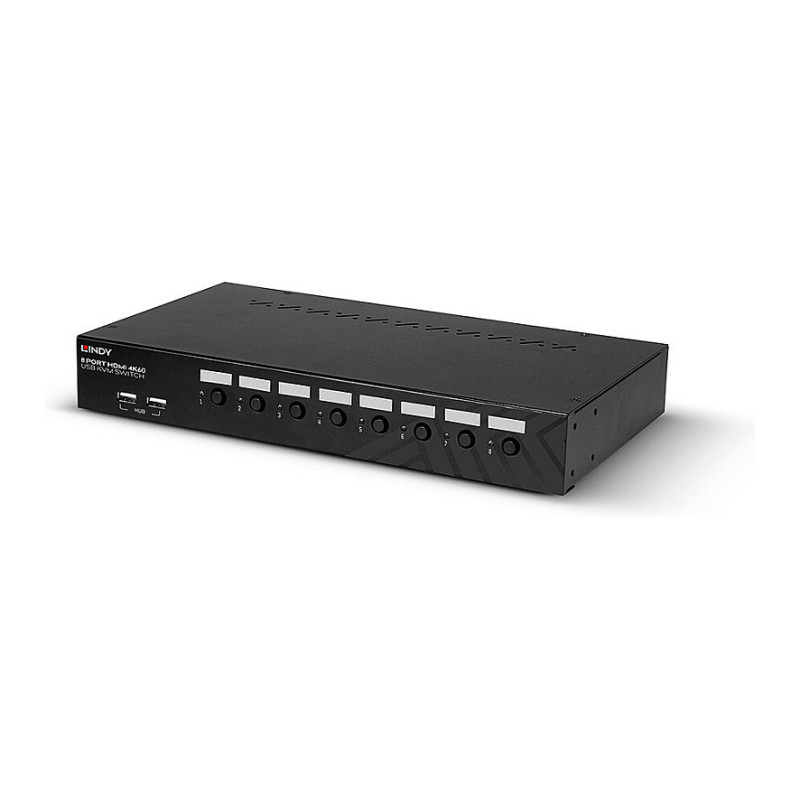

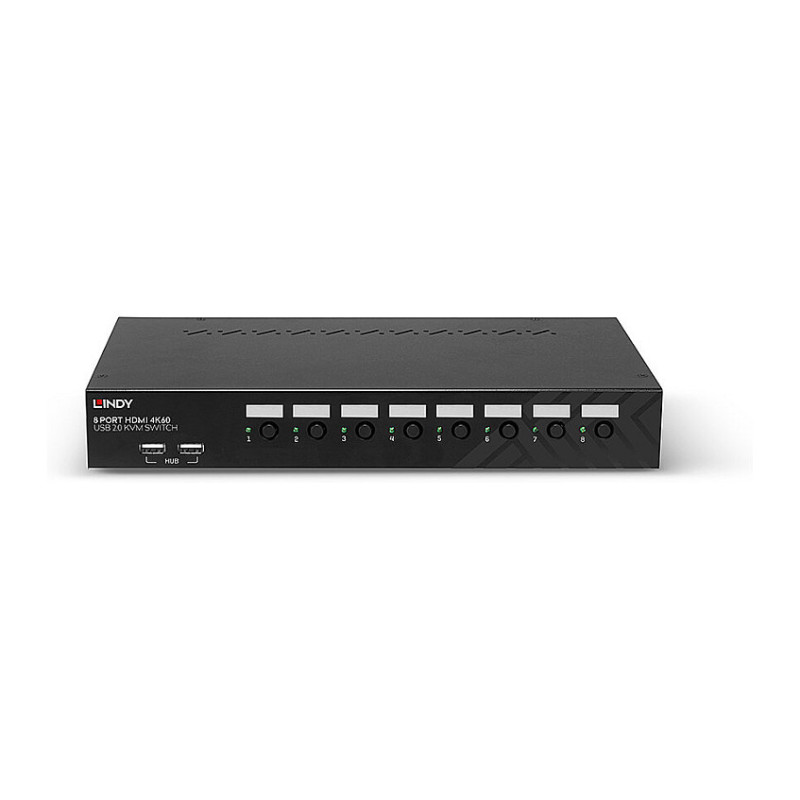

Lindy 39538 KVM switch

Lindy 39538. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Display: LED. Power source: DC, Output voltage: 9 V, Output current: 2 A
This advanced KVM Switch has been designed for use with PCs and Macs. It features HDMI® video ports and a two port USB 2.0 hub for connecting and sharing peripherals. With audio support, you can also connect speakers or headsets.
The switch occupies only a single 1U space in a 19 rack and supports screen resolutions of up to 4K Ultra HD 60Hz, great for graphical content in gaming setups, video editing or controlling multiple workstations. It provides 3 switching modes, via keyboard hotkeys, front panel buttons and RS-232 commands.

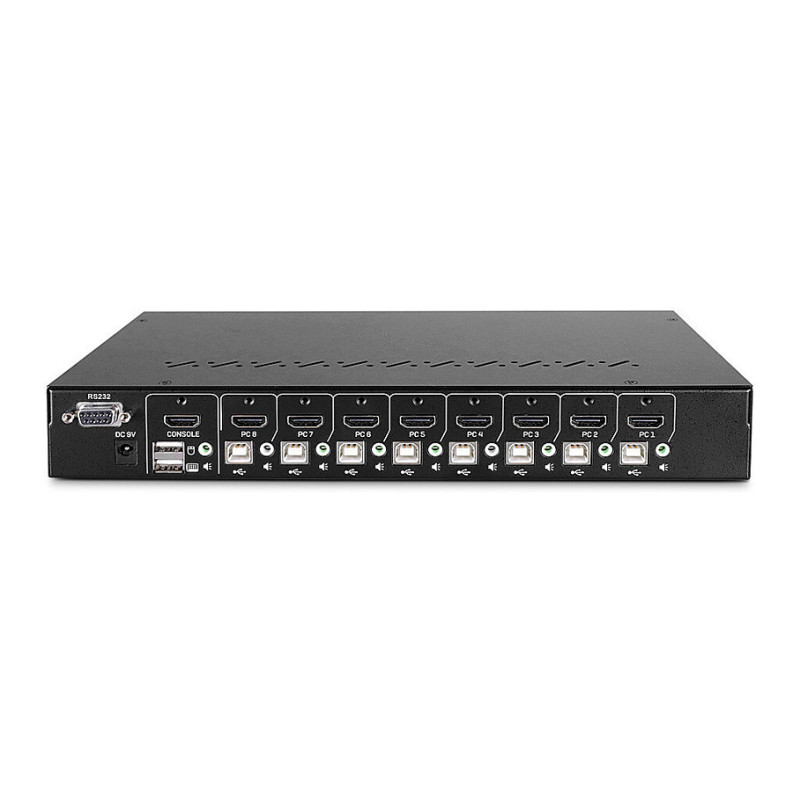

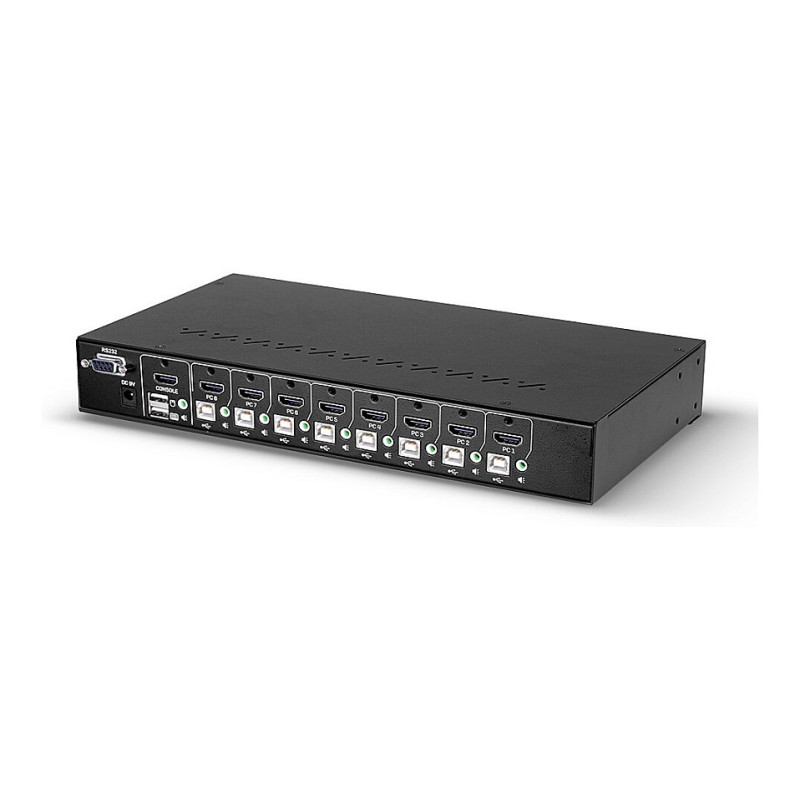

A local console can be connected to the 2 USB and HDMI® ports on the rear panel while the built-in 2 port USB 2.0 hub saves money on requiring additional devices by sharing peripherals between the connected computers. The unique switching arrangement allows the USB hub to be switched independently of the PCs for uninterrupted printing, scanning or external drive access. Options can be accessed only via keyboard hotkeys or RS-232 commands.
LED indicators show the status of the selected channel.
Please Note: connection cables are not included. HDMI®, USB A to B, and 3.5mm audio cables are required for each connected computer.

Ports interfaces

Number of computers controlled: 8
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI
Console ports: HDMI, USB A, 3.5mm headphone
Console USB ports quantity: 2
Console HDMI ports quantity: 1
Serial port type: DE-9 (DB-9)
Feature: Audio connections

Performance

HD type: 4K Ultra HD
Maximum resolution: 3840 x 2160 pixels
Feature: HDCP
HDCP version: 2.2

Design

Feature: Rack mounting
Rack capacity: 1U
Product colour: Black
Housing material: Metal

Display

Feature: Built-in display
Display: LED

Power

Power source: DC
Output voltage: 9 V
Output current: 2 A

Sustainability

Compliance certificates: CE, Federal Communications Commission (FCC), UKCA, Trade Agreements Act (TAA), REACH, RoHS

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 0 - 90%

Weight dimensions

Width: 300 mm
Depth: 164 mm
Height: 44 mm
Weight: 1.79 kg

Packaging data

Package width: 566 mm
Package depth: 104 mm
Package height: 245 mm
Package weight: 2.06 kg
Package type: Box

Packaging content

Cables included: RS-232
Feature: Manual
Feature: AC adapter included
Feature: Rack mount kit
