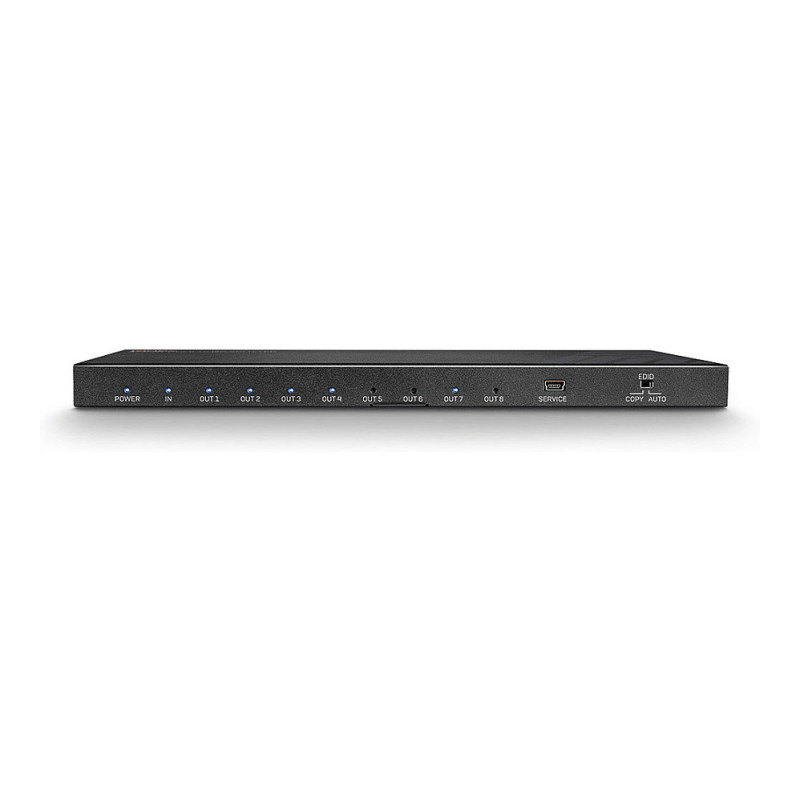

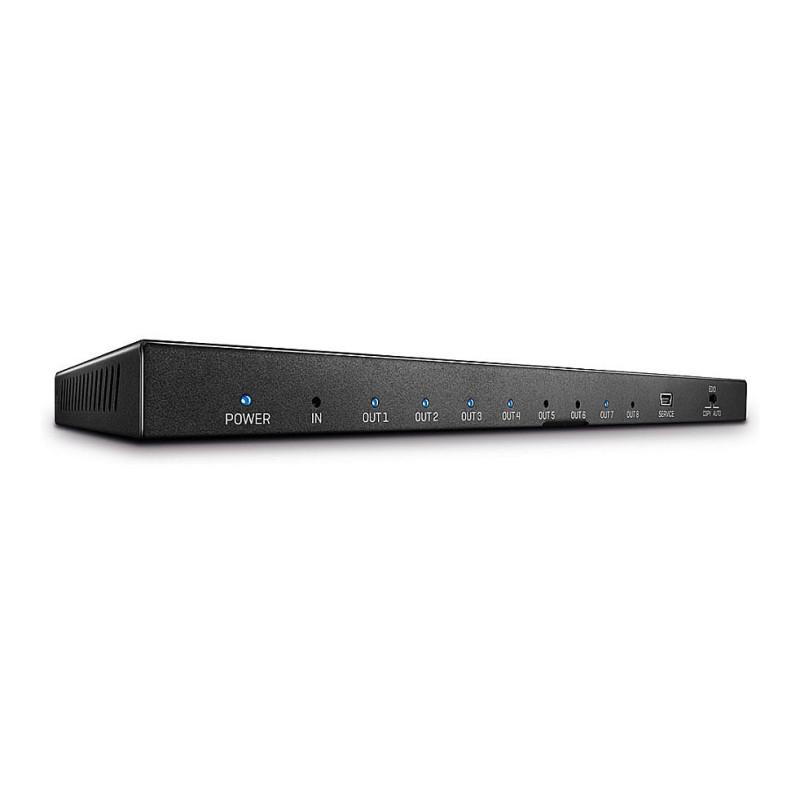

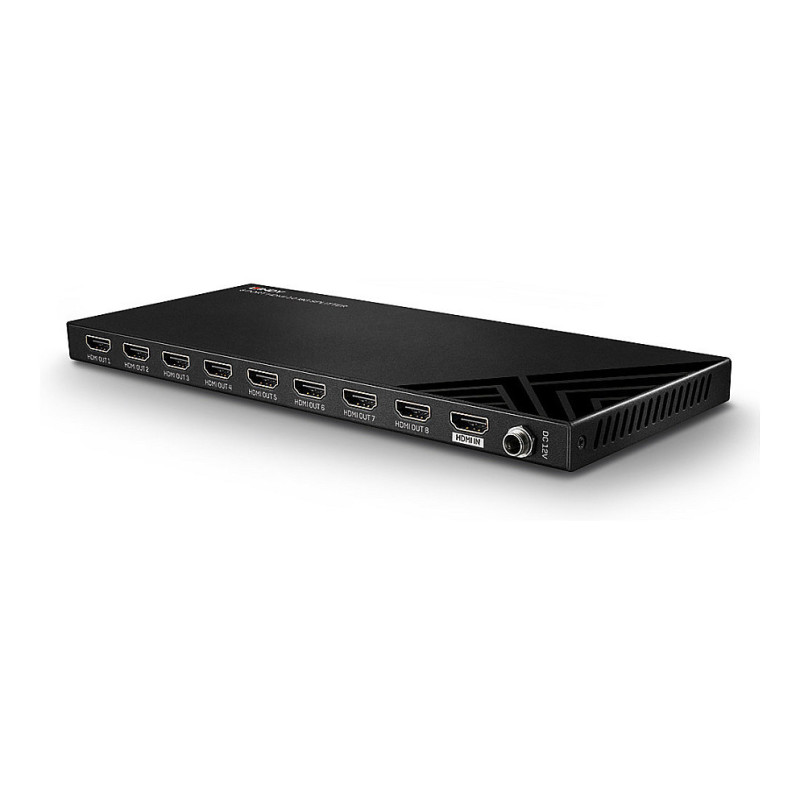

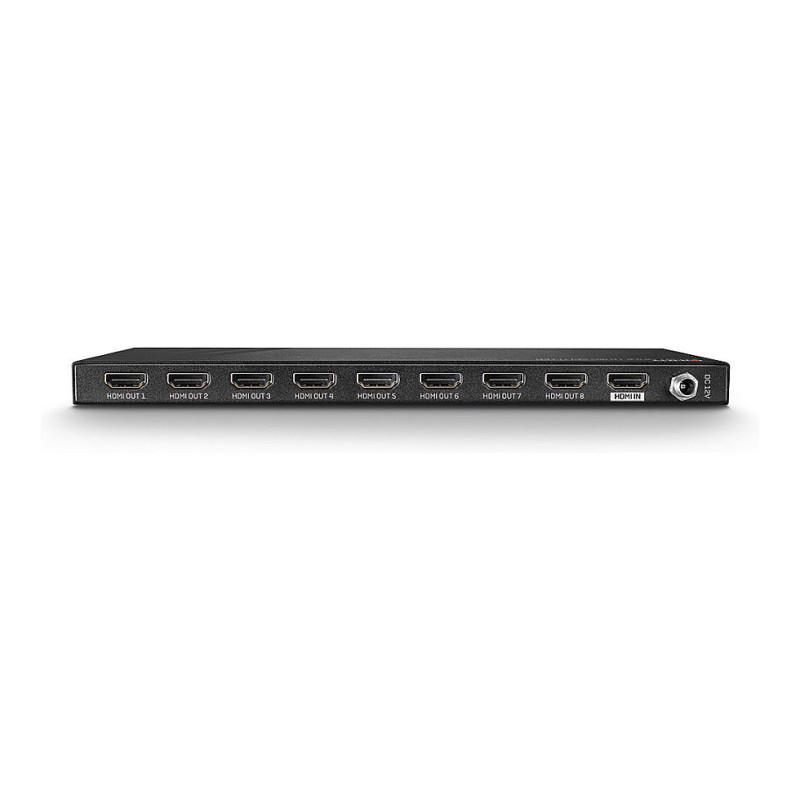

Lindy 38237 video splitter

Lindy 8 Port HDMI 2.0 18G Splitter. Video port type: HDMI, Video out: 8x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Housing material: Metal. AC input voltage: 12 V. Width: 243 mm, Depth: 102 mm, Height: 16 mm. Package width: 277 mm, Package depth: 183 mm, Package height: 68 mm

Split a single HDMI 2.0 source across 8 HDMI displays
Supports resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
HDCP 2.2 support for enhanced compatibility
EDID Management for hassle free installation
2 Year Warranty

The Lindy 8 Port HDMI 18G Splitter is a compact, high quality solution for distributing HDMI 2.0 18G signals across multiple displays from one source device. With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching digital signage in retail scenarios, showing high quality video in different rooms in medical facilities or ensuring audiences do not miss any of the action in dual display sports bars. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider colour gamut, for more lifelike colour.

The additional ability to cascade this splitter up to three further levels allows for an extended HDMI splitting experience, ideal for multi-screen situations such as informational broadcasting in airports, train stations or stock exchange offices.

HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players, while a smart EDID management switch on the unit provides maximum compatibility with the display. The splitters durable, compact design also ensures the unit can be installed discreetly, ensuring there is no distraction from the content on screen and with a screw type DC jack. Additionally, the power supply is connected via a screw type DC jack, providing a secure and reliable connection, ideal for installations where accidental disconnections could occur.

Ports & interfaces

Video port type: HDMI
Video out: 8x HDMI
Video ports quantity: 9
Feature: DC-in jack

Features

Product colour: Black
Housing material: Metal
Maximum resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Feature: HDCP
LED indicators: Yes
Number of displays supported: 8
Certification: CE, FCC, REACH, California Proposition 65

Power

AC input voltage: 12 V

Weight & dimensions

Width: 243 mm
Depth: 102 mm
Height: 16 mm
Weight: 728 g

Packaging data

Package width: 277 mm
Package depth: 183 mm
Package height: 68 mm
Package weight: 913 g
Package type: Box

Packaging content

Feature: Manual
Feature: AC adapter included

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%

Technical details

Compliance certificates: RoHS

Logistics data

Harmonized System (HS) code: 85176990
