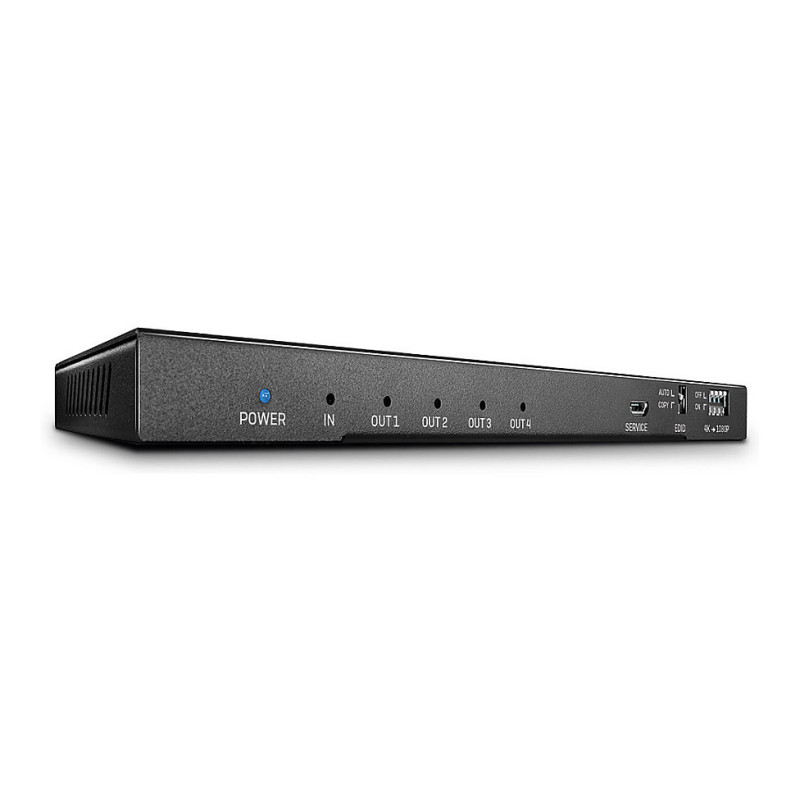

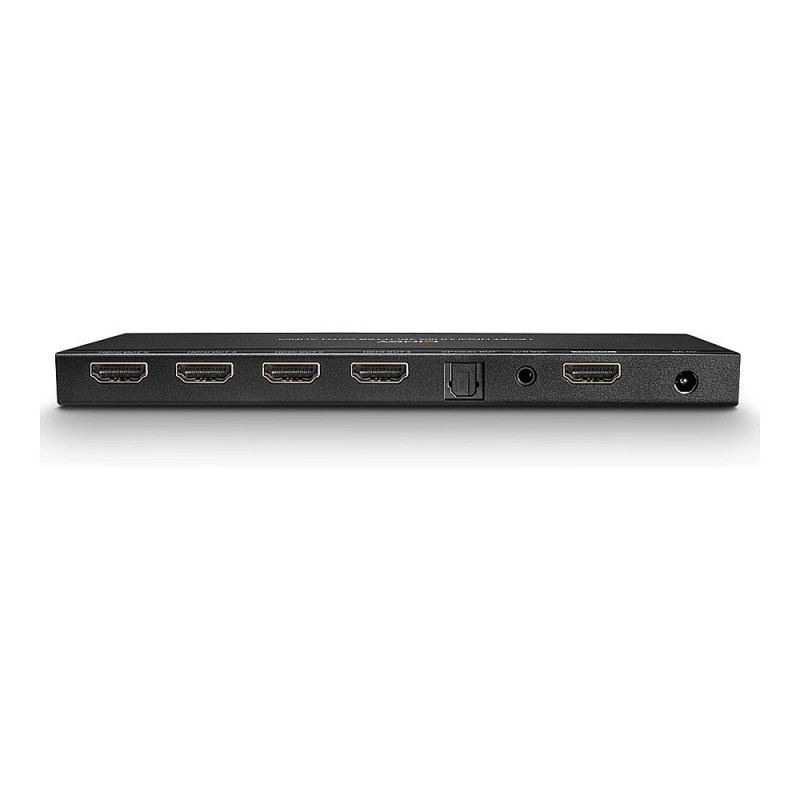

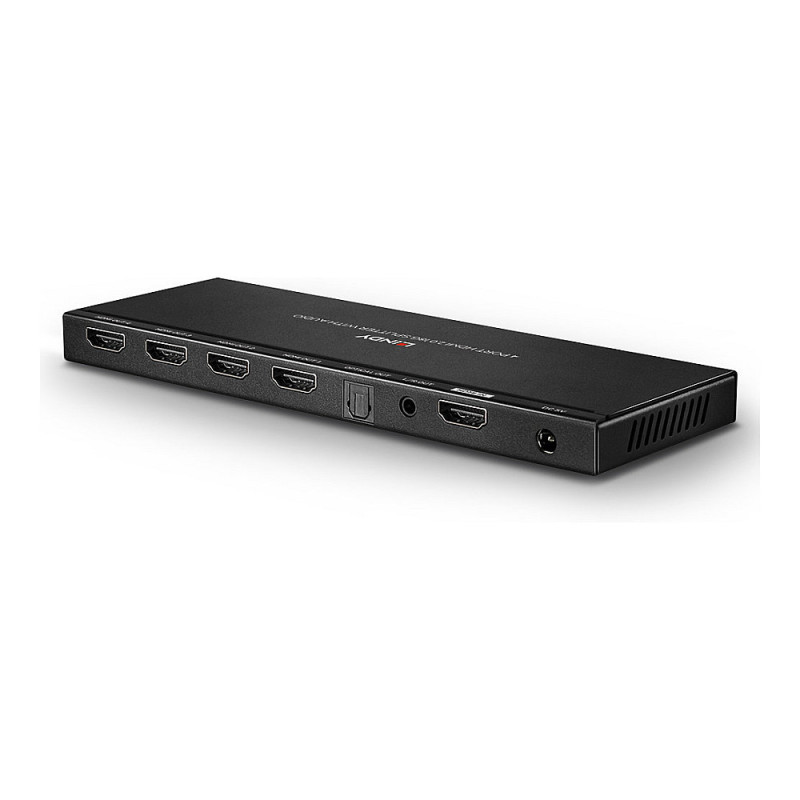

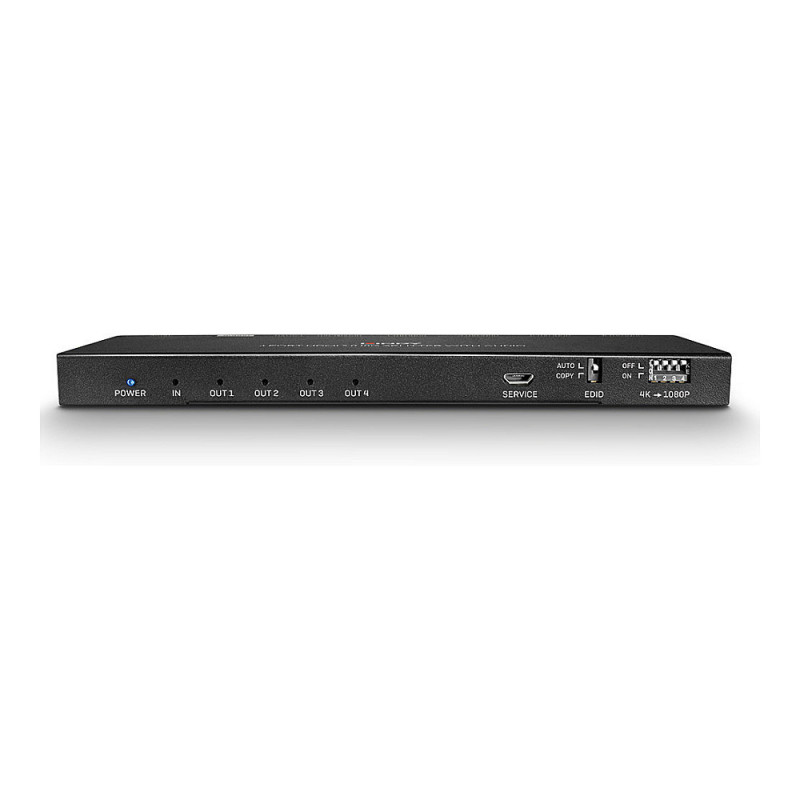

Lindy 38231 video splitter

Lindy 4 Port HDMI 18G Splitter with Audio and Downscaling. Video port type: HDMI, Video out: 4x HDMI. Maximum resolution: 4096 x 2160 pixels, Product colour: Black, Housing material: Metal. Output voltage: 5 V, Output current: 1 A. Width: 180 mm, Depth: 14.4 mm, Height: 63 mm. Package width: 212 mm, Package depth: 55 mm, Package height: 148 mm

The Lindy 4 Port HDMI 2.0 18G Splitter with Audio is a multi-function solution for distributing high quality HDMI signals across 4 displays simultaneously from one source device, while extracting digital or analogue audio separately.

With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching quad display digital signage in retail scenarios, displaying sports across multiple screens in sports bars or distributing engaging multiscreen educational presentations at tradeshows. The splitter also has separate optical and 3.5mm audio ports to easily extract audio from HDMI to connect non-HDMI amplifiers or soundbars, ideal for supporting video with immersive multichannel audio.

The splitters also feature an integrated switch to downscale the input signal to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.

Ports & interfaces

Video port type: HDMI
Video out: 4x HDMI
HDMI version: 2.0
Video ports quantity: 5
Audio ports quantity: 2
Feature: DC-in jack

Features

Product colour: Black
Housing material: Metal
Maximum resolution: 4096 x 2160 pixels
HD type: 4K Ultra HD
Maximum refresh rate: 60 Hz
Feature: HDCP
LED indicators: Power

Power

Output voltage: 5 V
Output current: 1 A

Weight & dimensions

Width: 180 mm
Depth: 14.4 mm
Height: 63 mm

Packaging data

Package width: 212 mm
Package depth: 55 mm
Package height: 148 mm
Package weight: 228 g
Package type: Box

Packaging content

Feature: Manual
Feature: AC adapter included

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 20 - 90%

Logistics data

Harmonized System (HS) code: 85176990
