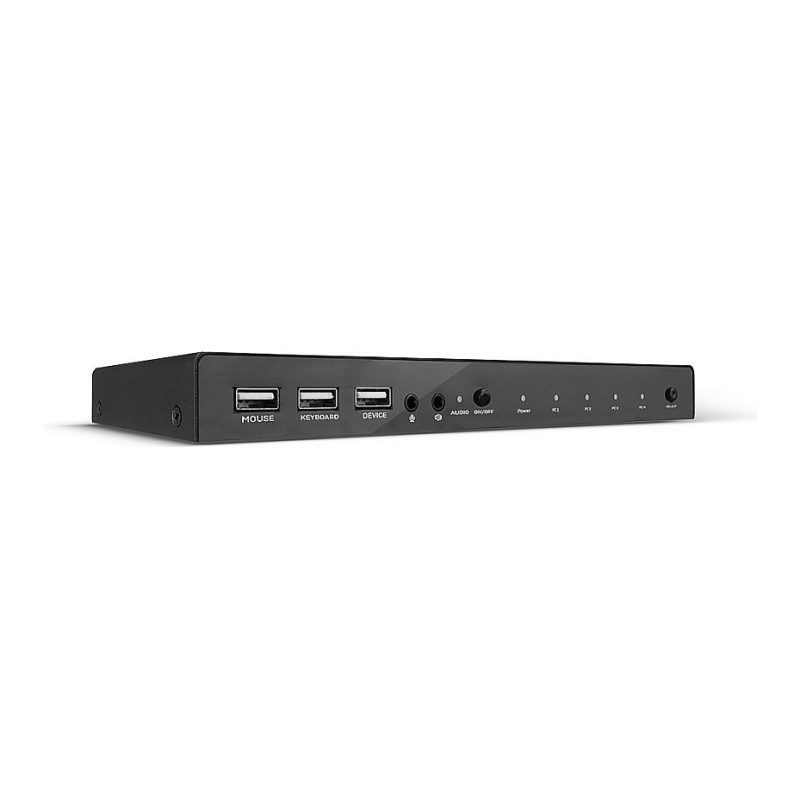

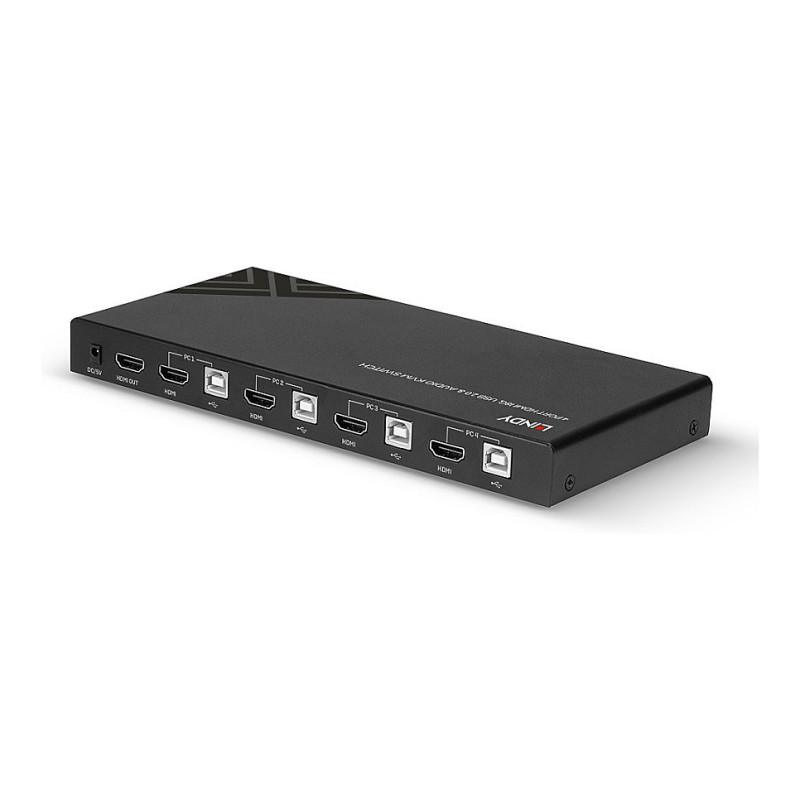

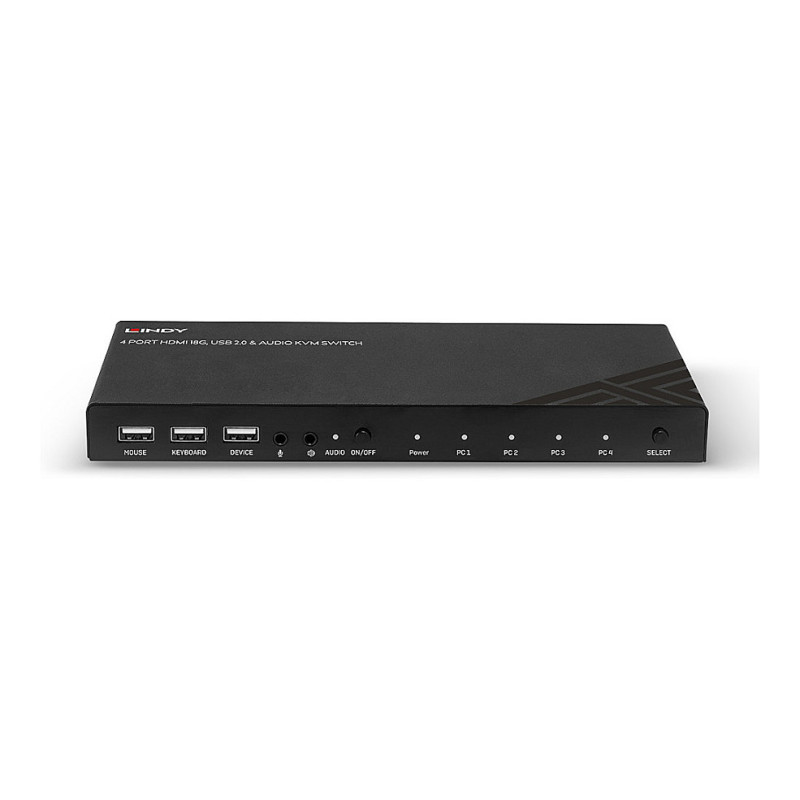

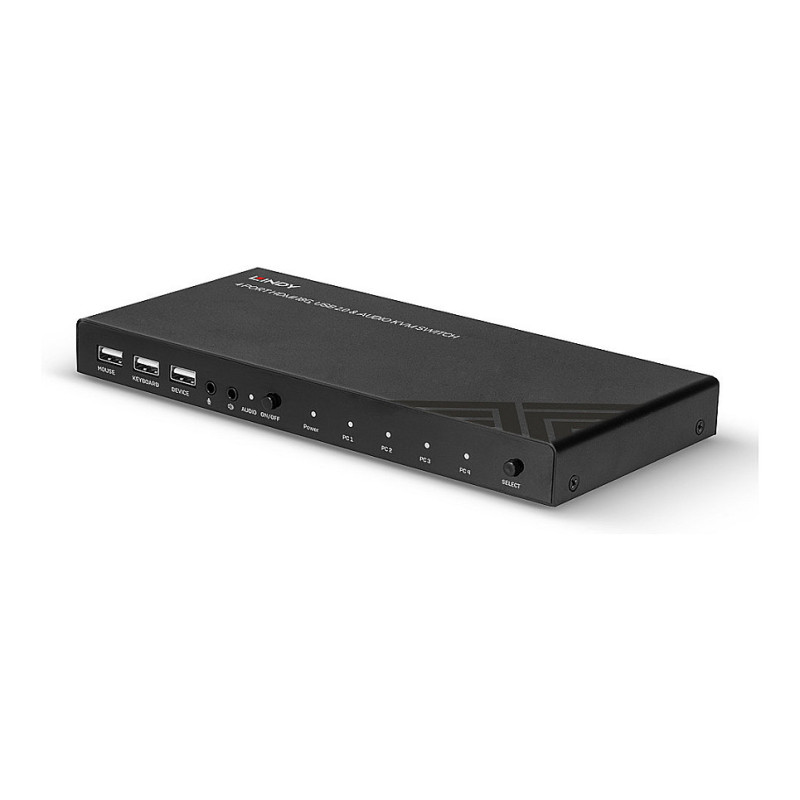

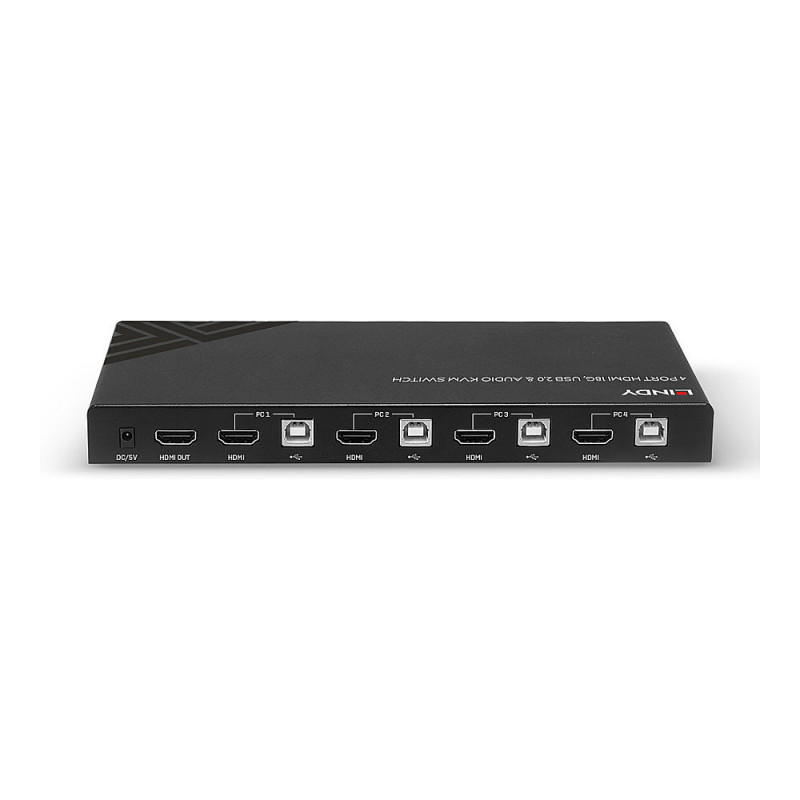

Lindy 32810 KVM switch

Lindy KVM Switch HDMI 18G, USB 2.0 Audio, 4 Port. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, LED indicators: Status. Input voltage: 5 V, Output current: 2 A. Width: 231 mm, Depth: 108 mm, Height: 23 mm
Controls four HDMI equipped PCs from a single keyboard, mouse and monitor
Switch via the unit's push button or keyboard hotkeys
Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4 with HDR
3.5mm stereo audio ports to connect microphone, speakers or headphones
2 year warranty
A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.
The Lindy 4 Port HDMI 4K60, USB 2.0 Audio KVM Switch is a compact solution for providing access and control over four HDMI equipped PCs from a single keyboard, mouse and monitor setup.
Support for resolutions up to 4K Ultra HD 60Hz ensures the highest image quality, perfect for demanding graphical content in gaming setups, video editing or quad system control workstations. The additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut. The audio output ports on the main unit also allow users to connect headphones or speakers to add immersive 2CH audio and a microphone, pressing the Audio On/Off button on the front panel mutes these devices. These ports are not connected to the HDMI signal but to a built-in USB converter while an additional USB device such as a printer, scanner or hard drive can be connected to the additional USB port on the front panel.
The KVM switch features two switching options including push buttons on the unit and keyboard hotkeys provide simple, reliable control for the user, great for both professional and first time users.

Ports interfaces

Number of computers controlled: 4
Keyboard port type: USB
Mouse port type: USB
Video port type: HDMI
HDMI ports quantity: 4
HDMI version: 2.0
USB 2.0 Type-B ports quantity: 4
Console ports: 3.5mm headphone, HDMI, USB A
Console USB ports quantity: 3
Audio connections: Yes
Headphone outputs: 2

Performance

HD type: 4K Ultra HD
Maximum resolution: 4096 x 2160 pixels
Video bandwidth: 60 Hz
HDCP: Yes

Design

Rack mounting: No
Product colour: Black
Housing material: Metal
LED indicators: Status
Push button: Yes
Hot keys: Yes
Certification: CE, UKCA, FCC, RoHS, REACH California Proposition 65

Display

Built-in display: No

Power

Input voltage: 5 V
Output current: 2 A

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 5 - 80%

Weight dimensions

Width: 231 mm
Depth: 108 mm
Height: 23 mm
Weight: 689 g

Packaging data

Package width: 292 mm
Package depth: 238 mm
Package height: 55 mm
Package weight: 988 g
Package type: Box

Packaging content

Cables included: DC
Quick installation guide: Yes
Manual: Yes

Logistics data

Harmonized System (HS) code: 85176200
