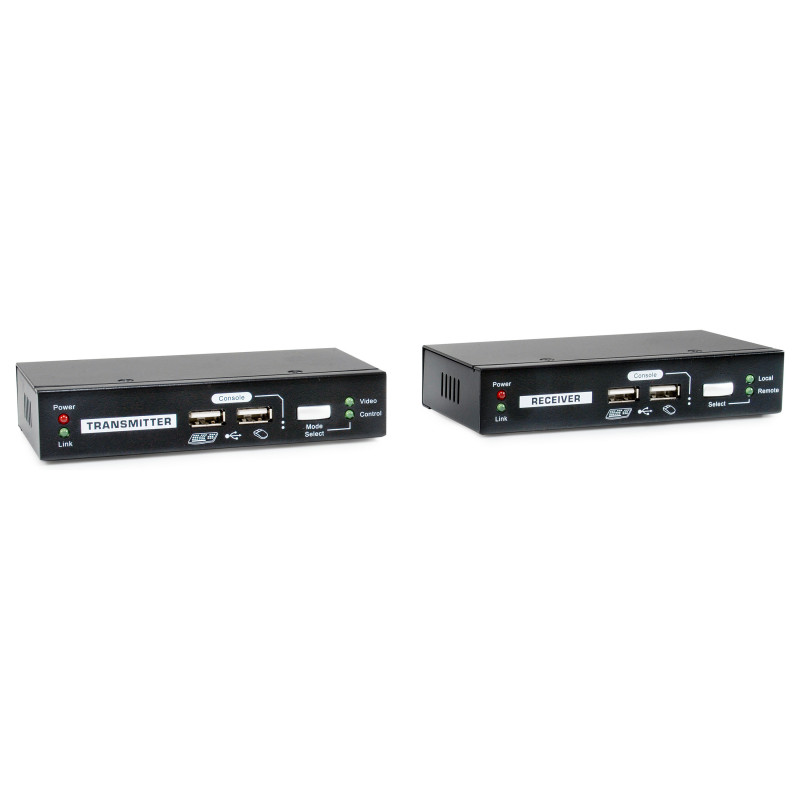

LevelOne KVM-9036 KVM extender

LevelOne KVM over Cat.5 Extender. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 100 m. Transmitter video port type: VGA, Transmitter local video port type: VGA, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: VGA, Receiver local keyboard/mouse port type: USB. USB port type: USB Type-B. Transmitter width: 13.1 cm, Transmitter depth: 6.5 cm, Transmitter height: 2.6 cm

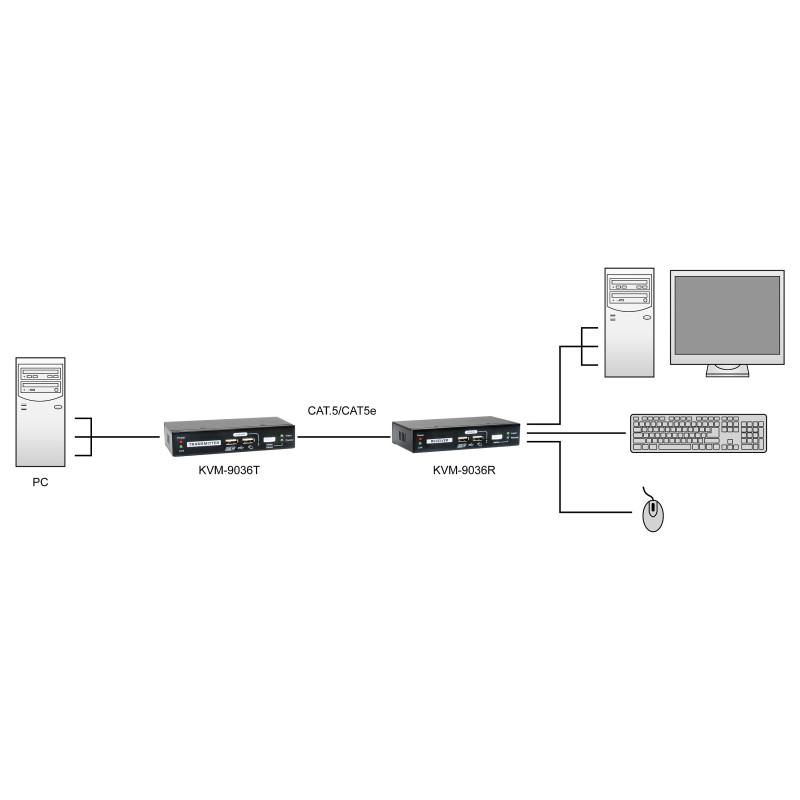

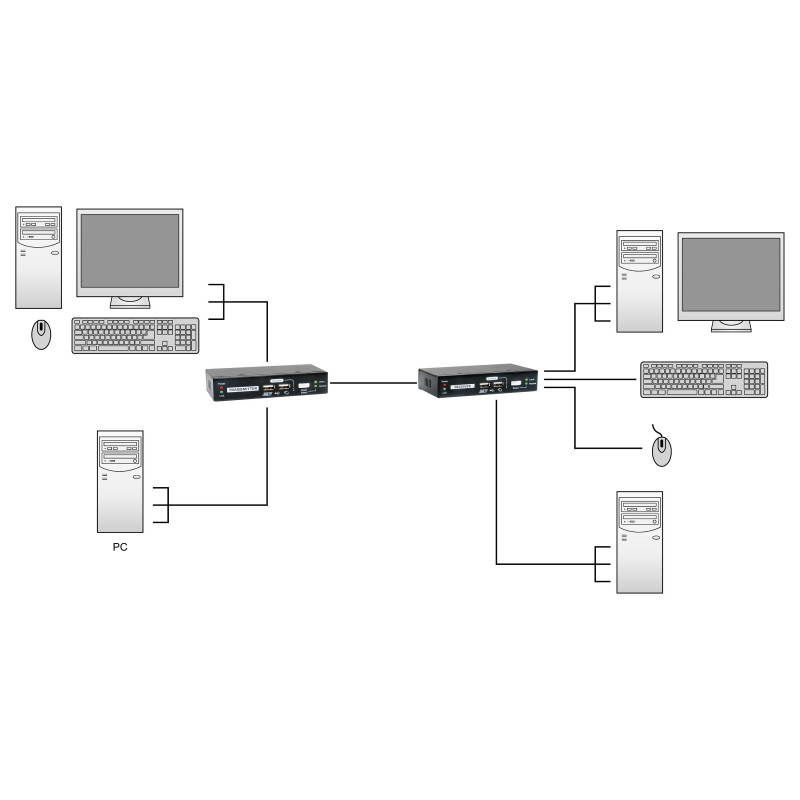

The KVM-9036 Cat.5 USB Extender Kit is a pair of devices (Transmitter and Receiver) for highdensity applications where you want full use of the keyboard, mouse, and monitor, but there is no room for a server nearby.It allows users to access a computer, server or KVM switch up to 100m away. Or for applications where you want to put all computers in a safe place, all that is needed on the desktop is a single keyboard, monitor, and mouse.KVM-9036 has auto-adjustable RGB gain/delay control capability for superior video performance.

Features

Type: Transmitter & receiver
Connectivity technology: Wired
Maximum transfer distance: 100 m
Cable types supported: Cat5, Cat5e
Maximum analog resolution: 1920 x 1200 pixels
KVM port selection: Hotkeys, Push-buttons
Feature: On Screen Display (OSD)
Product colour: Black
Material: Metal
Feature: Plug and Play
LED indicators: Yes

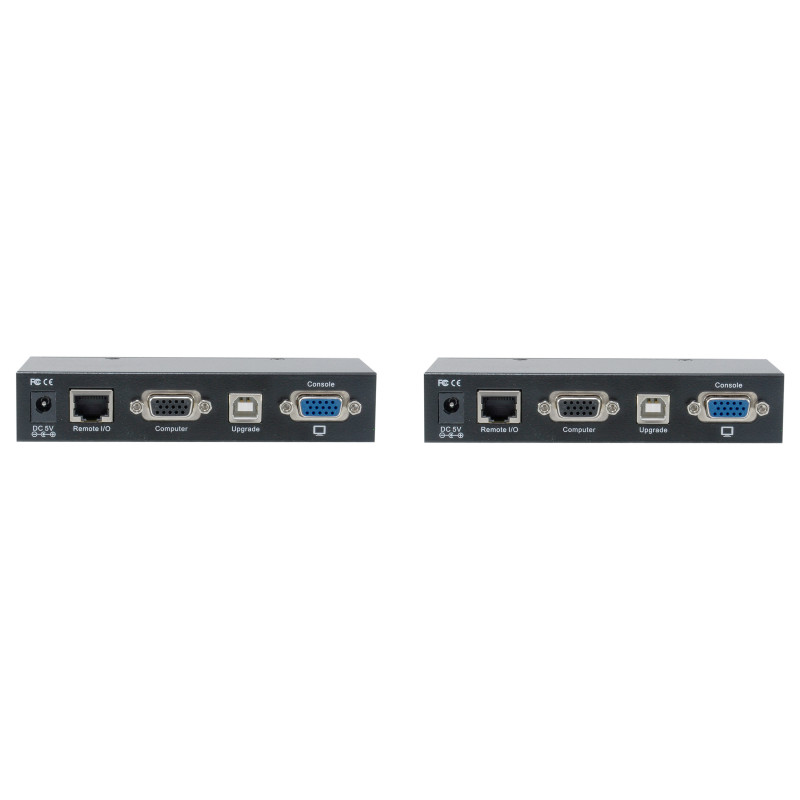

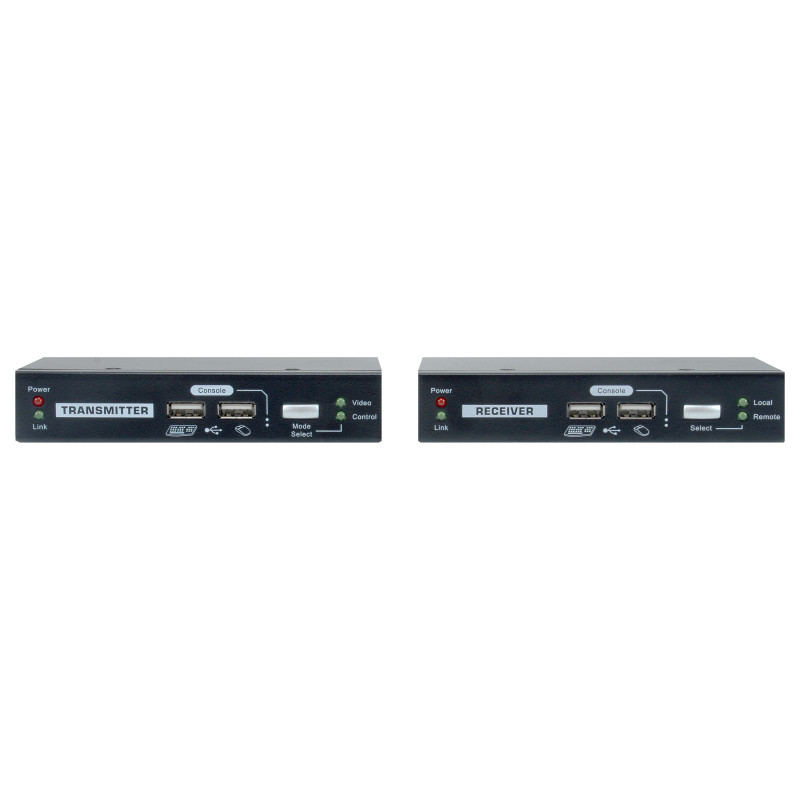

Transmitter

Transmitter video port type: VGA
Feature: Transmitter local video port
Transmitter local video port type: VGA
Transmitter local keyboard/mouse port type: USB
RJ-45 ports quantity (transmitter): 1

Receiver

Receiver local video port type: VGA
Receiver local keyboard/mouse port type: USB
RJ-45 ports quantity (receiver): 1

Ports & interfaces

USB port type: USB Type-B
USB 2.0 ports quantity: 2

Weight & dimensions

Transmitter width: 13.1 cm
Transmitter depth: 6.5 cm
Transmitter height: 2.6 cm
Transmitter weight: 586 g
Receiver width: 13.1 cm
Receiver depth: 6.5 cm
Receiver height: 2.6 cm
Receiver weight: 586 g

Packaging data

Package width: 204 mm
Package depth: 176 mm
Package height: 139 mm
Package weight: 1.69 kg

Packaging content

Feature: AC adapter included
Cables included: KVM
Feature: Quick installation guide

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -5 - 65 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%

Sustainability

Feature: Sustainability compliance

Other features

Feature: Firmware upgradeable
Compliance certificates: CE, Federal Communications Commission (FCC), UKCA, WEEE

Logistics data

Country of origin: Taiwan
Pallet gross length: 94 cm
Pallet gross width: 135 cm
Pallet gross height: 11.5 cm
Master (outer) case width: 440 mm
Master (outer) case length: 370 mm
Master (outer) case height: 430 mm
Master (outer) case gross weight: 21.3 kg
Products per master (outer) case: 12 pc(s)
