LevelOne KVM-8901DE rack console

LevelOne 19" Widescreen LCD KVM Rack Console, DE Keyboard. Display diagonal: 48.3 cm (19"), Display resolution: 1440 x 900 pixels, Display: TFT. Keyboard language: German, Keyboard layout: QWERTZ. Certification: CE, FCC, REACH. Power consumption (typical): 19.2 W. Other operating systems supported: Solaris 8, Solaris 9

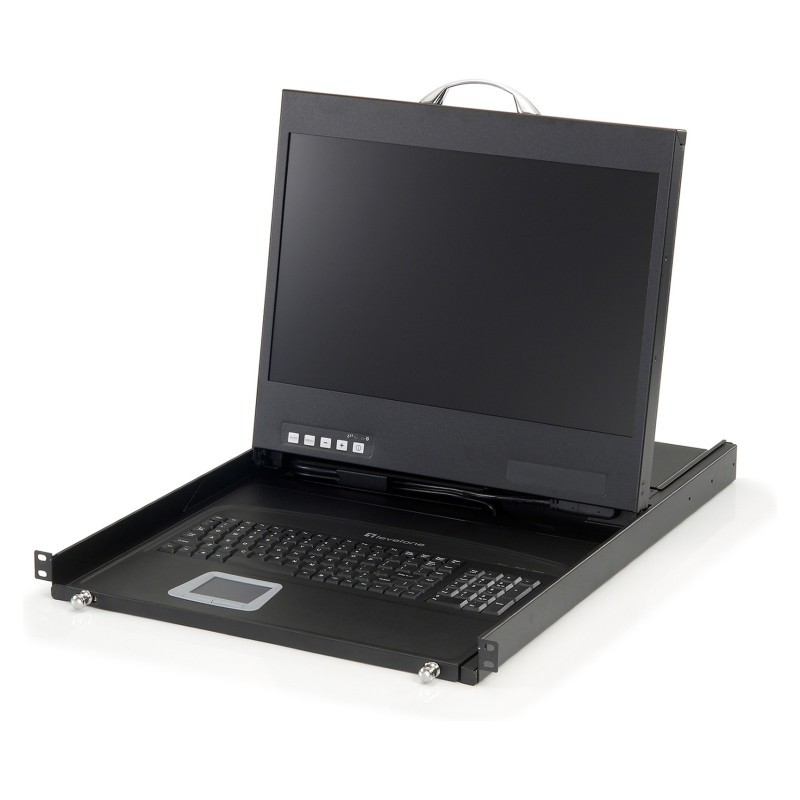

The LevelOne KVM-8901 is a compact and modular KVM console drawer designed to be used in a standard 19-inch server rack. It offers connectivity to 8 or 16 computers by depending on the LevelOne KVM module that is installed (KCM-0832 or 1632). It features a 19-inch retractable LCD(19:10) high video quality up to 1440 x 900 monitor and keyboard with built-in touchpad. Users can daisy chain up to eight units of KCM-0832/1632 together, providing control of up to 128 computers in total, support Auto Scan Mode for monitoring PCs and flexible and easy PC selection via KVM-OSD manual or hot Keys.
Key Features
- Modular design for optional KVM switches, enabling management of up to 128 computers
- Supports video resolutions up to 1440 x 900
- Dual Interface for PS/2 and USB keyboard/mouse
- Easy switching between computers with keyboard hotkeys/On Screen Display (OSD) menus
- Auto scan mode for non-stop monitoring of selected computer
- Password protection prevents unauthorized access
- Multi-platform support: Windows, Mac OS X, Sun, Linux

Display

Display diagonal: 48.3 cm (19")
Display resolution: 1440 x 900 pixels
Display: TFT
Display brightness: 250 cd/m²
Contrast ratio (typical): 500:1
Viewing angle, horizontal: 85°
Viewing angle, vertical: 85°
On Screen Display (OSD): Yes
Aspect ratio: 16:10
Display type: LCD
Display number of colours: 16.78 million colours

Technical details

Product colour: Black
Operating relative humidity (H-H): 10 - 90%
Relative humidity: 10 - 90%
Console port: VGA
Daisy chain: Yes
Compliance certificates: RoHS
Country of origin: Taiwan

Keyboard

Keyboard number of keys: 105
Built-in touchpad: Yes
Keyboard language: German
Keyboard layout: QWERTZ

Certificates

Certification: CE, FCC, REACH

Power

Power consumption (typical): 19.2 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 60 °C

System requirements

Windows operating systems supported: Yes
Mac operating systems supported: Yes
Linux operating systems supported: Yes
Other operating systems supported: Solaris 8, Solaris 9

Weight dimensions

Width: 482 mm
Height: 44 mm
Depth: 610 mm
Weight: 20 kg

Packaging data

Package weight: 1.3 kg
Package dimensions (WxDxH): 600 x 210 x 780 mm
Package width: 742 mm
Package depth: 576 mm
Package height: 167 mm

Packaging content

Cables included: AC, KVM
Screws included: Yes
Quick installation guide: Yes
Manual: Yes
Package type: Box
