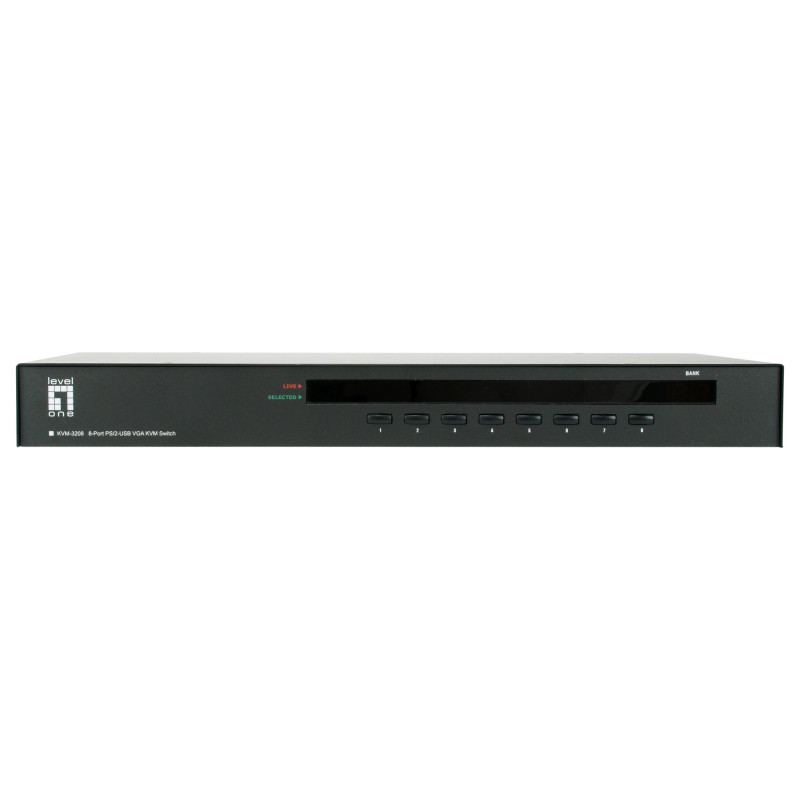

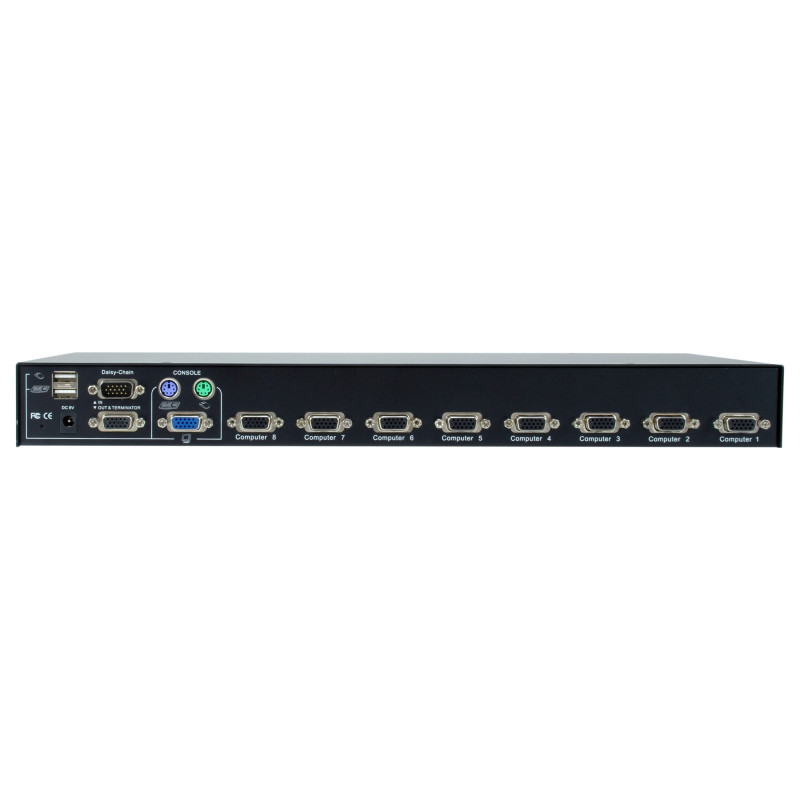

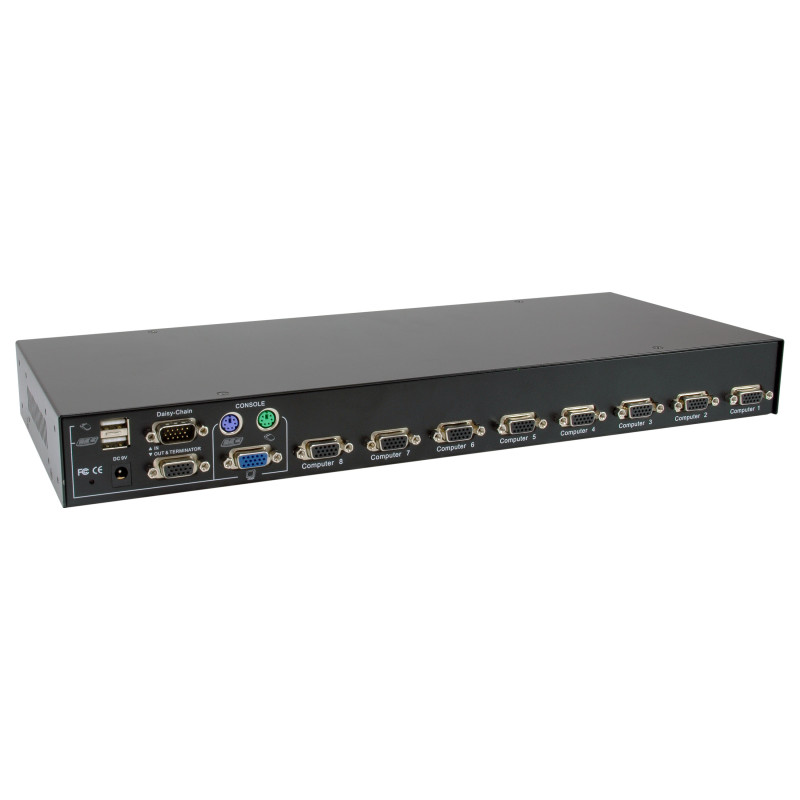

LevelOne KVM-3208 KVM switch

LevelOne 8-Port PS/2-USB VGA KVM Switch. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. Maximum resolution: 2048 x 1536 pixels, Scan interval: 10,15,20,25,30,35,40,45,50,55,60,70,80,90 s, Auto scan delay (min): 10 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, Input voltage: 9 V, Input current: 1 A. Windows operating systems supported: Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic,...

The LevelOne KVM-3208 8-port combo KVM switch enables users to control and manage a server farm or computers connected to the KVM switch with either the local console or remote console port.Local ConsoleThe KVM-3208 Combo KVM Switch is easy to connect to a keyboard and mouse with a VGA monitor through the local console port. This enables a user to control systems connected to the KVM switch directly.Remote ConsoleIn order to make use of the remote control feature.

Ports & interfaces

Number of computers controlled: 8
Keyboard port type: USB, PS/2
Mouse port type: USB, PS/2
Video port type: VGA
VGA (D-Sub) ports quantity: 8
Console ports: PS/2, USB A, VGA (D-Sub)
Console USB ports quantity: 2
PS/2 ports quantity: 2
Feature: DC-in jack

Performance

Maximum resolution: 2048 x 1536 pixels
Scan interval: 10,15,20,25,30,35,40,45,50,55,60,70,80,90 s
Auto scan delay (min): 10 s
Auto scan delay (max): 95 s
Feature: Daisy chain
Maximum operating distance: 30 m

Design

Feature: Rack mounting
Rack capacity: 1U
Product colour: Black
Housing material: Metal
Feature: Cascadable
LED indicators: Power
Feature: Push button
Feature: Hot keys

Display

Feature: On Screen Display (OSD)

Power

Power source: DC
Input voltage: 9 V
Input current: 1 A
Feature: External power adapter

System requirements

Linux operating systems supported: Yes
Mac operating systems supported: Yes

Sustainability

Feature: Sustainability compliance
Compliance certificates: CE, Federal Communications Commission (FCC), UKCA, WEEE

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 0 - 85%
Storage relative humidity (H-H): 0 - 90%

Weight & dimensions

Width: 410 mm
Depth: 165 mm
Height: 44.5 mm
Weight: 1.84 kg

Packaging data

Package width: 567 mm
Package depth: 245 mm
Package height: 106 mm
Package weight: 2.88 kg
Package type: Box

Packaging content

Feature: Manual
Feature: AC adapter included

Technical details

Pallet gross length: 110 cm
Pallet gross width: 120 cm
Pallet height (air): 11.5 cm

Logistics data

Master (outer) cases per pallet (air): 24 pc(s)
Master (outer) case width: 585 mm
Master (outer) case length: 270 mm
Master (outer) case height: 545 mm
Master (outer) case gross weight: 15.2 kg
Products per master (outer) case: 5 pc(s)
Country of origin: Taiwan
