KVM Extender - LINDY Cat.6A HDMI 4K60 and Type C HDBaseT 3.0 KVM Extender 70 m
Product reference:
14-4002888383462
Extend HDMI and USB signals up to 70m using HDBaseT technology supporting resolutions up to 3840x2160@60Hz. The device offers 60W Power Delivery Type C, bi-directional IR and audio isolation.
KVM Extender - LINDY Cat.6A HDMI 4K60 and Type C HDBaseT 3.0 KVM Extender 70 m
Product reference:
14-4002888383462
Extend HDMI and USB signals up to 70m using HDBaseT technology supporting resolutions up to 3840x2160@60Hz. The device offers 60W Power Delivery Type C, bi-directional IR and audio isolation.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

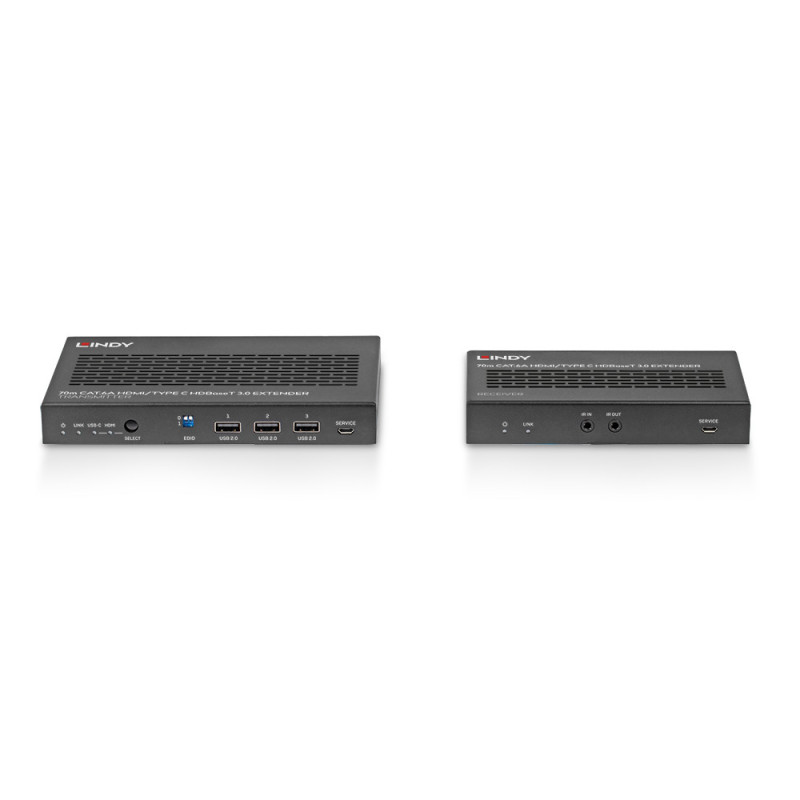

LINDY Cat.6A HDMI 4K60 and Type C HDBaseT 3.0 KVM Extender 70 m
Extends HDMI and USB signals up to 70m using HDBaseT technology, supporting resolutions up to 3840x2160@60Hz. Features include 60W power delivery via Type-C, two-way IR control, and audio isolation.
- Supports HDMI® 4K resolution up to 3840x2160@60Hz with 18Gbps bandwidth.
- Extends signal up to 70 m (229.66 ft) using Cat.6A cable, ideal for long-range setups.
- Includes two-way IR control and audio isolation for a variety of multimedia applications.
- A multi-angle power supply and mounting accessories are included for easy installation.
Features | |
|---|---|
| Product type | AV Extender |
| Model | 70m Cat.6A HDMI 4K60 Type C HDBaseT 3.0 KVM Extender |
Specifications | |
| AV interface | HDMI®, Type-C |
| Interface standard | HDMI 2.0, USB 2.0 |
| Maximum distance | 70m (229.66 feet) at 3840x2160@30Hz |
| Maximum resolution | 3840x2160@60Hz |
| HDCP support | 2.3 |
| EDID bandwidth | Dip-switch with presets and copy function |
| IR support | 20 - 60KHz |
| Transmission protocol | HDBaseT 3.0 |
| Chipset | VS300R |
| Power requirements | 24VDC 3.75A |
Connectors | |

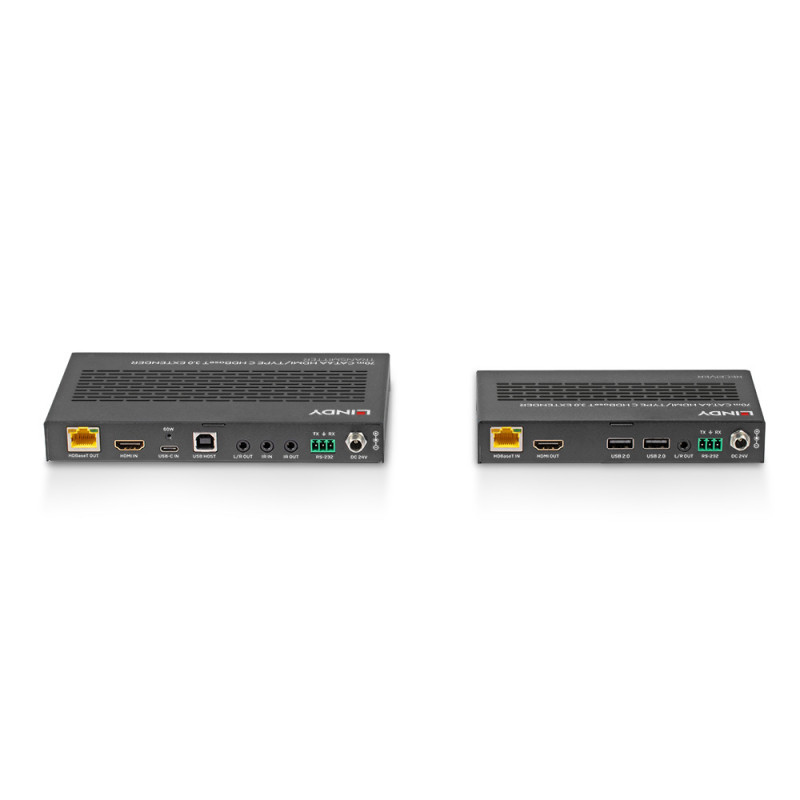

| Sender input | HDMI® Type A, USB Type C, USB Type B, 3.5mm IR |
| Receiver output | HDMI® Type A, 3.5mm IR, 3.5mm audio, 2x USB Type A |
Physical properties | |
| Dimensions (sender) | 170x102x22mm (6.69x4.02x0.87in) |
| Dimensions (receiver) | 144x78x23mm (5.67x3.07x0.91in) |
| Housing | Metal |
| Net weight | 1.9Kg (4.19lb) |
| Working temperature | 0°C - 40°C (32°F - 104°F) |
Miscellaneous | |
| Product compliance | CE, UKCA, FCC, RoHS, REACH California Proposition 65 |
www.lindy.lt
| Height | 75 mm |
| Length | 220mm |
| Weight | 2180 grams |
| Width | 290 mm |
