KVM Extender - LINDY Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT KVM Extender 100 m
Product reference:
14-4002888383431
This HDBaseT adapter extends HDMI resolution up to 100m, supporting 4K60 and various audio formats. It also features USB 2.0, IR support, RS-232, and a maximum bandwidth of 18Gbps.
KVM Extender - LINDY Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT KVM Extender 100 m
Product reference:
14-4002888383431
This HDBaseT adapter extends HDMI resolution up to 100m, supporting 4K60 and various audio formats. It also features USB 2.0, IR support, RS-232, and a maximum bandwidth of 18Gbps.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

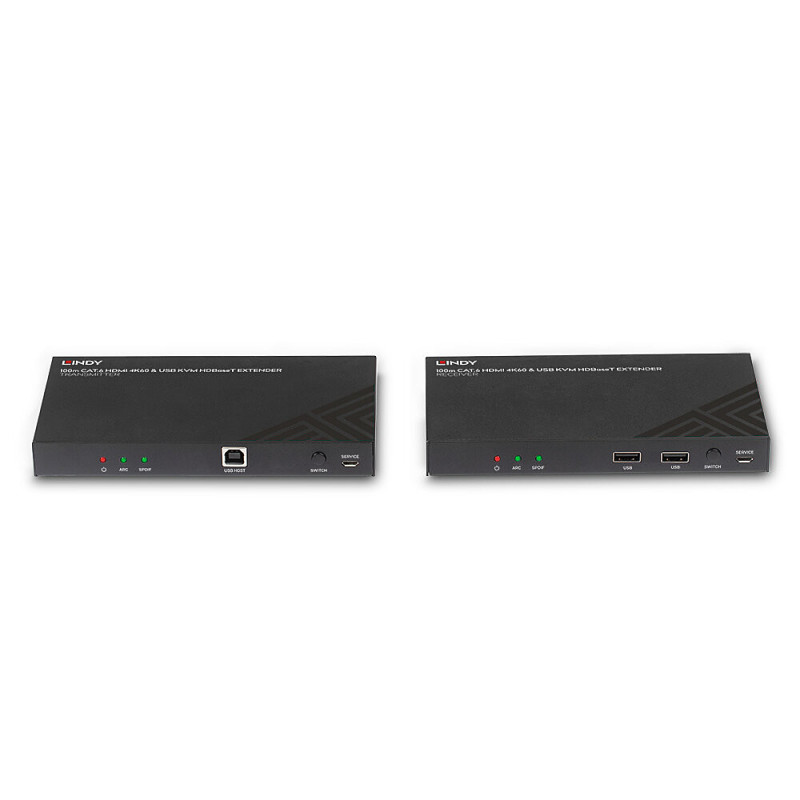

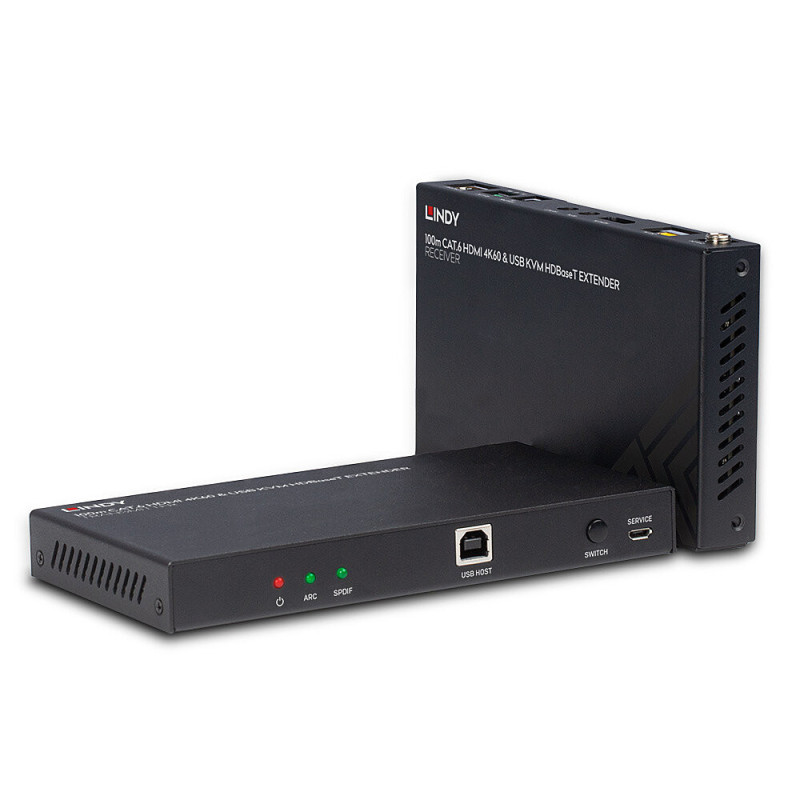

LINDY Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT KVM Extender 100 m
Extends HDMI resolution up to 100m via HDBaseT, supporting 4K60 and audio formats. Features: USB 2.0, IR support, RS-232 and maximum bandwidth 18Gbps.
- Supports 4K resolution 60Hz with a maximum distance of 100 m via Cat.6 cable.
- There is HDMI audio pass-through and separate audio connections for a variety of audio options.
- IR support and a RS-232 serial interface are included for enhanced controllability.
- Compact metal housing with a robust design, suitable for a variety of environments.
Features | |
|---|---|
| Product type | AV Extender |
| Model | 100m Cat.6 HDMI 4K60, Audio, IR RS-232 HDBaseT KVM Extender |
Specifications | |
| AV interface | HDMI® |
| Interface standard | HDMI 2.0, USB 2.0 |
| Supported bandwidth | 18Gbps |
| Maximum distance | 70m (3840x2160@60Hz), 100m (1920x1080@60Hz) |
| Maximum resolution | 3840x2160@60Hz 4:4:4 8bit |
| HDCP support | 2.2 |
| EDID transmission | Yes |
| Supported audio format | HDMI® Audio Transmission, TosLink (Optical) to 5.1Ch, 3.5mm to 2.0Ch |
| IR support | 20 - 60KHz |
| Serial interface | RS-232 |
| Transmission protocol | HDBaseT |
| Transmission medium | 1 x Cat.6 |
| Chipset | VS2310TX-A1 |
| Special features | HDMI® Loop Out Port, PoC (Power over Cat.6), ARC support |
Connectors | |

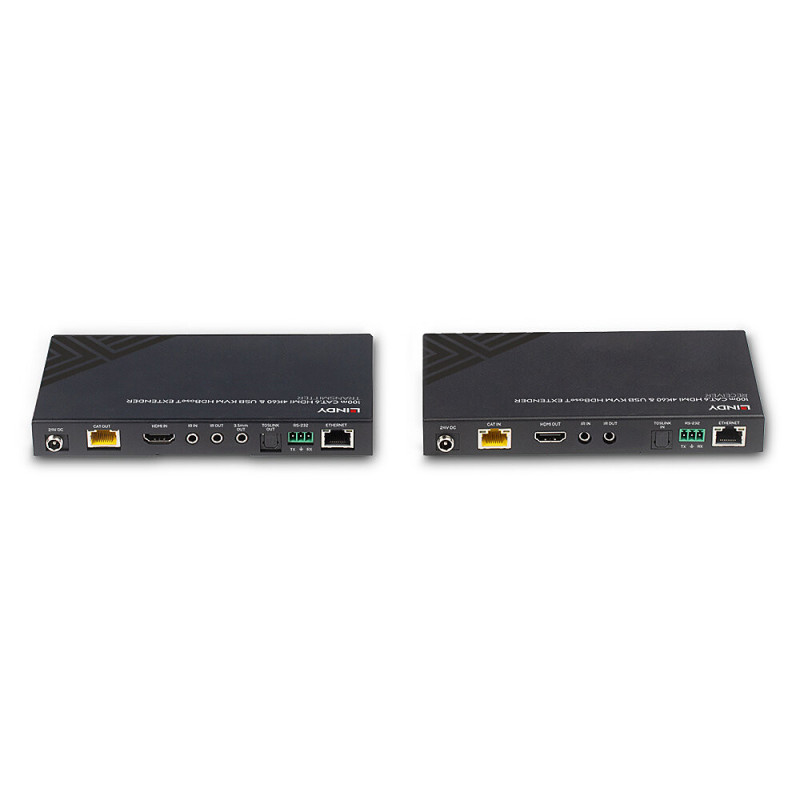

| Sender input | HDMI® Type A (Female), USB Type B (Female), 3.5mm IR (Female) |
| Sender output | RJ-45 (Female), TosLink (Optical) (Female), 3.5mm Audio (Female), 3.5mm IR (Female) |
| Receiver input | RJ-45 (Female), Toslink (Optical) (Female), 3.5mm IR (Female) |
| Receiver output | HDMI® Type A (Female), 2 x USB Type A (Female), 3.5mm IR (Female) |
| Bidirectional connections | RS-232 3-Pin Terminal Block, RJ-45 Ethernet (Female) |
| Power supply | 5.5/2.1mm |
Physical properties | |
| Dimensions (approximate) | 165x88x20mm (6.5x3.46x0.79in) per device |
| Housing | Metal |
| Net weight | 0.335kg (0.74lb) |
| Working temperature | 0°C - 40°C (32°F - 104°F) |
| Storage temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 20 - 90% RH (non-condensing) |
| Power requirements | 24VDC 1A |
| Color | Black |
Miscellaneous | |
| Packaging type | Cardboard box |
| Packaging dimensions | 265x70x210mm (10.43x2.76x8.27in) |
| Total weight | 1.29kg (2.84lb) |
| Product compliance | CE, UKCA, FCC, RoHS, REACH California Proposition 65 |
www.lindy.lt
| Height | 70mm |
| Length | 265 mm |
| Weight | 1220 grams |
| Width | 210 mm |
