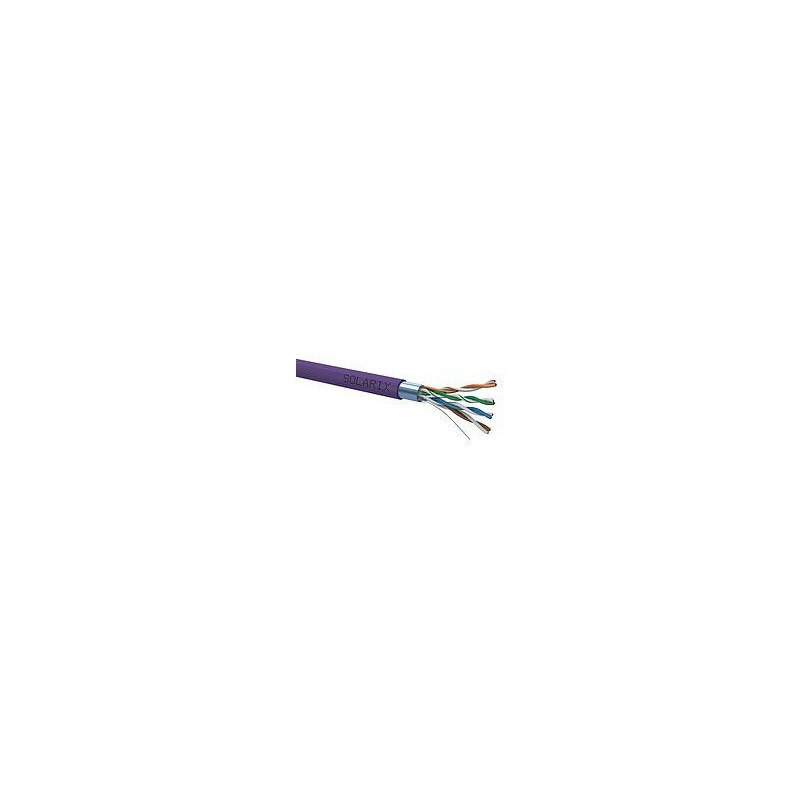

Kábel SOLARIX Cat5E FTP LSOH 305 m

The installation cable Solarix with the designation SXKD-5E-FTP-LSOH is a reliable cable of category 5E, which is intended for the operation of ethernet protocols, including 2.5GBASE-T and 5GBASE-T*. The construction cable is F/UTP, sheathed type LSOH s triedou reactions na fire D ca-s1,d2,a1. The cable is made of high quality copper wire with pure copper 99.97%. The cable meets the requirements of international standards ISO/IEC 11801, EN 50173 and ANSI/TIA 568.2-D without any problems. In the case of CPR (nariadenie EÚ ch. 305/2011) the cable is tested in the independent laboratory FORCE TECHNOLOGY in the system of assessment of properties AVCP 3. As well as the other cables Solarix, the cable SXKD-5E-FTP-LSOH has a measurement of 1 mv in the range from 0 to 305 m. The cable is supplied in a highly resistant three-layer laminated cardboard box (every color is different according to the type of cable), which contains all the necessary product information, including barcodes, the production batch, a list of the most important technical parameters.
Category: CAT5E
Supported protocols: 2.5/5GBASE-T a below
Covers: foil around all 4 pairs
Wide band: 100 MHz
Type of conductor size: copper wire 0.50 mm ± 0.005 mm
Insulation diameter of conductor with insulation: HDPE 1.0 mm
Trieda reaction to fire; typ shell: D ca -s1,d2,a1; LSOH
Sheath color: fialová RAL 4005
Cable diameter: 6, 2 mm
Weight: 40 kg/km
NVP: 68%
Propagation delay: 535 ns/100 m
Delay skew: ?45 ns/100 m
Storage temperature: -20 °C to 60 °C
Prevádzková temperature: -20 °C to 60 °C
Installation temperature: 0 °C to 50 °C
Packaging: 305 m, three-layer cardboard box
Rozmery balenia (height x depth x width): 420 mm x 420 mm x 215 mm
Packaging per pallet: 30 boxes (large pallet), 24 boxes (small pallet)
