Inter-Tech KVM-1708 rack console

Inter-Tech KVM-1708. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, Display brightness: 300 cd/m². Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. Power supply type: 30 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 47/63 Hz. Width: 480 mm, Height: 44 mm, Depth: 610 mm. Package weight: 19 kg, Package width: 620 mm, Package depth: 720 mm

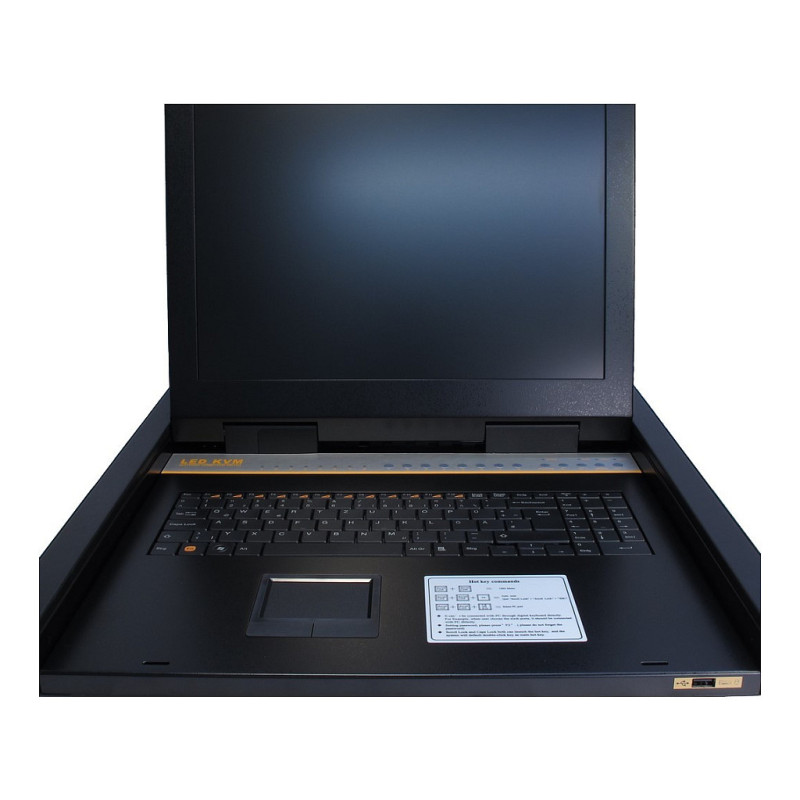

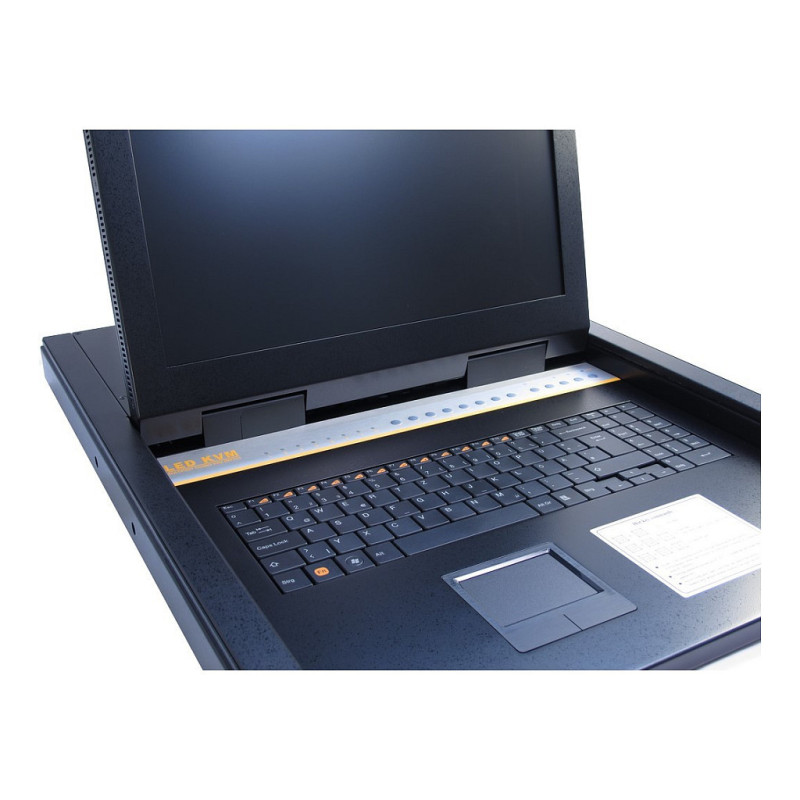

The KVM-1708 LED is a professional 8-Port KVM-Console with integrated extractable keyboard and 17" LED monitor.

The KVM-1708 LED finds it´s usage in server racks to switch and manage several installed servers.
The in-build password protection prevent unauthorized access.

Display

Display diagonal: 43.2 cm (17")
Display resolution: 1280 x 1024 pixels
Display brightness: 300 cd/m²
Contrast ratio (typical): 1000:1
Feature: On Screen Display (OSD)

Technical details

Material: Steel
Mean time between failures (MTBF): 120000 h
Product colour: Black
Operating relative humidity (H-H): 0 - 80%
Number of computers controlled: 256

Ports & interfaces

Keyboard port type: USB, PS/2
Mouse port type: USB, PS/2
Video port type: VGA
Feature: DC-in jack

Keyboard

Keyboard number of keys: 104
Feature: Built-in touchpad

Power

Power supply type: 30 W
AC adapter input voltage: 100 - 240 V
AC adapter frequency: 47/63 Hz

Operational conditions

Operating temperature (T-T): -10 - 60 °C
Storage temperature (T-T): -30 - 70 °C

Weight & dimensions

Width: 480 mm
Height: 44 mm
Depth: 610 mm
Weight: 13 kg
Mounting depth (min): 80 cm
Mounting depth (max): 100 cm

Packaging data

Package weight: 19 kg
Package width: 620 mm
Package depth: 720 mm
Package height: 200 mm

Packaging content

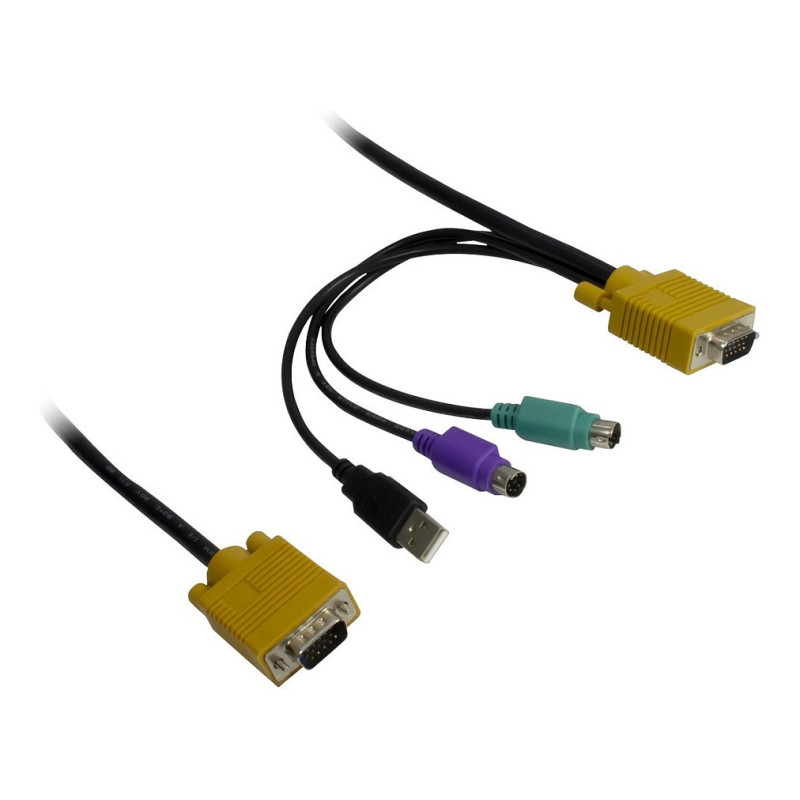

Cables included: AC, KVM
Feature: Manual
Feature: AC adapter included
